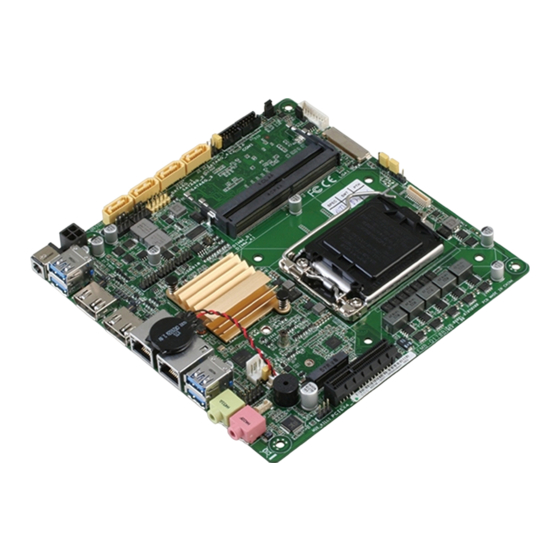

Aaeon EMB-Q170B Manual

Industrial motherboard
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EMB-Q170B

Advertisement

Table of Contents
loading

Related Manuals for Aaeon EMB-Q170B

Summary of Contents for Aaeon EMB-Q170B

  • Page 1 EMB-Q170B...
  • Page 2 E15309 Revised Edition V4 March 2019 Copyright Notice This document is copyrighted, 2019. All rights are reserved. The original manufacturer reserves the right to make improvements to the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any means without the prior written permission of the original manufacturer.

  • Page 3: Table Of Contents

    Contents Chapter 1: Product overview Package contents ................. 1-1 Features ..................1-1 1.3 Specifications ................1-2 Chapter 2: Motherboard information Before you proceed ..............2-1 Motherboard layout ..............2-2 Screw size ..................2-4 2.3.1 Component side .............. 2-4 2.3.2 Solder side ..............2-5 Central Processing Unit (CPU) ...........
  • Page 4 3.3.9 Power Management ............3-10 3.3.10 Digital IO Port Configuration ......... 3-11 Chipset menu ................3-11 3.4.1 System Agent (SA) Configuration ......... 3-11 Security menu ................3-12 3.5.1 Administrator Password ..........3-12 3.5.2 User Password .............. 3-12 Boot menu .................. 3-13 Boot Configuration ............... 3-13 Save & Exit menu ............... 3-14 Appendix Notices .......................A-1...

  • Page 5: Chapter 1: Product Overview

    Chapter 1 Product overview Package contents Check your industrial motherboard package for the following items. 1 x Industrial Motherboard 1 x SATA cable 1 x SATA power cable 1 x I/O Shield 1 x Support CD If any of the above items is damaged or missing, contact your distributor or sales representative immediately.

  • Page 6: Specifications

    12V DC Form Factor Mini ITX Form Factor, 6.7”x 6.7” (170mm x 170mm) Weight 1.1 lb (0.5 Kg) Operating temperature F~140 F (0 C~60 Operating humidity 0%~90% relative humidity, non-condensing Certificate CE/FCC (Class A) (continued on the next page) EMB-Q170B...
  • Page 7 Storage 4 x SATA 6.0Gb/s, supports RAID 0/1/5/10 1 X M.2 (M-key), (22 x 80mm) (PCIex4/SATA) 4-pin SATA power (5V, 12V @1A) 4 x USB 3.0 ports (Rear IO) 6 x USB 2.0 ports (internal pin header) Display I/O 2 x DP, 1 x eDP, 1 x LVDS Audio I/O Mic-in, Line-out, AAFP, internal speaker LAN I/O...
  • Page 8 8.1 32-bit / 64-bit (not supported when using a Kaby Lake ® processor) Windows 10 64-bit ® Linux Fedora Accessories 1 x SATA cable 1 x SATA power cable 1 x I/O shield 1 x Support DVD NOTE: Specifications are subject to change without notice. EMB-Q170B...

  • Page 9: Chapter 2: Motherboard Information

    Chapter 2 Motherboard information Before you proceed Take note of the following precautions before you install motherboard components or change any motherboard settings. CAUTION! • Unplug the power cord from the wall socket before touching any component. • Before handling components, use a grounded wrist strap or touch a safely grounded object or a metal object, such as the power supply case, to avoid damaging them due to static electricity. • Hold components by the edges to avoid touching the ICs on them. • Whenever you uninstall any component, place it on a grounded antistatic pad or in the bag that came with the component.

  • Page 10: Motherboard Layout

    BIOS_P USB56 USB78 USB910 M.2(SOCKET3) Place this side LAN1 towards the rear Intel ® Q170 of the chassis Intel ® LAN2 219LM LGA1151 Intel ® 211AT USB3_12 SATA_PWR DIS_ME LINE-OUT BATTERY_H AAFP AMP_CON1 MIC-IN M.2(SOCKET3) PCIEX4_1 EMB-Q170B 22 21 EMB-Q170B...
  • Page 11 Connectors/Jumpers/Slots Page 12VDC connector (4-pin EATX_PWR2) 2-19 Chassis / CPU fan connectors (4-pin CPU_FAN1, 4-pin CHA_FAN1) 2-20 Serial ATA 6.0Gb/s connectors (7-pin SATA6G_1~4) 2-21 COM1 Ring/+5V/+12V selection (COM1_V1) 2-15 Serial port connectors (10-1 pin COM1) 2-25 Digital I/O connector (DIO) 2-26 SO-DIMM memory slots 2-11 Inverter backlight control mode selection (3-pin LJ3) 2-14 Inverter voltage selection (3-pin LJ2) 2-15 10. LVDS panel voltage selection (3-pin LJ1) 2-14 11. Backlight inverter power connector (5-pin INV1) 2-22 12. LVDS connector (40-pin LVDS1) 2-22 13. Embedded DisplayPort (40-pin eDP) 2-24 14. Clear RTC RAM (CLRTC) 2-13 15. Chassis intrusion connector (4-1 pin CHASSIS) 2-16 16. Intel LGA1151 CPU socket ®...

  • Page 12: Screw Size

    Screw size 2.3.1 Component side EMB-Q170B...

  • Page 13: Solder Side

    2.3.2 Solder side Chapter 2: Motherboard information...

  • Page 14: Central Processing Unit (Cpu)

    Central Processing Unit (CPU) The motherboard comes with a surface mount LGA1151 socket designed for the Intel 6th/7th Generation Core™ i7 / Core™ i5 / Core™ i3, Pentium and Celeron ® ® ® processors. EMB-Q170B EMB-Q170B CPU socket LGA1151 IMPORTANT: Unplug all power cables before installing the CPU. CAUTION! • Upon purchase of the motherboard, ensure that the PnP cap is on the socket and the socket contacts are not bent. Contact your retailer immediately if the PnP cap is missing, or if you see any damage to the PnP cap/socket contacts/motherboard components. The manufacturer will shoulder the cost of repair only if the damage is shipment/transit-related. • Keep the cap after installing the motherboard. The manufacturer will process Return Merchandise Authorization (RMA) requests only if the motherboard comes with the cap on the LGA1151 socket. • The product warranty does not cover damage to the socket contacts resulting from incorrect CPU installation/removal, or misplacement/loss/ incorrect removal of the PnP cap. EMB-Q170B...

  • Page 15: Installing The Cpu

    2.4.1 Installing the CPU CAUTION! Ensure that you install the correct CPU designed for LGA 1151 only. DO NOT install a CPU designed for LGA1155 and LGA1156 sockets on the LGA1151 socket. Chapter 2: Motherboard information...
  • Page 16 EMB-Q170B...

  • Page 17: Cpu Heatsink And Fan Assembly Installation

    2.4.2 CPU heatsink and fan assembly installation CAUTION! Apply the Thermal Interface Material to the CPU heatsink and CPU before you install the heatsink and fan if necessary. To install the CPU heatsink and fan assembly Chapter 2: Motherboard information...
  • Page 18 To uninstall the CPU heatsink and fan assembly EMB-Q170B 2-10...

  • Page 19: System Memory

    System memory This motherboard comes with two Double Data Rate 4 (DDR4) Small Outline Dual Inline Memory Modules (SO-DIMM) sockets. The figure illustrates the location of the DDR4 SO-DIMM sockets: DIMM_B1 DIMM_A1 EMB-Q170B EMB-Q170B 260-pin DDR4 SO-DIMM sockets 2.5.1 Installing a DIMM To install a SO-DIMM Chapter 2: Motherboard information 2-11...
  • Page 20 To remove a SO-DIMM EMB-Q170B 2-12...

  • Page 21: Jumpers

    Jumpers Clear RTC RAM (CLRTC) This jumper allows you to clear the Real Time Clock (RTC) RAM in CMOS. You can clear the CMOS memory of system setup parameters by erasing the CMOS RTC RAM data. The onboard button cell battery powers the RAM data in CMOS, which include system setup information such as system passwords. EMB-Q170B EMB-Q170B Clear RTC RAM To erase the RTC RAM: 1. Turn OFF the computer and unplug the power cord. 2. Move the jumper cap from pins 1-2 (default) to pins 2-3. Keep the cap on pins 2-3 for about 5~10 seconds, then move the cap back to pins 1-2. 3. Plug the power cord and turn ON the computer. 4. Hold down the <Del> key during the boot process and enter BIOS setup to reenter data. CAUTION! Except when clearing the RTC RAM, never remove the cap on CLRTC jumper default position. Removing the cap will cause system boot failure! NOTES: • If the steps above do not help, remove the onboard battery and move the jumper again to clear the CMOS RTC RAM data. After clearing the CMOS, reinstall the battery.
  • Page 22 LVDS panel voltage selector (3-pin LJ1) (Default) EMB-Q170B EMB-Q170B LVDS Panel Voltage Selection Setting Pins +3.3V (Default) Inverter Voltage Selection (3-pin LJ3) +12V (Default) EMB-Q170B EMB-Q170B Inverter Voltage Selection Setting Pins +12V +5V (Default) EMB-Q170B 2-14...
  • Page 23 Inverter Backlight Control Mode selection (3-pin J2) DC CTL PWM CTL (Default) EMB-Q170B EMB-Q170B Inverter Backlight Control Mode selection Setting Pins DC Voltage Control (Default) PWM Control COM1 Ring/+5V/+12V selector (6-pin COM1_V1) COM1_V1 +12V Ring (Default) EMB-Q170B EMB-Q170B COM1 Ring/+5V/+12V Selection Setting Pins +12V...
  • Page 24 Connect one end of the chassis intrusion sensor or switch cable to this connector. The chassis intrusion sensor or switch sends a high-level signal to this connector when a chassis component is removed or replaced. The signal is then generated as a chassis intrusion event. By default, the pin labeled “Chassis Signal” and “Ground” are shorted with a jumper cap. Remove the jumper caps only when you intend to use the chassis intrusion detection feature. CHASSIS Intrudor Intrudor No Intrudor PIN1 EMB-Q170B EMB-Q170B Chassis intrusion connector Intel ME Jumper (3-pin DIS_ME) ® This jumper allows you to force the Intel Management Engine (ME) to boot ® to recovery mode when ME becomes corrupted. DIS_ME ME Enable ME Disable (Default) EMB-Q170B EMB-Q170B Intel ME jumper ®...

  • Page 25: Onboard Leds

    AT/ATX mode selection (3-pin AT_ATX) ATMODE AT mode ATX mode EMB-Q170B EMB-Q170B AT/ATX mode selection Pins AT mode ATX mode Onboard LEDs Standby Power LED The motherboard comes with a standby power LED that lights up to indicate that the system is ON, in sleep mode, or in soft-off mode. This is a reminder that you should shut down the system and unplug the power cable before removing or plugging in any motherboard component. The illustration below shows the location of the onboard LED.

  • Page 26: Connectors

    Status Status Description Description No link 10 Mbps connection Linked ORANGE 100 Mbps connection ORANGE Data activity 1 Gbps connection BLINKING GREEN LAN port Line Out port (lime). This port connects to a headphone or a speaker. Microphone port (pink). This port connects to a microphone. EMB-Q170B 2-18...

  • Page 27: Internal Connectors

    2.8.2 Internal connectors 12VDC power connectors (4-pin EATX_PWR1) This connector is for an EATX power supply plug. The power supply plug is designed to fit this connector in only one orientation. Find the proper orientation and push down firmly until the connector completely fits. EATX_PWR2 PIN 1 EMB-Q170B EMB-Q170B 1 x 4 PIN (2x2) internal power connector IMPORTANT: • For a fully configured system, we recommend that you use a power supply unit (PSU) that complies with ATX 12V Specification 2.0 (or later version). • DO NOT forget to connect the 4-pin ATX +12V power plug. Otherwise, the system will not have enough power. • We recommend that you use a PSU with higher power output when configuring a system with more power-consuming devices. The system may become unstable or may not boot up if the power is inadequate. Battery connector (2-pin BATTERY1) This connector is for the lithium CMOS battery.
  • Page 28 CAUTION: Do not forget to connect the fan cables to the fan connectors. Insufficient air flow inside the system may damage the motherboard components. These are not jumpers! Do not place jumper caps on the fan connectors! Front panel audio connector (10-1 pin AAFP) This connector is for a chassis-mounted front panel audio I/O module that supports either HD Audio or legacy AC`97 audio standard. Connect one end of the front panel audio I/O module cable to this connector. AAFP PIN 1 HD-audio-compliant Legacy AC’97 pin definition compliant definition EMB-Q170B EMB-Q170B Front panel audio connector IMPORTANT: We recommend that you connect a high-definition front panel audio module to this connector to avail of the motherboard’s high-definition audio capability. EMB-Q170B 2-20...
  • Page 29 Serial ATA 6.0Gb/s connector (7-pin SATA6G_1~4) ThIS connector connects to Serial ATA 6.0 Gb/s hard disk drives via Serial ATA 6.0 Gb/s signal cables. EMB-Q170B EMB-Q170B SATA 6.0Gb/s connectors IMPORTANT: • You must install Windows 7 or later version before using Serial ATA hard ® disk drives. • When using hot-plug and NCQ, set the SATA Mode Selection item in the BIOS to [AHCI]. See section 3.3.7 IDE Configuration for details. SATA power connector (4-pin SATA_PWR1) This connector is for the SATA power cable. The power cable plug is designed to fit this connector in only one orientation. Find the proper orientation and push down firmly until the connector completely fit. SATA_PWR EMB-Q170B EMB-Q170B SATA POWER connector IMPORTANT: The SATA power connector supports 1A current to the maximum.
  • Page 30 LVDS1_D2+ LVDS1_D3- LVDS1_D3+ LVDS0_D0- LVDS0_D0+ LVDS0_D1- LVDS0_D1+ LVDS0_D2- LVDS0_D2+ LVDS0_D3- LVDS0_D3+ PIN 1 PIN 1 EMB-Q170B EMB-Q170B LVDS connector Backlight inverter power connector (8-pin INV) Connect the backlight inverter power cable to this connector. BLDN#_R BLUP#_R +BLVCC +BLVCC VCON INV_ENABKL PIN1 EMB-Q170B EMB-Q170B Inverter connector IMPORTANT: The backlight inverter power connector supports 1A current to the maximum. EMB-Q170B...
  • Page 31 USB 2.0 connector (10-1 pin USB_56, USB_78 and USB_910) These USB connectors comply with USB 2.0 specifications. USB56 USB78 USB910 PIN 1 PIN 1 PIN 1 EMB-Q170B EMB-Q170B USB2.0 connectors Never connect a 1394 cable to the USB connector. Doing so will damage the motherboard. NOTES: • The USB module cable is purchased separately. • Before you install Windows 7 operating system, go to BIOS Setup > Advanced > XHCI mode [Disabled], USB 2.0 (EHCI) support [Enabled], and set them back when you finish installing the operating system. • Intel(R) has released an official Windows(R) 7 XHCI Driver Creator Utility, please download it from: https://downloadcenter.intel.com/ download/25476/Windows-7-USB-3-0-Creator-Utility. To install Windows(R) 7 in the Skylake platform: Step1. U se this utility to pack XHCI driver into the original win7 OS image, there will be another OS image released.
  • Page 32 BKLTEN_R BKLTCTL_R +BLVCC +BLVCC +BLVCC +BLVCC PIN 40 EMB-Q170B EMB-Q170B Embedded Display Port 12. Speaker out connector (4-pin AMP_CON1) The 4-pin connector is for the chassis-mounted speaker. AMP_CON PIN 1 EMB-Q170B EMB-Q170B Audio Stere. Output with Amp connector NOTE: The Speaker module is purchased separately. EMB-Q170B...
  • Page 33 13. Serial port connectors (10-1 pin COM1) These connectors are for serial (COM) ports. Connect the serial port module cable to this connector, then install the module to a slot opening at the back of the system chassis. COM1 PIN 1 EMB-Q170B EMB-Q170B Serial port connector NOTE: • The COM module is purchased separately. • COM1 also supports RS-232 / RS-422 / RS-485. See the table below and section 3.3.2 Super IO Configuration for details. Signal Signal DCD (422TXD-/485DATA-) RXD (422RXD+) TXD (422TXD+/485DATA+) DTR (422RXD-) RI/+12V/+5V N.C. Chapter 2: Motherboard information...
  • Page 34 PIN 2 PIN 1 EMB-Q170B EMB-Q170B DIO connector 15. M.2 E-Key (Top) This socket allows you to install an M.2 (NGFF) PCIe/USB/I2C-ME/SDIO/ UART/PCM module. M.2 E-Key (Top) EMB-Q170B EMB-Q170B M.2 E-Key (Top) 16. M.2 Socket 3 (Bottom) This socket allows you to install an M.2 (NGFF) SSD module. M.2 Socket 3 (Bottom) EMB-Q170B EMB-Q170B M.2 Socket 3 (Bottom) EMB-Q170B 2-26...

  • Page 35: Chapter 3: Bios Setup

    Chapter 3 BIOS setup BIOS setup Use the BIOS Setup to update the BIOS or configure settings. The BIOS screens include navigation keys and help to guide you in using the BIOS Setup program. Entering BIOS Setup at startup To enter BIOS Setup at startup: Press <Delete>...

  • Page 36: Menu Bar

    The Main menu provides you an overview of the basic system information, and allows you to set the system date, time, language, and security settings. 3.2.1 System Date [Day MM/DD/YYYY] Allows you to set the system date. 3.2.2 System Time [HH:MM:SS] Allows you to set the system time. EMB-Q170B...

  • Page 37: Advanced Menu

    Advanced menu The Advanced menu items allow you to change the settings for the CPU and other system devices. Be cautious when changing the settings of the Advanced menu items. Incorrect field values can cause the system to malfunction. Case Open Warning [Disabled] Allows you to enable or disable case open warning function.

  • Page 38: Sata Configuration

    Port 0/1/2/3 [Enabled] Configuration options: [Enabled] [Disabled] Hot Plug [Disabled] Configuration options: [Enabled] [Disabled] M.2 SATA Port Allows you to enable or disable Serial-ATA Ports. M.2 Port [Enabled] Configuration options: [Enabled] [Disabled] Hot Plug [Disabled] Configuration options: [Enabled] [Disabled] EMB-Q170B...

  • Page 39: Usb Configuration

    3.3.4 USB Configuration The USB Devices item lists auto-detected values. If no USB device is detected, the item shows None. Legacy USB Support [Enabled] [Enabled] Enables the support for USB devices on legacy operating systems (OS). [Disabled] USB devices are only available when running BIOS Setup. [Auto] Allows the system to detect the presence of USB devices at startup.
  • Page 40 Fan Stop Duty [Down to 0] Select the fan stop duty. Configuration options: [Down to 0] [To Fan Out Stop Value] Fan Out Stop Duty [xx] The Fan Out value decreases to this value if the temperature is below the lower EMB-Q170B...
  • Page 41 temperature limit. The values range from 0~255. Fan Out Stop Time [xx] Determines the time it takes Fan Out value to fall from the stop value to 0. The values range from 0~255. Critical Temperature [xx] Determines the time that Fan Out takes to decrease its value by one step. The values range from 0~255.
  • Page 42 The Fan Out value decreases to this value if the temperature is below the lower temperature limit. The values range from 0~255. Fan Out Stop Time [xx] Determines the time it takes Fan Out value to fall from the stop value to 0. The EMB-Q170B...

  • Page 43: Sio Configuration

    values range from 0~255. Critical Temperature [xx] Determines the time that Fan Out takes to decrease its value by one step. The values range from 0~255. Fan Out Step Up Time [xx] Determines the time that Fan Out takes to increase its value by one step with an interval of 0.1 second.

  • Page 44: Pch-Fw Configuration

    Wake up day/hour/minute/second [0] Specify the values for day/hour/minute/second. The following items appear when Wake System with Dynamic Time is enabled. Wake up minute increase [1] Specify the number of minutes added to the current time before waking up system. EMB-Q170B 3-10...

  • Page 45: Digital Io Port Configuration

    3.3.10 Digital IO Port Configuration The items in this menu allow you to modify Digital IO settings. DIO Port 1~4 [Output] Set DIO data flow as Input or Output. Configuration options: [Input] [Output] Output Level [High] Configuration options: [High][Low] DIO Port 5~8 [Input] Set DIO data flow as Input or Output.

  • Page 46: Security Menu

    To change a user password: Select the User Password item and press <Enter>. From the Enter Current Password box, key in the current password, then press <Enter>. From the Create New Password box, key in a new password, then press <Enter>. EMB-Q170B 3-12...

  • Page 47: Boot Menu

    Confirm the password when prompted. To clear the user password, follow the same steps as in changing a user assword, but press <Enter> when prompted to create/confirm the password. After you clear the password, the User Password item on top of the screen shows Not Installed. Boot menu The Boot menu items allow you to change the system boot options.

  • Page 48: Save & Exit Menu

    Save or discard changes to current configuration. Restore Defaults Save or restore User Defaults to all setup options. Save as User Defaults This item saves current configuration as User Default. Restore User Defaults This option restores User Defaults to all setup options. EMB-Q170B 3-14...

  • Page 49: Appendix

    Check local regulations for disposal of electronic products. DO NOT throw the mercury-containing button cell battery in municipal waste. This symbol of the crossed out wheeled bin indicates that the battery should not be placed in municipal waste. EMB-Q170B...
  • Page 50 ○ ○ ○ ○ 外部信號連接頭 × ○ ○ ○ ○ ○ 及線材 中央處理器與內 × ○ ○ ○ ○ ○ 存 本表格依據 SJ/T 11364 的規定編制。 ○： 表示該有害物質在該部件所有均質材料中的含量均在 GB/T 26572 規 定的限量要求以下。 ×： 表示該有害物質至少在該部件的某一均質材料中的含量超出 GB/T 26572 規定的限量要求，然該部件仍符合歐盟指令 2011/65/EU 的 規范。 備註：此產品所標示之環保使用期限，係指在一般正常使用狀況下。 EMB-Q170B...
