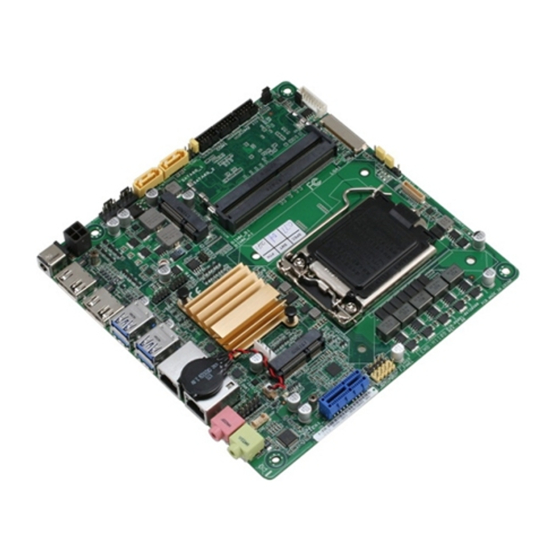

Aaeon EMB-H110B Manual

Industrial motherboard
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EMB-H110B

Advertisement

Table of Contents
loading

Related Manuals for Aaeon EMB-H110B

Summary of Contents for Aaeon EMB-H110B

  • Page 1 EMB-H110B...
  • Page 2 E14396 Revised Edition v3 May 2018 Copyright Notice This document is copyrighted, 2017. All rights are reserved. The original manufacturer reserves the right to make improvements to the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any means without the prior written permission of the original manufacturer.

  • Page 3: Table Of Contents

    Contents Chapter 1 Product overview Package contents................. 1-1 Features ..................1-1 Specifications ................1-2 Chapter 2 Motherboard information Before you proceed ..............2-1 Motherboard layout ..............2-2 Screw size ..................2-4 2.3.1 Component side .............. 2-4 2.3.2 Solder side ..............2-5 Central Processing Unit (CPU) ...........
  • Page 4 3.3.6 Hardware Monitor ............3-5 3.3.7 Power Management ............3-7 3.3.7 Digital IO Port Configuration ........... 3-8 Chipset menu ................3-9 3.4.1 System Agent (SA) Configuration ........3-9 3.4.2 PCH-IO Configuration ........... 3-10 Security menu ................3-10 3.5.1 Administrator Password ..........3-10 3.5.2 User Password .............. 3-10 Boot menu ..................

  • Page 5: Chapter 1 Product Overview

    Chapter 1 Product overview Package contents Check your industrial motherboard package for the following items. 1 x Industrial Motherboard 1 x SATA cable 1 x SATA power cable 1 x I/O Shield 1 x Support CD NOTE: If any of the above items is damaged or missing, contact your distributor or sales representative immediately.

  • Page 6: Specifications

    Up to 4096 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz, with Digital DisplayPort Audio LVDS Up to 1920 x 1200 @60 Hz, Dual Channel 18/24 bit, LVDS/eDP eDP UP to 4096 x 2340 @ 60Hz Backlight Control Voltage / PWM (continued on the next page) EMB-H110B...
  • Page 7 Storage 2 x SATA 6Gb/s 1 x Full size Mini Card (SATA 6Gb/s) 4 pin SATA power (5V, 12V @1A) 4 x USB 3.0 ports (4 ports in Rear IO) 6 x USB 2.0 ports (4 ports at mid board, 2 port for mini card) Display I/O 1 x LVDS, 1 x eDP, 2 x HDMI (DP optional by BOM change) Mic-in, Line-out, AAFP at internal connector for 2 additional channel...
  • Page 8 8.1 32 bit / 64 bit (not supported when a Kaby Lake processor ® is used) Windows 10 64 bit ® Linux Fedora Accessories 1 x SATA cable 1 x SATA power cable I/O Shield Support DVD NOTE: Specifications are subject to change without notice. EMB-H110B...

  • Page 9: Chapter 2 Motherboard Information

    The motherboard comes with a standby power LED that lights up to indicate that the system is ON, in sleep mode, or in soft-off mode. This is a reminder that you should shut down the system and unplug the power cable before removing or plugging in any motherboard component. The illustration below shows the location of the onboard LED. LED_5V Main Power Main Power Off EMB-H110B EMB-H110B Onboard LEDs Chapter 2: Motherboard information...

  • Page 10: Motherboard Layout

    DDR4 DIMM_A1 (64bit, 260-pin module) BIOS_P USB56 USB78 USB3_12 Place this side towards the rear of the chassis USB3_34 Intel ® H110 LAN1 8111G LGA1151 SATA_PWR LAN2 BATTERY_H MINICARD1 LINE-OUT AAFP RT3607CE AMP_CON MIC-IN SPEAKER PCIEX1_1 F_PANEL EMB-H110B 23 22 EMB-H110B...
  • Page 11 Connectors/Jumpers/Slots Page EATX power connector (4-pin EATX_PWR2) 2-24 CPU and chassis fan connectors (4-pin CPU_FAN1, 4-pin CHA_FAN1) 2-17 Serial ATA 6.0Gb/s connectors (7-pin SATA6G_1/2) 2-19 COM1 Ring/+5V/+12V selection (COM1_V) 2-13 Serial port connectors (10-pin COM1, COM2) 2-23 Digital I/O connector (10-pin DIO) 2-18 DDR4 SO-DIMM slots 2-11 Inverter Backlight Control mode selection (3-pin LJ3) 2-14 Inverter voltage selection (3-pin LJ2) 2-13 10. LVDS panel voltage selection (3-pin LJ1) 2-13 11. Backlight inverter power connector (5-pin INV) 2-22 12. Embedded DisplayPort (40-pin EDP) 2-24 13. LVDS connector (40-pin LVDS) 2-17 14. Clear RTC RAM (CLRTC) 2-12 15. Chassis intrusion connector (4-1 pin CHASSIS) 2-18 16. Intel LGA1151 CPU socket ®...

  • Page 12: Screw Size

    Screw size 2.3.1 Component side EMB-H110B...

  • Page 13: Solder Side

    2.3.2 Solder side Chapter 2: Motherboard information...

  • Page 14: Central Processing Unit (Cpu)

    Central Processing Unit (CPU) The motherboard comes with a surface mount LGA1151 socket designed for the Intel Generation Core™ i7 / Core™ i5 / Core™ i3, Pentium / Celeron ® ® ® processors. EMB-H110B EMB-H110B CPU socket LGA1151 IMPORTANT: Unplug all power cables before installing the CPU. CAUTION! • Upon purchase of the motherboard, ensure that the PnP cap is on the socket and the socket contacts are not bent. Contact your retailer immediately if the PnP cap is missing, or if you see any damage to the PnP cap/socket contacts/motherboard components. The manufacturer will shoulder the cost of repair only if the damage is shipment/transit-related. • Keep the cap after installing the motherboard. The manufacturer will process Return Merchandise Authorization (RMA) requests only if the motherboard comes with the cap on the LGA1151 socket. • The product warranty does not cover damage to the socket contacts resulting from incorrect CPU installation/removal, or misplacement/loss/ incorrect removal of the PnP cap. EMB-H110B...

  • Page 15: Installing The Cpu

    2.4.1 Installing the CPU CAUTION! LGA1156 CPU is not compatible with the LGA1151 socket. DO NOT install an LGA1156 CPU on the LGA1151 socket. Chapter 2: Motherboard information...
  • Page 16 EMB-H110B...

  • Page 17: Cpu Heatsink And Fan Assembly Installation

    2.4.2 CPU heatsink and fan assembly installation CAUTION! Apply the Thermal Interface Material to the CPU heatsink and CPU before you install the heatsink and fan if necessary. To install the CPU heatsink and fan assembly Chapter 2: Motherboard information...
  • Page 18 To uninstall the CPU heatsink and fan assembly EMB-H110B 2-10...

  • Page 19: System Memory

    System memory This motherboard comes with two Double Data Rate 4 (DDR4) Small Outline Dual Inline Memory Module (SO-DIMM) sockets. The figure below illustrates the location of the DDR4 SO-DIMM sockets: Channel Sockets DIMM_B1 Channel A SO-DIMM_A1 DIMM_A1 Channel B SO-DIMM_B1 EMB-H110B EMB-H110B 260-pin DDR4 SO-DIMM sockets 2.5.1 Installing a DIMM To install a DIMM To remove a DIMM Chapter 2: Motherboard information 2-11...

  • Page 20: Jumpers

    Clear RTC RAM (CLRTC) This jumper allows you to clear the Real Time Clock (RTC) RAM in CMOS. You can clear the CMOS memory of system setup parameters by erasing the CMOS RTC RAM data. The onboard button cell battery powers the RAM data in CMOS, which include system setup information such as system passwords. EMB-H110B EMB-H110B Clear RTC RAM To erase the RTC RAM: Turn OFF the computer and unplug the power cord. 2. Move the jumper cap from pins 1-2 (default) to pins 2-3. Keep the cap on pins 2-3 for about 5~10 seconds, then move the cap back to pins 1-2. Plug the power cord and turn ON the computer. 4. Hold down the <Del> key during the boot process and enter BIOS setup to reenter data.
  • Page 21 EMB-H110B COM1 Ring/+5V/+12V Selection Setting Pins +12V Ring (Default) LVDS panel voltage selection (3-pin LJ1) +3.3V (Default) EMB-H110B EMB-H110B LVDS Panel Voltage Selection Pins +3.3V (Default) Inverter voltage selection (3-pin LJ2) DC CTL PWM CTL (Default) EMB-H110B EMB-H110B Inverter Voltage Selection Pins...
  • Page 22 Inverter Backlight Control mode selection (3-pin LJ3) +12V (Default) EMB-H110B EMB-H110B Mode Selection for Back Light Control of Inverter Pins +12V 5V (Default) EMB-H110B 2-14...

  • Page 23: Connectors

    Connectors 2.7.1 Rear panel connectors DC-In power jack. This jack connects to a DC power adapter. HDMI ports. These ports are for High-Definition Multimedia Interface (HDMI), and are HDCP compliant, allowing playback of HD DVD, Blu-ray, and other protected content. USB 3.0 ports. These 9-pin Universal Serial Bus (USB) ports connect to USB 3.0/2.0 devices. NOTES: • DO NOT connect a keyboard / mouse to any USB 3.0 port when installing Windows operating system. ® • Due to USB 3.0 controller limitation, USB 3.0 devices can only be used under Windows OS environment and after the USB 3.0 driver installation. ® • We strongly recommend that you connect USB 3.0 devices to USB 3.0 ports for faster and better performance for your USB 3.0 devices. LAN (RJ-45) ports. These ports allow Gigabit connection to a Local Area Network (LAN) through a network hub. Refer to the table below for the LAN port LED indications. LAN port LED indications Speed Activity Link...

  • Page 24: Internal Connectors

    2.7.2 Internal connectors SATA power connector (4-pin SATA_PWR) This connector is for the SATA power cable. The power cable plug is designed to fit this connector in only one orientation. Find the proper orientation and push down firmly until the connector completely fit. SATA_PWR +12V PIN 1 EMB-H110B EMB-H110B SATA POWER connector Audio amplfier connector (4-pin AMP_CON)  This connector is for an internal stereo amplifier speakers support (2W/4 via WtoB header). AMP_CON PIN 1 EMB-H110B EMB-H110B Audio Stereo Output with Amp connector EMB-H110B...
  • Page 25 CHA_FAN1 CPU_FAN1 PIN 1 PIN 1 EMB-H110B EMB-H110B Fan connectors CAUTION: Do not forget to connect the fan cables to the fan connectors. Insufficient air flow inside the system may damage the motherboard components. These are not jumpers! Do not place jumper caps on the fan connectors! NOTE: The CPU_FAN connector supports a CPU fan of maximum 2A (24 W) fan power.
  • Page 26 CHASSIS Intrudor Intrudor No Intrudor PIN1 EMB-H110B EMB-H110B Chassis intrusion connector Digital I/0 connector (10-pin DIO) This connector includes 8 I/O lines (In/Out programmable). All of the Digital I/O lines are programmable and each I/O pin can be individually programmed to support various devices. PIN 1 EMB-H110B EMB-H110B DIO connector NOTE: To configure the I/O pins in BIOS, go to the Advanced tab > Dynamic Digital IO.
  • Page 27 This connector supports several chassis-mounted functions. F_PANEL +PWR LED PWR BTN PIN 1 +HDD_LED RESET EMB-H110B EMB-H110B System panel connector • System power LED (2-pin +PWR_LED) This 2-pin connector is for the system power LED. Connect the chassis power LED cable to this connector. The system power LED lights up when you turn on the system power, and blinks when the system is in sleep mode. • Hard disk drive activity LED (2-pin +HDD_LED) This 2-pin connector is for the HDD Activity LED. Connect the HDD Activity...
  • Page 28 Serial ATA 6.0Gb/s connectors (7-pin SATA6G_1/2) These connector connects to Serial ATA 6.0 Gb/s hard disk drives or an optical drive via Serial ATA 6.0 Gb/s signal cables. EMB-H110B EMB-H110B SATA 6.0Gb/s connectors NOTE: You must install Windows 7 or later version before using Serial ATA ® hard disk drives. Speaker connector (4-pin SPEAKER) The 4-pin connector is for the chassis-mounted system warning speaker. The speaker allows you to hear system beeps and warnings. SPEAKER PIN 1 EMB-H110B EMB-H110B SPEAKER connector 10. Minicard connectors Use these connectors to connect a Minicard device.
  • Page 29 11. USB 2.0 connectors (10-pin USB56, USB78) These connectors are for USB 2.0 ports. Connect the USB cable to these connectors. These USB connectors comply with USB 2.0 specification that supports up to 480 Mbps connection speed. USB56 USB78 PIN 1 PIN 1 EMB-H110B EMB-H110B USB2.0 connectors CAUTION! Never connect a 1394 cable to the USB connector. Doing so will damage the motherboard. NOTE: The USB cable is purchased separately. IMPORTANT! • Before you install Windows 7, go to the Advanced tab of the BIOS Setup ® program and configure the following items: XHCI mode [Disabled] and USB (EHCI support) [Enabled]. You can re-configure these BIOS items after the Windows 7 installation.
  • Page 30 BIOS_P PIN 1 +3V_SPI S_SPI_CS1#Q S_SPI_CLK_2Q S_SPI_MISO_2Q S_SPI_MOSI_2Q (NC) (NC) EMB-H110B EMB-H110B SPI programming connector NOTE: The flash BIOS cable is purchased separately. 13. Battery connector (2-pin BATTERY_H) This connector is for the lithium CMOS battery. BATTERY_H +BAT PIN 1 EMB-H110B EMB-H110B Battery Holder connector 14. Backlight inverter power connector (5-pin INV) Connect the backlight inverter power cable to this connector.
  • Page 31 15. Serial port connectors (10-pin COM1, COM2) These connectors are for serial (COM) ports. Connect the serial port cables to these connectors, then install the module to a slot opening at the back of the system chassis. COM1 COM2 PIN 1 PIN 1 EMB-H110B EMB-H110B Serial port connectors Signal Signal DCD (422TXD-/485DATA-) RXD (422RXD+) TXD (422TXD+/485DATA+) DTR (422RXD-) RI/+12V/+5V N.C. NOTES: • The serial port cables are purchased separately. • Only COM1 can support RS-422 and RS-485. Chapter 2: Motherboard information...
  • Page 32 16. EATX power connector (4-pin EATX_PWR2) This connector is for EATX power supply plug. The power supply plug is designed to fit this connector in only one orientation. Find the proper orientation and push down firmly until the connector completely fit. EATX_PWR2 PIN 1 EMB-H110B EMB-H110B 1 x 4 PIN (2x2) internal power connector 17. Embedded DisplayPort (40-pin EDP) This connector is for an internal embedded DisplayPort connection. PIN 1 eDP_TXN3_C eDP_TXP3_C...
  • Page 33 18. Front panel audio connector (10-1 pin AAFP) This connector is for a chassis-mounted front panel audio I/O module that supports either HD Audio or legacy AC`97 audio standard. Connect one end of the front panel audio I/O module cable to this connector. AAFP PIN 1 PIN 1 HD-audio-compliant Legacy AC’97 pin definition compliant pin definition EMB-H110B EMB-H110B Front panel audio connector IMPORTANT! • We recommend that you connect a high-definition front panel audio module to this connector to avail of the motherboard’s high-definition audio capability. • If you want to connect a high-definition front panel audio module to this connector, set the Front Panel Type item in the BIOS setup to [HD]; if you want to connect an AC’97 front panel audio module to this connector, set the item to [AC97]. By default, this connector is set to [HD]. Chapter 2: Motherboard information...

  • Page 34: Power Supply Considerations

    Power Supply Considerations CAUTION! • The external DC jack (5.5/2.5mm) is the primary power input connector of EMB-H110B. However, the desktop board also provides an internal 2 x 2 power connector that can be used in custom-developed systems that have an internal power supply. • There is no isolation circuitry between the external DC jack and the internal 2 x 2 power connector. It is the system integrator’s responsibility to ensure no more than one power supply unit is or can be attached to the board at any time and to ensure the external DC jack is covered if the internal 2 x 2 power connector is to be used. • Simultaneous connection of both external and internal power supply units could result in potential damage to the desktop board, power supplies, or other hardware.

  • Page 35: Chapter 3 Bios Setup

    Chapter 3 BIOS setup BIOS setup program Use the BIOS Setup program to update the BIOS or configure its parameters. The BIOS screens include navigation keys and brief online help to guide you in using the BIOS Setup program. Entering BIOS Setup at startup To enter BIOS Setup at startup: Press <Delete>...

  • Page 36: Bios Menu Screen

    Allows you to enable or disable case open warning function. Configuration options: [Disabled] [Enabled] [Clear] 3.3.1 CPU Configuration The items in this menu show CPU-related information the BIOS automatically detects. The items shown in the submenu may be different depending on the type of CPU installed. EMB-H110B...

  • Page 37: Sata Configuration

    Hyper-threading [Enabled] The Intel Hyper-Threading Technology allows a hyper-threading processor to appear as two logical processors to the operating system, allowing the operating system to schedule two threads or processes simultaneously. [Enabled] Two threads per activated core are enabled. [Disabled] Only one thread per activated core is enabled.

  • Page 38: Pch-Fw Configuration

    [Use Automatic Settings] [IO=3F8h; IRQ=4;] [IO=2F8h; IRQ=3] Mode [RS-232] Allows you to select the Serial Port mode. Configuration options: [RS-232] [RS-422] [RS-485] [*Active*] Serial Port 2 Use this device [Enabled] Allows you to enable or disable this logical device. Configuration options: [Enabled] [Disabled] EMB-H110B...

  • Page 39: Hardware Monitor

    Possible [Use Automatic Settings] This item appears only when you set Use this device to [Enabled] and allows you to select an optimal setting for Super I/O devices. Configuration options: [Use Automatic Settings] [IO=2F8h; IRQ=3] [IO=3F8h; IRQ=4;] 3.3.6 Hardware Monitor The items in this menu allow you to configure the smart fan.
  • Page 40 0~255. Tolerance of Temperature [xx] Input tolerance of target temperature. The values range from 0~7. Critical Temperature [xx] Determines the time that Fan Out takes to decrease its value by one step. The values range from 0~255. EMB-H110B...

  • Page 41: Power Management

    Critical Temp Tolerance [xx] Input tolerance of critical temperature. The values range from 0~7. The following item appears only when you set Fan Control Mode to [Manual Mode]. PWM/DC Voltage Output [255] Sets the voltage allocated for Fan Control. Input value range: [0~255] The following item appears only when you set Fan Control Mode to [Thermal Cruise Mode].

  • Page 42: Digital Io Port Configuration

    The items listed in this screen configure Digital IO settings. DI0 Port1~DI0 Port4 [Output] Configuration options: [Input] [Output] The following item appears only when you set DI0 Port1/2/3/4 to [Output]. Output Level [High] Configuration options: [High] [Low] DI0 Port5~DI0 Port8 [Input] Configuration options: [Input] [Output] EMB-H110B...

  • Page 43: Chipset Menu

    Chipset menu The Chipset menu items allow you to change the settings for the chipset. 3.4.1 System Agent (SA) Configuration Max TOLUD [Dynamic] Allows you to select more useable memory on x86 OS. Select [Dynamic] to adjust TOLUD automatically based on the largest MMIO length of the installed graphic controller.

  • Page 44: Pch-Io Configuration

    Select the User Password item and press <Enter>. From the Create New Password box, key in a password, then press <Enter>. Confirm the password when prompted. To change a user password: Select the User Password item and press <Enter>. EMB-H110B 3-10...

  • Page 45: Boot Menu

    From the Enter Current Password box, key in the current password, then press <Enter>. From the Create New Password box, key in a new password, then press <Enter>. Confirm the password when prompted. To clear the user password, follow the same steps as in changing a user assword, but press <Enter>...

  • Page 46: Save & Exit Menu

    Save or discard changes to current configuration. Restore Defaults Save or restore User Defaults to all setup options. Save as User Defaults This item saves current configuration as User Default. Restore User Defaults This option restores User Defaults to all setup options. EMB-H110B 3-12...

  • Page 47: Appendix

    Check local regulations for disposal of electronic products. DO NOT throw the mercury-containing button cell battery in municipal waste. This symbol of the crossed out wheeled bin indicates that the battery should not be placed in municipal waste. EMB-H110B...
  • Page 48 印 刷 電 路 板 及 其 × ○ ○ ○ ○ ○ 電子組件 外 部 信 號 連 接 頭 × ○ ○ ○ ○ ○ 及線材 ○： 表示該有毒有害物質在該部件所有均質材料中的含量均在 SJ/T 11363- 2006 標准規定的限量要求以下。 ×： 表示該有毒有害物質至少在該部件的某一均質材料中的含量超出 SJ/T 11363-2006 標准規定的限量要求，然該部件仍符合歐盟指令 2002/95/ EC 的規范。 備註：此產品所標示之環保使用期限，係指在一般正常使用狀況下。 EMB-H110B...
