Hardware Installations and Upgrades
Installing the Server Board
1. Place the server board into the server system (see letter "A")
2. Secure the server board with screws (see letter "B").
3. Install the air duct.
4. Connect all power cables to the server board.
52

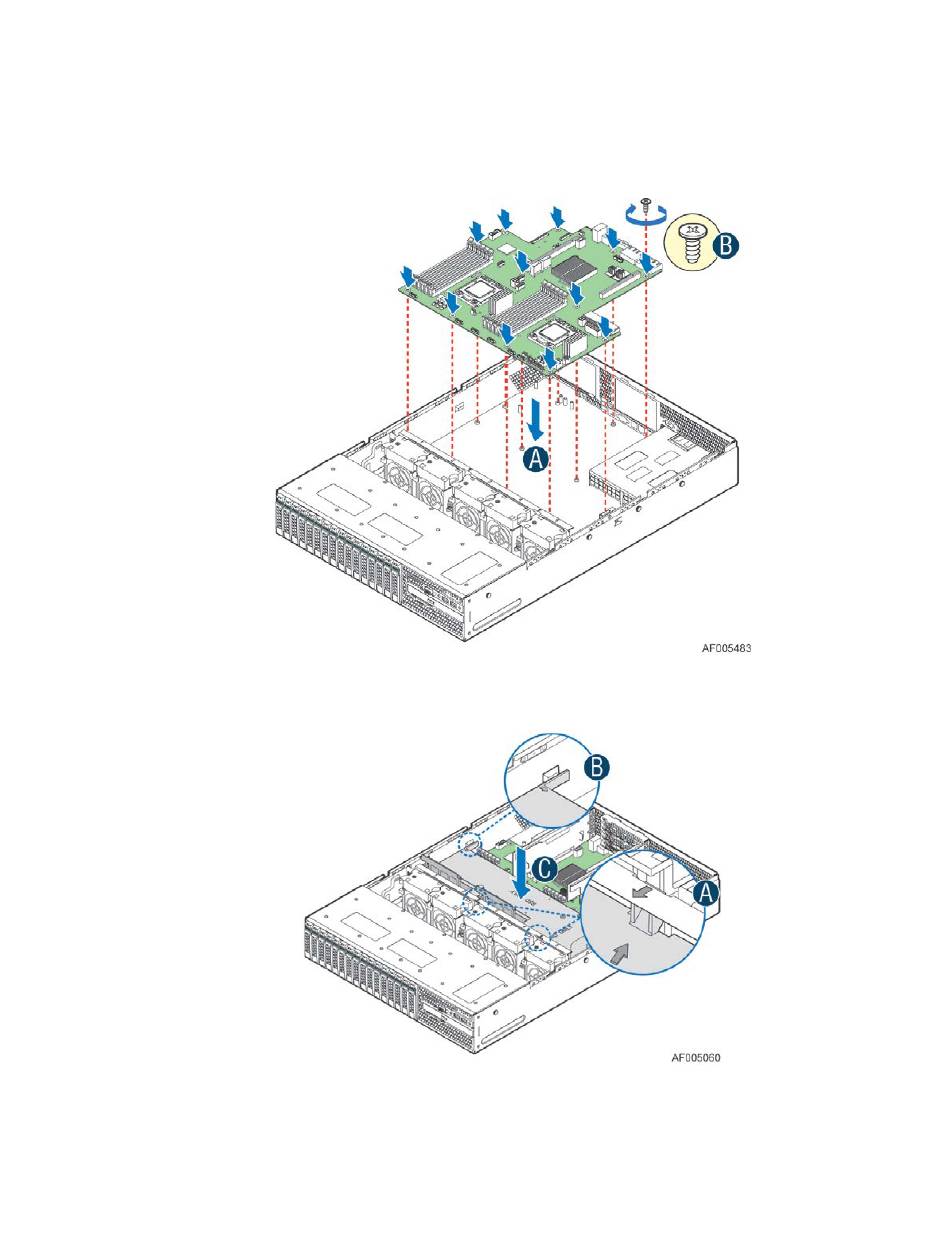

Figure 80. Installing the Server Board
Figure 81. Installing the Air Duct Side Wall
®
