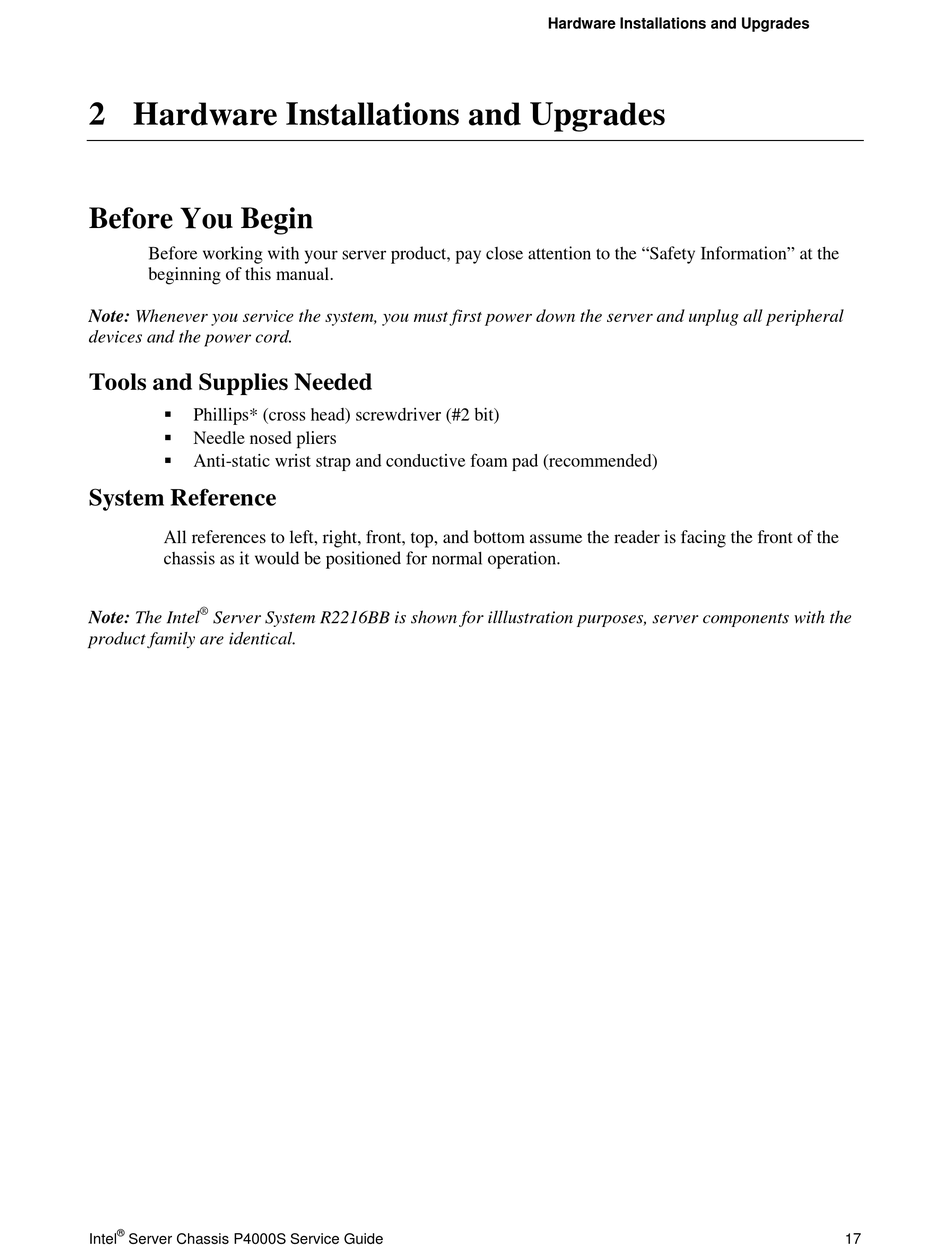

2 Hardware Installations and Upgrades

Before You Begin

Before working with your server product, pay close attention to the "Safety Information" at the
beginning of this manual.
Note: Whenever you service the system, you must first power down the server and unplug all peripheral
devices and the power cord.

Tools and Supplies Needed


Phillips* (cross head) screwdriver (#2 bit)

Needle nosed pliers

Anti-static wrist strap and conductive foam pad (recommended)

System Reference

All references to left, right, front, top, and bottom assume the reader is facing the front of the
chassis as it would be positioned for normal operation.
®
Note: The Intel Server System R2216BB is shown for illlustration purposes, server components with the
product family are identical.
®
Intel Server Chassis P4000S Service Guide
Hardware Installations and Upgrades
17
