2. Remove the four screws securing the HDD interface bracket and remove the HDD interface
bracket (see letter "C").

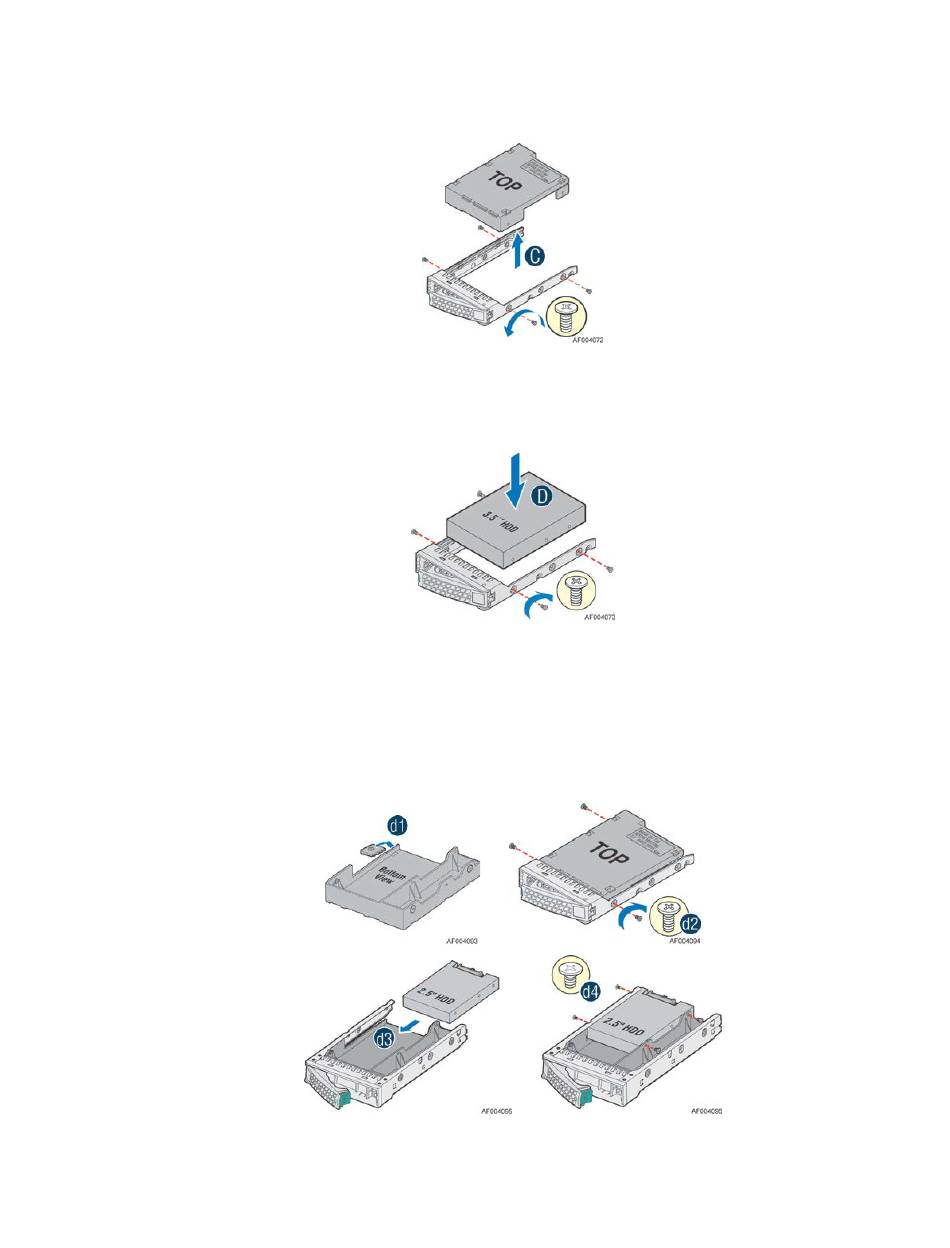

Figure 47. Installing Hard Disk Drive – Removing 3.5" HDD interface bracket
3. Install the hard disk drive using the same four screws as shown. Make sure the connector end of
the drive matches the backplane connector (see letter "D").
For installing 2.5" Hard Disk Drive as option:
Break off the tab on the HDD interface bracket (see letter "d1").Install the HDD interface
bracket from top. Secure the bracket with three screws as shown (see letter "d2"). Slide the 2.5"
HDD into the bracket to align the screw holes with the right and left rail (see letter "d3"). Secure
the hard disk drive using the four screws for 2.5" HDD (see letter "d4").
®
Intel
Server System R2000BB Service Guide
Figure 48. Installing Hard Disk Drive – Installing 3.5" HDD
Figure 49. Installing Hard Disk Drive – Installing 2.5" HDD
Hardware Installations and Upgrades
35
