Hardware Installations and Upgrades
5. Pull up the backplane (see letter "D"). Remove the backplane from the server chassis (see letter
"E").

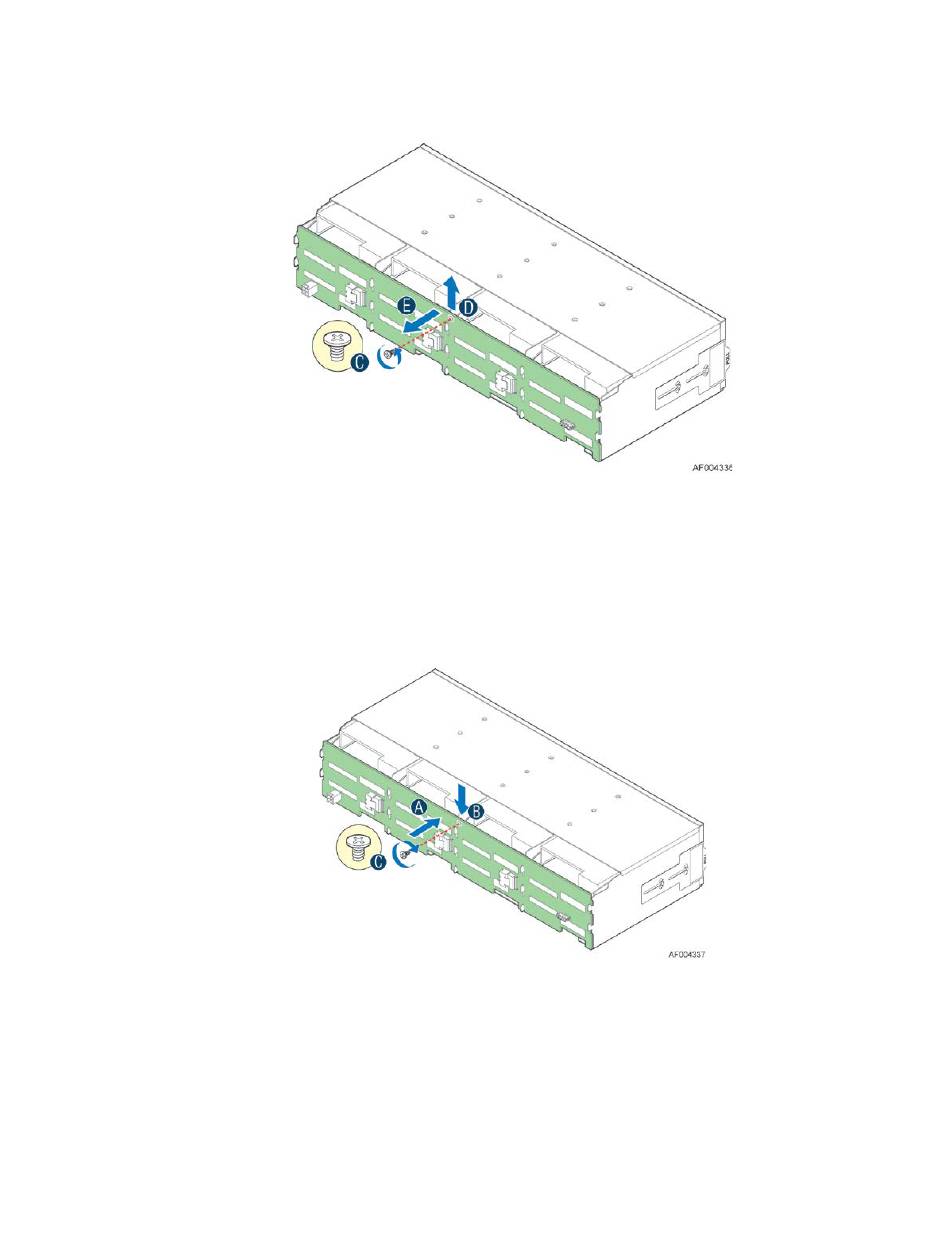

Figure 85. Removing 3.5" hard drive backplane - remove the backplane

Installing the 3.5" Hard Drive Backplane
1. Hold the backplane only by the edges. Do not push or pull on any components on the backplane.
Position the backplane in place at the front of the server system (see letter "A").
2. Slide the backplane into the server system guides (see letter "B").
3. Secure the backplane with the screw (see letter "C").
Figure 86. Installing 3.5" hard drive backplane – install the backplane
4. Insert the hard drive cage into server chassis (see letter "D").
5. Secure the hard drive cage with the six screws (see letter "E").
