Replacing a System Fan

1. Disconnect the fan cable (see letter "A").
2. Pull system fan straight up to remove it from the fan holder.
3. Replace the system fan.

Replacing the Backplane

Removing the Backplane

1. Remove all hot-swap drive carriers, regardless of whether or not a drive is installed in the
carrier.
2. Disconnect all cables from the backplane.
3. Remove the screw (see letter "A").
4. Pull up the backplane (see letter "B").
5. Remove the backplane from the server chassis (see letter "C").
®®
Intel Server System R1000GZ/GL Service Guide

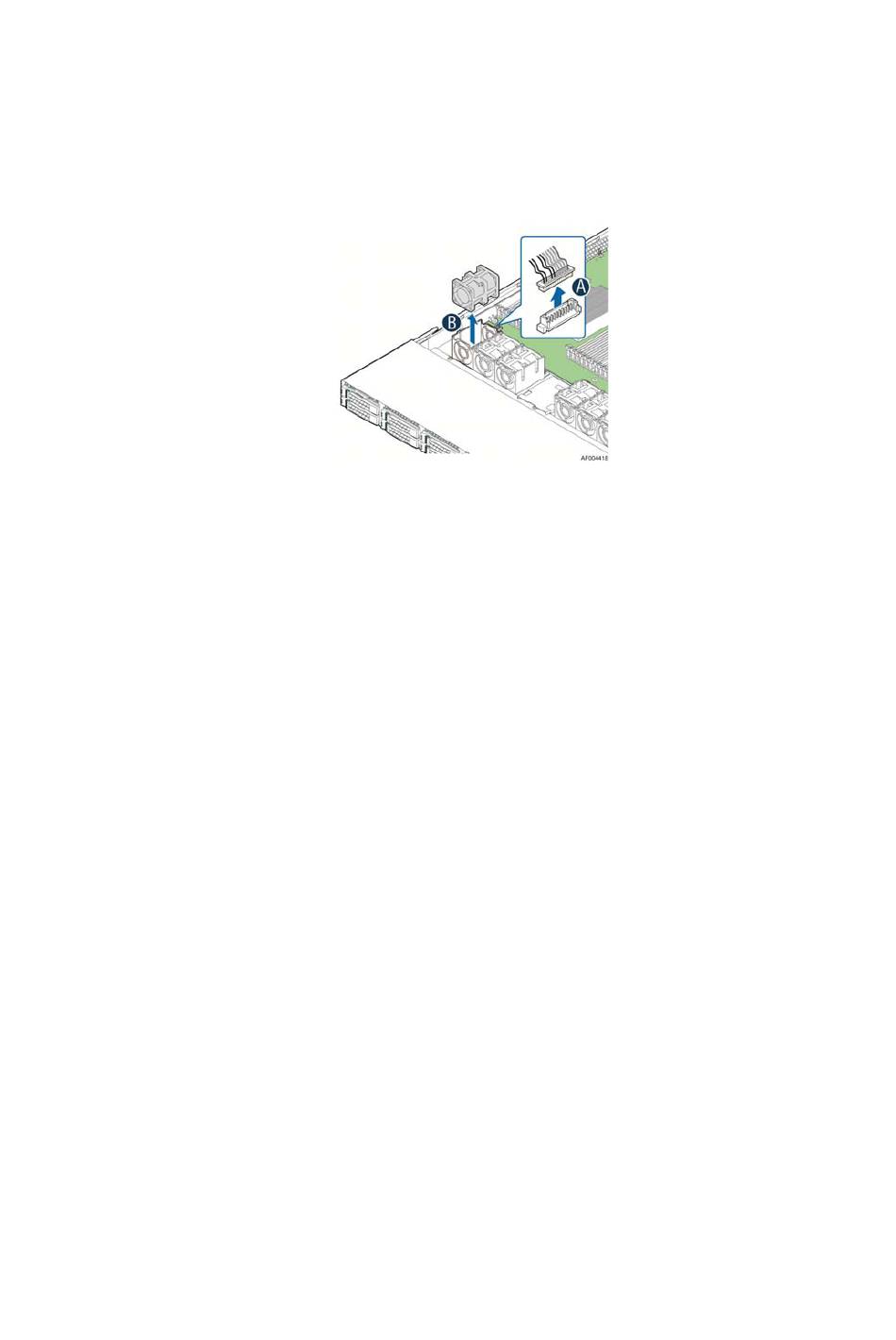

Figure 70. Replacing a system fan
