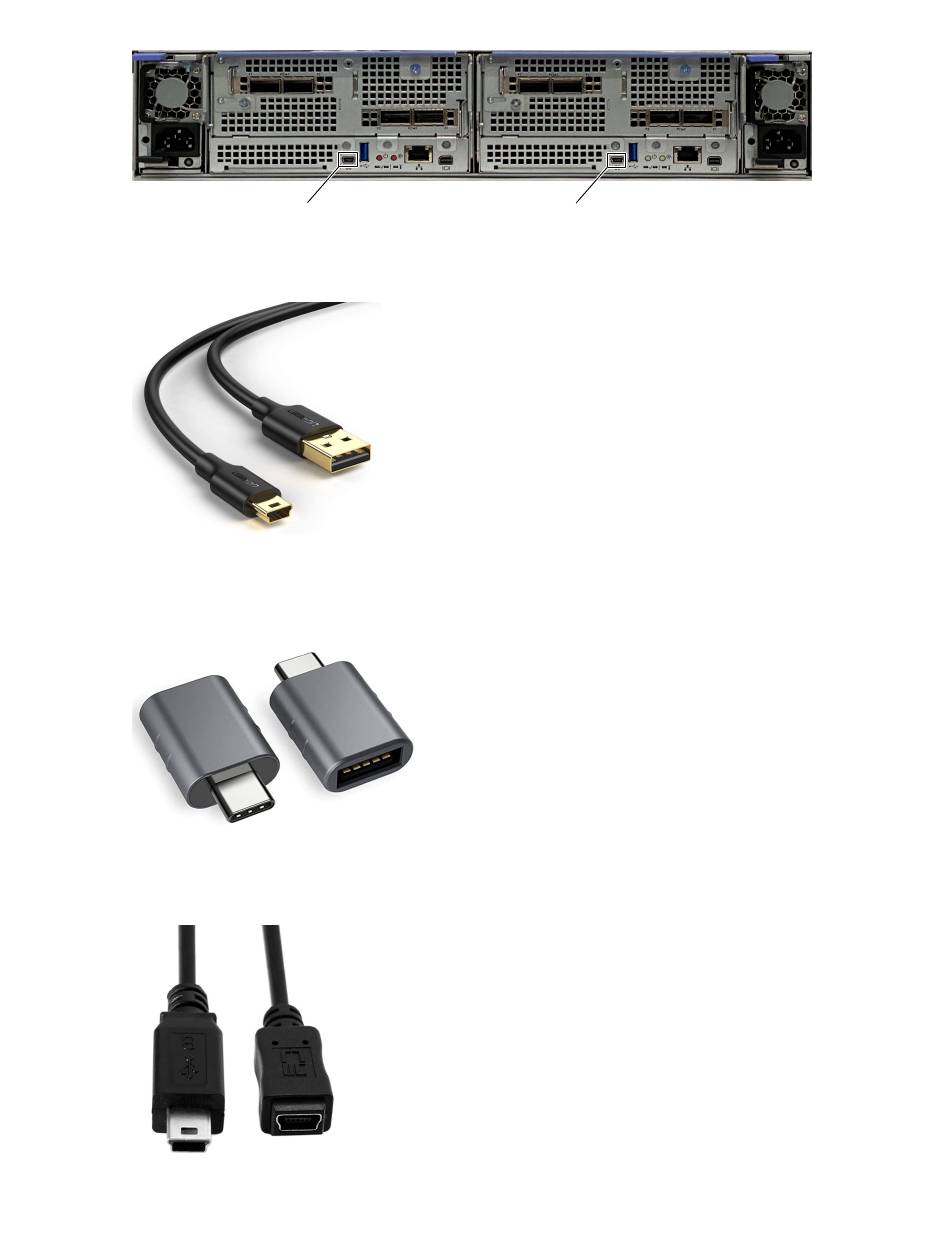

Figure 45. SSR access port / mini USB
2. Connect a mini USB cable to the SSR access port. The cable must be long enough to easily connect to a
Notebook computer.
Figure 46. Mini USB cable
3. If you are using Mac, use a USB-C to USB-A adapter to connect the serial cable to the system.
Figure 47. USB-C to USB-A adapter
4. If extra cable length is needed, use a mini USB female to male extension cable for canisters that are
higher up in the frame.
Figure 48. Mini USB female to male extension cable
60 IBM Elastic Storage System 3200: Hardware Planning and Installation Guide
SSR access port
SSR access port
