Appendix B. Switch VLAN configuration instructions

This topic describes the instructions that are needed to configure an IBM Cumulus switch VLAN.
The IBM Cumulus switch would be preconfigured from manufacturing with proper VLAN that includes the
following:
• Service/FSP/BMC VLAN
– Blue network - Bottom ports
– VLAN 101
• Management/Provisioning VLAN
– Yellow network - Top ports
– VLAN 102
• IBM Elastic Storage System 3200 special ports
– Ports 1 - 12
– Trunk ports
– Default routes traffic to management VLAN
– Packets with VLAN tag 101 routed to service network.

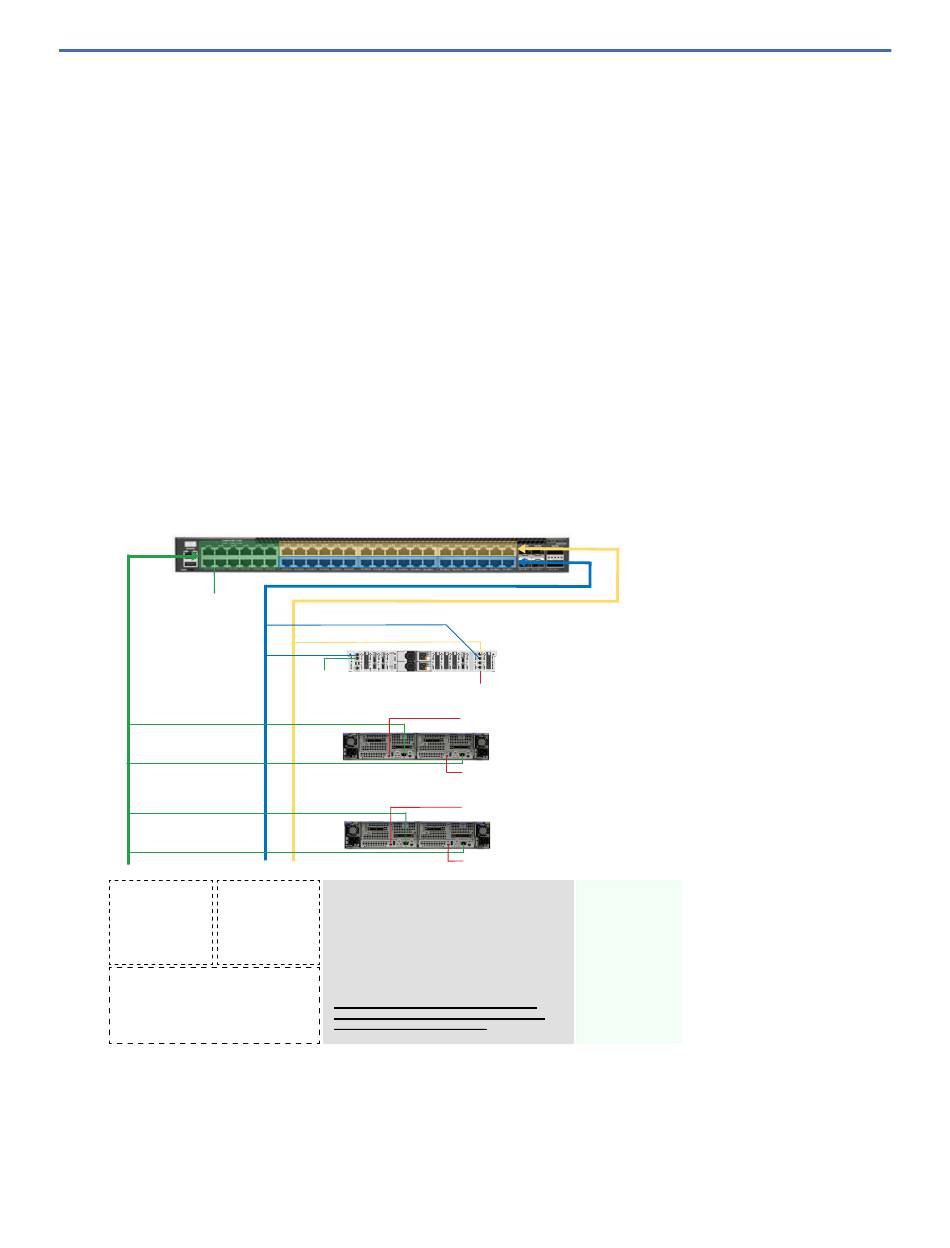

M_TOR --- 1Gb Network Switch M_TOR --- 1Gb Network Switch
ETHERNET PORTS 1- 12 ETHERNET PORTS 1- 12
FOR ESS 3200 FOR ESS 3200
ESS 3200/ CNSTR1/T1 ESS 3200/ CNSTR1/T1
ESS 3200/ CNSTR2/T1 ESS 3200/ CNSTR2/T1
ESS 3200/ CNSTR1/T1 ESS 3200/ CNSTR1/T1
ESS 3200/ CNSTR2/T1 ESS 3200/ CNSTR2/T1
MGTN Network MGTN Network HMCN Network HMCN Network
OS Provisioning OS Provisioning
---------------
Upper Switch Ports - Upper Switch Ports - Lower Switch Ports - Lower Switch Ports -
YELLOW PORTs YELLOW PORTs BLUE PORTs BLUE PORTs
192.168.45.x 192.168.45.x 10.0.0.x 10.0.0.x
(255.255.255.0) (255.255.255.0) (255.255.255.0) (255.255.255.0)
ESS 3200 - GREEN PORTs on the switch ESS 3200 - GREEN PORTs on the switch
Use YELLOW cable Use YELLOW cable
---------------
These ports provide access for BOTH the OS These ports provide access for BOTH the OS
Provisioning and the system MGMT via BMC Provisioning and the system MGMT via BMC
access access
Figure 86. 1 Gb network switch
Procedure to change switch default password
Use the following steps to change switch default password.
1. Verify the 11S label at the back of the switch as shown in the following figure.
©
Copyright IBM Corp. 2021, 2022
SMN/C11/T2 SMN/C11/T2
SMN/C11/T1 SMN/C11/T1
HMC2 HMC2
1Gb Connections: 1Gb Connections:
--------------- ◊ ◊ If Switch is provided by IBM, it is configured by factory
with three VLANs: Two Isolated and one shared
•
Upper Ports for MGTN (OS Provisioning or MGTN (OS Provisioning or
Management Network) - Yellow ports Management Network) - Yellow ports
•
Lower Ports for HMCN (HMC Network) HMCN (HMC Network)
◊ ◊ Switch ports are not assigned, and any available port
can be used.
◊ ◊ For ESS 3200 use the GREEN ports and use the For ESS 3200 use the GREEN ports and use the
Yellow ethernet cables. These ports provide both Yellow ethernet cables. These ports provide both
MGTN and the BMC network access MGTN and the BMC network access
T2 T2
System Management Server System Management Server
5105-22E (EMS) 5105-22E (EMS)
C11 C11
SSR Access/ Service Port SSR Access/ Service Port
(Canister 1) (Canister 1)
ESS FNI (ESS 3200) ESS FNI (ESS 3200)
5141-FNI 5141-FNI
SSR Access/ Service Port SSR Access/ Service Port
(Canister 2) (Canister 2)
SSR Access/ Service Port SSR Access/ Service Port
(Canister 1) (Canister 1)
ESS FNI (ESS 3200) ESS FNI (ESS 3200)
5141-FNI 5141-FNI
SSR Access/ Service Port SSR Access/ Service Port
(Canister 2) (Canister 2)
◊ ◊ HMC2 are set with HMC2 are set with
known address for known address for
troubleshooting if troubleshooting if
later required later required
◊ ◊ Ensure HMC2 ports Ensure HMC2 ports
are left unconnected are left unconnected
even if network even if network
cables are provided cables are provided
