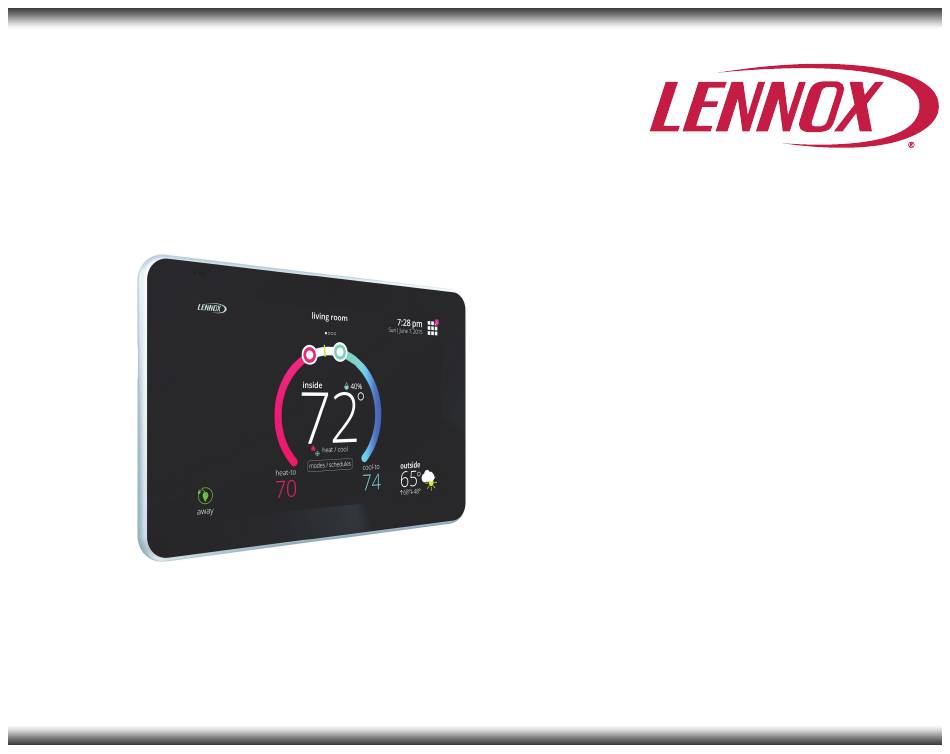

- Page 1 ® iComfort S30 Smart Thermostat User Guide Color Touchscreen Programmable Wi-Fi Communicating Thermostat (12U67) 507537-02 10/2016 Supersedes 9/2016 Software Version 3.2...
-
Page 2: Table Of Contents
Store) and Android 4.1 and higher (Google Play) directly with the Smart Hub Controller. The Controller stores system NOTE - Due to Lennox’ ongoing commitment to quality, features and options parameters and settings in non-volatile memory (i.e., retains data when are subject to change without notice and without incurring liability. -
Page 3: Home Screen

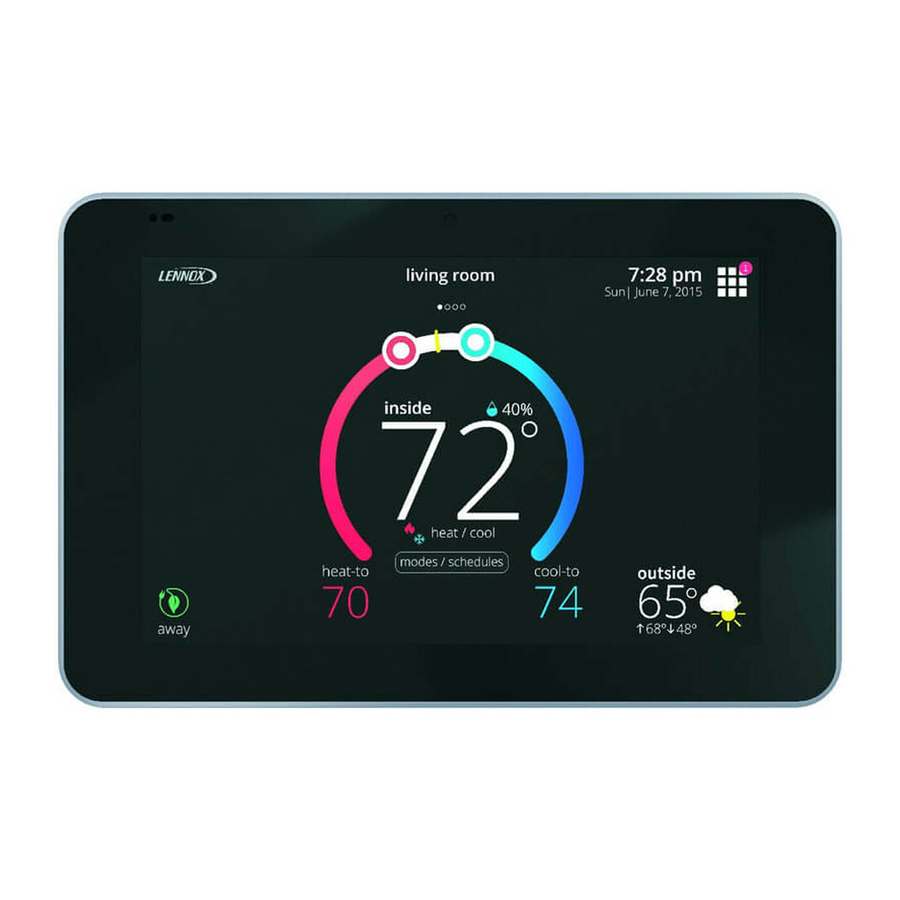

HOME SCREEN TEMPERATURE DIAL FEATURE D. When there is an active call for heating, this area of the dial will have a red background with yellow and dark red flames animation. living room 2:31 am tue | Mar 31, 2015 E. -
Page 4: Notifications
D. This will be displayed when the system is configured for zoning or more than one iComfort S30 Smart Thermostat is installed in the home. The iHarmony system can support up to four zones. By default, the zones are labeled Zone 80°... - Page 5 E. This area displays various functions that are either pending or currently Allergen Defender is working - When Internet weather is enabled active. Indicators are humidifying, dehumidifying, cooling, heating, ambient and pollen count is high in the home's location, the fan will run between lockout, emergency heat, cleaning air, transitioning to next schedule, load heating or cooling systems to help clean the air.
- Page 6 Fan Operation away - Smart Away is used to set the temperature while the home is unoccupied. Default low temperature setting of 62°F and high temperature There are three fan modes of operation, which are auto, on and circulate. setting of 85°F. Pressing on the fan icon will allow selection of the desired fan mode.
-
Page 7: Settings
If only the outdoor sensor is to be used, go to outdoor temperature and set to sensor. This is for connecting the iComfort S30 Smart Thermostat to a secure home wireless network. NOTE - If Internet and weather provider are selected, weather information will NOTE - A router with Bonjour capabilities is required for this function. - Page 8 Select your home network by pressing on the network name. ACCESS ROUTER CONNECTION NOTE - The iComfort S30 Smart Thermostat can connect to a home wireless Troubleshooting Wi-Fi Connection router that uses up to 32 characters in the access point name (visible or hidden).
-
Page 9: Home Info
Selecting this option will allow the home information to be verified and corrected if necessary. If the home information is missing, then enter the information now. 6. Check that you agree to the Lennox EULA. Press on LENNOX EULA to This information is required to register the system when creating an account. -
Page 10: Away
If you are adding an additional system to your account, press on the menu and select add iComfort. Please make sure to install the iComfort S30 mobile App to participate in Smart Away. NOTE - The generate pin option is not required if the account is setup from the You can also configure the away fence in the mobile App. -
Page 11: Fan
4. Auxiliary Heat: (only on heat pump systems): An additional heat source will be used automatically when the indoor temperature drops to a temperature that can be adjusted using the slider temperature setting tool. Go to menu > settings > fan to turn on or off Allergen Defender. Fan mode 5. -
Page 12: Humidity
DEHUMIDIFICATION SET POINT HUMIDITY The slide bar adjustment tool allows selection between 40% to 60%. Some options that are available under this section are dependent on whether OVERCOOLING humidification or dehumidification accessories are installed. In addition, The slide bar adjustment tool allows selection between 0°F to 4°F. This modulating outdoor units (XC20, XP20, XC25 and XP25) will affect availability adjustment is only available when Max or Climate IQ (Auto) is selected. - Page 13 Dew point adjustment mode will change the humidification set point based on the outdoor temperature and a user-defined dew point adjustment setting. dew point Dew point −15% Modulating outdoor units are XC20, XP20, XC25 and XP25 NOTE - Humidification/Dehumidification information is applicable for non-zoning systems only for the iComfort S30 Smart Thermostat using firmware version 3.15 or later.
-
Page 14: Iharmony Zoning
Dealer Info IHARMONY ZONING This page will display or allow information to be changed concerning the dealer. ® Items included on this page are name, address1, address2, city, state, zip This option will only appear on the menu if an iHarmony zoning system is code, country/region, phone, email and website. -
Page 15: Display
Logo - Displays the Lennox Logo. DISPLAY 7. Screen Brightness - Options are ON or OFF. The following setting options available are: If set to ON, control of screen brightness is automatically controlled by the system. 1. Outdoor Weather - Turn ON to display weather on the HOME screen. -
Page 16: Fcc Compliance Statement - Part 15.19
