  • Page 1: User Guide

    ® iComfort S30 (12U67) User Guide Color Touchscreen Programmable Wi-Fi Communicating Thermostat 507327-01 04/15...

  • Page 2: Table Of Contents

    ............sensor factory installed, Enhance defrost control options for Lennox communicating heat pumps using Display .

  • Page 3: Home Screen - Temperature Dial Indicator

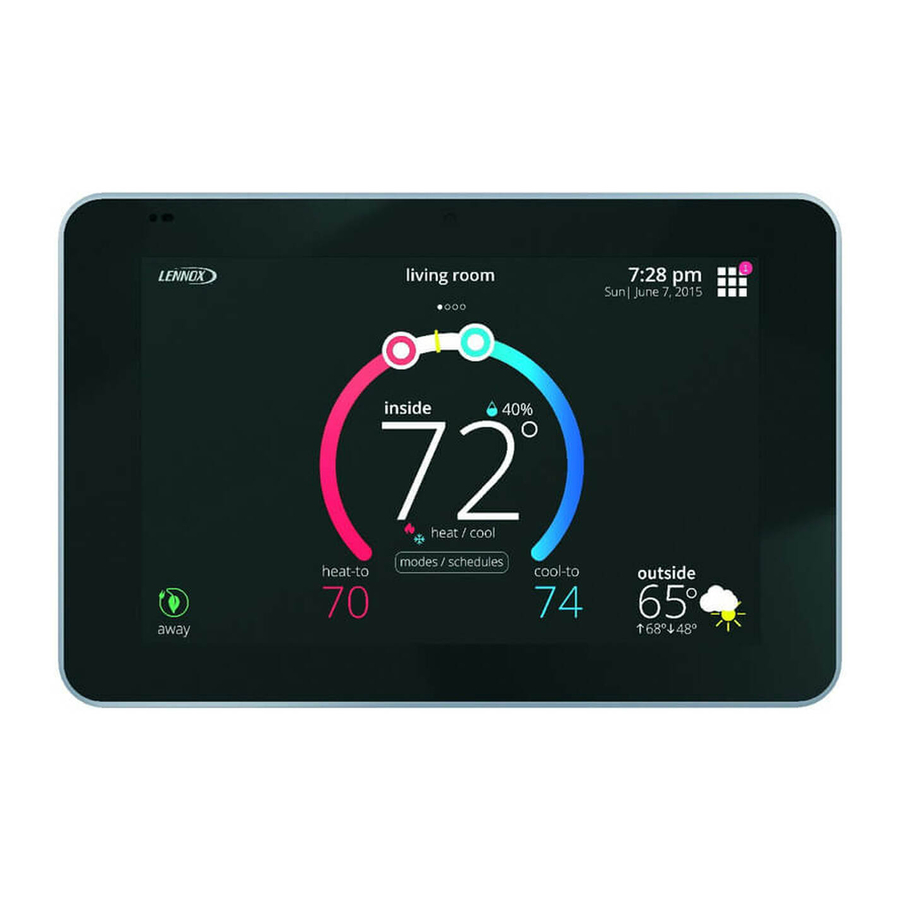

    HOME SCREEN - TEMPERATURE DIAL INDICATOR F. The yellow line indicates the actual room temperature on the temperature dial 2:31 am living room indicator. tue | Mar 31, 2015 Ⓒ Ⓒ 2:31 am living room Ⓑ Ⓑ Ⓓ tue | Mar 31, 2015 Ⓐ...
  • Page 4 "first-stage" being the heat pump only. Emergency heat is when you use PRESS ON THIS ICON TO EDIT your supplemental heat (2nd stage) by itself, without the use of your heat THE ACTIVE ZONE NAME. pump (1st stage heat). Option is not available for non-heat pump systems. ZONES WILL CHANGE TO EDIT.
  • Page 5 (see figure 5) which will allow adjustment of the time schedule. The specific time period can also be removed by selecting delete period. When adjustments are heat only heat / cool completed, press done. auto cool only emerg heat set time select mode schedules outside...
  • Page 6 M.Items that may appear in this area of the screen are as follows: N. This area of the screen will displayed either the outdoor temperature or weather forecast depending on how the system is set. The outdoor weather option under menu >...

  • Page 7: Settings

    SETTINGS The setting screen will allow the homeowner to connect to their home Wi-Fi router, WI-FI give the system a name, smart away and feels like features. Fan, heat & cool settings, humidity settings, notifications setup, general, display, home info and This is for connecting the S30 Control System to the home wireless network.

  • Page 8: Home Info

    To eliminate a possible source of interference, temporally disable any devices and see if Wi-FI performance has improved. To enable remote access to the system using a mobile device with the Lennox mobile application installed while away from home. The will allow remote adjustment for temperature settings and other features.
  • Page 9 2. The new account screen will appear. Enter your first name, last name and 6. Check that you agreed to the Lennox EULA. Press on LENNOX EULA to read phone number (optional). the end-user license agreement. If the setup and connection to the Lennox server is successful, a green check mark will appear above the service icon under the wi-fi menu option.

  • Page 10: Smart Away

    65º 85º Figure 8. Feels Like Screen Please make sure to install the iComfort S30 mobile App to participate in Smart Away. You can also configure the away fence in the mobile App. There are currently 2 mobile devices participating.

  • Page 11: Heat & Cool

    Table 1. Modes of Operations HEAT & COOL In this mode, dehumidification occurs if these conditions are met and signals are present at specific terminals: This screen allows changes to how the system operates. Options are single " Dehumidification has been enabled on installer set-point, heat pump mode (normal or comfort), auxiliary heat and safety settings.

  • Page 12: Iharmony Zoning

    BYPASS (24VAC) HUMIDIFIER INSTALLED NOTIFICATIONS Humidity Control: Options are off, humidify, dehumidify and humidify + The section allow the user to setup reminders for various accessories. By default all dehumidify. listed items are disabled. The reminders can be set for 3, 6, 12 , 24 months can a custom reminder by specific date.

  • Page 13: Display

    1. Outdoor Weather - Turn ON to display weather on the HOME screen. Locked - No changes can be made. To unlock partially locked or locked, press anywhere on the screen and hold for five 2. Outdoor Air Quality - Turn ON to display outdoor air quality on the weather seconds.
  • Page 14 Daylight Savings, 13 Set Date, 13 Set Time, 13 Account Time Zone, 13 Creating a New Account, 8 Using Exisiting Account, 8 Daylight Savings, 13 Dealer Access, 12 Advance Settings, 12 Remote Control, 12 Ambient Lockout, 4 Remote View, 12 Auxiliary Heat, 11 Dealer Info, 12 Alerts and Notifications, 12...
  • Page 15 On, 4 Humiditrol, 11 Operation, 4 Humidity, 11 Dehumidification, 11 Feels Like, 10 Humidity Level, 5 General, 2, 12 About, 12 iHarmony, 3 Date and Time, 13 iHarmony Zoning, 12 Dealer Info, 12 Indoor Humitidy, 13 Lanugage, 13 Screen Lock, 12 Language, 13 Load Shedding, 4 Heat and Cool, 11...
  • Page 16 Outdoor Weather, 6, 13 Wi-Fi, 7 Single Set-Point, 11 Smart Away, 10 Software Update, 13 Perfect Temp, 6, 11 Proximity Sensor, 13 Temperature Adjustment Dial, 4 Temperature Scale, 13 Router Signal Strength, 8 Transitioning to Next Schedule, 6 W-Fi, Hidden Networks, 7 Safety Protection, 11 Weather Provider, 6 Schedule, Time Setting Screen, 5...
