Lennox iComfort S30 User Manual
Color touchscreen programmable wi-fi communicating thermostat
Hide thumbs
Also See for iComfort S30:
- Installation and setup manual (100 pages) ,
- User manual (20 pages) ,
- Installation and setup manual (64 pages)
Related Manuals for Lennox iComfort S30
Summary of Contents for Lennox iComfort S30
-
Page 1: User Guide

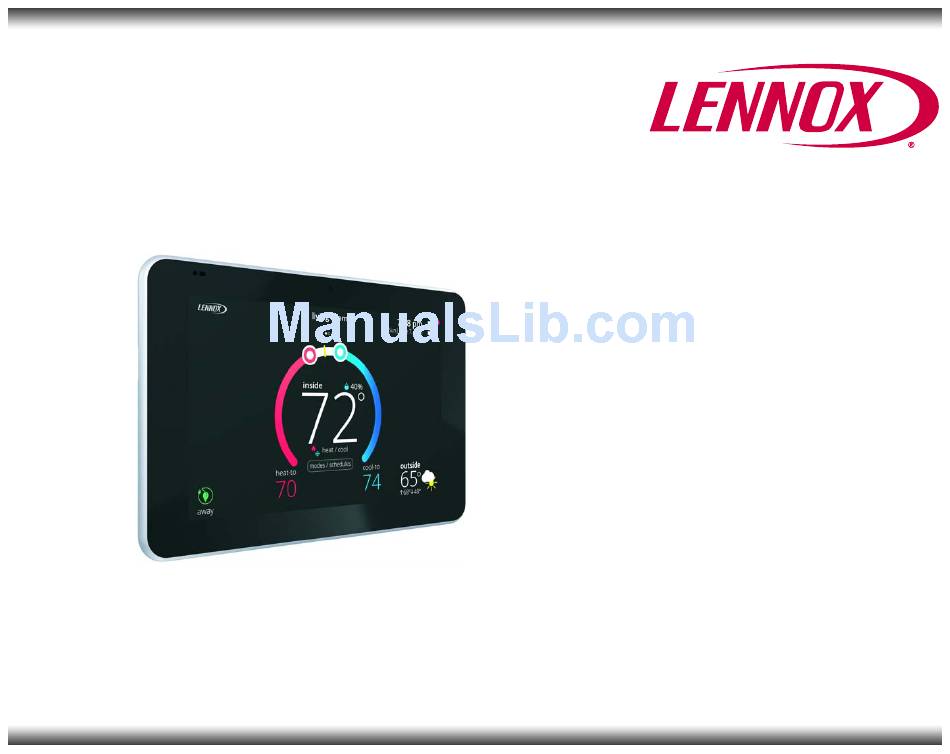

® iComfort User Guide Color Touchscreen Programmable Wi-Fi Communicating Thermostat (12U67) 507537-01 9/2015 Supersedes 7/2015... -
Page 2: Table Of Contents
Enhance defrost control options for Lennox communicating heat pumps General ............ -
Page 3: Home Screen

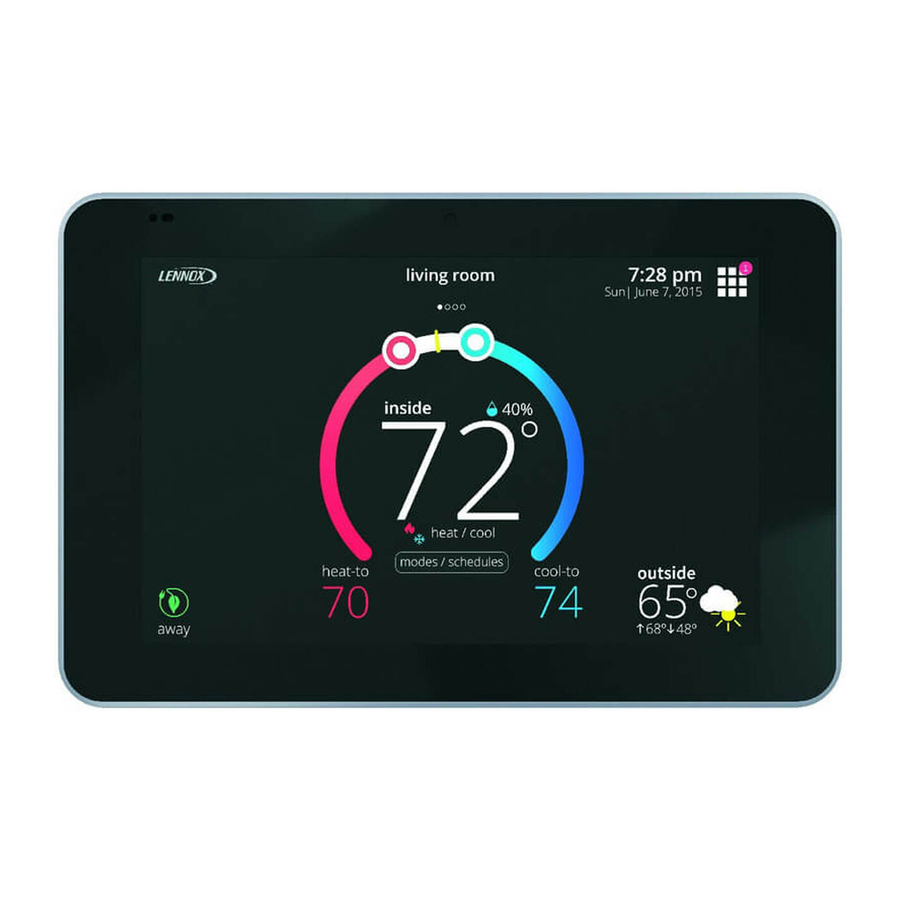

HOME SCREEN TEMPERATURE DIAL FEATURE SCREEN ELEMENTS living room Ⓒ 2:31 am living room 2:31 am Ⓑ Ⓓ tue | Mar 31, 2015 tue | Mar 31, 2015 Ⓐ Ⓒ Ⓔ Ⓑ Ⓛ Ⓚ inside Ⓕ inside Ⓜ Ⓐ Ⓙ Ⓓ... - Page 4 C. This is the current time, day of the week and date (month/day/year). This zones information can be adjusted from the menu > settings > general > date & time screen. SYSTEM D. This will be displayed when the system is configured for zoning or more than one S30 system is installed in the home.
- Page 5 I. This is the location that to select the system mode of operation or run a Emergency heat - All heat pumps operating in northern climates schedule, fan mode and turn the system off. To exit this screen, press the (below 35°F) normally need a supplemental heating source.
- Page 6 Schedule IQ - This schedule operating in heat / cool mode and answering a K. This is the room temperature and will display inside above the temperature. If the feels like option is enabled, then the word feels like will appear above few simple questions will allow the system to know how to set the temperature the number.
-
Page 7: Settings
SETTINGS The setting screen will allow the homeowner to connect to their home Wi-Fi WI-FI router, give the system a name, smart away and feels like features. Fan, heat & cool settings, humidity settings, notifications setup, general, display, home This is for connecting the S30 Control System to only a secure home wireless info and account. - Page 8 WPE, WPA or WPA2 via the router before proceeding. Consult your router Portable phones and bases documentation on how to enable W-Fi security. Baby monitors Wireless speakers 6. Once security type is selected, a password field will appear. Enter the password to access your home Wi-Fi network.
-
Page 9: Home Info
5. Check the box that will allow your dealer to receive service alerts and This information is required to registered the system when creating an account. possibility fix your issue remotely (recommended). 6. Check that you agreed to the Lennox EULA. Press on LENNOX EULA to Remove Home read the end-user license agreement. -
Page 10: Away (Smart Away)
HEAT & COOL Please make sure to install the iComfort S30 mobile App to participate in Smart Away. You can also configure the away fence in the mobile App. -
Page 11: Humidity
NOTE - The following information is applicable only for non-zoning systems When dehumidify is enabled, the options are as follows and are dependent and the iComfort S30 using firmware version 3.0. There is no dehumidification on equipment type and accessory installed. -
Page 12: Iharmony Zoning
Table 2. Dehumidification Modes (Version 3.0 - Single Zone Only) HUMIDIFY + DEHUMIDIFY 1. When Humidify + Dehumidify is selected, options under Humidification Aux 24VAC Dehumidifier Control Center are normal and max or Humiditrol Installed XC17, XP17, Non - 2. Options under Dehumidification Control Center - Options are normal, XC20, XP20, XC21 and Communicating... -
Page 13: Display
Dealer Info NOTE - If the system is connected to the Internet, only changing to 24 hour clock can be selected. This page will display or allow information to be changed concerning the dealer. Language Items included on this page are name, address1, address2, city, state, zip code, country/region, phone, email and website. - Page 14 frequency energy and, if not installed and used in accordance with the Power Save - Screen is blank until the screen is touched or activated by proximity sensor if enabled. instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular Picture - When selected will use the picture that has been uploaded installation.
- Page 15 Remote Control, 13 About, 12 Remote View, 13 Date and Time, 13 Dealer Info, 13 Dealer Info, 13 Account Lanugage, 13 Alerts and Notifications, 13 Creating a New Account, 9 Screen Lock, 13 Using Exisiting Account, 9 Dehumidification Generate Pin, 9 Advanced Settings, 12 Climate IQ (Auto), 11 Max, 11...
