iComfort
Units
®
The iComfort Wi‐Fi
thermostat works with the following indoor and outdoor
units:
Indoor Units
G71MPP-03 or later
SL18XC-01 or later
SLP98-01 or later
SL18XP-01 or later
SL280-03 or later
XC17-02 or later
EL296V-01 or later
XP17-02 or later
CBX40UHV-02 or later
XP17N-01 or later
CBX32MV-06 or later
XP19-06 or later
XC20-01 or later
WARNING
This product contains a chemical known to the State of California to
cause cancer, birth defects, or other reproductive harm.
Outdoor Units
XP20-01 or later
XC21-05 or later
XP21-01 or later
XP21N-01 or later
XP25-01 or later
XC25-01 or later
SL18XP1-01 or
later
SL17XC1-01 or
later
INSTALLER'S SYSTEM SETUP
GUIDE

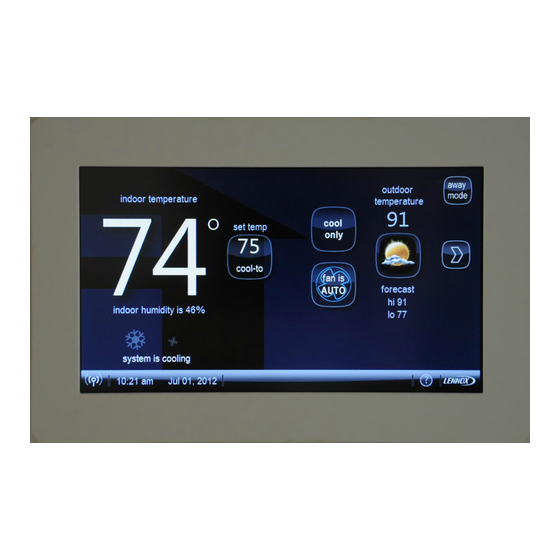

iComfort Wi-Fi
Touchscreen Programmable Communicating Thermostat
CONTROLS
507341-02
5/2017
Supersedes 507341-02
Shipping and Packing List
®
1 - iComfort Wi‐Fi
thermostat (firmware version 2.13 changes included)
4 - Mounting screws
4 - Wall anchors
1 - Homeowner's manual
1 - Warranty card
NOTICE
Read this manual before programming this thermostat.
Use this thermostat only as described in this manual.
An extended version of this instruction is available on DaveNet.
Instruction 507343-01 includes more detail information concerning
default parameter settings, alert codes and additional information.
®
Thermostat
