Multitech RASFinder RF300E User Manual page 33

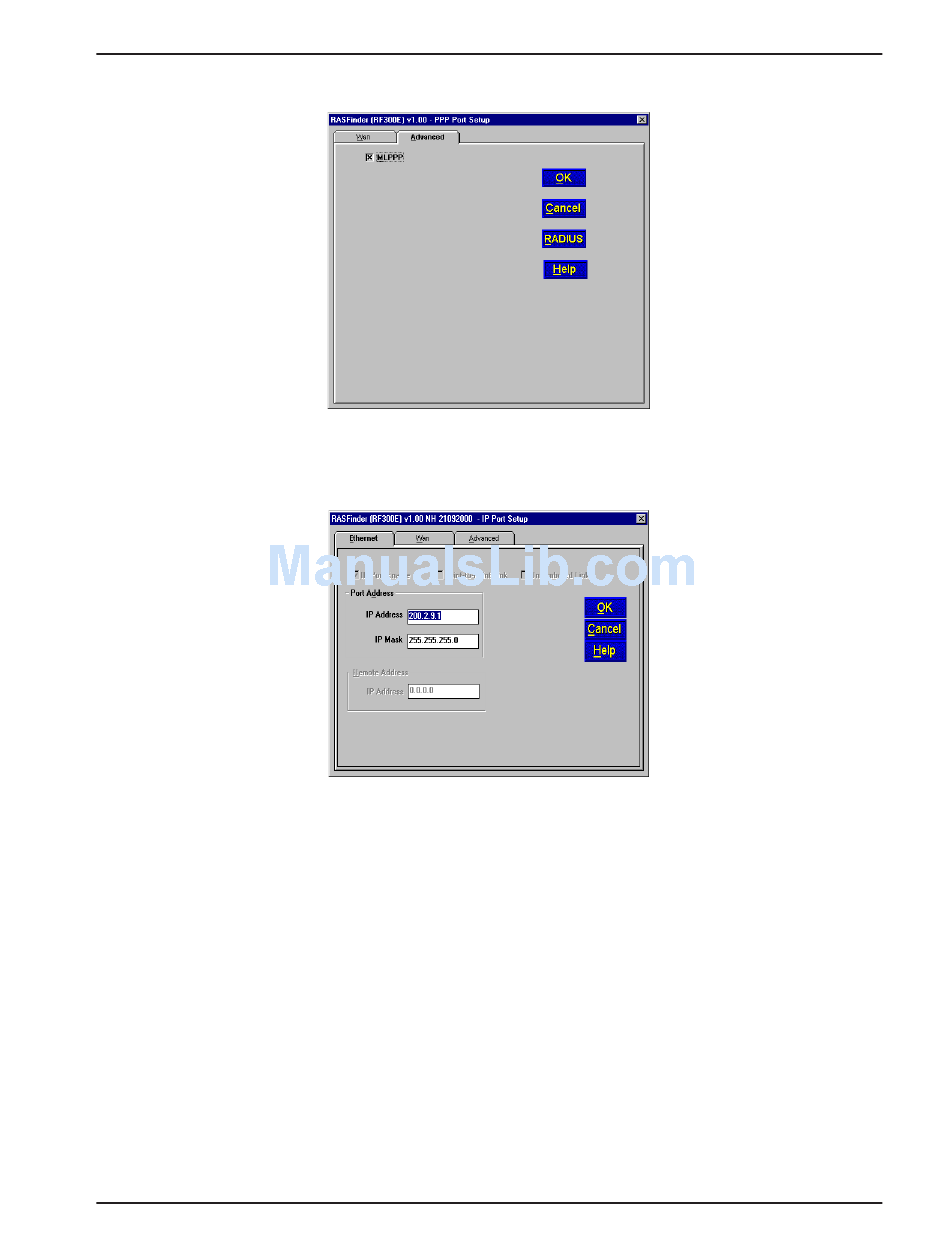

4. If you are going to combine the two WAN ports together, i.e., a single IP address, you need to enable
the MLPPP option from the Advanced tab.
Note: When the dialog box "When a PPP port is Client-or-LAN type:" appears, click on the OK button
each time the dialog box appears. You are returned to the Main menu.
5. From the Main menu, click on the IP button and the IP Port Setup dialog box appears with the
Ethernet tab active and the Port Address displaying your LAN IP Address.
Click on the WAN tab
RF300E/RF310E
Chapter 3 - Software Loading and Configuration
33
