Front Panel of an SSR1200

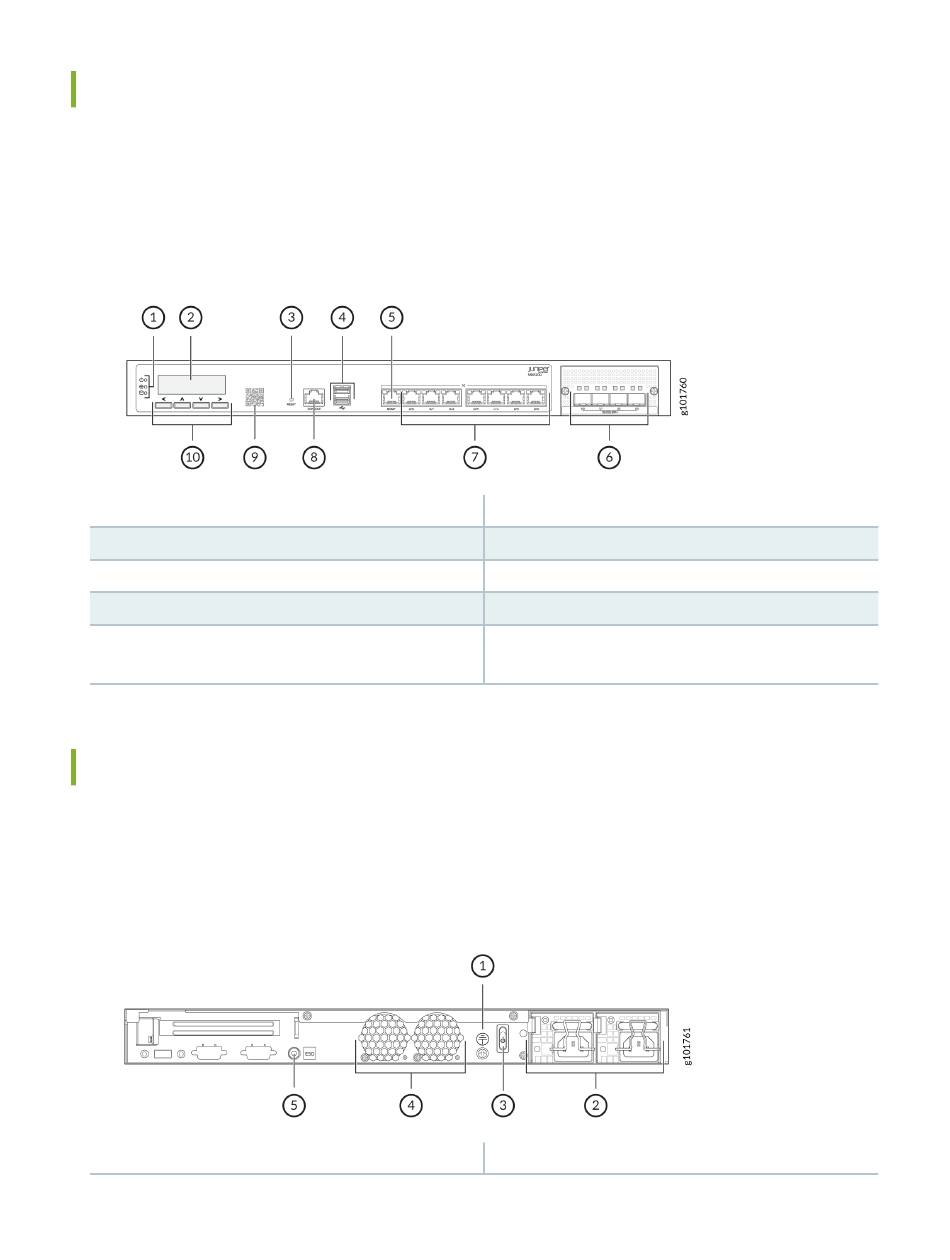

Figure 1 on page 4 shows the front panel of an SSR1200. The SSR1200 comes with a claim code that
you can use to onboard the SSR1200 to Juniper Mist.
Figure 1: Front Panel Components of SSR1200
1 Chassis LEDs
—
LCD screen
2
—
3 RESET button
—
4 USB 3.0 ports
—
5 1 GbE management port (for Mist operations)
—

Rear Panel of an SSR1200

Figure 2 on page 4 shows the rear panel of an SSR1200.
Figure 2: Rear Panel Components of SSR1200
1 Earth grounding
—
6 1/10 GbE SFP+ ports (1/0 through 1/3)
—
1 GbE Ethernet ports (0/0 through 0/6)
7
—
8 Console port
—
9 Claim code
—
10 Navigation buttons for LCD screen (reserved
—
for future use)
4 Fans
—
