- Page 1 TRX96 PROFESSIONAL REMOTE CAR STARTER WITH ALARM SYSTEM & 2-WAY LCD COMMUNICATION OPERATION MANUAL THIS PRODUCT IS DESIGNED FOR PROFESIONAL INSTALLATION ONLY...
-
Page 2: Table Of Contents
TABLE OF CONTENTS: LCD REMOTE TRANSMITTER: A. REMOTE TRANSMITTER OPERATION…………………………….…4 B. BATTERY REPLACEMENT ………………………………………..….. 5 C. THE REMOTE LCD ICONS WITH FUNCTION ……………..…...…..6 C. PROGRAMMING OF THE LCD REMOTE TRANSMITTER ………...7 1. Screen Lamp ON 2. Power Save Mode 3. Clear The Flash Icon and Melody Sound 4. - Page 3 Exit Valet Mode LOCATOR .………………………………………………………..16 PANIC FUNCTION .…………………….……………..….……….….….16 N. TRIGGER THE SYSTEM ..……..………………..………….….……...17 Clear The Trigger Icons and Melody Sound Stop The Melody Sound Only Noise Abatement Circuit O. ANTI CAR- JACKING .………………………………………….……...18 Active Anti Car Jacking Passive Anti Car Jacking Trigger The Anti Car Jacking Mode Override The System To Turn Off Anti Car Jacking P.
-
Page 4: Lcd Remote Transmitter
WARRANTY CARD…………………………………………………………..27 WARNINGS: As with any product that performs automatic functions, there are certain safety precautions that you must practice and be aware of. 1. Keep the transmitter out of children’s reach. 2. Do not leave anyone in the vehicle while running on remote control. 3. -
Page 5: Battery Replacement
Note: If the system is interfered by stronger radio frequency around, sources of high voltage electric power or such Obstacles like tall buildings and so on, the transmission range may get shorter as the system uses low out put powered frequency. A. -
Page 6: The Remote Lcd Icons With Function

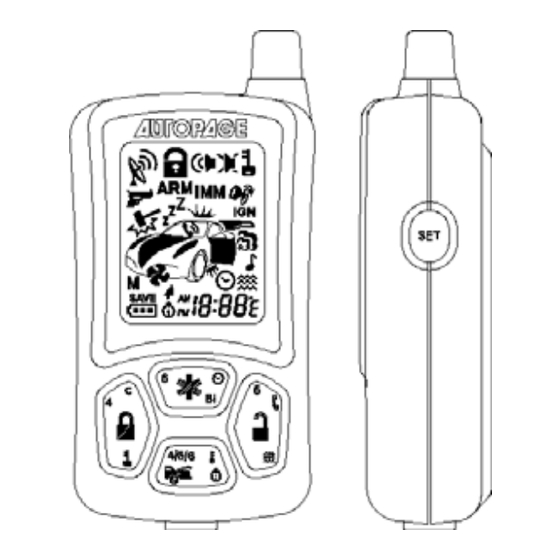

B. THE REMOTE LCD ICONS WITH FUNCTION: Door Lock Door Unlock Your vehicle doors are Your vehicle doors are locked unlocked and the system is Disarmed Armed Mode Valet Mode Your vehicle is in armed All the function shall be mode temporarily on hold. -
Page 7: Programming Of The Lcd Remote Transmitter
Engine Starting Engine Running Your vehicle engine Your vehicle's engine is starting by remote running control Temperature Monitor Timer Control Start Indoor temperature of your Start the Engine vehicle automatically at the same time next day or every 3-hour. Time Monitor Alert Alarm You have set morning call alarm... -
Page 8: Vibration / Melody Mode
Enable / Disable Bi Sound (2-second) (Bi) While Pressing Button 1. Screen Lamp ON: Press and hold the button one second, with one melody sound and the LCD screen lamp will turns on for 5 seconds 2. Power Save Mode: While the power save mode, the LCD remote transmitter uses “0”... -
Page 9: Low Battery Indication
transmitter If you want mute the “bi” sound mute always while press button. Press the button first, within 3 seconds press and hold the (Bi) button for 2 seconds to disable the “bi” sound. 8. Low Battery Indication: When the power of the battery weakens, it has two short “bi” sound and flash icon while pressing the button of the LCD screen transmitter. - Page 10 Count down Timer Setting Press the button for OFF and ON / OFF once for ON Daily Timer Start Timer for – and Press & hold the Setting Flash button for 2 seconds. icon and “Hours” for adjusting EXIT: Press and hold the button for 2 seconds or leave it for 10seconds, the system will exit the programming mode.
-
Page 11: Time Set-Up For "Daily Timer Start
3. Count Down Timer Setting: Example Set count down timer at 2:30 1. Press & hold the button for 3 seconds, with two-melody sound and the “Hours” digit flashes for adjusting. 2. Press the button 5 times, the LCD screen will shows icon and “Hours”... - Page 12 Button Lock Doors & Arm System Panic function Press and Hold for 3 seconds. Car Locator Under armed mode Arm and Delete The 2 Stage Press twice within 3 seconds Shock Sensor. Silent Arming / Disarming Ignition in "off" position. Ignition in "on"...
-
Page 13: Button Lock
B. BUTTON LOCK: It is useful if you want to disable the transmission function of the remote control temporarily to prevent from any inadvertent pressing of buttons by others. 1. The XT-85s Standard transmitter: Press the button first, within 3 seconds press and hold the button for 2 seconds to activate or cancel the button lock function. -
Page 14: Active Arming - Arm & Lock
Parking Siren / Horn Doors Starter Dome Light Light Slow 1. Arming 1 or 3 Chirps 1 Flash Locking Disable Flash 2 or 3 Turns on for 30 2. Disarming 2 or 4 Chirps Unlocking Flashes -second Slow 3. Trigger Alarming Flashes Disable... -
Page 15: Passive Arming With Passive Door Locking
2. After all entrances are closed, the security system LED will flash fast for 30 seconds. If you reopen any door / hood / trunk, the security system LED will stop flashing. It will begin flashing again once all vehicle entrances are closed. -
Page 16: Automatic Re-Arm
AUTOMATIC RE-ARM: If this feature is selected, the security system will automatically re-arm itself in 60 seconds after disarming with remote transmitter. Automatic rearm will cancel if any door is opened before the 60 seconds timer has elapsed. J. DISARMING WITHOUT A TRANSMITTER OVERRIDES THE ALARM WITHOUT PASSWORD PIN CODE: (Factory Default Setting) The Override function may be used if the remote transmitter is lost or... -
Page 17: Exit Valet Mode
Remote Door Lock Remote Door Unlock Enter Valet Mode: 1. From the disarmed condition, turn the ignition to “ON” position. 2. Push and hold valet switch for 2 seconds until the LED turns on. The LED wills remain on as long as the system is in 'valet mode'. -
Page 18: Stop The Melody Sound Only
of an intrusion for 30 seconds. Then it will stop and automatic reset and re-arm. If the one of sensors or detectors still active, the alarm system will sound a maximum of 3 times of 30 seconds cycles. Door Trigger Trunk/Hood Trigger Warn-away Trigger Shock Sensor Trigger Ignition Trigger... -
Page 19: Override The System To Turn Off Anti Car Jacking
50 seconds after the system has been triggered. The siren will start chirping for 15 seconds. During this 15 seconds period of chirping, you will be alerting to push the valet switch once to turn off the car-jacking feature. If not, it will enter second timer car jacking. Second timer: 65 seconds after the system has been triggered. -
Page 20: Dome Light Convenience Delay & Supervision
If someone tries to page you by tapping the paging (knock) sensor (optional) which is usually mounted on the bottom part of front window, the paging melody sound continues sounding from you Remote LCD Transmitter and “ ” indication flashes on the LCD screen. 1. -
Page 21: Channel 5 Timer Control Output
Press the transmitter (4) and (4) button at the same time to active Channel 4 function. Channel 4 is user-programmable timer output. You may program the built-in timer to send a ground signal for any time duration from 1 second to 120 seconds. For instance, this timer output may be used to turn on the headlight, power window or sunroof. -
Page 22: Power On Memory
1. Press first, within 3 seconds press and hold buttons at the same time for 2 seconds. Two beeping sound and the “ ” icon will be displayed on the LCD screen to indicate the second transceiver pin code is programmed. 2. -
Page 23: Safe Start (Child Safety Mode)
When you want to start your vehicle, Activate Remote Start 1. Press button once on the transmitter. 2. The parking light will activate to indicate the remote start received the signal. 3. The engine will start approximately 5 seconds. 4. Once the engine is running, after couple seconds the parking light will turn on again and climate controls will activate and adjust the vehicles interior temperature to your preset setting. -
Page 24: Mode
Turbo charge mode keeps the engine running after arriving at your destination for a programmable period of 1, 3 or 5 minutes, This allows the vehicle’s engine time to conveniently cool down the turbo after you have left the vehicle. To activate: 1. -
Page 25: Exit The Timer Start
3-b. Daily Timer Start: Depress the transmitter button first, button for two seconds. within 3 seconds press and hold The parking light will flash (6) times. The siren chirps (6) times. The vehicle is now programmed to start at the real time of the next day. - Page 26 This feature allows your system’s remote start unit to be temporarily disabled to prevent the vehicle from being remote started accidentally. This feature is useful if the vehicle is being serviced or stored in an enclosed area. To disable the remote start, move the optional remote start enable toggle switch to the OFF position.
- Page 27 Auto Page will void the product’s limited lifetime warranty. This WARRANTY CARD is for your record. However, Autopage reserves the right to request you to submit this WARRANTY CARD, which must have complete information...
- Page 28 AUTOPAGE WARRANTY SERVICE CARD _______________ Model: Serial # _______________ CUSTOMER TO COMPLETE DEALER TO COMPLETE Mr./Mrs./Ms. ___________________________ ________________________________ Your Name (Please Print) Company Name ___________________________ ________________________________ Address Dealer’s Address ___________________________ ________________________________ City, State, Zip Code City, State, Zip Code ___________________________...
