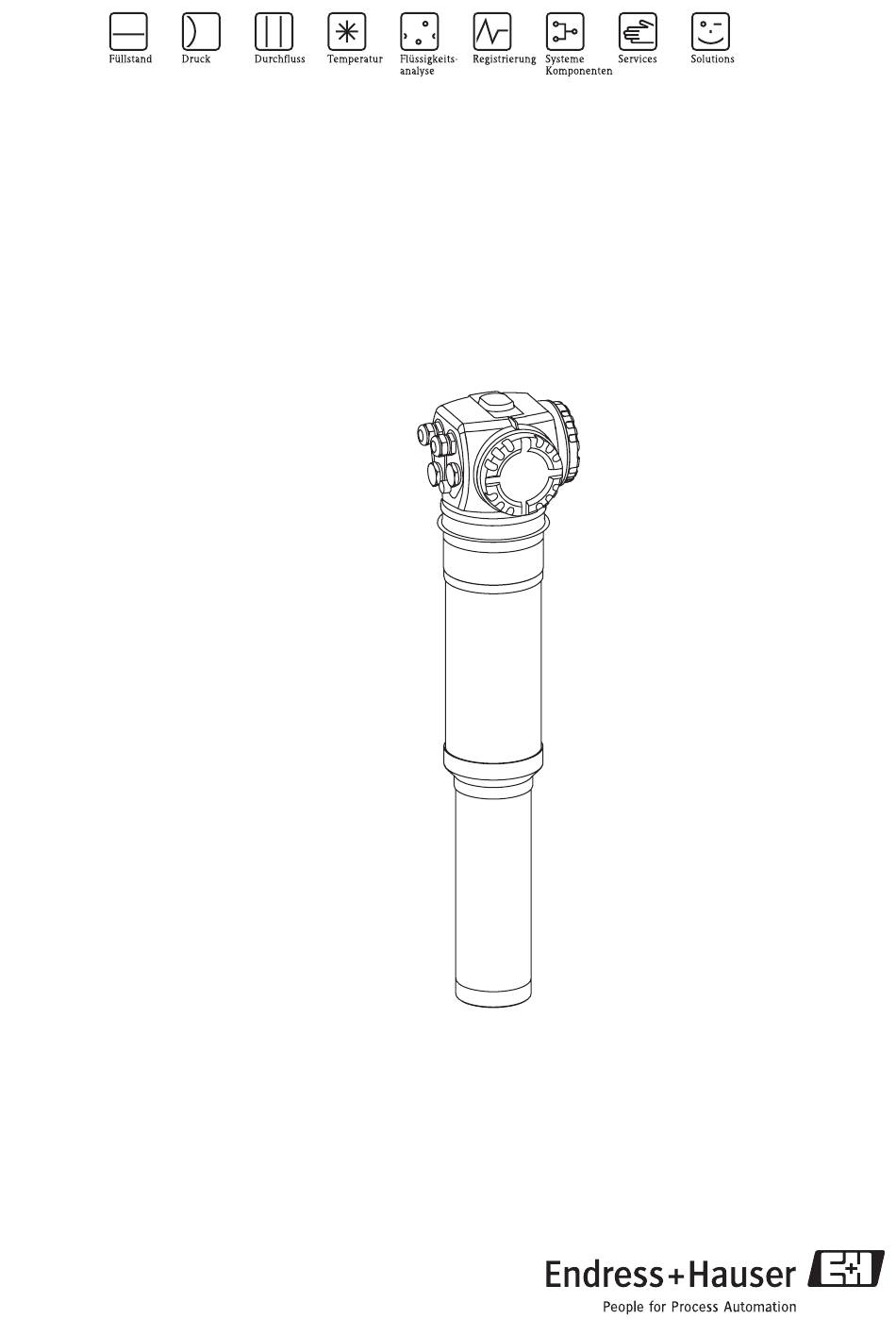

Operating Instructions

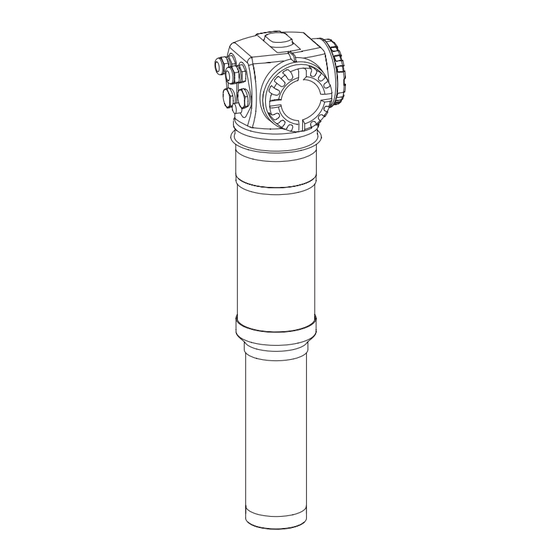

Gammapilot M FMG60
Radiometric Measurement
8
BA329F/00/en/10.09
71104600
Valid as of software version:
V01.03.02

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Gammapilot M FMG60

Summary of Contents for Endress+Hauser Gammapilot M FMG60

  • Page 1 Operating Instructions Gammapilot M FMG60 Radiometric Measurement BA329F/00/en/10.09 71104600 Valid as of software version: V01.03.02...
  • Page 2 Brief operating instructions Gammapilot M FMG60 with PROFIBUS PA Brief operating instructions Gammapilot M - Quick Setup KA242F/00/a2/02.07 measured value Group slave, end slave selection basic setup todays beam type isotope operating meas. density min. max. pipe diam. pipe diam.

  • Page 3: Table Of Contents

    Scope of delivery ......12 Contact addresses of Endress+Hauser ... 81 Supplied documentation .

  • Page 4: Safety Instructions

    Safety instructions Gammapilot M FMG60 with PROFIBUS PA Safety instructions Designated use The Gammapilot M is a compact transmitter for non-contact level, level limit, density and concentration measurement. The measuring range of a single Gammapilot M extends up to 2 m.

  • Page 5: Radiation Protection

    Gammapilot M FMG60 with PROFIBUS PA Safety instructions Radiation protection The Gammapilot M is used in conjunction with a radioactive source, contained in a source container. When handling radioactive sources, the following instructions have to be observed: 1.4.1 Basic regulations on radiation protection Warning! When handling radioactive sources, all unnecessary radiation exposure should be avoided.
  • Page 6 For the Federal Republic of Germany the limit values for the control zone are specified in the current radiation protection requirements. The Endress+Hauser sales organization will be pleased to provide further information on radiation protection and regulations in other countries.
  • Page 7 Gammapilot M FMG60 with PROFIBUS PA Safety instructions 1.4.4 Procedures after termination of the application Internal measures As soon as a radiometric measuring device is no longer required, the radiation source on the source container must be switched off. The source container shall be removed in accordance with all relevant regulations and saved in a lockable room having no through traffic.

  • Page 8: Notes On Safety Conventions And Icons

    Safety instructions Gammapilot M FMG60 with PROFIBUS PA Notes on safety conventions and icons In order to highlight safety-relevant or alternative operating procedures in the manual, the following conventions have been used, each indicated by a corresponding symbol in the margin.

  • Page 9: Identification

    Gammapilot M FMG60 with PROFIBUS PA Identification Identification Parts of the Gammapilot M Terminal head Mounting collar Detector pipe Terminal compartment A Terminal compartment B Centering knob Instrument nameplate Supplementary nameplate Measuring range marks 10. Cooling water connections 11. PML connector of the water cooling jacket 12.

  • Page 10: Nameplates

    Identification Gammapilot M FMG60 with PROFIBUS PA Nameplates Device nameplate Supplementary nameplate (Examples) Made in Germany, D-79689 Maulburg KEMA 04 ATEX Gammapilot M Order Code: Ser.-No.: IP 65/67 Type 4/6 NEMA 4/6 -40°C °C Dat./Insp.: L00-FMG60xxx-18-00-00-xx-001 1: Order code (as defined by the ordering structure);...

  • Page 11: Ordering Structure

    Gammapilot M FMG60 with PROFIBUS PA Identification Ordering structure Versions that mutually exclude one another are not marked. Ordering information Gammapilot M FMG60 Feature Option Approval Non-hazardous area NEPSI Ex de (ia) IIC T6 NEPSI Ex d (ia) IIC T6...

  • Page 12: Scope Of Delivery

    Special version, to be specified FMG60 - Product designation Scope of delivery • Ordered version of the device (including Operating Instructions) • Endress+Hauser operating program (on the CD-ROM supplied) • Accessories as ordered Supplied documentation 2.5.1 Operating Instructions (BA 329F, this manual) Describe how to install and commission the Gammapilot M (communication version PROFIBUS PA).

  • Page 13: Certificates And Approvals

    The device takes into account applicable standards and regulations which are listed in the EC declaration of conformity and thus meets the legal requirements of the EC Directives. Endress+Hauser confirms the successful testing of the device by affixing to it the CE mark.

  • Page 14: Installation

    Installation Gammapilot M FMG60 with PROFIBUS PA Installation Incoming acceptance, transport, storage 3.1.1 Incoming acceptance Check the packing and contents for any signs of damage. Check the shipment, make sure nothing is missing and that the scope of supply matches your order.

  • Page 15: Installation Conditions

    Gammapilot M FMG60 with PROFIBUS PA Installation Installation conditions 3.2.1 Dimensions, weight Gammapilot M (without water cooling jacket) L00-FMG60xxx-06-00-00-xx-001 Gammapilot M with water cooling jacket or collimator L00-FMG60xxx-06-00-00-xx-002 without water cooling with water cooling jacket jacket Measuring Overall Weight Overall...
  • Page 16 Installation Gammapilot M FMG60 with PROFIBUS PA • In cascading mode no gap should occur between the measuring ranges of the different Gammapilot M. • The source container and the Gammapilot M must be mounted as close to the vessel as possible.
  • Page 17 Gammapilot M FMG60 with PROFIBUS PA Installation 3.2.3 Installation conditions for level limit detection Conditions • For level limit detection, the Gammapilot M should be mounted horizontally at the height of the desired level limit. • The exit angle of the source container must be exactly aligned to the measuring range of the Gammapilot M.
  • Page 18 • If only horizontal pipes are accessible, the path of the ray should also be arranged horizontally to reduce the influence of air bubbles and sediments. • The Endress+Hauser clamping device (see chapter "Accessories") or an equivalent clamping device should be used for fastening the radiation source container and the Gammapilot M to the measuring tube.
  • Page 19 Gammapilot M FMG60 with PROFIBUS PA Installation 3.2.5 Empty pipe detection Gammapilot M FTG470Z SPS / PLC Fig. 1: 1: Monitoring detector DG17/27 or FMG60 Mounting the FMG60 or DG17/27 on the FMG60 for empty pipe detection If the pipe becomes empty as a result of operational processes, the radiation on the detector side can hit dangerous levels.

  • Page 20: Water Cooling

    Installation Gammapilot M FMG60 with PROFIBUS PA Water cooling For the versions of the Gammapilot with water cooling jacket, the following applies: • Material: 316L • Water connection: 2 x G 1/4"A, DIN ISO 228 • Inlet temperature: max. 40 °C •...

  • Page 21: Post-Installation Check

    Gammapilot M FMG60 with PROFIBUS PA Installation 3.3.2 Required flow rate The required flow rate depends on • the ambient temperature at the water cooling jacket • the inlet temperature • the measuring range of the Gammapilot M Typical values are given in the following tables: Ambient temperature T = 75 °C...

  • Page 22: Wiring

    Wiring Gammapilot M FMG60 with PROFIBUS PA Wiring Terminal compartments The Gammapilot M has got two terminal compartments: • terminal compartment A, for – Power supply – Signal output (depending on the device version) • terminal compartment B, for – Signal output (depending on the device version) –...

  • Page 23: Terminal Assignment

    Gammapilot M FMG60 with PROFIBUS PA Wiring Terminal assignment Terminal compartment A Terminal compartment B 90 … 253 VAC 18 … 36 VDC SIM WP PT100 9 10 11 12 IN CASCADE OUT L00-FMG60xxx-04-00-00-xx-001 L00-FMG60xxx-04-00-00-xx-002 Terminal(s) Meaning Grounding of the cable screen...

  • Page 24: Fieldbus Connectors

    Wiring Gammapilot M FMG60 with PROFIBUS PA Terminal compartment for Feature 30 of the ordering structure: Power supply wiring/output wiring Supply voltage Signal output Non-Ex; Non-Ex EEx e; EEx ia EEx e; EEx e Ex d (XP); Ex d (XP) Ex d (XP);...

  • Page 25: Profibus Pa Cable Specifications

    Gammapilot M FMG60 with PROFIBUS PA Wiring PROFIBUS PA cable specifications Twisted, shielded pairs must be used. The following specification must be met for explosion hazardous application (EN 50 020, FISCO model): • Loop-resistance (DC): 15 to 150 Ω/km, • Specific inductance: 0.4 to 1 mH/km, •...

  • Page 26: Wiring In Terminal Compartment A

    Wiring Gammapilot M FMG60 with PROFIBUS PA Wiring in terminal compartment A " Caution! Before connection please note the following: • When using the device in hazardous areas, make sure to comply with national standards and the specifications in the Safety Instructions (XAs).

  • Page 27: Wiring In Terminal Compartment B

    Gammapilot M FMG60 with PROFIBUS PA Wiring Wiring in terminal compartment B " Caution! Before connection please note the following: • Connect potential matching line to transmitter ground terminal and to the ground terminal of the water cooling jacket (if present) before connecting up the device (see above, section "Potential equalization").

  • Page 28: Connecting The Remote Display And Operation Fhx40

    Wiring Gammapilot M FMG60 with PROFIBUS PA 4.10 Connecting the remote display and operation FHX40 The remote display and operating unit FHX40 is available as accessory. It is connected to the FHX40-connector of the Gammapilot M via the supplied cable. To do this, the housing of the Gammapilot M needs not to be opened.

  • Page 29: Wiring In Cascading Mode

    Gammapilot M FMG60 with PROFIBUS PA Wiring 4.11 Wiring in cascading mode N/L- L1/L+ AC/DC L00-FMG60xxx-04-00-00-xx-009 A: power supply (90 to 253V or 18 to 36V ); B: junction box; M: Master; S: Slave; E: End-Slave Note! For the positioning of the power switch according to IEC/EN 61010, there are two options: •...

  • Page 30: Measuring Solids Flow

    Gammapilot M FMG60 with PROFIBUS PA 4.12 Measuring solids flow In conjunction with a density measuring device, such as Endress+Hauser's "Gammapilot M", Promag 55S also determines the rate of solids with regard to the mass, volume or percentage content. The following order information is required for this purpose for Promag 55S: Order option for software function "Solids flow"...

  • Page 31: Operation

    Gammapilot M FMG60 with PROFIBUS PA Operation Operation Overview over the operating options 5.1.1 PROFIBUS PA A maximum of 32 transmitters (8 if mounted in an explosion hazardous location EEx ia IICcording to the FISCO model) can be connected to the bus. The segment coupler (1) provides the operating voltage to the bus.

  • Page 32: Display Operation

    Operation Gammapilot M FMG60 with PROFIBUS PA Display operation 5.2.1 Display and operating elements The LCD module VU331 for displaying and operating is inside the remote display and operating unit FHX 40. The measured value can be read off through the FHX 40 sight glass. In order to operate the device, the FHX40 must be opened by removing the four screws.
  • Page 33 Gammapilot M FMG60 with PROFIBUS PA Operation Function of the keys Key(s) Meaning Navigate upwards in the selection list Edit numeric value within a function Navigate downwards in the selection list Edit numeric value within a function Navigate to the left within a function group Navigate to the right within a function group, confirmation.
  • Page 34 Operation Gammapilot M FMG60 with PROFIBUS PA 5.2.2 The operating menu Function code The functions of the Gammapilot M are arranged in an operating menu. To ensure easy orientation within the menu, a unique position code is indicated on the display for each function. This code consists of one alphabetic and two numeric characters.
  • Page 35 Gammapilot M FMG60 with PROFIBUS PA Operation Operation using the onsite display VU 331 ENDRESS + HAUSER – >3 s return to basic setup todays date isotope group selection 137Cs calibration 60Co safety setting no compens. temperature compensation linearisation L00-FMG60xxx-19-00-00-en-006 Change from Measured Value Display to Group Selection by pressing F.

  • Page 36: Alternative Operation Options

    ToF Tool - FieldTool Package The "ToF Tool - FieldTool Package" is a standardized graphical operating program for measuring devices from Endress+Hauser. It is delivered together with the Gammapilot M. Observe the system requirements and installations hints on the cover of these CD-ROMs.

  • Page 37: Lock/Unlock Configuration

    FieldCare FieldCare is Endress+Hauser's plant asset management tool based on FDT technology. FieldCare can be used to configure all Endress+Hauser devices and third-party devices which support the FDT standard. The following operating systems are supported: WinNT4.0, Win2000 and Windows XP.

  • Page 38: Reset To The Default Configuration

    Operation Gammapilot M FMG60 with PROFIBUS PA Reset to the default configuration It is advisable to reset the customer parameters if you want to use a device with an unknown history. Effects of resetting: • All customer parameters are reset to their default values.
  • Page 39 Gammapilot M FMG60 with PROFIBUS PA Operation 5.6.2 Device database and type files (GSD) A device database file (GSD) contains a description of the properties of the PROFIBUS-PA device, e.g. the supported transmission rates and the type and format of the digital information output to the PLC.
  • Page 40 Operation Gammapilot M FMG60 with PROFIBUS PA 5.6.3 Cyclic data exchange Block model of the Gammapilot M measuring signal Display Physical Block with scaling parameters of the Sensor physical unit, e.g. signal tag No. evaluation display measured value value Analog Input Function Block...
  • Page 41 Gammapilot M FMG60 with PROFIBUS PA Operation Configuration of the cyclic data telegram Use the configuration software of your PLC in order to compose the data telegram from these modules in one of the following ways: Main value In order to transmit the main measured value, select the module "Main Process Value".
  • Page 42 Operation Gammapilot M FMG60 with PROFIBUS PA IEEE-754 Floating Point Number The measured value is transmitted as an IEEE 754 floating point number, whereby (E-127) Measured value = (-1) x (1+F) Byte 1 Byte 2 Bit 7 Bit 6 Bit 5...
  • Page 43 Gammapilot M FMG60 with PROFIBUS PA Operation 5.6.4 Acyclic data exchange Acyclic data exchange allows device parameters to be changed independently of the communication between the device and a PLC. Acyclic data exchange is used • to transmit device parameters during commissioning and maintenance;...
  • Page 44 Operation Gammapilot M FMG60 with PROFIBUS PA 5.6.5 Slot/index tables Device Management Parameter Menu Slot Index Size Type Read Write Storage position [bytes] Class Dir. Object Header STRING constant Comp. List Dir. Entry STRING constant Analog-Input-Block Parameter Menu Slot Index Size...
  • Page 45 Gammapilot M FMG60 with PROFIBUS PA Operation Parameter Menu Slot Index Size Type Read Write Storage position [bytes] Class HI HI Alarm UINT8+ dynamic UINT8+ STRING+ UINT16+ FLOAT HI Alarm UINT8+ dynamic UINT8+ STRING+ UINT16+ FLOAT LO Alarm UINT8+ dynamic...
  • Page 46 Operation Gammapilot M FMG60 with PROFIBUS PA Parameter Menu Slot Index Size Type Read Write Storage position [bytes] Class Write locking UINT16 static Factory reset UINT16 static Descriptor STRING static Device message STRING static Device instal. date STRING static Ident number select...
  • Page 47 Gammapilot M FMG60 with PROFIBUS PA Operation Parameter Menu Slot Index Size Type Read Write Storage position [bytes] Class Present Date (*01) STRING static Present Date Day (*01) UINT8 dynamic Present Date Month (*01) UINT8 dynamic Present Date Year (*01)
  • Page 48 Operation Gammapilot M FMG60 with PROFIBUS PA Parameter Menu Slot Index Size Type Read Write Storage position [bytes] Class Linearisation Start Stop (*43) ENUM static Normal. Pulse Rate (*44) INT32 static Unit Selection (*45) ENUM static Customer Unit (*46) ENUM16 static Linearisation Concentr.
  • Page 49 Gammapilot M FMG60 with PROFIBUS PA Operation Parameter Menu Slot Index Size Type Read Write Storage position [bytes] Class Density Value (*A8) FLOAT dynamic Tag Number (*C0) STRING STATIC Profile Version (*C1) STRING static Prot. Softw. Version (*C2) STRING const.

  • Page 50: Commissioning

    Commissioning Gammapilot M FMG60 with PROFIBUS PA Commissioning Note! This chapter describes the commissioning of the Gammapilot M using the operating module VU331 (which is located in the remote display and operating unit FHX40). Commissioning using the "ToF Tool - FieldTool Package", "FieldCare" or the HART handheld terminal DXR375 is similar.
  • Page 51 Gammapilot M FMG60 with PROFIBUS PA Commissioning 6.1.1 Basic setup Step Function Entry or selection Comments See page Set day with O and S ; Present date (*01) e.g. Confirm with F; 12.11.04 10:30 The same applies for month, year, hour and minute Select with O and S;...
  • Page 52 Commissioning Gammapilot M FMG60 with PROFIBUS PA 6.1.2 Calibration for level measurement and limit detection Note! The fundamentals for calibrating for level measurement and level limit detection are described in Section 6.4, P. 62. Background calibration (for details see Section 6.4.2, P. 65)
  • Page 53 Gammapilot M FMG60 with PROFIBUS PA Commissioning "Empty" or "free" calibration (for details see Section 6.4.3, P. 67) Step Function Action/comments • The radiation remains switched on • Empty tank Level: max. 40% Level limit: beam path free Select "empty/free" with O or S;...
  • Page 54 Commissioning Gammapilot M FMG60 with PROFIBUS PA 6.1.3 Calibration for density and concentration measurements Note! The fundamentals for calibrating for density and concentration measurement are described in Section 6.5.1, P. 71. Background calibration (for details see Section 6.5.2, P. 73)

  • Page 55: Switching On The Device

    Gammapilot M FMG60 with PROFIBUS PA Commissioning Switching on the device FMG60 After switching on the supply voltage, the device is first initialized. ENDRESS + HAUSER ⇒ V01.01.06 PA Due to internal memory tests, this takes approx. 2 minutes. Then, the following appear for approximately five seconds: •...

  • Page 56: Basic Setup

    Commissioning Gammapilot M FMG60 with PROFIBUS PA Basic setup 6.3.1 "Present date" (*01) present date ENDRESS + HAUSER ⇒ 17.11.04 10:30 dd.mm.yy hh:mm – Date and time of the basic setup are specified in this function. Format: DD.MM.YY HH:MM where: –...
  • Page 57 Gammapilot M FMG60 with PROFIBUS PA Commissioning 6.3.4 "Operating mode" (*04) operating mode ENDRESS + HAUSER ⇒ Âstand alone master – slave This function is used to specify in which operating mode the Gammapilot M will be used. Note! The selection can be performed only once and the function is automatically locked after that. It can only be unlocked again by a reset of the Gammapilot M ("Reset"...
  • Page 58 Commissioning Gammapilot M FMG60 with PROFIBUS PA 6.3.5 "Measurement mode" (*05) meas. mode ENDRESS + HAUSER ⇒ Âlevel limit – density This function is used to select the desired measuring mode. Note! The selection can be performed only once and the function is automatically locked after that. It can only be unlocked again by a reset of the Gammapilot M ("Reset"...
  • Page 59 Gammapilot M FMG60 with PROFIBUS PA Commissioning 6.3.6 "Density unit" (*06) density unit ENDRESS + HAUSER ⇒ Âg/cm3 – lb/gal This function is needed for density and concentration measurements only. It is used to select the density unit. Options: • g/cm •...
  • Page 60 Commissioning Gammapilot M FMG60 with PROFIBUS PA 6.3.9 "Pipe diameter unit" (*09) pipe diam. unit ENDRESS + HAUSER ⇒ Âmm inch – This function is needed for density and concentration measurements only. It is used to select the unit for the pipe diameter.
  • Page 61 Gammapilot M FMG60 with PROFIBUS PA Commissioning 6.3.11 "Output damping" (*0B) output damping ENDRESS + HAUSER ⇒ 60 s – This function is used to specify the output damping τ (in seconds) by which changes of the measured value are attenuated.

  • Page 62: Calibration For Level Measurement And Limit Detection

    Commissioning Gammapilot M FMG60 with PROFIBUS PA Calibration for level measurement and limit detection 6.4.1 Basic principles The calibration points for the measurement are entered in the "calibration" (*1) function group. Each calibration point consists of a level and the associated pulse rate.
  • Page 63 Gammapilot M FMG60 with PROFIBUS PA Commissioning Calibration points for limit detection L00-FMG60xxx-05-00-00-xx-002 Calibration points for limit detection; A: Background calibration; B: Covered calibration; C: Free calibration Background calibration refers to the following situation: • The radiation is switched off.
  • Page 64 That is, not only the level but also the associated pulse rate must be entered by the user. For details concerning the calculation of the count rate please refer to your Endress+Hauser sales organization. Note! When calibrating manually, the calibration date is not set automatically. Instead, it must be entered manually into the "calibration date"...
  • Page 65 Gammapilot M FMG60 with PROFIBUS PA Commissioning 6.4.2 Background calibration Excerpt from the operating menu The following excerpt from the operating menu shows how the background calibration is entered. The individual functions are explained in the sections below. backgr. calib.
  • Page 66 Commissioning Gammapilot M FMG60 with PROFIBUS PA "Avg. pulse rate" (*11) avg. pulse rate ENDRESS + HAUSER ⇒ 186 cps – The average pulse rate is displayed in this function (after selection of "start" in the previous function). Initially, this value fluctuates (because of the decay statistics), but due to the integration it reaches an average value in the course of time.
  • Page 67 Gammapilot M FMG60 with PROFIBUS PA Commissioning 6.4.3 Full and empty calibration or covered and free calibration Excerpt from the operating menu The following excerpt from the operating menu shows how the full and empty calibration (for level measurements) or the covered and free calibration (for level limit detection) are entered. The individual functions are explained in the sections below.
  • Page 68 Commissioning Gammapilot M FMG60 with PROFIBUS PA "Value full" (*14) "Value empty" (*17) Value full ENDRESS + HAUSER ⇒ 100% – Value empty ENDRESS + HAUSER ⇒ – These functions are needed for level measurements only. They are used to specify the level at which the full or empty calibration are performed.
  • Page 69 Gammapilot M FMG60 with PROFIBUS PA Commissioning "Avg. pulse rate" (*11) avg. pulse rate ENDRESS + HAUSER ⇒ 2548 cps – The average pulse rate is displayed in this function (after selection of "start" in the previous function). Initially, this value fluctuates (because of the decay statistics), but due to the integration it reaches an average value in the course of time.
  • Page 70 Commissioning Gammapilot M FMG60 with PROFIBUS PA "Full calibration" (*16) "Empty calibration" (*18) full calibr. ENDRESS + HAUSER ⇒ 33 cps – empty calibr. ENDRESS + HAUSER ⇒ 2548 cps – The pulse rate of the respective calibration point is displayed in these functions. The displayed value must be confirmed by pressing "E".

  • Page 71: Calibration For Density And Concentration Measurements

    Gammapilot M FMG60 with PROFIBUS PA Commissioning Calibration for density and concentration measurements 6.5.1 Basic principles The calibration points for the measurement are entered in the "calibration" (*1) function group. Each calibration point consists of a density value and the associated pulse rate.
  • Page 72 Commissioning Gammapilot M FMG60 with PROFIBUS PA Multiple-point calibration is especially advisable for measurement in a wide range of densities or for especially precise measurements. Recalibration The Gammapilot M provides a further calibration point ("10") for recalibration. This point can be entered, if the measuring conditions have changed, e.g.
  • Page 73 Gammapilot M FMG60 with PROFIBUS PA Commissioning 6.5.2 Background calibration Excerpt from the operating menu The following excerpt from the operating menu shows how the background calibration is entered. The individual functions are explained in the sections below. backgr. calib.
  • Page 74 Commissioning Gammapilot M FMG60 with PROFIBUS PA "Avg. pulse rate" (*11) avg. pulse rate ENDRESS + HAUSER ⇒ 186 cps – The average pulse rate is displayed in this function (after selection of "start" in the previous function). Initially, this value fluctuates (because of the decay statistics), but due to the integration it reaches an average value in the course of time.
  • Page 75 Gammapilot M FMG60 with PROFIBUS PA Commissioning 6.5.3 Calibration points Excerpt from the operating menu The following excerpt from the operating menu shows, how the density calibration points are entered. The individual functions are explained in the sections below. The functions are only accessible after the background calibration has been performed.
  • Page 76 Commissioning Gammapilot M FMG60 with PROFIBUS PA • start This option is used to start the automatic entering of the calibration point. The Gammapilot M then changes to the "avg. pulse rate" (*11) function. "Avg. pulse rate" (*11) avg. pulse rate ENDRESS + HAUSER ⇒...
  • Page 77 Gammapilot M FMG60 with PROFIBUS PA Commissioning "Density calibration" (*1B) density calibr. ENDRESS + HAUSER ⇒ 1983 cps – The pulse rate of the respective calibration point is displayed in this function. The displayed value must be confirmed by pressing "E".
  • Page 78 Commissioning Gammapilot M FMG60 with PROFIBUS PA "Absorption coefficient" (*1E) absorp. coeff. ENDRESS + HAUSER ⇒ 7.70 mm2/g – This function displays the absorption coefficient which results from the currently active calibration points. The displayed value should be used for plausibility checking.

  • Page 79: Density Measurement/Temperature-Compensated

    Gammapilot M FMG60 with PROFIBUS PA Commissioning 6.5.4 Linearization (for concentration measurements) If the concentration is to be measured in a unit other than the "density unit" (*06), a linearization must be performed after the calibration. This can be done in the "Linearization" (*4) function group.

  • Page 80: Maintenance And Repairs

    When cleaning the exterior, always use cleaning agents that do not attack the surface of the housing and the seals. Repair The Endress+Hauser repair concept assumes that repairs to the Gammapilot M are performed by the Endress+Hauser Service in Endress+Hauser workshops. For more information contact the Service Department at Endress+Hauser.

  • Page 81: Return

    Maintenance and repairs Return The following procedures must be carried out before a transmitter is sent to Endress+Hauser e.g. for repair or calibration: • Remove all residue which may be present. Pay special attention to the gasket grooves and crevices where fluid may be present.

  • Page 82: Accessories

    Accessories Commubox FXA291 The Commubox FXA291 connects Endress+Hauser field devices with a CDI interface (= Endress+Hauser Common Data Interface) and the USB port of a computer or laptop. For details, see TI405C/07/en. Note! For Gammapilot M, you also need the "ToF adapter FXA291" accessory.

  • Page 83: Remote Display Fhx40

    Gammapilot M FMG60 with PROFIBUS PA Accessories Remote display FHX40 8.5.1 Dimensions Wall-mounting (without mounting bracket) Separate housing Pipe-mounting FHX 40 (IP 65) (mounting bracket and plate supplied optionally, s. ordering structure) Gammapilot M max. 80 min. 30 Cable pipe L00-FMxxxxxx-00-00-06-en-004 8.5.2...

  • Page 84: Mounting Device Fhg60 (For Level Measurement And Level Limit Measurement)

    Accessories Gammapilot M FMG60 with PROFIBUS PA Mounting device FHG60 (for level measurement and level limit measurement) 8.6.1 Dimensions max. 6 Nm M6x70-A2 Ø 40 - 65 M6x25-A2 max. 6 Nm ØC L00-FMG60xxx-17-00-00-xx-006A 1a: with preferred mounting method "housing head up" - bracket (for "level" application only );...
  • Page 85 Gammapilot M FMG60 with PROFIBUS PA Accessories 8.6.2 Application hints L00-FMG60xxx-17-00-00-xx-008 Mounting position: preferred; alternative A: Level measurement, FMG60 without water jacket; B: Level measurement, FMG60 with water jacket; C: Level limit measurement, FMG60 without water jacket; D: Level limit measurement, FMG60 with water jacket;...

  • Page 86: Clamping Device For Density Measurement Fhg61

    Accessories Gammapilot M FMG60 with PROFIBUS PA Clamping device for density measurement FHG61 For details, see • KA261F/00/a2 (clamping device supplementary set for pipes with diagonal irradiation, 50-20 mm in diameter) • KA262F/00/a2 (clamping device for pipes with 50-220 mm diameter) •...

  • Page 87: Troubleshooting

    Gammapilot M FMG60 with PROFIBUS PA Troubleshooting Troubleshooting System error messages 9.1.1 Error signal Errors occurring during commissioning or operation are signaled in the following way: • Error symbol, error code and error description on the display and operating module •...
  • Page 88 A110 checksum error call Endress+Hauser Service A111 electronics defect switch device off/on; if error still is present: call Endress+Hauser service or exchange transmitter A113 electronics defect switch device off/on; if error still is present: call Endress+Hauser service or exchange transmitter...
  • Page 89 Gammapilot M FMG60 with PROFIBUS PA Troubleshooting Code Description Remedy A631 background not calibrated perform background calibration ("calibration" (*1) function group) A632 full/covered not calibrated perform full/covered calibration ("calibration" (*1) function group) A633 empty/free not calibrated perform empty/free calibration ("calibration" (*1) function group)

  • Page 90: Possible Calibration Errors

    Troubleshooting Gammapilot M FMG60 with PROFIBUS PA Possible calibration errors Error Possible cause and remedy Pulse rate too low at empty • Radiation source switched off → Switch on source at the source container vessel • Incorrect alignment of radiation beam →...

  • Page 91: Technical Data

    Gammapilot M FMG60 with PROFIBUS PA Technical data Technical data 10.1 Technical data at a glance 10.1.1 Input Measured variable The Gammapilot M measures the pulse rate (number of counts per second). This rate is proportional to the intensity of radiation at the detector. From this rate, the Gammapilot M calculates the desired measured value: •...
  • Page 92 Technical data Gammapilot M FMG60 with PROFIBUS PA Power consumption • AC power supply: approx. 8.5 VA • DC power supply: approx. 3.5 W Overvoltage category Power supply and signal output are galvanically isolated from one another. Protective class 10.1.5...
  • Page 93 Gammapilot M FMG60 with PROFIBUS PA Technical data In order to calculate the relative error (percentage), the standard deviation must be divided by the pulse rate: Example • I = 1000/s • τ = 10 s ⇒ 2σ = 0.02 = 2%...
  • Page 94 Technical data Gammapilot M FMG60 with PROFIBUS PA 10.1.7 Process conditions Process temperature No limitations; for high process temperatures sufficient isolation between process vessel and detector must be ensured (see table of ambient temperatures). Process pressure No limitations; the influence of pressure must be taken into account when calculating the required activity and calibrating.
  • Page 95 Gammapilot M FMG60 with PROFIBUS PA Technical data Certificates Allocation of the Safety Information (XA) and Certificates (ZE) to the device: Allocation to the option, see "Ordering information". Device type Approval Approval/Degree of protection Power supply wiring/ Output Approval Safety Instructions...
  • Page 96 TIIS Ex d [ia] IIC T6 Approval for Gost available. CE mark The measuring system meets the legal requirements of the EC-guidelines. Endress+Hauser confirms the device passing the required tests by attaching the CE-mark. Overfill protection • WHG for level limit detection...
  • Page 97 Gammapilot M FMG60 with PROFIBUS PA Technical data Endress+Hauser...

  • Page 98: Appendix

    Appendix Gammapilot M FMG60 with PROFIBUS PA Appendix 11.1 Operating menu for level measurements basic setup todays date beam type isotope operating mode dd.mm.yy hh:mm standard / cont. 137Cs slave modulated 60 Co end slave not defined no compens. stand alone meas.
  • Page 99 Gammapilot M FMG60 with PROFIBUS PA Appendix output damping 1 … 999 s Default: 6 s calibration avg. pulse rate full calibr. start -1: not calibrated stop/edit next point calibration avg. pulse rate empty calibr. start -1: not calibrated stop/edit...

  • Page 100: Operating Menu For Level Limit Detection

    Appendix Gammapilot M FMG60 with PROFIBUS PA 11.2 Operating menu for level limit detection basic setup todays date beam type isotope operating mode dd.mm.yy hh:mm standard / cont. 137Cs slave modulated 60 Co end slave no compens. not defined stand alone meas.
  • Page 101 Gammapilot M FMG60 with PROFIBUS PA Appendix output damping 1 … 999 s Default: 6 s calibration avg. pulse rate full calibr. start -1: not calibrated stop/edit next point calibration avg. pulse rate empty calibr. start -1: not calibrated stop/edit gammagr.

  • Page 102: Operating Menu For Density And Concentration Measurements

    Appendix Gammapilot M FMG60 with PROFIBUS PA 11.3 Operating menu for density and concentration measurements operating mode basic setup todays date isotope beam type slave dd.mm.yy hh:mm 137Cs standard / cont. end slave modulated 60 Co not defined no compens.
  • Page 103 Gammapilot M FMG60 with PROFIBUS PA Appendix density unit min. density max. density *08 pipe diam. unit pipe diam. outp. damp.*0B g/cm3 1 … 999 s Default: 60 s … next point density calibr. density value calibr. point absorp. coeff ref.

  • Page 104: Measuring Principle

    Appendix Gammapilot M FMG60 with PROFIBUS PA 11.4 Measuring principle The radiometric measuring principle is based on the fact that gamma radiation is attenuated when it penetrates a material. Radiometric measurement can be applied for different measuring tasks: Gammapilot M...
  • Page 105 (e.g. from nondestructive material testing). Using a frequency filter, the Gammapilot M FMG60 can thus separate the useful signal from interference radiation. In this way, it is possible to continue measuring even if interference radiation occurs, which, in turn, increases the measuring certainty and system availability.

  • Page 106: Index

    Gammapilot M FMG60 with PROFIBUS PA Index Index Symbols Detector pipe ........9 Dimensions .
  • Page 107 Gammapilot M FMG60 with PROFIBUS PA Index Potential equalization ......25 Radiation protection ......5 Radiation protection officer .
  • Page 108 Gammapilot M FMG60 with PROFIBUS PA Index Endress+Hauser...
  • Page 109 Erklärung zur Kontamination und Reinigung Please reference the Return Authorization Number (RA#), obtained from Endress+Hauser, on all paperwork and mark the RA# clearly on the outside of the box. If this procedure is not followed, it may result in the refusal of the package at our facility.
