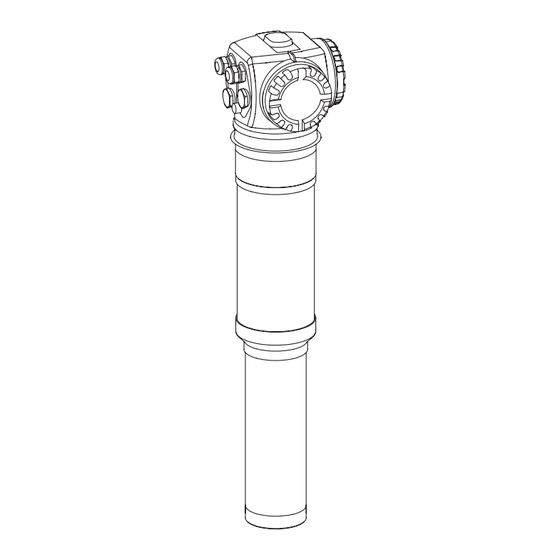

Brief Operating Instructions
Gammapilot M FMG60
Radiometric Measurement
These are Brief Operating Instructions.
For more detailed information, please refer to the Operating Instructions and the
additional documentation on the CD-ROM provided.
These Brief Operating Instructions are not intended to replace the Operating
Instructions provided in the scope of supply.
The complete device documentation consists of:
• These Brief Operating Instructions
• Approvals and safety certificates
• A CD-ROM with:
– Operating Instructions
– Technical Information
KA01092F/00/EN/13.10
71128018
