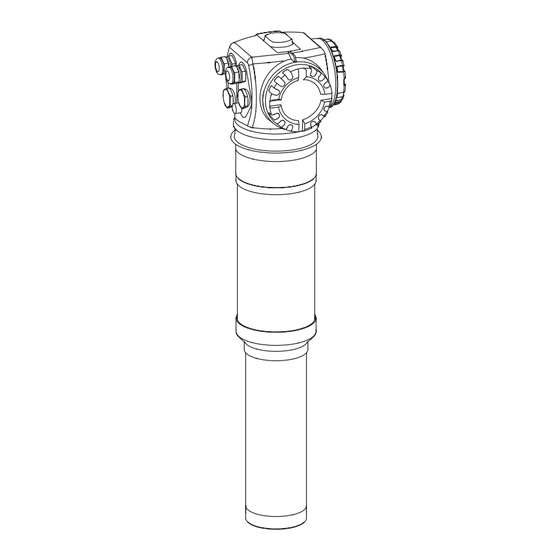

Operating Instructions
Gammapilot M FMG60
Radiometric Measurement
6
BA236F/00/en/10.09
71104595
Valid for software version:
V01.03.02

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Gammapilot M FMG60

Summary of Contents for Endress+Hauser Gammapilot M FMG60

  • Page 1 Operating Instructions Gammapilot M FMG60 Radiometric Measurement BA236F/00/en/10.09 71104595 Valid for software version: V01.03.02...
  • Page 2 Short instructions Gammapilot M FMG60 with HART Short instructions Gammapilot M - Quick Setup KA242F/00/a2/02.07 measured value Group slave, end slave selection basic setup todays beam type isotope operating meas. density min. max. pipe diam. pipe diam. output date mode...

  • Page 3: Table Of Contents

    Certificates and approvals ....13 Contact addresses of Endress+Hauser ... 74 Registered trademarks ..... . 13 Accessories .

  • Page 4: Safety Instructions

    Safety instructions Gammapilot M FMG60 with HART Safety instructions Designated use The Gammapilot M is a compact transmitter for non-contact level, level limit, density and concentration measurement. The measuring range of a single Gammapilot M extends up to 2 m.

  • Page 5: Radiation Protection

    Gammapilot M FMG60 with HART Safety instructions Radiation protection The Gammapilot M is used in conjunction with a radioactive source, contained in a source container. When handling radioactive sources, the following instructions have to be observed: 1.4.1 Basic regulations on radiation protection Warning! When handling radioactive sources, all unnecessary radiation exposure should be avoided.
  • Page 6 For the Federal Republic of Germany the limit values for the control zone are specified in the current radiation protection requirements. The Endress+Hauser sales organization will be pleased to provide further information on radiation protection and regulations in other countries.
  • Page 7 FR Germany Contact your E+H sales center to organize the return of the radiation source for inspection with a view to reuse or recycling by Endress+Hauser. Other countries Contact your E+H sales center or the appropriate authorities (government ministry) or regulating authority to find a way of returning the radiation source nationally.

  • Page 8: Notes On Safety Conventions And Symbols

    Safety instructions Gammapilot M FMG60 with HART Notes on safety conventions and symbols In order to highlight safety-relevant or alternative operating procedures in the manual, the following conventions have been used, each indicated by a corresponding symbol in the margin.

  • Page 9: Identification

    Gammapilot M FMG60 with HART Identification Identification Parts of the Gammapilot M Terminal head Mounting collar Detector pipe Terminal compartment A Terminal compartment B Centering knob Instrument nameplate Supplementary nameplate Measuring range marks 10. Cooling water connections 11. PML connector of the water cooling jacket 12.

  • Page 10: Nameplates

    Identification Gammapilot M FMG60 with HART Nameplates Instrument nameplate Supplementary nameplate (Examples) Made in Germany, D-79689 Maulburg KEMA 04 ATEX Gammapilot M Order Code: Ser.-No.: IP 65/67 Type 4/6 NEMA 4/6 -40°C °C Dat./Insp.: L00-FMG60xxx-18-00-00-xx-001 1: Order code (as defined by the Ordering information);...

  • Page 11: Ordering Structure

    Gammapilot M FMG60 with HART Identification Ordering structure Versions that mutually exclude one another are not marked. Ordering information Gammapilot M FMG60 Feature Option Approval Non-hazardous area NEPSI Ex de (ia) IIC T6 NEPSI Ex d (ia) IIC T6 Non-hazardous area, WHG (level limit)

  • Page 12: Scope Of Delivery

    Special version, to be specified FMG60 - Product designation Scope of delivery • Ordered version of the device (including Operating Instructions) • Endress+Hauser operating program (on the CD-ROM supplied) • Accessories as ordered Supplied documentation 2.5.1 Operating Instructions (BA236F, this manual) Describe how to install and commission the Gammapilot M (communication version 4-20 mA HART).

  • Page 13: Certificates And Approvals

    The device takes into account applicable standards and regulations which are listed in the EC declaration of conformity and thus meets the legal requirements of the EC Directives. Endress+Hauser confirms the successful testing of the instrument by affixing to it the CE mark.

  • Page 14: Installation

    Installation Gammapilot M FMG60 with HART Installation Incoming acceptance, transport, storage 3.1.1 Incoming acceptance Check the packing and contents for any signs of damage. Check the shipment, make sure nothing is missing and that the scope of supply matches your order.

  • Page 15: Installation Conditions

    Gammapilot M FMG60 with HART Installation Installation conditions 3.2.1 Dimensions, weight Gammapilot M (without water cooling jacket) L00-FMG60xxx-06-00-00-xx-001 Gammapilot M with water cooling jacket or collimator L00-FMG60xxx-06-00-00-xx-002 without water cooling with water cooling jacket jacket Measuring Overall Weight Overall Weight...
  • Page 16 Installation Gammapilot M FMG60 with HART 3.2.2 Installation conditions for level measurement Conditions • For level measurements the Gammapilot M is mounted vertically; if possible the detector head should point downwards. • The exit angle of the source container must be exactly aligned to the measuring range of the Gammapilot M.
  • Page 17 Gammapilot M FMG60 with HART Installation 3.2.3 Installation conditions for level limit detection Conditions • For level limit detection, the Gammapilot M should be mounted horizontally at the height of the desired level limit. • The exit angle of the source container must be exactly aligned to the measuring range of the Gammapilot M.
  • Page 18 • If only horizontal pipes are accessible, the path of the ray should also be arranged horizontally to reduce the influence of air bubbles and sediments. • The Endress+Hauser clamping device (see chapter "Accessories") or an equivalent clamping device should be used for fastening the radiation source container and the Gammapilot M to the measuring tube.
  • Page 19 Gammapilot M FMG60 with HART Installation 3.2.5 Empty pipe detection Gammapilot M FTG470Z SPS / PLC Fig. 1: 1: Monitoring detector DG17/27 or FMG60 Mounting the FMG60 or DG17/27 on the FMG60 for empty pipe detection If the pipe becomes empty as a result of operational processes, the radiation on the detector side can hit dangerous levels.

  • Page 20: Water Cooling

    Installation Gammapilot M FMG60 with HART Water cooling For the versions of the Gammapilot with water cooling jacket, the following applies: • Material: 316L • Water connection: 2 x G 1/4"A, DIN ISO 228 • Inlet temperature: max. 40 °C •...

  • Page 21: Installation Check

    Gammapilot M FMG60 with HART Installation 3.3.2 Required flow rate The required flow rate depends on • the ambient temperature at the water cooling jacket • the inlet temperature • the measuring range of the Gammapilot M Typical values are given in the following tables: Ambient temperature T = 75 °C...

  • Page 22: Wiring

    Wiring Gammapilot M FMG60 with HART Wiring Terminal compartments The Gammapilot M has got two terminal compartments: • terminal compartment A, for – Power supply – Signal output (depending on the instrument version) • terminal compartment B, for – Signal output (depending on the instrument version) –...

  • Page 23: Terminal Assignment

    Gammapilot M FMG60 with HART Wiring Note! • On delivery, not more than one cable gland is present for each of the terminal compartments. If further cable glands are required (e.g. for cascading mode), they must be supplied by the user.

  • Page 24: Fieldbus Connectors

    Wiring Gammapilot M FMG60 with HART Terminal compartment for Feature 30 of the ordering information: Power supply wiring/output wiring Supply voltage Signal output Non-Ex; Non-Ex EEx e; EEx ia EEx e; EEx e Ex d (XP); Ex d (XP) Ex d (XP); Ex ia (IS) Dust-Ex;...

  • Page 25: Potential Equalization

    Gammapilot M FMG60 with HART Wiring Potential equalization Before wiring, connect the potential matching line to the external ground terminal of the transmitter. If a water cooling jacket is present, it must be separately connected to the potential matching line.

  • Page 26: Wiring In Terminal Compartment A

    Wiring Gammapilot M FMG60 with HART Wiring in terminal compartment A " Caution! Before connection please note the following: • When using the instrument in hazardous areas, make sure to comply with national standards and the specifications in the Safety Instructions (XAs).

  • Page 27: Wiring In Terminal Compartment B

    Gammapilot M FMG60 with HART Wiring Wiring in terminal compartment B " Caution! Before connection please note the following: • Connect potential matching line to transmitter ground terminal and to the ground terminal of the water cooling jacket (if present) before connecting up the instrument (see above, section "Potential equalization").

  • Page 28: Connecting The Remote Display And Operation Fhx40

    Wiring Gammapilot M FMG60 with HART Connecting the remote display and operation FHX40 The remote display and operating unit FHX40 is available as accessory. It is connected to the FHX40-connector of the Gammapilot M via the supplied cable. To do this, the housing of the Gammapilot M needs not to be opened.

  • Page 29: Wiring In Cascading Mode

    Gammapilot M FMG60 with HART Wiring Wiring in cascading mode N/L- L1/L+ AC/DC L00-FMG60xxx-04-00-00-xx-009 A: power supply (90 to 253V or 18 to 36V ); B: junction box; M: Master; S: Slave; E: End-Slave Note! For the positioning of the power switch according to IEC/EN 61010, there are two options: •...

  • Page 30: Wiring Example For Level Limit Detection 200/400 Mm

    Wiring example for level limit detection 200/400 mm The output signal is linear between the free and covered calibration (e.g. 4 to 20 mA) and can be evaluated in the control system. If a relay output is needed, the following Endress+Hauser process transmitters can be used: •...

  • Page 31: Measuring Solids Flow

    • The RMA 422 meets SIL2 as per IEC 61511, see Safety Manual SD009R/09. 4.11 Measuring solids flow In conjunction with a density measuring device, such as Endress+Hauser's "Gammapilot M", Promag 55S also determines the rate of solids with regard to the mass, volume or percentage content.

  • Page 32: Operation

    Operation Gammapilot M FMG60 with HART Operation Overview over the operating options 5.1.1 4 to 20mA with HART protocol SPS / PLC / API ToF Tool ToF Tool FieldTool FieldTool Package/ Package/ FieldCare FieldCare • FXA291/ToF Adapter FXA291 VU331 Commubox •...

  • Page 33: Display Operation

    Gammapilot M FMG60 with HART Operation Display operation 5.2.1 Display and operating elements The LCD module VU331 for displaying and operating is inside the remote display and operating unit FHX 40. The measured value can be read off through the FHX 40 sight glass. In order to operate the instrument, the FHX40 must be opened by removing the four screws.
  • Page 34 Operation Gammapilot M FMG60 with HART Function of the keys Key(s) Meaning Navigate upwards in the selection list Edit numeric value within a function Navigate downwards in the selection list Edit numeric value within a function Navigate to the left within a function group Navigate to the right within a function group, confirmation.
  • Page 35 Gammapilot M FMG60 with HART Operation 5.2.2 The operating menu Function code The functions of the Gammapilot M are arranged in an operating menu. To ensure easy orientation within the menu, a unique position code is indicated on the display for each function. This code consists of one alphabetic and two numeric characters.
  • Page 36 Operation Gammapilot M FMG60 with HART Operation using the onsite display VU 331 ENDRESS + HAUSER – >3 s return to basic setup todays date isotope group selection 137Cs calibration 60Co safety setting no compens. temperature compensation linearisation L00-FMG60xxx-19-00-00-en-006 Change from Measured Value Display to Group Selection by pressing F.

  • Page 37: Alternative Operation Options

    ToF Tool - FieldTool Package The "ToF Tool - FieldTool Package" is a standardized graphical operating program for measuring instruments from Endress+Hauser. It is delivered together with the Gammapilot M. Observe the system requirements and installations hints on the cover of these CD-ROMs.
  • Page 38 FieldCare FieldCare is Endress+Hauser's plant asset management tool based on FDT technology. FieldCare can be used to configure all Endress+Hauser devices and third-party devices which support the FDT standard. The following operating systems are supported: WinNT4.0, Win2000 and Windows XP.

  • Page 39: Lock/Unlock Configuration

    Gammapilot M FMG60 with HART Operation Lock/unlock configuration 5.4.1 Software security locking Enter a number ≠ 100 into the "unlock parameter" (*A4) function in the "diagnostics" (*A) function group. symbol appears on the display. Inputs are no longer possible. If you try to change a parameter, the device jumps to the "unlock parameter" (*A4) function.

  • Page 40: Commissioning

    Commissioning Gammapilot M FMG60 with HART Commissioning Note! This chapter describes the commissioning of the Gammapilot M using the operating module VU331 (which is located in the remote display and operating unit FHX40). Commissioning using the "ToF Tool - FieldTool Package", "FieldCare" or the HART handheld terminal DXR375 is similar.

  • Page 41: Switching On The Device

    Gammapilot M FMG60 with HART Commissioning Switching on the device Note! Error messages A165 "electronics defect" and A635 "present date not defined" The Gammapilot M contains 2 real-time clocks for the decay compensation, which are permanently compared to each other for safety reasons. In order to bridge voltage interruptions, the clocks are buffered with a capacitor.

  • Page 42: Basic Setup

    Commissioning Gammapilot M FMG60 with HART Basic setup 6.3.1 "Present date" (*01) present date ENDRESS + HAUSER ⇒ 17.11.04 10:30 dd.mm.yy hh:mm – Date and time of the basic setup are specified in this function. Format: dd.mm.yy hh:mm where: – dd: the day ("01" to "31") –...
  • Page 43 Gammapilot M FMG60 with HART Commissioning 6.3.4 "Operating mode" (*04) operating mode ENDRESS + HAUSER ⇒ Âstand alone master – slave This function is used to specify in which operating mode the Gammapilot M will be used. Note! The selection can be performed only once and the function is automatically locked after that. It can only be unlocked again by a reset of the Gammapilot M ("Reset"...
  • Page 44 Commissioning Gammapilot M FMG60 with HART 6.3.5 "Measuring mode" (*05) meas. mode ENDRESS + HAUSER ⇒ Âlevel limit – density This function is used to select the desired measuring mode. Note! The selection can be performed only once and the function is automatically locked after that. It can only be unlocked again by a reset of the Gammapilot M ("Reset"...
  • Page 45 Gammapilot M FMG60 with HART Commissioning 6.3.6 "Density unit" (*06) density unit ENDRESS + HAUSER ⇒ Âg/cm3 – lb/gal This function is needed for density and concentration measurements only. It is used to select the density unit. Options: • g/cm •...
  • Page 46 Commissioning Gammapilot M FMG60 with HART 6.3.9 "Pipe diameter unit" (*09) pipe diam. unit ENDRESS + HAUSER ⇒ Âmm inch – This function is needed for density and concentration measurements only. It is used to select the unit for the pipe diameter.
  • Page 47 Gammapilot M FMG60 with HART Commissioning 6.3.11 "Output damping" (*0B) output damping ENDRESS + HAUSER ⇒ 60 s – This function is used to specify the output damping τ (in seconds) by which changes of the measured value are attenuated.
  • Page 48 Commissioning Gammapilot M FMG60 with HART Calibration for level measurement and limit detection 6.4.1 Basic principles The calibration points for the measurement are entered in the "calibration" (*1) function group. Each calibration point consists of a level and the associated pulse rate.
  • Page 49 Gammapilot M FMG60 with HART Commissioning Calibration points for limit detection L00-FMG60xxx-05-00-00-xx-002 Calibration points for limit detection; A: Background calibration; B: Covered calibration; C: Free calibration Background calibration refers to the following situation: • The radiation is switched off. • If possible, the radiation path is completely covered.
  • Page 50 That is, not only the level but also the associated pulse rate must be entered by the user. For details concerning the calculation of the count rate please refer to your Endress+Hauser sales organization. Note! When calibrating manually, the calibration date is not set automatically. Instead, it must be entered manually into the "calibration date"...
  • Page 51 Gammapilot M FMG60 with HART Commissioning 6.4.2 Background calibration Excerpt from the operating menu The following excerpt from the operating menu shows how the background calibration is entered. The individual functions are explained in the sections below. backgr. calib. avg. pulse rate bgr.
  • Page 52 Commissioning Gammapilot M FMG60 with HART "Avg. pulse rate" (*11) avg. pulse rate ENDRESS + HAUSER ⇒ 186 cps – The average pulse rate is displayed in this function (after selection of "start" in the previous function). Initially, this value fluctuates (because of the decay statistics), but due to the integration it reaches an average value in the course of time.
  • Page 53 Gammapilot M FMG60 with HART Commissioning 6.4.3 Full and empty calibration or covered and free calibration Excerpt from the operating menu The following excerpt from the operating menu shows how the full and empty calibration (for level measurements) or the covered and free calibration (for level limit detection) are entered. The individual functions are explained in the sections below.
  • Page 54 Commissioning Gammapilot M FMG60 with HART "Value full" (*14) "Value empty" (*17) value full ENDRESS + HAUSER ⇒ 100% – value empty ENDRESS + HAUSER ⇒ – These functions are needed for level measurements only. They are used to specify the level at which the full or empty calibration are performed.
  • Page 55 Gammapilot M FMG60 with HART Commissioning "Avg. pulse rate" (*11) avg. pulse rate ENDRESS + HAUSER ⇒ 2548 cps – The average pulse rate is displayed in this function (after selection of "start" in the previous function). Initially, this value fluctuates (because of the decay statistics), but due to the integration it reaches an average value in the course of time.
  • Page 56 Commissioning Gammapilot M FMG60 with HART "Full calibration" (*16) "Empty calibration" (*18) full calibr. ENDRESS + HAUSER ⇒ 33 cps – empty calibr. ENDRESS + HAUSER ⇒ 2548 cps – The pulse rate of the respective calibration point is displayed in these functions. The displayed value must be confirmed by pressing "E".
  • Page 57 Gammapilot M but in the connected evaluation unit or process transmitter. For further information refer to the Operating Instructions of the respective instrument. If using the Endress+Hauser process transmitter RTA421 or RMA422, the following settings are recommended: For maximum fail-safe mode •...

  • Page 58: Calibration For Level Measurement And Limit Detection

    Commissioning Gammapilot M FMG60 with HART Function group "Safety settings" (*2) group selection *2È ENDRESS + HAUSER ⇒ Âsafety settings temp. compensation – linearization 6.5.1 "Output on alarm" (*20) outp. on alarm ENDRESS + HAUSER ⇒ MIN -10% 3.6mA MAX 110% 22mA –...

  • Page 59: Sil Locking (For Max. Level Limit Detection 200/400 Mm Pvt Scintillator)

    Gammapilot M FMG60 with HART Commissioning SIL locking (for max. level limit detection 200/400 mm PVT scintillator) SIL locking ("Security locking" (022) function) is in the "Safety settings function group" (S2). It can only be accessed in the "stand alone" operating mode in conjunction with the "level limit"...
  • Page 60 Commissioning Gammapilot M FMG60 with HART 6.6.2 Function "security locking" (*22) (SIL unlocking) The FMG60 can be unlocked in SIL2/3 mode by entering the password. If the password is entered correctly, the FMG60 is unlocked. If an incorrect password is entered, the FGM60 goes back to the group selection.
  • Page 61 Gammapilot M FMG60 with HART Commissioning 6.6.5 Function "confirm Iout" (*24) (output current during locking) The output current is shifted to <3.6, typically 2.4 mA, by means of the 2nd switch-off path by selecting "Device locked" so the user can clearly see that the FMG60 has actually been locked. The user must explicitly confirm this current value.
  • Page 62 Commissioning Gammapilot M FMG60 with HART 6.6.8 Function "confirm cal." (*27) confirm cal. ENDRESS + HAUSER ⇒ _ _ _ _ _ _ _ _ _ _ _ _ Ânot valid – valid Options: • Not valid • Valid Select "valid" if the data displayed (see _ _ _ _ _ _) match the data you entered. Select "not valid" if you want to abort SIL locking.
  • Page 63 Gammapilot M FMG60 with HART Commissioning 6.6.11 Function "confirm date" (*2A) confirm date ENDRESS + HAUSER ⇒ _ _ _ _ _ _ _ _ _ _ _ _ Ânot valid – valid Options: • Not valid • Valid Select "valid" if the data displayed (see _ _ _ _ _ _) match the data you entered. Select "not valid" if you want to abort SIL locking.

  • Page 64: Calibration For Density And Concentration Measurements

    Commissioning Gammapilot M FMG60 with HART Calibration for density and concentration measurements 6.7.1 Basic principles The calibration points for the measurement are entered in the "calibration" (*1) function group. Each calibration point consists of a density value and the associated pulse rate.
  • Page 65 Gammapilot M FMG60 with HART Commissioning Multiple-point calibration is especially advisable for measurement in a wide range of densities or for especially precise measurements. Recalibration The Gammapilot M provides a further calibration point ("10") for recalibration. This point can be entered, if the measuring conditions have changed, e.g.
  • Page 66 Commissioning Gammapilot M FMG60 with HART 6.7.2 Background calibration Excerpt from the operating menu The following excerpt from the operating menu shows how the background calibration is entered. The individual functions are explained in the sections below. backgr. calib. avg. pulse rate bgr.
  • Page 67 Gammapilot M FMG60 with HART Commissioning "Avg. pulse rate" (*11) avg. pulse rate ENDRESS + HAUSER ⇒ 186 cps – The average pulse rate is displayed in this function (after selection of "start" in the previous function). Initially, this value fluctuates (because of the decay statistics), but due to the integration it reaches an average value in the course of time.
  • Page 68 Commissioning Gammapilot M FMG60 with HART 6.7.3 Calibration points Excerpt from the operating menu The following excerpt from the operating menu shows, how the density calibration points are entered. The individual functions are explained in the sections below. The functions are only accessible after the background calibration has been performed.
  • Page 69 Gammapilot M FMG60 with HART Commissioning "Calibration" (*15) calibration ENDRESS + HAUSER ⇒ stop/edit start – This function is used to start the automatic entering of the selected calibration point. Options: • stop/edit This option must be selected if – the calibration point is not to be entered (e.g. because it has already been entered). The pulse rate of the calibration point is then displayed in the following function "density calib."...
  • Page 70 Commissioning Gammapilot M FMG60 with HART Note! The integration is not terminated by pressing "E" in the "avg. pulse rate" (*11) function. It is continued until the selection of "stop/edit" in the "calibration" (*15) function. This may result in a slight deviation between the last displayed average pulse rate and the final "density calibration"...
  • Page 71 Gammapilot M FMG60 with HART Commissioning "Absorption coefficient" (*1E) absorp. coeff. ENDRESS + HAUSER ⇒ 7.70 mm2/g – This function displays the absorption coefficient which results from the currently active calibration points. The displayed value should be used for plausibility checking.

  • Page 72: Density Measurement/Temperature-Compensated

    Commissioning Gammapilot M FMG60 with HART 6.7.4 Linearization (for concentration measurements) If the concentration is to be measured in a unit other than the "density unit" (*06), a linearization must be performed after the calibration. This can be done in the "Linearization" (*4) function group.

  • Page 73: Maintenance And Repairs

    Repairs to Ex- or SIL-approved devices When carrying out repairs to Ex- or SIL-approved devices, please note the following: • Repairs to Ex- or SIL-approved devices may only be carried out by Endress+Hauser Service in Endress+Hauser workshops. • Comply with the prevailing standards, national Ex-area regulations, safety instructions (XA) and certificates.

  • Page 74: Return

    Gammapilot M FMG60 with HART Return The following procedures must be carried out before a transmitter is sent to Endress+Hauser e.g. for repair or calibration: • Remove all residue which may be present. Pay special attention to the gasket grooves and crevices where fluid may be present.

  • Page 75: Accessories

    TI404F/00/en. Commubox FXA291 The Commubox FXA291 connects Endress+Hauser field devices with a CDI interface (= Endress+Hauser Common Data Interface) and the USB port of a computer or laptop. For details, see TI405C/07/en. Note! For Gammapilot M, you also need the "ToF adapter FXA291" accessory.

  • Page 76: Remote Display Fhx40

    Accessories Gammapilot M FMG60 with HART Remote display FHX40 8.5.1 Dimensions Wall-mounting (without mounting bracket) Separate housing Pipe-mounting FHX 40 (IP 65) (mounting bracket and plate supplied optionally, s. ordering structure) Gammapilot M max. 80 min. 30 Cable pipe L00-FMxxxxxx-00-00-06-en-004 8.5.2...

  • Page 77: Mounting Device Fhg60 (For Level Measurement And Level Limit Measurement)

    Gammapilot M FMG60 with HART Accessories Mounting device FHG60 (for level measurement and level limit measurement) 8.6.1 Dimensions max. 6 Nm M6x70-A2 Ø 40 - 65 M6x25-A2 max. 6 Nm ØC L00-FMG60xxx-17-00-00-xx-006A 1a: with preferred mounting method "housing head up" - bracket (for "level" application only );...
  • Page 78 Accessories Gammapilot M FMG60 with HART 8.6.2 Application hints L00-FMG60xxx-17-00-00-xx-008 Mounting position: preferred; alternative A: Level measurement, FMG60 without water jacket; B: Level measurement, FMG60 with water jacket; C: Level limit measurement, FMG60 without water jacket; D: Level limit measurement, FMG60 with water jacket;...

  • Page 79: Clamping Device For Density Measurement Fhg61

    Gammapilot M FMG60 with HART Accessories Clamping device for density measurement FHG61 For details, see • KA261F/00/a2 (clamping device supplementary set for pipes with diagonal irradiation, 50-220 mm in diameter) • KA262F/00/a2 (clamping device for pipes with 50-220 mm diameter) •...

  • Page 80: Troubleshooting

    Troubleshooting Gammapilot M FMG60 with HART Troubleshooting System error messages 9.1.1 Error signal Errors occurring during commissioning or operation are signaled in the following way: • Error symbol, error code and error description on the display and operating module • Current output, configurable ("output on alarm" (*20) function): –...
  • Page 81 A110 checksum error call Endress+Hauser Service A111 electronics defect switch instrument off/on; if error still is present: call Endress+Hauser service or exchange transmitter A113 electronics defect switch instrument off/on; if error still is present: call Endress+Hauser service or exchange transmitter...
  • Page 82 Troubleshooting Gammapilot M FMG60 with HART Code Description Remedy W642 I_back calibration running calibration of the current readback path active A631 background not calibrated perform background calibration ("calibration" (*1) function group) A632 full/covered not calibrated perform full/covered calibration ("calibration" (*1) function group)

  • Page 83: Possible Calibration Errors

    Gammapilot M FMG60 with HART Troubleshooting Possible calibration errors Error Possible cause and remedy Pulse rate too low at empty • Radiation source switched off → switch on source at the source container vessel • Incorrect alignment of radiation beam →...

  • Page 84: Technical Data

    Technical Data Gammapilot M FMG60 with HART Technical Data 10.1 Technical data at a glance 10.1.1 Input Measured variable The Gammapilot M measures the pulse rate (number of counts per second). This rate is proportional to the intensity of radiation at the detector. From this rate, the Gammapilot M calculates the desired measured value: •...
  • Page 85 Gammapilot M FMG60 with HART Technical Data 10.1.4 Performance characteristics/Stability Response time dependent on the configuration; min. 2 s Reference operating • Temperature: 20 °C ± 10 °C conditions • Pressure: 1013 mbar ± 20 mbar • Humidity: not significant Measured value resolution depending on the measuring mode;...
  • Page 86 Technical Data Gammapilot M FMG60 with HART Note! As a general rule, the statistical fluctuations can be reduced by enlarging the output damping (integration time). 10.1.5 Environment Ambient temperature Ambient temperature Instrument version Storage temperature without water cooling with water cooling PVT Scintillator -40 °C to +60 °C...
  • Page 87 Gammapilot M FMG60 with HART Technical Data 10.1.7 Mechanical construction Dimensions, weight s. chapter "mounting conditions" Materials • Terminal head: – Aluminum, powder-coated – 316L • Detector pipe: 316L • Sealing materials: – housing: FKM – cable glands: EPDM; TPE-V 10.1.8...
  • Page 88 Technical Data Gammapilot M FMG60 with HART Certificates Allocation of the Safety Information (XA) and Certificates (ZE) to the device: Allocation to the option, see "Ordering information". Device type Approval Approval/Degree of protection Power supply wiring/ Output Approval Safety Instructions...
  • Page 89 TIIS Ex d [ia] IIC T6 Approval for Gost available. CE mark The measuring system meets the legal requirements of the EC-guidelines. Endress+Hauser confirms the instrument passing the required tests by attaching the CE-mark. Overfill protection • WHG for level limit detection (in preparation) •...

  • Page 90: Appendix

    Appendix Gammapilot M FMG60 with HART Appendix 11.1 Operating menu for level measurements operating mode basic setup todays date beam type isotope dd.mm.yy hh:mm standard / cont. 137Cs slave end slave modulated 60 Co no compens. not defined stand alone meas.
  • Page 91 Gammapilot M FMG60 with HART Appendix output damping 1 … 999 s Default: 6 s calibration avg. pulse rate full calibr. start -1: not calibrated stop/edit next point calibration avg. pulse rate empty calibr. start -1: not calibrated stop/edit next point calibration avg.

  • Page 92: Operating Menu For Level Limit Detection

    Appendix Gammapilot M FMG60 with HART 11.2 Operating menu for level limit detection basic setup todays date beam type isotope operating mode dd.mm.yy hh:mm standard / cont. 137Cs slave modulated 60 Co end slave no compens. not defined stand alone meas.
  • Page 93 Gammapilot M FMG60 with HART Appendix output damping 1 … 999 s Default: 6 s calibration avg. pulse rate full calibr. start -1: not calibrated stop/edit next point calibration avg. pulse rate empty calibr. start -1: not calibrated stop/edit stop/edit conf.

  • Page 94: Operating Menu For Density And Concentration Measurements

    Appendix Gammapilot M FMG60 with HART 11.3 Operating menu for density and concentration measurements operating mode basic setup todays date isotope beam type slave dd.mm.yy hh:mm 137Cs standard / cont. end slave 60 Co modulated not defined no compens. stand alone meas.
  • Page 95 Gammapilot M FMG60 with HART Appendix density unit min. density max. density *08 pipe diam. unit pipe diam. outp. damp.*0B g/cm3 1 … 999 s Default: 60 s … next point density calibr. density value calibr. point absorp. coeff ref. pulse rate without temp.

  • Page 96: Measuring Principle

    Appendix Gammapilot M FMG60 with HART 11.4 Measuring principle The radiometric measuring principle is based on the fact that gamma radiation is attenuated when it penetrates a material. Radiometric measurement can be applied for different measuring tasks: Gammapilot M Gammapilot M...
  • Page 97 (e.g. from nondestructive material testing). Using a frequency filter, the Gammapilot M FMG60 can thus separate the useful signal from interference radiation. In this way, it is possible to continue measuring even if interference radiation occurs, which, in turn, increases the measuring certainty and system availability.

  • Page 98: Index

    Gammapilot M FMG60 with HART Index Index Symbols *01 - Present date ......42 Cable entries .
  • Page 99 Gammapilot M FMG60 with HART Index Manual calibration ......50, 65 Warning ........80 Measurement section .
  • Page 100 Gammapilot M FMG60 with HART Index Endress+Hauser...
  • Page 101 Erklärung zur Kontamination und Reinigung Please reference the Return Authorization Number (RA#), obtained from Endress+Hauser, on all paperwork and mark the RA# clearly on the outside of the box. If this procedure is not followed, it may result in the refusal of the package at our facility.
  • Page 102 www.endress.com/worldwide BA236F/00/en/10.09 71104595 CCS/FM+SGML 6.0/ProMoDo 71104595...
