- Page 1 Ceramic Hob Installation, Use and Maintenance Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY T : 01949 862 012 F : 01949 862 003 E : customer.care@cda.eu W : www.cda.eu www.cda.eu...
- Page 2 Appliance information: Please enter the details on the appliance rating plate below for reference, to assist CDA Customer Care in the event of a fault with your appliance and to register your appliance for guarantee purposes. Appliance Model...
- Page 3 (EMC) 2014/30/EU. Parts intended to come into contact with food conform to 1935/2004/EC. IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EU DIRECTIVE 2012/19/EU. At the end of its working life, the product must be taken to a special local authority waste collection centre or to a dealer providing appliance recycling services.
- Page 4 • Do not place hot lids flat on the hob top. A “suction” effect could cause damage to the hob. • Do not drag cookware across the hob top: in the long term, this could cause damage to the hob. •...
-
Page 5: Using Your Hob

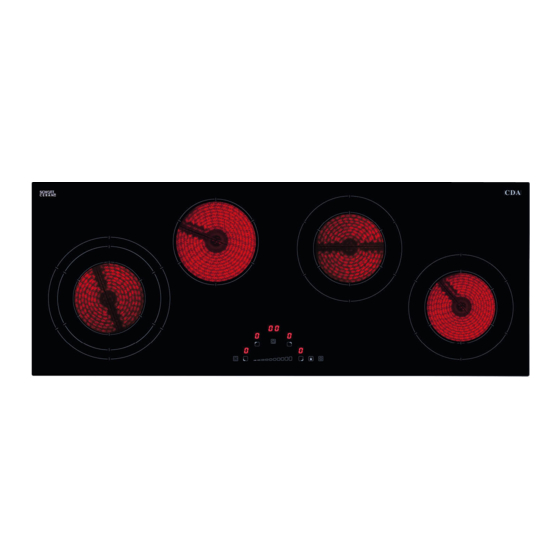

Using your hob Zones: 1. 2.3kW Ø210/175/120 mm 3. 0.7kW/1.7kW Ø 120/180 mm 2. 1.2kW Ø145 mm 4. 0.7kW/1.7kW Ø 120/180 mm fig. 1 fig. 2 Control panel: 1. On/off sensor 6. Cooking zone display 2. Child lock sensor with LED 7. - Page 6 Using your hob To switch the hob on • To switch the power on, touch and hold the "On/off sensor" (1) approximately two seconds. The hob will beep and all displays will show “0”. Please note: If a power level is not set within ten seconds, the hob will switch off automatically.
- Page 7 sensor (3) and then use the power level slider to return the power level to 0. The cooking zone indicator will display a "0" to confirm that the zone is now inactive. Alternatively you can press the on/off sensor (1). •...
-
Page 8: Dual Zone Function
Triple zone function The front-left zone is equipped with a triple zone function that allows you to extend the heating area for the zone. In normal use, the zone functions with just the smaller inner ring until the triple zone function is activated. -
Page 9: Keep Warm Function
press the dual and triple zone sensor (5) once to extend the zone. The LED on the right side of the right hand zone's display will illuminate to show you that the dual zone is active. There is one LED for each of the two zones and which one illuminates will depend upon which zone is extended. - Page 10 Auto-heat function Each zone is equipped with an auto-heat function which shortens the warm-up time for that zone before reverting the set power level. • To activate the auto-heat function, touch position '9' of the power level slider twice. The relevant zone's display will alternate between power level '9' and the letter ' A ' for approximately 10 seconds.
-
Page 11: Timer/Minute Minder
Timer/Minute Minder The hob is equipped with a timer that allows a finish time to be set for the end of cooking on any zone, between 1 minute and 99 minutes. Once the timer is set, the timer display will show the time remaining. In normal use, the timer ending prompts the zone heating to end as well. - Page 12 touch the slider at any point to raise the number of minutes. • Once the time has elapsed the hob will emit an acoustic signal and the zone will cease operation. To cancel the acoustic signal simply press any sensor field. To cancel the timer •...
-
Page 13: Safety Key Lock
Safety key lock To prevent accidental use, the hob has a safety key lock which switches controls off temporarily or completely. The safety key lock can be activated when the hob is turned on but not when power has been switched off at, or the appliance disconnected from, the mains. The safety key lock is automatically activated after mains power supply has been restored. -
Page 14: Residual Heat Indicators
Residual heat indicators The hob is equipped with residual heat indicators to warn when any of the zones are still hot to the touch after use. An “ ” will show in a zone’s indicator if the relevant zone is between 45°c and 60°c. An “... - Page 15 Zone Size Minimum Pan Size (mm) Maximum Pan Size (mm) Ø 120mm Ø 145mm Ø 175mm Ø 180mm Ø 210mm Please note: Locating a pan in the centre of the zone markings will ensure optimum efficiency. It is very important that the pans used on the hob are made of a suitable material and have the correct type of base.
-
Page 16: Care And Maintenance
Care and maintenance Always disconnect the appliance from the power supply before undertaking any cleaning or maintenance. Important: • Steam cleaners must not be used when cleaning this appliance. • You should use a non-abrasive cleaner to clean the hob top. Any abrasive cleaner (including Cif) will scratch the surface and could erase the control panel markings. - Page 17 2. Check that the mains supply has not been switched off. 3. Check that the fuse in the spur has not blown. In the event of a fault with the hob please advise CDA Customer Care. Contact CDA Customer Care...
-
Page 18: Troubleshooting
The hob is not working and the The electronics touched too briefly (less again and for longer display shows a non-standard are not functioning Call CDA Customer Care than a second) graphic correctly Sensor fields do not The hob is not working and the... - Page 19 Should any error code show on the zone displays, or the above steps not resolve an issue, please contact CDA Customer Care for assistance. Contact details are on page 17. IMPORTANT - PLEASE NOTE: In the event of any breakage, crack or cracking –...
-
Page 20: Fitting The Hob
Fitting the hob Unpacking the hob: Installation above a cupboard unit Take care not to lose, drop or mishandle any parts. 25mm Fitting position of the hob: 35mm This appliance must be installed a 500 x 10mm minimum of 50mm from any back wall and a minimum of 55mm away from any adjacent vertical surfaces, e.g. - Page 21 If fitting a cooker hood above the hob: If a cooker hood is to be installed above the hob, the height of the hood above the hob must be at least 600mm (650mm is recommended) (Fig.6). If the instructions supplied with the hood dictate that the hood must be installed at a height greater than 600mm, Fig.6...
-
Page 22: How To Install The Hob
How to install the hob Overall dimensions of the hob: Width: 900 mm Depth: 350 mm Worktop cut-out dimensions: Width: 885 mm Depth: 340 mm 1 - Worktop 1. Make the required hole in the worktop. 2 - Hob seal 3 - Ceramic hob Before doing this, you must check the Fig.7... - Page 23 2. Make sure that the worktop is clean and dust free and insert the hob into the cut-out opening. Press the hob firmly into place so that the seal connects with the worktop (Fig. 7). If fitting the hob into a 28-40mm worktop: The four fixing clips supplied should be used.
-
Page 24: Mains Electricity Connection
Mains Electricity Connection Warning! This appliance must be earthed. We recommend that the appliance is connected by a qualified electrician, who is a member of the N.I.C.E.I.C. and who will comply with the I.E.T. and local regulations. Live L: BN - brown Neutral N: BU - blue Earth PE: GNYE -green/yellow This appliance is intended to be... - Page 25 • This appliance is intended to be connected to the mains supply with a cable of cross sectional area 4mm 2 . • The current rating of the fuse or circuit breaker protecting this appliance should be marked on the socket outlet. •...
- Page 26 Notes:...
- Page 27 Energy E ciency Information Attribute Symbol Value Units CDA model HC9626FR Type of hob Built in Number of cooking zones and/or areas Heating technology (induction cooking Radiant zones and cooking areas, radiant cooking zones cooking zones, solid plates) For circular cooking zones or area: Ø...
- Page 28 Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY T : 01949 862 012 F : 01949 862 003 E : customer.care@cda.eu W : www.cda.eu T : 01949 862 012 F : 01949 862 003 E : customer.care@cda.eu W : www.cda.eu www.cda.eu...
