Summary of Contents for CDA HC9621FR
- Page 1 HC9621FR Ceramic hob Installation, use and maintenance www.cda.eu...
-
Page 2: Table Of Contents
Contents: Important Important information Using your hob Operating time limiter Triple zone function Dual zone function Auto-heat function Timer/Minute minder Safety key lock Residual heat indicators Efficient use of your hob Care and maintenance Cleaning guide Troubleshooting 20 - 24 Installation Installation - preparation How to install the hob... -
Page 3: Important
Appliance information: Please enter the details on the appliance rating plate below for reference, to assist CDA Customer Care in the event of a fault with your appliance and to register your appliance for guarantee purposes. Appliance Model... -
Page 4: Important Information
(EMC) 2014/30/EU. Parts intended to come into contact with food conform to 1935/2004/EC. IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EU DIRECTIVE 2012/19/EU. At the end of its working life, the product must be taken to a special local authority waste collection centre or to a dealer providing appliance recycling services. - Page 5 • Do not place hot lids flat on the hob top. A “suction” effect could cause damage to the hob. • Do not drag cookware across the hob top: in the long term, this could cause damage to the hob. •...
-
Page 6: Using Your Hob

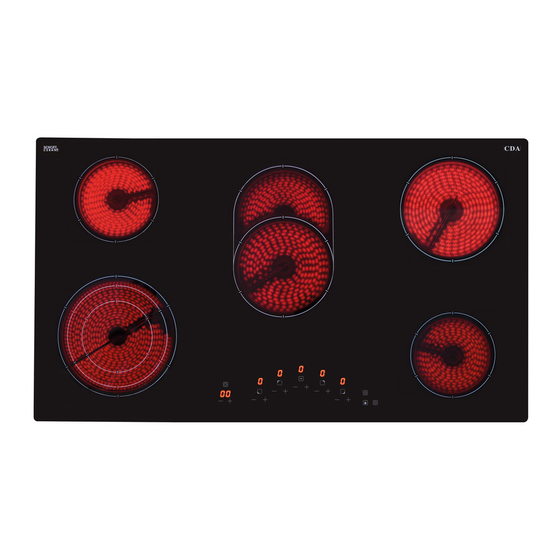

Using your hob Zones: 1. Front left 2.3kW Ø210/175/120 mm 4. Back right 1.8kW Ø180 mm 3. Central 2.2kW Ø170 x 265 mm 2. Back left 1.2kW Ø145 mm 5. Front right 1.2kW Ø145 mm Fig. 1 Fig. 2 Control panel: 1. - Page 7 To switch the hob on • To switch the power on, touch and hold the on/off sensor (1) approximately two seconds. The hob will beep and all five cooking zone indicators will show ‘0’. Please note: If a power level is not set within ten seconds, the hob will switch off automatically.
-
Page 8: Operating Time Limiter
selectors simultaneously for that zone. The cooking zone indicator will display a '0' to confirm that the zone is now inactive. • If switching off multiple zones, the above steps need to be taken for each zone. When all the zones are at '0', the hob will switch off automatically after approximately ten seconds. -
Page 9: Triple Zone Function
Triple zone function The front-left zone is equipped with a triple zone function that allows you to extend the heating area for the zone. In normal use, the zone functions with just the smaller inner ring until the triple zone function is activated. -
Page 10: Auto-Heat Function
is active. To deactivate the dual zone function • Simply press the triple zone sensor (8) for a second time. The LED above the triple zone sensor (8) should extinguish and the zone will return to operating on the circular zone only. Auto-heat function •... -
Page 11: Timer/Minute Minder
Zone Power Level Maximum Operating Time 1.11 2.44 4.47 5.28 6.29 1.11 2.44 2.44 (minutes) Please note: The auto-heat function is not compatible with heat setting 9. If a power level (between 1 and 8) is not selected within 10 seconds of preparing the auto-heat function, then the function will be deactivated. - Page 12 To set the timer • First switch on the hob if necessary and set the zone you’d like to be time to the required power level. Next, touch the timer sensor. This will activate the timer. • A decimal point (LED indicator) should appear next to the timer display.
-
Page 13: Safety Key Lock
Please note: Activating the timer or minute minder with the timer ‘-’ sensor will automatically take you to the 99 minute limit of the timer/ minute minder. This is useful if you wish to set a large number of minutes (e.g. 90) but you cannot go back to 0 without cycling down through all of the minutes or turning the hob off and then on again. -
Page 14: Residual Heat Indicators
Residual heat indicators The hob is equipped with residual heat indicators to warn when any of the zones are still hot to the touch after use. An ‘ ’ will show in a zone’s indicator if the relevant zone is hot. You should avoid touching any zone whilst the hob is in use, whilst residual heat indicators are displayed and even for some time afterwards. - Page 15 Zone Size Minimum Pan Size (mm) Maximum Pan Size (mm) Ø 120mm Ø 145mm Ø 175mm Ø 180mm Ø 210mm Please note: When using the dual zone function on the central zone, we recommend using pans that fit within the zone markings (i.e. oval hob-proof casserole dishes, sizzle platters etc.).
-
Page 16: Care And Maintenance
Care and maintenance Always disconnect the appliance from the power supply before undertaking any cleaning or maintenance. Important: • Steam cleaners must not be used when cleaning this appliance. • You should use a non-abrasive cleaner to clean the hob top. Any abrasive cleaner (including Cif) will scratch the surface and could erase the control panel markings. - Page 17 2. Check that the mains supply has not been switched off. 3. Check that the fuse in the spur has not blown. In the event of a fault with the hob please advise CDA Customer Care. Contact CDA Customer Care...
-
Page 18: Troubleshooting
The hob is not working and the The electronics touched too briefly (less again and for longer display shows a non-standard are not functioning Call CDA Customer Care than a second) graphic correctly Sensor fields do not The hob is not working and the... - Page 19 Should any error code show on the zone displays, or the above steps not resolve an issue, please contact CDA Customer Care for assistance. Contact details are on page 17. IMPORTANT - PLEASE NOTE: In the event of any breakage, crack or cracking –...
-
Page 20: Installation - Preparation
Installation - preparation Installation above a cupboard unit (with partition Unpacking the hob: panel) - recommended ventilation Take care not to lose, drop or 25mm mishandle any parts. 35mm Fitting position of the hob: 500 x 10mm This appliance must be, when installed, a minimum of 50mm from any back wall and a minimum of 55mm away from any adjacent... - Page 21 If fitting a CDA cooker hood above the hob: If a CDA cooker hood is to be installed above the hob, the height of the hood above the hob must be at least 600mm (650mm is recommended) (Fig.6). If the...
-
Page 22: How To Install The Hob
How to install the hob Overall dimensions of the hob: Width: 900 mm Depth: 518 mm Worktop cut-out dimensions: Width: 867 mm Depth: 490 mm 1 - Worktop 1. Make the required hole in the worktop. 2 - Hob seal 3 - Ceramic hob Before doing this, you must check the Fig.7... - Page 23 2. Make sure that the worktop is clean and dust free and insert the hob into the cut-out opening. Press the hob firmly into place so that the seal connects with the worktop (Fig. 7). If fitting the hob into a 28-40mm worktop: The four fixing clips supplied should be used.
-
Page 24: Mains Electrical Connection
Mains electrical connection Warning! This appliance must be earthed. We recommend that the appliance is connected by a qualified electrician, who is a member of the N.I.C.E.I.C. and who will comply with the I.E.T. and local regulations. Live L: BN - brown This appliance is intended to be Neutral N: BU - blue Earth PE: GNYE -green/yellow... - Page 25 • The current rating of the fuse or circuit breaker protecting this appliance should be marked on the socket outlet. • Assembly and electrical connection should be carried out by specialised personnel. • When installing this product we recommend you seek the help of another individual.
- Page 26 NOTES:...
-
Page 27: Energy Efficiency Information
Energy E ciency Information Attribute Symbol Value Units CDA model HC9621FR Type of hob Built in Number of cooking zones and/or areas Heating technology (induction cooking Radiant zones and cooking areas, radiant cooking zones cooking zones, solid plates) For circular cooking zones or area: Ø... - Page 28 For more information please contact: The Sales Department on 01949 862 010 or email sales@cda.eu Customer Care Department. The CDA Group Ltd, Harby Road, Langar, Nottinghamshire, NG13 9HY 01949 862 012 F: 01949 862 003 E: customer.care@cda.eu www.cda.eu...
