MECip
Web Front-end
SECURE
6.4
KNX
KNX-specific addresses are shown here. Settings can easily be checked. With a click on "On",
Programming Mode can be activated (same as a Programming Button press). Together with
the Device Info tab, this function is useful to distinguish the regarded MECip-Sec device
(having a certain IP address, MAC address and serial number) from other MECip-Sec devices
used in the installation network.
The Individual Address, the four Individual Addresses for Tunneling (additional tunneling
addresses), routing multicast address, and the serial number of MECip-Sec are shown here. If
the web browser supports SVG graphics, a last-60-minutes KNX busload diagram is
additionally visible. The red curve shows the maximum busload on TP and the green one
shows the average busload on TP.

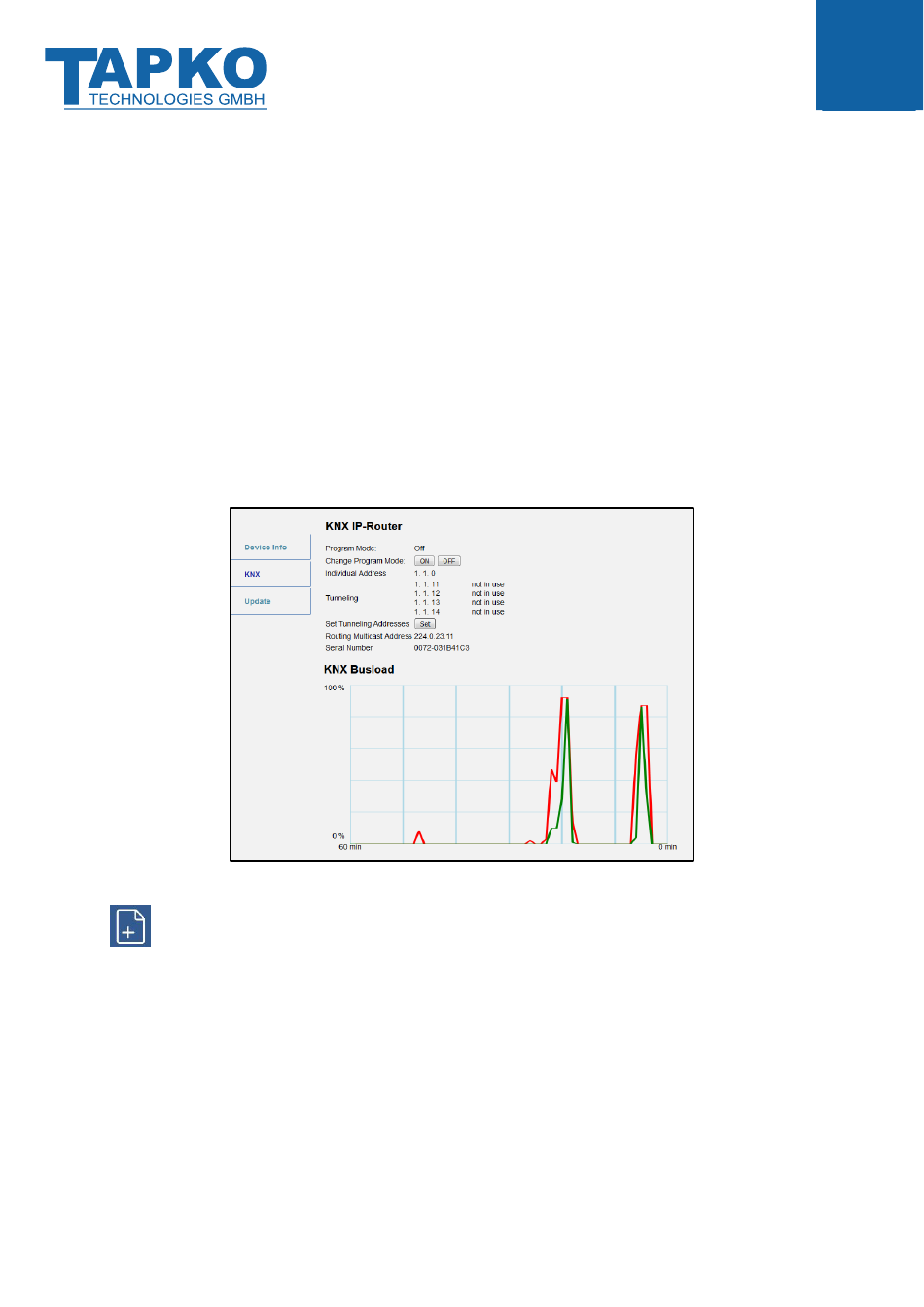

Figure 24: KNX Tab
For showing the busload diagram, the web browser must support SVG graphics.
For IP Tunneling, four Individual Addresses can be set. Setting a different Individual Address
for every tunneling channel via the web front-end is relevant when ETS versions lower than
5.7 are used for configuring. In this case, the first tunneling address must be set in the
"Individual Address" field of the ETS Bus Connections window. With a click on "Set" the other
ones consecutively follow the first one. In other words, with the Set button the addresses are
reassigned to make sure the assigned Individual Addresses differ from each other. Reason is
tunneling channels using the same Individual Address can cause a reduction of available
connections for tunneling.
- 36 -
