5
D-STAR OPERATION (ADVANCED)

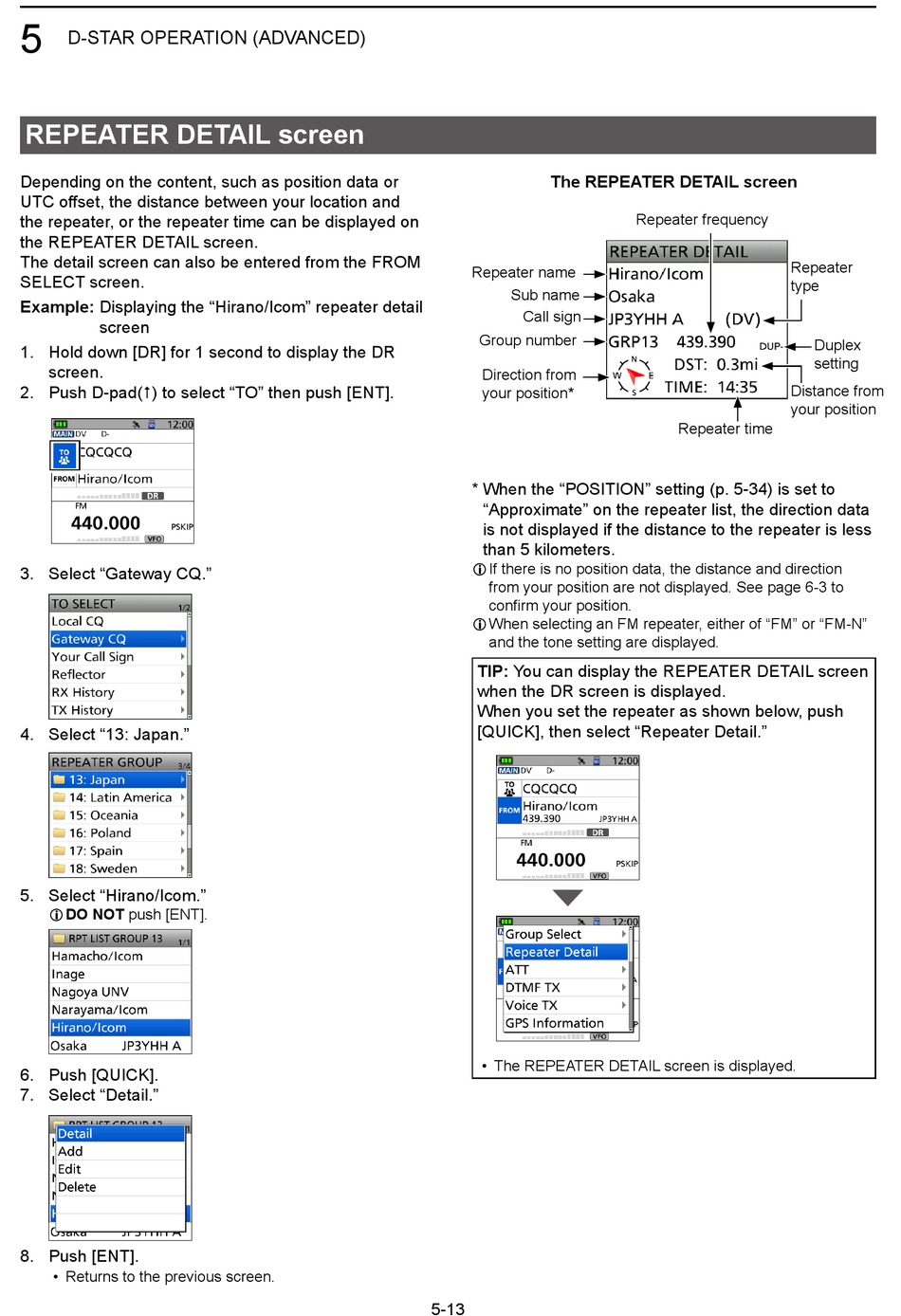

REPEATER DETAIL screen

Depending on the content, such as position data or
UTC offset, the distance between your location and
the repeater, or the repeater time can be displayed on
the REPEATER DETAIL screen�
The detail screen can also be entered from the FROM
SELECT screen�
Example: Displaying the "Hirano/Icom" repeater detail
screen
1� Hold down [DR] for 1 second to display the DR
screen�
2� Push D-pad() to select "TO" then push [ENT]�
3� Select "Gateway CQ�"
4� Select "13: Japan�"
5� Select "Hirano/Icom�"
L DO NOT push [ENT]�
6� Push [QUICK]�
7� Select "Detail�"
8� Push [ENT]�
• Returns to the previous screen�
The REPEATER DETAIL screen
Repeater name
Sub name
Call sign
Group number
Direction from
your position*
* When the "POSITION" setting (p� 5-34) is set to
"Approximate" on the repeater list, the direction data
is not displayed if the distance to the repeater is less
than 5 kilometers�
L If there is no position data, the distance and direction
from your position are not displayed� See page 6-3 to
confirm your position�
L When selecting an FM repeater, either of "FM" or "FM-N"
and the tone setting are displayed�
TIP: You can display the REPEATER DETAIL screen
when the DR screen is displayed�
When you set the repeater as shown below, push
[QUICK], then select "Repeater Detail�"
• The REPEATER DETAIL screen is displayed�
5-13
Repeater frequency
Repeater
type
Distance from
your position
Repeater time
Duplex
setting
