OTHER FUNCTIONS

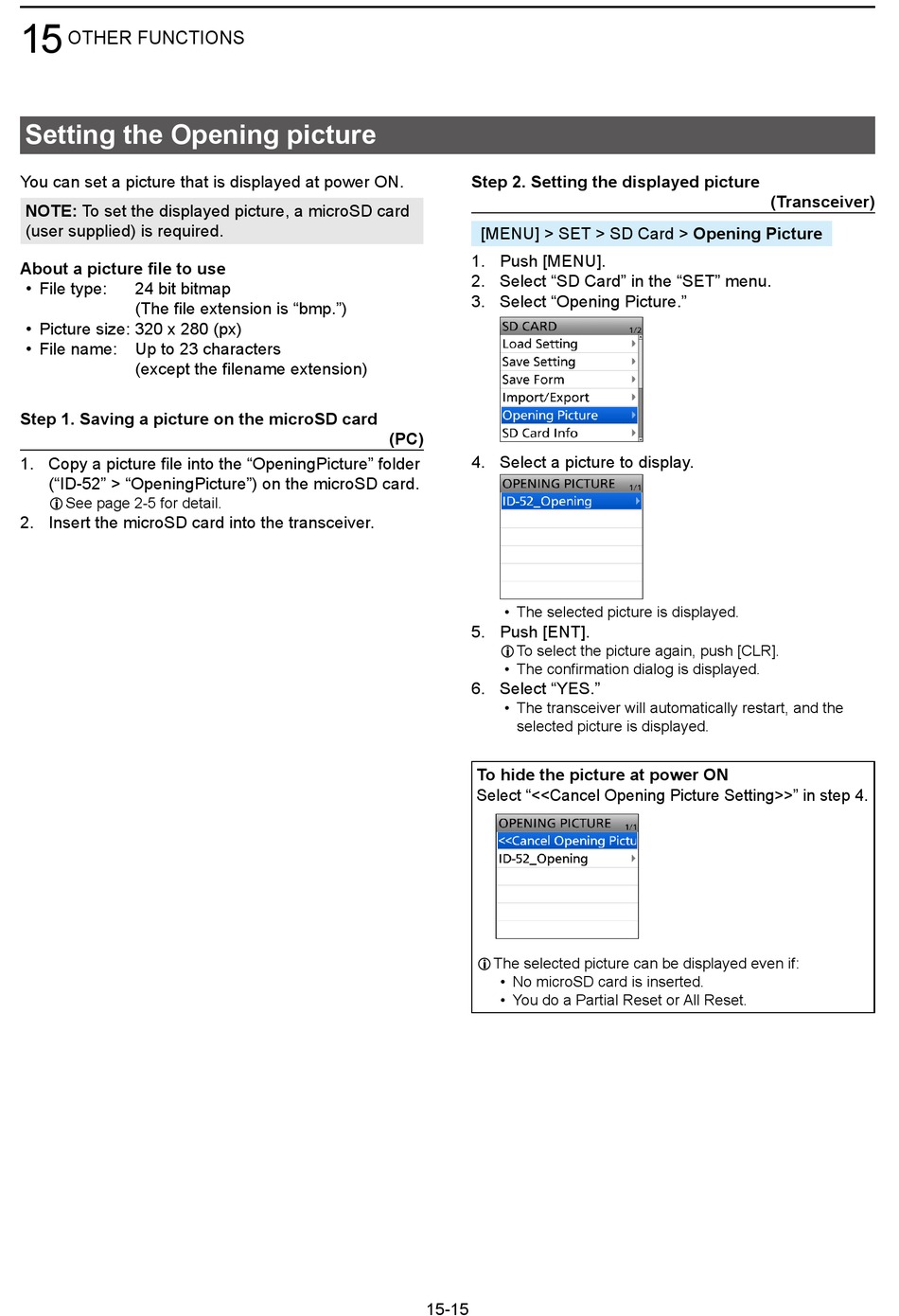

Setting the Opening picture

You can set a picture that is displayed at power ON�
NOTE: To set the displayed picture, a microSD card
(user supplied) is required�
About a picture file to use
• File type: 24 bit bitmap
(The file extension is "bmp�")
• Picture size: 320 x 280 (px)
• File name: Up to 23 characters
(except the filename extension)
Step 1. Saving a picture on the microSD card
1� Copy a picture file into the "OpeningPicture" folder
("ID-52" > "OpeningPicture") on the microSD card�
L See page 2-5 for detail�
2� Insert the microSD card into the transceiver�
Step 2. Setting the displayed picture
[MENU] > SET > SD Card > Opening Picture
1� Push [MENU]�
2� Select "SD Card" in the "SET" menu�
3� Select "Opening Picture�"
(PC)
4� Select a picture to display�
• The selected picture is displayed�
5� Push [ENT]�
L To select the picture again, push [CLR]�
• The confirmation dialog is displayed�
6� Select "YES�"
• The transceiver will automatically restart, and the
selected picture is displayed�
To hide the picture at power ON
Select "<<Cancel Opening Picture Setting>>" in step 4�
L The selected picture can be displayed even if:
• No microSD card is inserted�
• You do a Partial Reset or All Reset�
15-15
