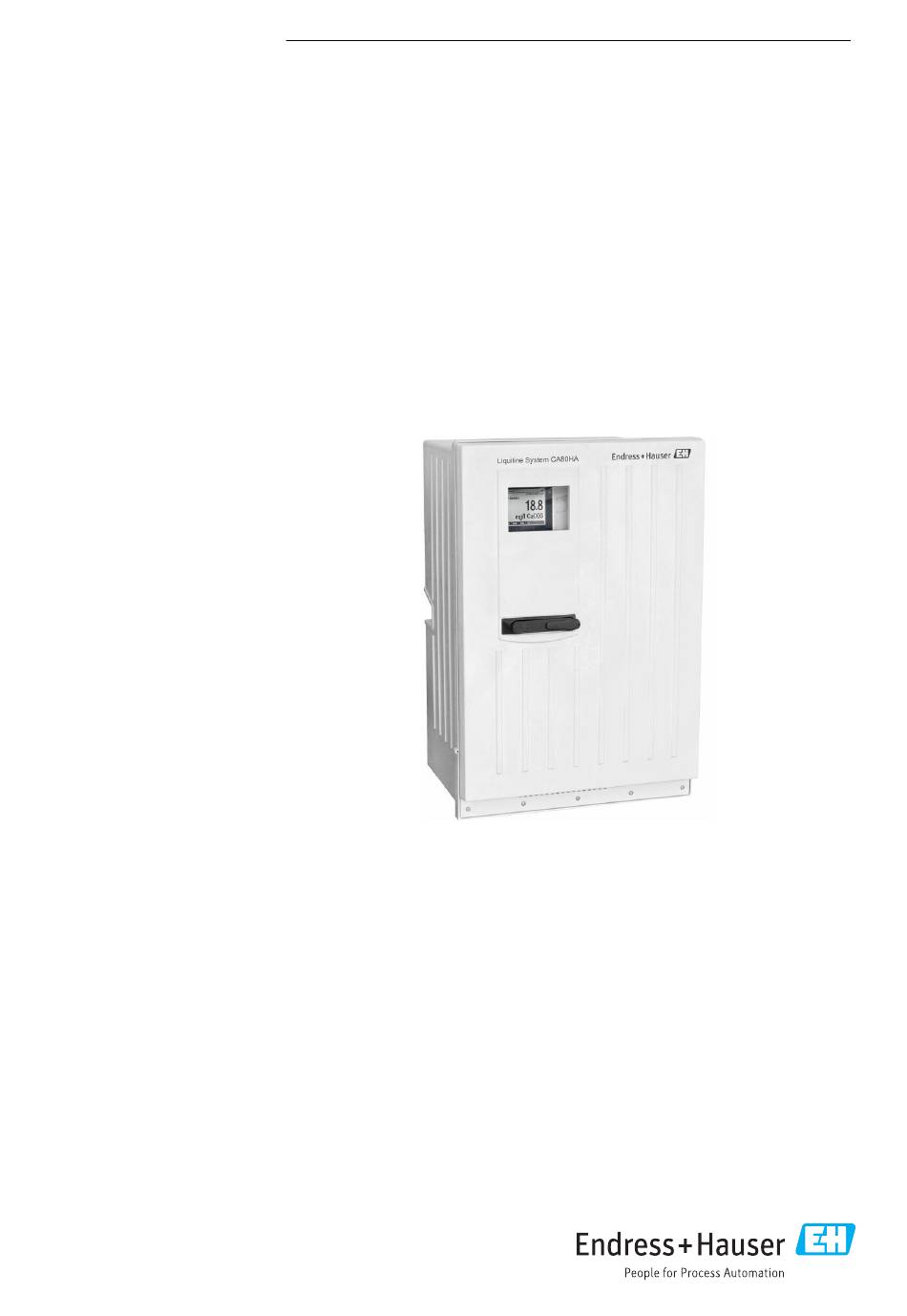

Brief Operating Instructions

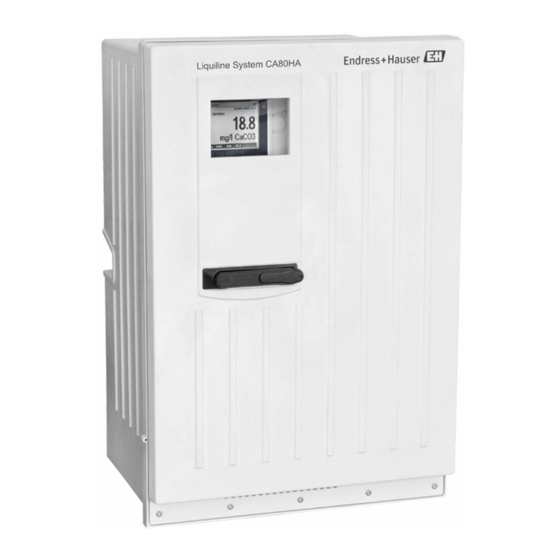

Liquiline System CA80HA
Colorimetric analyzer for total hardness
These instructions are Brief Operating Instructions; they are
not a substitute for the Operating Instructions pertaining to
the device.
Detailed information on the device can be found in the
Operating Instructions and in the other documentation
available at:
• www.endress.com/device-viewer
• Smart phone/tablet: Endress+Hauser Operations App
Solutions
Services
Advertisement
Table of Contents
Related Manuals for Endress+Hauser Liquiline System CA80HA
Summary of Contents for Endress+Hauser Liquiline System CA80HA
- Page 1 These instructions are Brief Operating Instructions; they are not a substitute for the Operating Instructions pertaining to the device. Detailed information on the device can be found in the Operating Instructions and in the other documentation available at: • www.endress.com/device-viewer • Smart phone/tablet: Endress+Hauser Operations App...
- Page 2 Liquiline System CA80HA Order code: XXXXX-XXXXXX Ser. no.: XXXXXXXXXXXX Ext. ord. cd.: XXX.XXXX.XX Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0040778 Endress+Hauser...
-
Page 3: Table Of Contents
Liquiline System CA80HA Table of contents Table of contents About this document ............. . 4 Warnings . -
Page 4: About This Document
About this document Liquiline System CA80HA About this document Warnings Structure of information Meaning This symbol alerts you to a dangerous situation. DANGER Failure to avoid the dangerous situation will result in a fatal or serious injury. Causes (/consequences) If necessary, Consequences of non- compliance (if applicable) ‣... -
Page 5: Documentation
About this document Documentation The following instructions complement these Brief Operating Instructions and are available on the product pages on the Internet: • Operating Instructions Liquiline System CA80HA • Device description • Commissioning • Operation • Software description (excluding sensor menus; these are described in a separate manual - see below) •... -
Page 6: Basic Safety Instructions
Designated use The Liquiline System CA80HA is a wet-chemical analyzer for the almost continuous determination of the total hardness concentration in liquid media. The analyzer is designed for use in the following applications: •... -
Page 7: Product Safety
Liquiline System CA80HA Basic safety instructions Do not operate damaged products, and protect them against unintentional operation. Label damaged products as defective. During operation: If faults cannot be rectified: products must be taken out of service and protected against unintentional operation. -
Page 8: Incoming Acceptance And Product Identification
Incoming acceptance and product identification Liquiline System CA80HA Incoming acceptance and product identification Incoming acceptance Verify that the packaging is undamaged. Notify the supplier of any damage to the packaging. Keep the damaged packaging until the issue has been resolved. -
Page 9: Scope Of Delivery
Liquiline System CA80HA Incoming acceptance and product identification 3.2.2 Product identification Product page www.endress.com/ca80ha Interpreting the order code The order code and serial number of your product can be found in the following locations: • On the nameplate • In the delivery papers Obtaining information on the product Go to www.endress.com. -
Page 10: Installation
Installation Liquiline System CA80HA 3.4.2 Other standards and guidelines cCSAus The product meets the requirements as per "CLASS 2252 06 - Process Control Equipment" and "CLASS 2252 86 - Process Control Equipment". It is tested to Canada and USA standards: CAN/ CSA-C22.2 No. - Page 11 Liquiline System CA80HA Installation 4.1.1 Dimensions 463 (18.23) 530 (20.87) A0028820 1 Liquiline System CA80 closed version, dimensions in mm (in) 417 (16.42) 530 (20.87) A0030419 2 Liquiline System CA80 open version, dimensions in mm (in) Endress+Hauser...
- Page 12 Installation Liquiline System CA80HA 654 (25.74) A0028821 3 Liquiline System CA80 with base, dimensions in mm (in) Endress+Hauser...
- Page 13 Liquiline System CA80HA Installation 1800 (70.9) 8 (0.31) A0041592 4 Post (accessory) for "Outdoor" version, dimensions in mm (inch) 4.1.2 Mounting location Note the following when erecting the device: ‣ If mounting on a wall, make sure that the wall has sufficient load-bearing capacity and is fully perpendicular.
- Page 14 Installation Liquiline System CA80HA 4.1.3 Spacing requirements when mounting Spacing required for installing analyzer ≥330(12.99) ≤116 ° A0036774 A0036775 5 Minimum spacing required for mounting. 6 Maximum opening angle Engineering unit mm (in). Spacing required for installing wall-mount version Ø...
-
Page 15: Mounting The Analyzer
Liquiline System CA80HA Installation Mounting the analyzer 4.2.1 Mounting the analyzer on a wall CAUTION Incorrect installation can cause injury and damage the device ‣ If mounting on a wall, check that the analyzer is fully hooked into the wall holder unit at the top and bottom, and secure the analyzer to the upper wall holder unit using the securing screw. - Page 16 Installation Liquiline System CA80HA A0036781 Hook the analyzer into the wall holder unit (1). Fix the mount and wall holder unit in place with the screw supplied (2). 4.2.2 Installing version with analyzer stand CAUTION Incorrect installation can cause injury and damage the device ‣...
-
Page 17: Post-Installation Check
Liquiline System CA80HA Installation 624 (24.57) 530 (20.87) A0036783 8 Foundation plan Fasteners (4 x M10) Dimensions of Liquiline System CA80 A0036785 9 Securing the base Screw the base to the ground. With 2 people, lift the analyzer and fit it on the base. Use the recessed grips. -
Page 18: Electrical Connection
Electrical connection Liquiline System CA80HA Electrical connection WARNING Device is live! Incorrect connection may result in injury or death! ‣ The electrical connection may be performed only by an electrical technician. ‣ The electrical technician must have read and understood these Operating Instructions and must follow the instructions contained therein. - Page 19 Liquiline System CA80HA Electrical connection Connection of analog inputs and outputs, Memosens sensors or digital fieldbuses Remove the bottle tray: Lift up the recessed grip slightly and pull it towards the front. Remove the cover that is hooked into place.
- Page 20 Electrical connection Liquiline System CA80HA Fold out the carrier board towards the front . 6 x Ph2 Release the 6 screws on the electronics compartment cover using a Phillips-head screwdriver and fold out the cover towards the front. Only for order versions with G or NPT glands: Replace the pre-installed M-thread cable glands with the G or NPT cable glands that are enclosed.
- Page 21 Liquiline System CA80HA Electrical connection After connecting: Secure the electronics compartment cover with the 6 screws. Fold up the carrier board and use the 6 screws to secure it after connecting. Tighten the cable glands on the bottom of the device to secure the cables.
-
Page 22: Connecting Sample Preparation
Electrical connection Liquiline System CA80HA A0044092 10 Terminal assignment Internal 24 V voltage Power supply +24 V Power supply -24 V Assignment: functional ground The labeling on the terminal block is selected in such a way that it applies both for 24 V versions (+ and -) and for the other device versions (L and N). - Page 23 Liquiline System CA80HA Electrical connection Guide the cable through the cable gland. Only for order versions with G or NPT glands: Replace the pre-installed M-thread cable glands with the G or NPT cable glands that are enclosed. This does not affect the M32 hose glands.
- Page 24 Electrical connection Liquiline System CA80HA Cable sample (does not necessarily correspond to the original cable supplied) A0044089 A0044090 A0044091 12 Terminated cable 13 Inserting the cable 14 Tightening the screw (2 Nm) Outer shield (exposed) Cable clamp for hose heating...
-
Page 25: Ensuring The Degree Of Protection
Liquiline System CA80HA Electrical connection Route the cable in the housing in such a way that the exposed cable shield fits into one of the cable clamps and the cable cores can be easily routed as far as the plug-in terminals. -
Page 26: Post-Connection Check
Operation options Liquiline System CA80HA Post-connection check WARNING Connection errors The safety of people and of the measuring point is at risk! The manufacturer does not accept any responsibility for errors that result from failure to comply with the instructions in this manual. -
Page 27: Commissioning
Liquiline System CA80HA Commissioning Commissioning Before the supply voltage is applied On account of the device design, high switch-on currents occur when the device is commissioned at low temperatures. The power value indicated on the nameplate refers to the power consumption after one minute of operation when the device is commissioned at 5 °C (41 °F). - Page 28 Only connect the hoses as specified in this diagram. A0041298 18 Hose connection diagram optional dilution A0034793 19 Liquiline System CA80HA, single-channel device Standard 1 Sample Reagent RK 2, 3, 7 Dispensers Outlet Outlet Cuvette Sample collecting vessel...
- Page 29 Liquiline System CA80HA Commissioning optional dilution A0034794 20 Liquiline System CA80HA, two-channel device Standard 1 Sample Reagent RK 2, 3, 7 Dispensers Outlet Outlet Cuvette Sample collecting vessel Photometer/measuring cell Cleaner T-piece Endress+Hauser...
-
Page 30: Function Check
Commissioning Liquiline System CA80HA optional dilution A0034795 21 Liquiline System CA80HA, self-priming Standard 1 Sample Reagent RK 2, 3, 7 Dispensers Outlet Outlet Cuvette Cleaner Photometer/measuring cell T-piece 7.1.3 Connecting the sample inlet hose Ensure a constant and sufficient supply of sample at the installation location. -
Page 31: Switching On The Measuring Device
Liquiline System CA80HA Commissioning WARNING Connection errors The safety of people and of the measuring point is under threat. The manufacturer does not accept any responsibility for errors that result from failure to comply with the instructions in this manual. - Page 32 Commissioning Liquiline System CA80HA • Device tag Give your device any name of your choice (max. 32 characters). • Set date Correct the set date if necessary. • Set time Correct the set time if necessary. Insert the bottles and activate the bottles used in the menu: Bottle insertion/Bottle selection.
- Page 36 *71530021* 71530021 www.addresses.endress.com...
