KA01239C/07/EN/06.21
71525404
2021-01-31
Products
Brief Operating Instructions

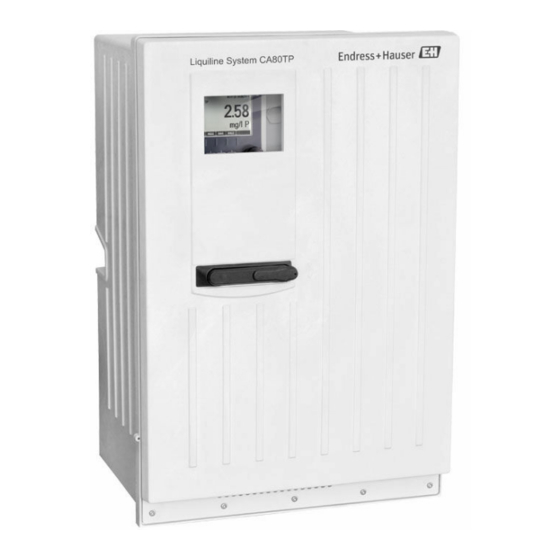

Liquiline System CA80TP
Colorimetric analyzer for total phosphorus
These instructions are Brief Operating Instructions; they are
not a substitute for the Operating Instructions pertaining to
the device.
Detailed information on the device can be found in the
Operating Instructions and in the other documentation
available at:
• www.endress.com/device-viewer
• Smart phone/tablet: Endress+Hauser Operations App
Solutions
Services
Advertisement
Table of Contents
Related Manuals for Endress+Hauser Liquiline System CA80TP
Summary of Contents for Endress+Hauser Liquiline System CA80TP
- Page 1 These instructions are Brief Operating Instructions; they are not a substitute for the Operating Instructions pertaining to the device. Detailed information on the device can be found in the Operating Instructions and in the other documentation available at: • www.endress.com/device-viewer • Smart phone/tablet: Endress+Hauser Operations App...
- Page 2 Liquiline System CA80TP Order code: XXXXX-XXXXXX Ser. no.: XXXXXXXXXXXX Ext. ord. cd.: XXX.XXXX.XX Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0040778 Endress+Hauser...
-
Page 3: Table Of Contents
Liquiline System CA80TP Table of contents Table of contents About this document ............. . 4 Warnings . -
Page 4: About This Document
About this document Liquiline System CA80TP About this document Warnings Structure of information Meaning This symbol alerts you to a dangerous situation. DANGER Failure to avoid the dangerous situation will result in a fatal or serious injury. Causes (/consequences) If necessary, Consequences of non- compliance (if applicable) ‣... -
Page 5: Documentation
Documentation The following instructions complement these Brief Operating Instructions and are available on the product pages on the Internet: • Operating Instructions Liquiline System CA80TP • Device description • Commissioning • Operation • Software description (excluding sensor menus; these are described in a separate manual - see below) •... -
Page 6: Basic Safety Instructions
Designated use The Liquiline System CA80TP is a wet-chemical analyzer for the almost continuous determination of the concentration of total phosphorus in liquid media. The analyzer is designed for use in the following applications: •... -
Page 7: Product Safety
Liquiline System CA80TP Basic safety instructions Do not operate damaged products, and protect them against unintentional operation. Label damaged products as defective. During operation: If faults cannot be rectified: products must be taken out of service and protected against unintentional operation. -
Page 8: Incoming Acceptance And Product Identification
Incoming acceptance and product identification Liquiline System CA80TP Incoming acceptance and product identification Incoming acceptance Verify that the packaging is undamaged. Notify the supplier of any damage to the packaging. Keep the damaged packaging until the issue has been resolved. -
Page 9: Scope Of Delivery
Liquiline System CA80TP Incoming acceptance and product identification 3.2.2 Product identification Product page www.endress.com/ca80tp Interpreting the order code The order code and serial number of your product can be found in the following locations: • On the nameplate • In the delivery papers Obtaining information on the product Go to www.endress.com. -
Page 10: Installation
Installation Liquiline System CA80TP 3.4.2 Other standards and guidelines cCSAus The product meets the requirements as per "CLASS 2252 06 - Process Control Equipment" and "CLASS 2252 86 - Process Control Equipment". It is tested to Canada and USA standards: CAN/ CSA-C22.2 No. - Page 11 Liquiline System CA80TP Installation 4.1.1 Dimensions 463 (18.23) 530 (20.87) A0028820 1 Liquiline System CA80 closed version, dimensions in mm (in) 417 (16.42) 530 (20.87) A0030419 2 Liquiline System CA80 open version, dimensions in mm (in) Endress+Hauser...
- Page 12 Installation Liquiline System CA80TP 654 (25.74) A0028821 3 Liquiline System CA80 with base, dimensions in mm (in) Endress+Hauser...
- Page 13 Liquiline System CA80TP Installation Ø 7 (0.28) 96 (3.78) 118 (4.65) A0030527 4 Y strainer (optional), dimensions in mm (inch) 1800 (70.9) 8 (0.31) A0041592 5 Post (accessory) for "Outdoor" version, dimensions in mm (inch) 4.1.2 Mounting location Note the following when erecting the device: ‣...
- Page 14 Installation Liquiline System CA80TP ‣ Protect the device against corrosive gases, e.g. hydrogen sulfide (H S) . ‣ Make sure to pay attention to the maximum height difference and the maximum distance from the sampling point. ‣ Ensure that the unit can drain freely, without any siphoning effects.
-
Page 15: Mounting The Analyzer
Liquiline System CA80TP Installation Spacing required for installing wall-mount version Ø 11 (0.43) Ø 10.7 (0.42) 120 (4.72) A0036779 8 Holder unit dimensions. Engineering unit mm (in) Mounting the analyzer 4.2.1 Mounting the analyzer on a wall CAUTION Incorrect installation can cause injury and damage the device ‣... - Page 16 Installation Liquiline System CA80TP Secure the mount on the housing. A0036781 Hook the analyzer into the wall holder unit (1). Fix the mount and wall holder unit in place with the screw supplied (2). 4.2.2 Installing version with analyzer stand...
- Page 17 Liquiline System CA80TP Installation 624 (24.57) 530 (20.87) A0036783 9 Foundation plan Fasteners (4 x M10) Dimensions of Liquiline System CA80 A0036785 10 Securing the base Screw the base to the ground. With 2 people, lift the analyzer and fit it on the base. Use the recessed grips.
- Page 18 Installation Liquiline System CA80TP 4.2.3 "Outdoor" version: mounting on a post Erecting the post 4 x 12 (0.47) 250 (9.84) A0041437 11 Foundation plan, dimensions in mm (in) When installing outdoors, consideration must be given to providing correct protection against lightning.
- Page 19 Liquiline System CA80TP Installation Tool required for post mounting The following tools, which must be provided by the customer at the point of installation, are required to mount the analyzer on the post: • Open-end wrench, 17mm AF (for post retainer) •...
- Page 20 Installation Liquiline System CA80TP Mounting analyzer on the post A0041425 A0041426 12 Analyzer mounted on post (from front) 13 Analyzer mounted on post (from behind) Fit the clamp of the post retainer on the retaining rods and post using the nuts.
- Page 21 Liquiline System CA80TP Installation Fit the counterparts and fasten the post retainer using spring washers and nuts. Mount the wall holder unit (included in the delivery with the analyzer) on the post retainer. Endress+Hauser...
- Page 22 Installation Liquiline System CA80TP Insert the spacer. Screw the suspension bracket of the wall holder unit (included in the delivery with the analyzer) onto the analyzer. Endress+Hauser...
- Page 23 Liquiline System CA80TP Installation Hook in the analyzer. Fix the upper wall holder unit in place with the screw provided. 4.2.4 Mounting the Y strainer (optional) The Y strainer is designed to directly tap particle-laden samples from pipes. This makes it possible to determine the TP.
- Page 24 Installation Liquiline System CA80TP Mounting the Y strainer on an even surface A0030604 14 Y strainer Union nut Hose to analyzer Threaded joint Ferrule Threaded borehole Mount the Y strainer on the pipe clamps on an even surface. Align the Y strainer.
-
Page 25: Post-Installation Check
Liquiline System CA80TP Electrical connection Post-installation check After mounting, check all the connections to ensure they are secure. Electrical connection WARNING Device is live! Incorrect connection may result in injury or death! ‣ The electrical connection may be performed only by an electrical technician. - Page 26 Electrical connection Liquiline System CA80TP 5.2.1 Routing the cable in the connection compartment The analyzer is supplied with a pre-installed power cable. (Not in the case of the "Outdoor" version) • For cabinet versions, the cable length is approx. 4.3 m (14.1 ft) from the base of the housing.
- Page 27 Liquiline System CA80TP Electrical connection 6 x Ph2 Release the 6 screws on the electronics compartment cover using a Phillips-head screwdriver and fold out the cover towards the front. Only for order versions with G or NPT glands: Replace the pre-installed M-thread cable glands with the G or NPT cable glands that are enclosed.
- Page 28 Electrical connection Liquiline System CA80TP Guide the power supply cable, which is provided by the customer at the installation location, through the cable gland indicated. For all versions Route the cables on the rear panel of the device so that they are properly protected. Use cable clips.
-
Page 29: Ensuring The Degree Of Protection
Liquiline System CA80TP Electrical connection N N S A0044094 15 Terminal assignment for the "Outdoor" version Terminals for power supply Terminals for hose heater (2x) Ensuring the degree of protection Only the mechanical and electrical connections which are described in these instructions and which are necessary for the required, designated use, may be carried out on the device delivered. -
Page 30: Post-Connection Check
Electrical connection Liquiline System CA80TP Individual types of protection permitted for this product (impermeability (IP), electrical safety, EMC interference immunity, Ex protection) can no longer be guaranteed if, for example : • Covers are left off • Different power units to the ones supplied are used •... -
Page 31: Operation Options
Liquiline System CA80TP Operation options Operation options Structure and function of the operating menu Menu/Language English Č eština Nederlands Français Deutsch Italiano Polski A0040682 A0036773 17 Display (example) 16 Display (example) Menu path and/or device designation Soft key (press function) -
Page 32: Preparatory Steps
Commissioning Liquiline System CA80TP Preparatory steps 7.1.1 Commissioning steps Connect the liquid-bearing hoses of the sample supply system.→ 33 Visually inspect all the hose connections to ensure everything is correct. Use the hose connection diagram→ 32. Insert the bottles and make the most important menu settings.→ 35 7.1.2... - Page 33 Liquiline System CA80TP Commissioning A0041479 19 Liquiline System CA80TP Sample Outlet Dilution module (optional) Cleaner Water for optional dilution module Standard 1 Reagent RB Ventilation Reagent RN Pressure reactor Dosing unit Reagent RK Dispenser Reference sample (optional) Cooling (optional) Functionally not necessary;...
-
Page 34: Function Check
Commissioning Liquiline System CA80TP 20 Mounting the suction strainer (supplied) on the sample hose Fit the gland (1) and cone (4) onto the hose in the direction indicated and screw into the adapter (2) of the suction strainer (3) together with the hose. -
Page 35: Switching On The Measuring Device
Liquiline System CA80TP Commissioning ‣ Is the suction line connected to the peristaltic pump? ‣ Is the dispenser correctly inserted? ‣ Can the dispenser move freely? ‣ Are all the hose connections leak-tight? ‣ is the sample hose in the hose gland strain-relieved? ‣... - Page 36 Commissioning Liquiline System CA80TP • Device tag Give your device any name of your choice (max. 32 characters). • Set date Correct the set date if necessary. • Set time Correct the set time if necessary. Insert the bottles and activate the bottles used in the menu: Bottle insertion/Bottle selection.
- Page 40 *71525404* 71525404 www.addresses.endress.com...
