Screen Example

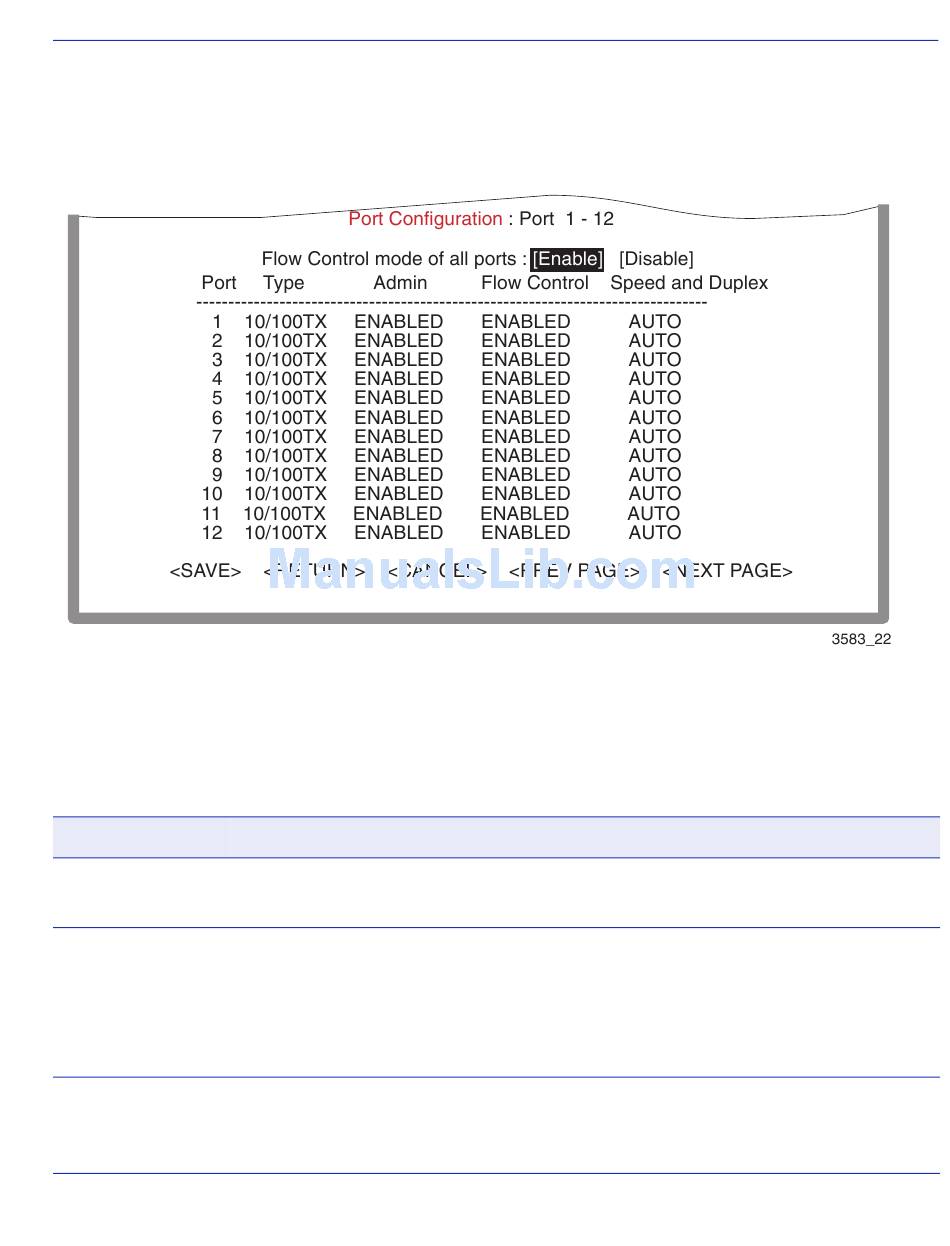

Figure 7-2 Port Configuration Screen
Field Descriptions
Refer to
Table 7-2
for a functional description of each screen field.
Table 7-2 Port Configuration Screen Field Descriptions
Use this field...
Flow Control
mode of all ports
Type
Admin
To...
Enable or disable the Flow Control feature on all ports currently displayed.
See port type as:
10/100TX: 10Base-T/100Base-TX
100FX: 100Base-FX
1000SX: 1000Base-SX
1000LX: 1000Base-LX
Disable a port due to abnormal behavior (e.g., excessive collisions), and
then re-enable it after the problem has been resolved. You may also disable a
port for security reasons. The default is ENABLED.
