Mounting the Switch

Installing the D2-HIPWR-POE in the Lockbox

Use the following procedure if your D2 lockbox power configuration includes the
D2‐HIPWR‐POE power combiner.
With the switch secured in the lockbox tray, assemble the rest of the D2 components as follows:
1. Use Figure
a.
a.
b. Through the bottom‐left lower power supply bridge anchor
c.

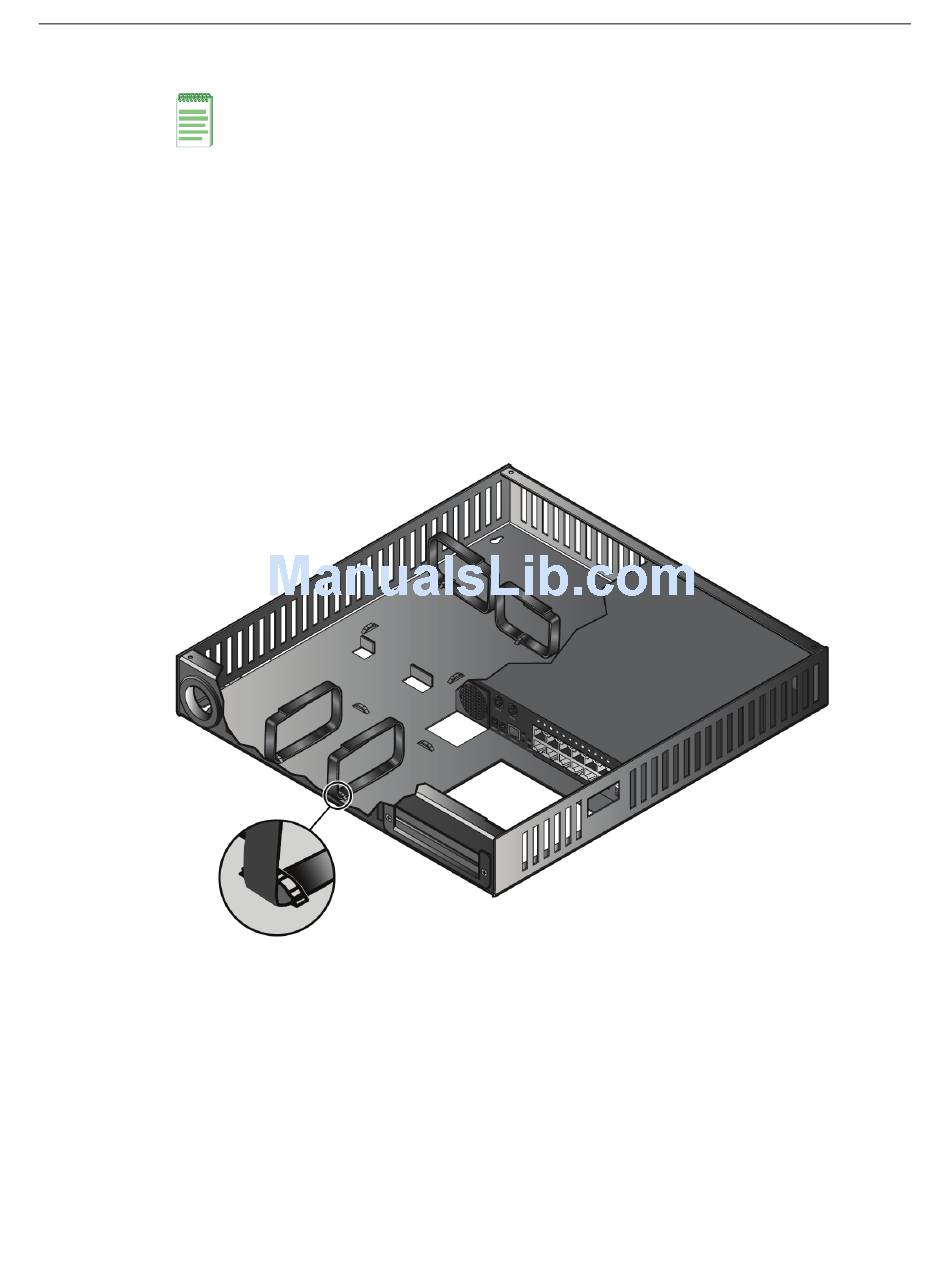

Figure 2-15
2. Install the upper power supply pressed against the left‐side of the lockbox and slightly higher
than its normal installation position with it's power cord facing down as shown in Figure
on page 2‐19. Fasten the hook & loop strap securely around the power supply.
2-18 Installation
Note: Enterasys recommends installing the lockbox mounting screws to your wall as described in
"Mounting the Lockbox on the
2‐15 on page 2‐18 as a guide and thread the hook & loop straps as follows:
Through the top‐left upper power supply bridge anchor
Through the top‐right upper power supply bridge anchor
Through the bottom‐right lower power supply bridge anchor
Fastening the Hook & Loop Straps
Wall" on page 22 prior to the following procedure.
2‐16
