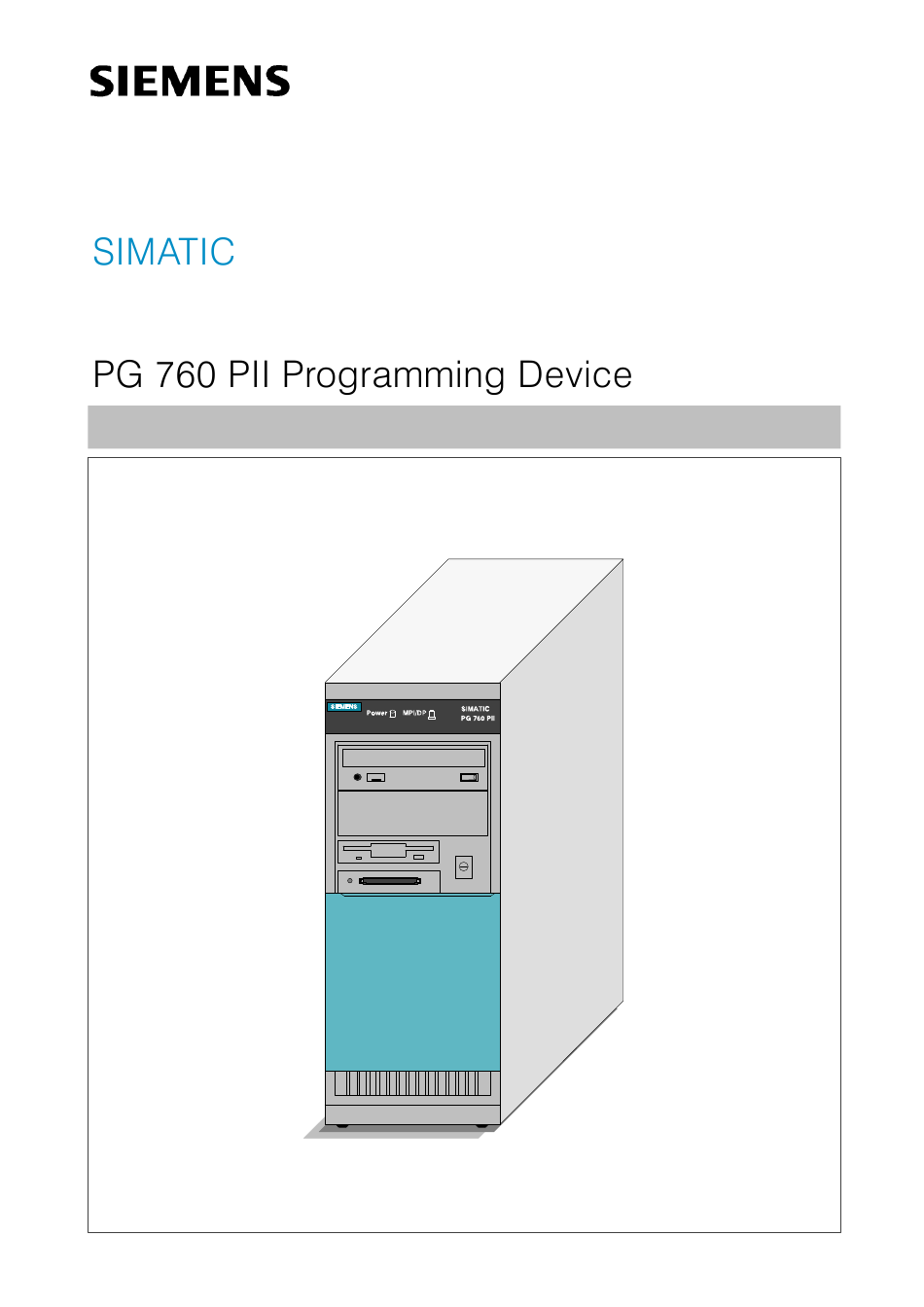

- Page 1 Product Information Bulletin This leaflet gives you specific technical information on your PG 760 PII programming device.
- Page 2 Trademarks SIMATIC , SIMATIC NET and SIMATIC HMI are registered trademarks of SIEMENS AG. The reproduction, transmission or use of this document or its contents is We have checked the contents of this manual for agreement with the not permitted without express written authority.
- Page 3 Setting Up and Transporting the PG 760 PII Unpacking the Unpack your PG 760 PII programming device as follows: PG 760 PII 1. Remove the packing. 2. Do no throw the original packing away. Keep it in case you have to transport the unit again sometime in the future.
- Page 4 Hardware Components of the PG 760 PII Front All important operator controls and displays are located behind the drive cover on the front of the unit. Rear Panel All the power supply connectors and interface ports for hooking up to (Connectors) external devices are located on the rear panel of the PG 760 PII.
- Page 5 Ports and Connectors Function Power supply connector Connection for power supply PS/2 keyboard Connection for keyboard (trackball supported) PS/2 mouse Connection for PS/2 mouse LPT 1 printer Connection for parallel printer Parallel interface MPI/DP Multipoint Interface (RS485)* Connection for S7 programmable (compatible with CP 5611) COM 1 V.24/MODEM/PLC...
- Page 6 Power Supply Observe the following notes concerning the power supply of the unit. Note The power plug must be disconnected to isolate the unit completely from the supply. For operation in Canada and the USA, a CSA or UL-listed power supply cable must be used.
- Page 7 Selecting Mains If the voltage displayed on the system selector switch does not correspond Voltage with your local voltage, you must move the mains voltage selector so that the voltage set next to the triangle is visible. To do this, use a small, flat screwdriver to lever out the part with the voltages printed on it and replace it in the appropriate position.
- Page 8 Drive Type The programming device PG 760 PII is equipped with a floppy disk drive, a hard disk drive and a CD-ROM drive as standard. SIMATIC Memory You can read, program and erase SIMATIC Memory Cards via the 68-pin Cards connector.
- Page 9 Diskette Drive You can store programs and data on diskettes with the disk drive and load them from diskettes into the PG 760 PII. Types of Diskette You can use the following diskettes: Double-Sided High-Density Diskette Double-Sided Double-Density Diskette 3.5 in. 3.5 in.
- Page 10 Caution Risk of loss of data and damage to drive! Drives are sensitive to vibrations and shock. Any vibrations occurring during operation can lead to the loss of data or damage to the drive. If you intend transporting the unit, switch it off, and wait until the drive has come to rest (about 20 seconds) before you move it.
- Page 11 Do not throw a new or discharged lithium battery into an open fire, do not solder onto the cell container. Do not recharge the battery, do not open the battery by force. The correct lithium battery is available from Siemens (Order No.: W79084-E1003-B1). Return used batteries to the manufacturer/recycler or dispose of them according to local regulations.
-
Page 12: Scroll-Lock
Special Features of the Keyboard Autorepeat All keys on the keyboard are of the autorepeat type. That is, the relevant Function character is repeated as long as you keep the key pressed. Setting Up the The angle of inclination can be raised from 6 to 12 by using the swivel Keyboard feet on the back of the keyboard. -
Page 13: Technical Specifications
Technical Specifications Safety Electromagnetic compatibility (EMC) Ambient conditions Mechanical specifications PG 760 PII Product Information Bulletin C79000-K7076-C767-01... - Page 14 Motherboard Drives Graphics Interfaces MPI/DP interface, optically isolated * Function displays 1) in sum 100W must not be exceeded 2) 12V can be loaded with 11A for a maximum of 10s 3) The cable supplied allows for a transmission rate of 187.5 kbps Optically isolated within the safety extra-low voltage circuit (SELV) PG 760 PII Product Information Bulletin C79000-K7076-C767-01...
- Page 15 The EC declarations of conformity and the documentation relating to this are Conformity available to the authorities concerned, according to the above EC directive, Article 10 (1), from: Siemens AG Bereich Automatisierungs- und Antriebstechnik A&D AS E14 Postfach 1963 D-92209 Amberg...
- Page 16 ISO 9001 The quality assurance system for the whole product process (development, Certificate production, and marketing) fulfils the requirements of ISO 9001 (corresponds to EN29001: 1987). This has been certified by the German society for the certification of quality management systems (DQS). EQ-Net certificate no.: 1323-01 Software License The PG 760 PII is shipped with the software already installed.
- Page 17 Risk of damage to the unit! Please note that only qualified personnel should be allowed to work on the open unit, so the warranty on the device is not affected. Authorized Siemens maintenance and repair centers offer you a specialist maintenance service.
- Page 18 Installing SIMM Plug the SIMM memory cards in as follows: Cards 1. Switch off your device and disconnect it from the power supply. 2. First open the unit as described in Chapter 4 of the manual. 3. Remove all inserted long ISA modules. 4.
- Page 19 SIMATIC products via its online services: Services General current information can be obtained from: – the Internet under http://www.ad.siemens.de/simatic – the Fax-Polling number 08765-93 02 77 95 00 Current product information leaflets and downloads which you may find useful are available: –...
-
