SECTION 7—COMPRESSOR
Intake Hose
Compressors
Mounting
Screws
Restraint Bracket

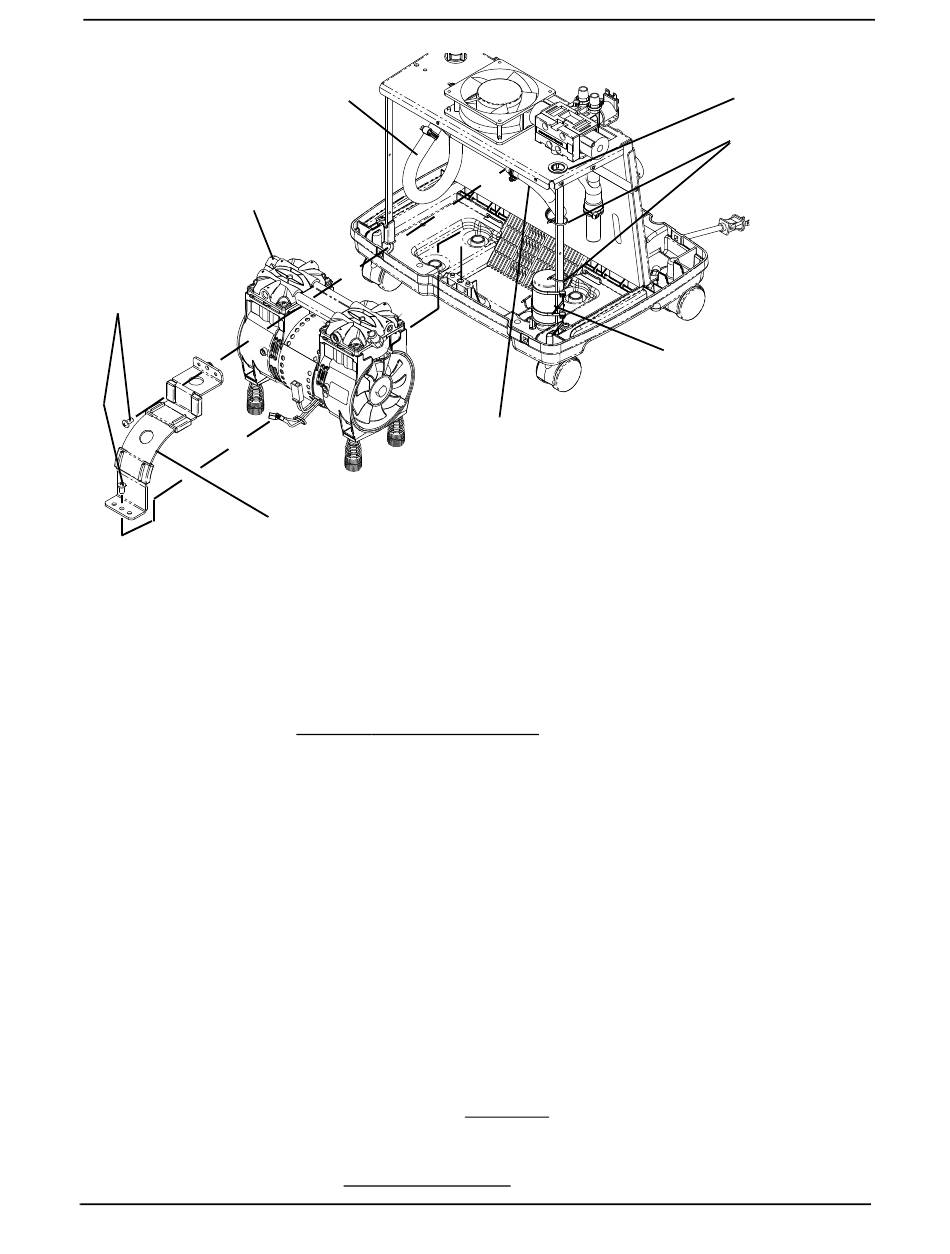

FIGURE 7.1 Replacing Compressor Assembly for 5 Liter Models

Replacing Compressor Assembly - 9 Liter Models

1. Turn power Off (O) and unplug the unit.
2. Remove the cabinet. Refer to Removing Cabinet on page 25.
3. Loosen clamps and disconnect intake hose and compressor output hose from
compressor assembly.
4. Remove compressor wires from wire clamps and tie-wraps. Disconnect motor
connector from the main harness connector.
5. Remove protective boot on capacitor.
6. Disconnect capacitor wires from the top of the capacitor.
NOTE: Re-use the protective boot if the replacement parts DO NOT provide one.
7. Remove the two mounting screws that secure the compressor restraint bracket and
remove the bracket.
8. Tilt compressor assembly toward front of unit and lift out.
9. Reverse STEPS 3-8 to install new compressor assembly.
10. Run unit and inspect for leaks. Refer to Leak Test on page 71.
11. If no leaks detected, turn power Off (O) and unplug the unit.
12. Reinstall cabinet. Refer to Removing Cabinet on page 25.
®
Platinum Oxygen
Compressor
Compressor
Output Hose
36
Grommet
Wire Clamps or
Tie-wraps
Capacitor
Part No 1118396
