SECTION 23—LEAK TEST
Sieve Bed and Product Tank
PE Valve Fittings
Hose
Hoses
(STEP 6c)
Connections
to Top Fittings
of Sieve Beds
(STEP 6b)
Product Tank Cap
(Check all hoses/valves
Check Valve
attached)(STEP 6d)
Sieve Beds
Tubing (STEP 6d)
Hose Connections to Bottom
Fittings of Sieve Beds (STEP 6b)
5 Liter Heat Exchanger Hose
manufactured after 9-9-05
Front and Rear
Fittings
9 Liter Heat Exchanger Hose
Front and Rear Fittings

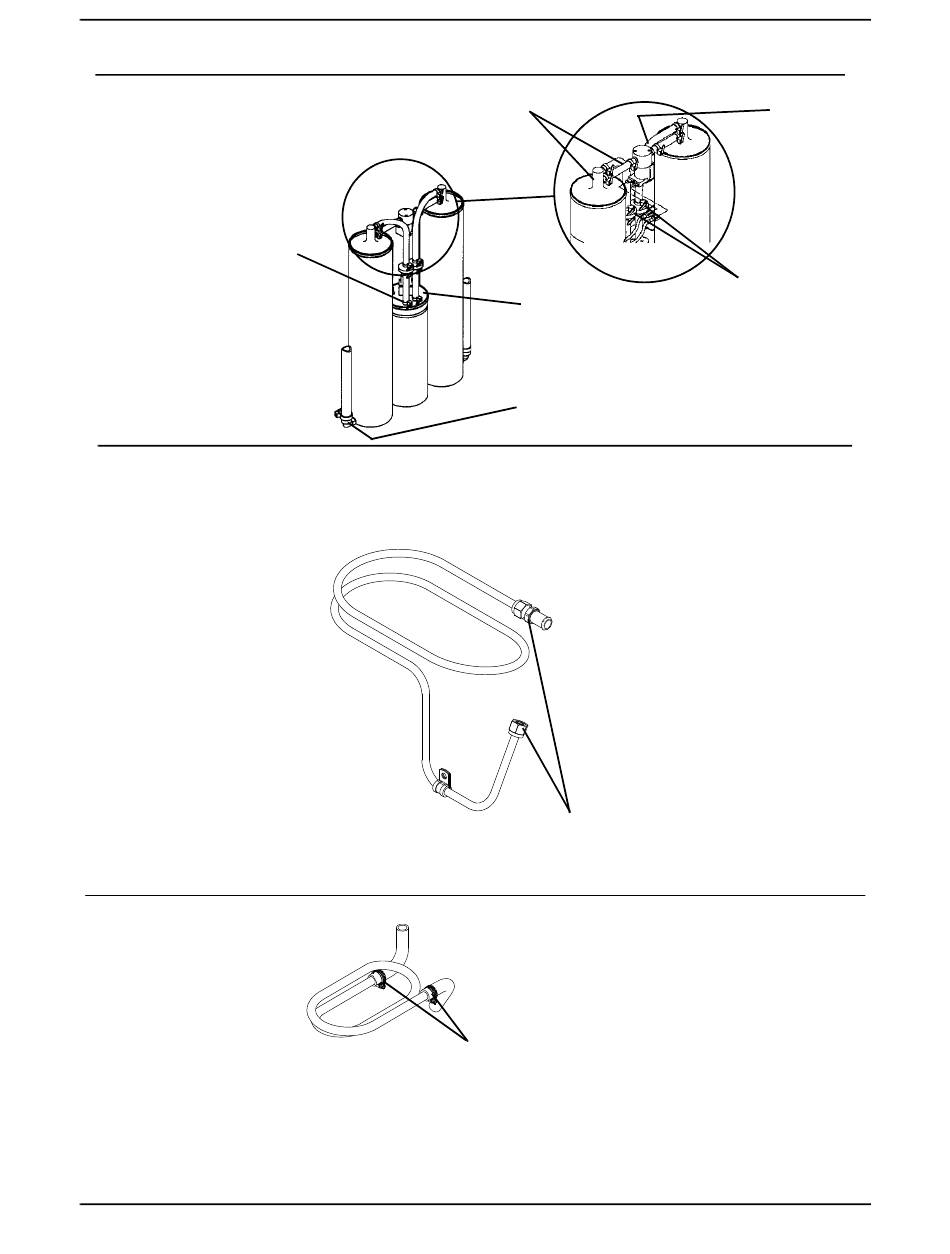

FIGURE 23.2 Leak Test
