Invacare Platinum IRC5LXO2AW Service Manual page 45

DETAIL "A"
Sound Box
Product
Tank Lid
Product
Tank
NOTE: The adjustable clamp hanger is not shown.
It is located behind the product tank and is attached
to the sound box.
DETAIL "C" - 9 LITER MODELS
Pressure
Regulator
(Top)
Pressure
Regulator
Product
Tank
NOTE: Regulator shown was used before 07/01/12
12. Torque mounting screws to .56 N-M ±.11 N-M (5 ± 1 in-lbs).
13. Re-install product tank and secure with the adjustable clamp.
14. Reinstall 1/8-inch tubing to the regulator assembly.
15. Adjust regulator pressure if necessary. Refer to Adjusting Regulator on page 46.
16. Run unit and inspect for leaks. Refer to Leak Test on page 71.
17. If no leaks detected, turn power Off (O) and unplug the unit.
18. Reinstall cabinet. Refer to Removing Cabinet on page 25.
Part No 1118396
Adjustable
Clamp
Adjustment
Mounting
Pressure
Sensor
Tubing
Adjustable
Clamp

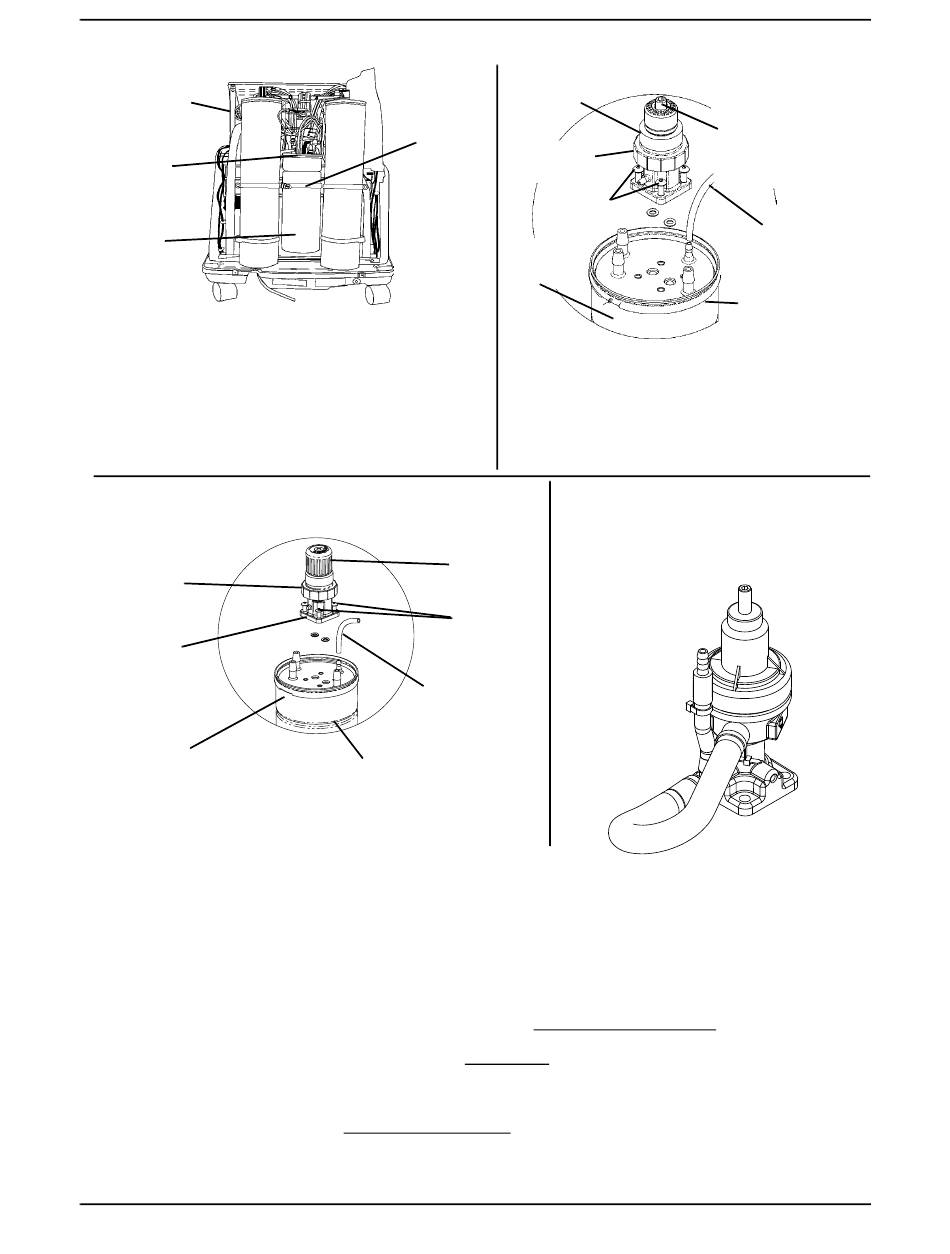

FIGURE 11.1 Replacing/Adjusting Regulator
45
SECTION 11—REGULATOR
DETAIL "B" - 5 LITER
Pressure
Regulator
(Top)
Pressure
Regulator
Mounting
Screws
Product
Tank
NOTE: Sieve Beds removed for clarity.
NOTE: Regulator shown was used before
07/01/12.
DETAIL "D" - ALL MODELS -
REGULATORS AFTER 06/30/12
Pressure
Knob
Screws
MODELS
Pressure
Adjustment Screw
(5/32-inch Allen
Wrench)
Pressure
Sensor
Tubing
Adjustable
Clamp
®
Platinum Oxygen
