SECTION 6—PREVENTIVE MAINTENANCE
Detail "A"
Y-Tube
Throttle
Muffler
Exhaust
Canister
(Partial)

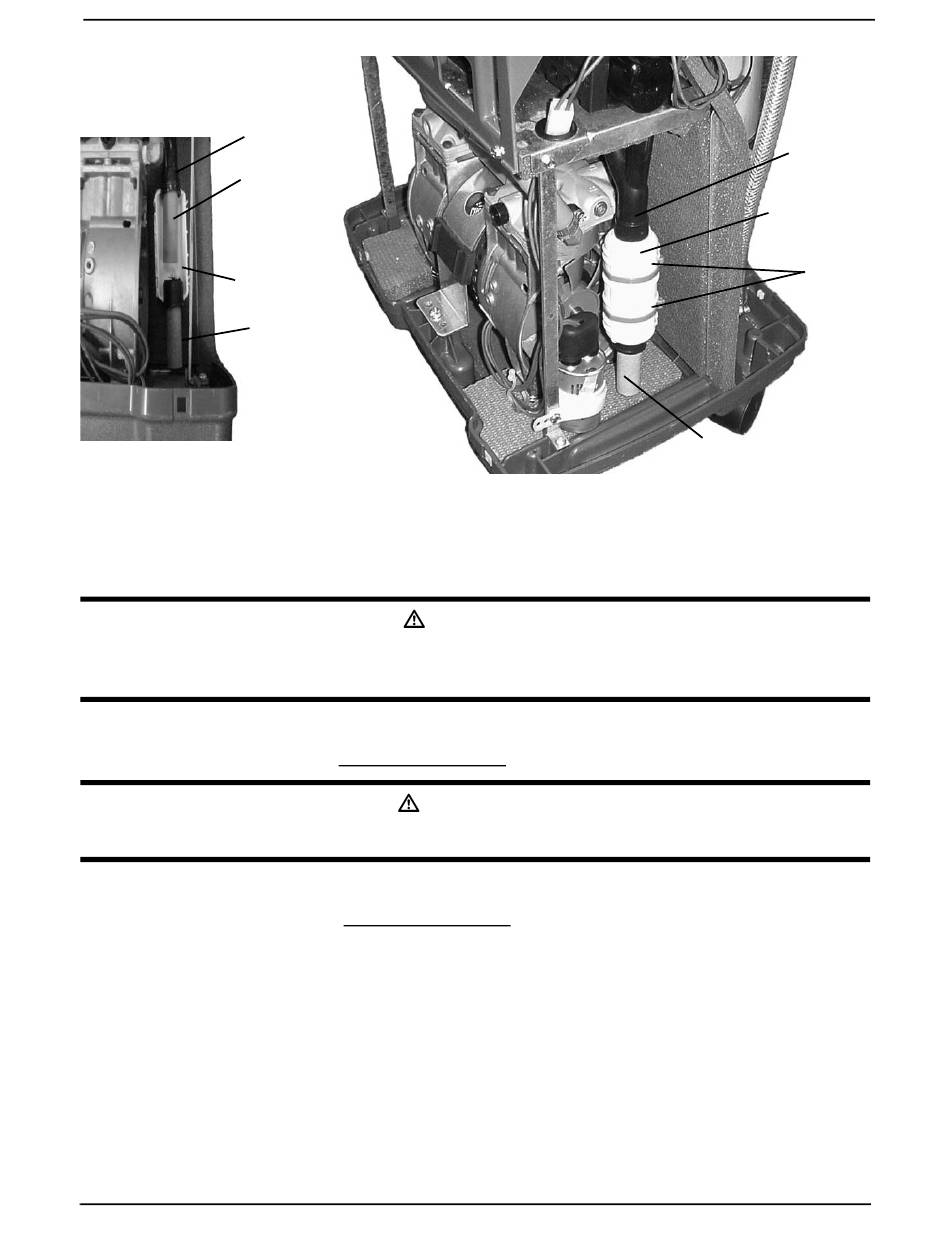

FIGURE 6.5 Inspecting/Replacing the Throttle Muffler For 9 AWQ and 5LXAW

Cleaning the Heat Exchanger

To prevent electrical shock, ALWAYS disconnect concentrator from electrical
outlet before servicing.
1. Turn power Off (O) and unplug the unit
2. Remove cabinet. Refer to Removing Cabinet on page 25.
Use care not to deform heat exchanger when installing, removing or cleaning.
3. Remove excess dirt using compressed air or vacuum.
4. Reinstall cabinet. Refer to Removing Cabinet on page 25.
®
Platinum Oxygen
Throttle
Muffler
DANGER
CAUTION
32
Y-Tube
Exhaust
Canister
Tie
Wraps
Throttle Muffler
Part No 1118396
