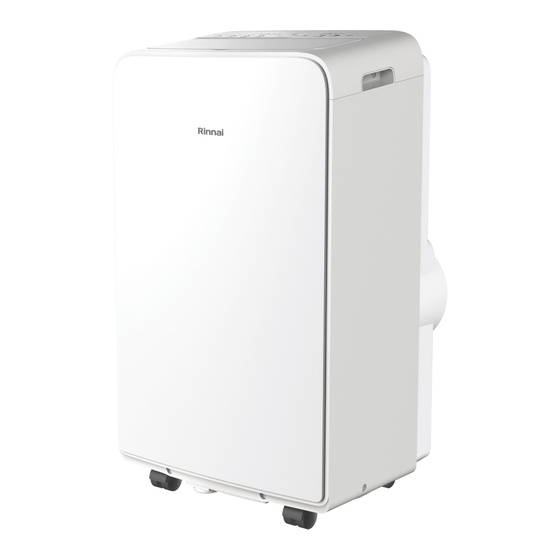

- Page 1 Models: REFRIGERANT R290 RPC26MC RPC35MC Portable Room Air Conditioner Operation & Installation Manual...
- Page 2 Before proceeding with the operation of your new Rinnai Portable Room Air Conditioner, please read this manual thoroughly and gain a full understanding of the requirements, features and operation of your new appliance�...
-
Page 3: Table Of Contents
Save a Service Call ������������������������������������������������������������������������������������������������������������������������������������������ 18 When to Call for Service ����������������������������������������������������������������������������������������������������������������������������������� 18 Installation Location ������������������������������������������������������������������������������������������������������������������������������������������������������������ 19 Duct Assembly �������������������������������������������������������������������������������������������������������������������������������������������������� 19 Exhaust Ducting Options ���������������������������������������������������������������������������������������������������������������������������������� 20 Window Installations ������������������������������������������������������������������������������������������������������������������������������������� 20 Semi-Permanent Wall Installation ���������������������������������������������������������������������������������������������������������������� 21 Condensate Drainage �������������������������������������������������������������������������������������������������������������������������������������� 21 Internal Condensate Tank ���������������������������������������������������������������������������������������������������������������������������� 21 Fixed Condensate Drainage Hose ��������������������������������������������������������������������������������������������������������������� 21 Warranty Contacts Rinnai Portable Room AC OIM... -
Page 4: Safety & Important Information
Young children should be supervised to ensure they do not play with the appliance. DO NOT allow children or persons with reduced physical, sensory or mental capabilities to sleep directly in front of this appliance. DO NOT allow children to ‘post articles’ into the louvres of the appliance. DO NOT use power boards or double adaptors with this appliance. DO NOT coil or bundle the electric cord to reduce it’s length as overheating of the cord may occur which could result in a fire hazard. The flexible cord and plug must not be modified. If the cord or plug are damaged, they must be replaced by Rinnai or a Rinnai appointed service agent. DO NOT cover or place articles on or against any parts of this appliance, to avoid overheating. DO NOT sit on this appliance DO NOT use this appliance in the immediate surroundings of a bath, a shower or a swimming pool. DO NOT move this appliance whilst it is turned on. DO NOT unplug the appliance by pulling on the flexible cord. DO NOT handle any parts of this appliance, including the plug and flexible cord, with wet or damp hands. DO NOT immerse the appliance, flexible cord and plug in water or any other liquid. DO NOT place containers of any liquid or wax on top of this appliance. - Page 5 Maintenance and repairs that require the assistance of other qualified personnel must be performed under the supervision of an individual specified in the use of flammable refrigerants. MANDATORY INSPECTION PRIOR TO INSTALLATION Immediately report any damage or discrepancies to the Supplier of the appliance. This appliance was IMPORTANT inspected and tested at the time of manufacture and packaging, and released for transportation without known damage. Upon receipt, inspect the exterior for evidence of rough handling in shipment. Ensure that the appliance is labelled correctly for the gas and electrical supply, and/or other services it is intended to be connected to� For safety and warranty purposes, appliances that may be damaged or incorrect MUST NOT be installed or operated under any circumstances. Installation of damaged or incorrect appliances may contravene local government regulations. Rinnai disclaims any liability or responsibility whatsoever in relation to the installation or operation of damaged or incorrect appliances. A NOTE ON ILLUSTRATIONS The illustrations used in this manual are for explanatory purposes only and the shape of your indoor unit NOTE may vary slightly from that which is shown in this manual. Rinnai Portable Room AC OIM...
- Page 6 3) General work area All maintenance staff and others working in the local area shall be instructed on the nature of work being carried out. Work in confined spaces shall be avoided. The area around the workspace shall be sectioned off. Ensure that the conditions within the area have been made safe by control of flammable material. 4) Checking for presence of refrigerant The area shall be checked with an appropriate refrigerant detector prior to and during work, to ensure the technician is aware of potentially flammable atmospheres. Ensure that the leak detection equipment being used is suitable for use with flammable refrigerants, i.e. non-sparking, adequately sealed or intrinsically safe. 5) Presence of fire extinguisher If any hot work is to be conducted on the refrigeration equipment or any associated parts, appropriate fire extinguishing equipment shall be available to hand. Have a dry powder or CO fire extinguisher adjacent to the charging area� Rinnai Portable Room AC OIM...
- Page 7 NOTE: The use of silicon sealant may inhibit the effectiveness of some types of leak detection equipment. Intrinsically safe components do not have to be isolated prior to working on them. Rinnai Portable Room AC OIM...
- Page 8 In addition to conventional charging procedures, the following requirements shall be followed. Ensure that contamination of different refrigerants does not occur when using charging equipment. Hoses or lines shall be as short as possible to minimise the amount of refrigerant contained in them. Cylinders shall be kept upright. Ensure that the refrigeration system is earthed prior to charging the system with refrigerant. Label the system when charging is complete (if not already). Extreme care shall be taken not to overfill the refrigeration system. Prior to recharging the system it shall be pressure tested with OFN. The system shall be leak tested on completion of charging but prior to commissioning. A follow up leak test shall be carried out prior to leaving the site. Rinnai Portable Room AC OIM...
- Page 9 In addition, a set of calibrated weighing scales shall be available and in good working order. Hoses shall be complete with leak-free disconnect couplings and in good condition. Before using the recovery machine, check that it is in satisfactory working order, has been properly maintained and that any associated electrical components are sealed to prevent ignition in the event of a refrigerant release. Consult manufacturer if in doubt. The recovered refrigerant shall be returned to the refrigerant supplier in the correct recovery cylinder, and the relevant Waste Transfer Note arranged. Do not mix refrigerants in recovery units and especially not in cylinders. If compressors or compressor oils are to be removed, ensure that they have been evacuated to an acceptable level to make certain that flammable refrigerant does not remain within the lubricant. The evacuation process shall be carried out prior to returning the compressor to the suppliers. Only electric heating to the compressor body shall be employed to accelerate this process. When oil is drained from a system, it shall be carried out safely. Rinnai Portable Room AC OIM...
-
Page 10: Specifications
• In COOLING MODE once the existing room temperature reaches the set temperature, the fan continues operating and the compressor switches on and off to maintain the set temperature within the room. • For maximum cooling output keep the exhaust hose as short and as straight as possible. Minimise bends which can reduce the maximum cooling capacity of the air conditioner. Elevate the air conditioner if necessary. • Make sure the air intake and outlet grills are unobstructed. • Clean the filters at least once every two weeks. SPECIFICATIONS MODEL RPC26MC RPC35MC Power Supply V/Hz 220-240~ / 50 Maximum Input Power 1450 Dimensions - Net (H x W x D) 710 x 476 x 385 710 x 476 x 385 Dimensions - Packing (H x W x D) 885 x 545 x 435 885 x 545 x 435... -
Page 11: AirConditionerBasics
Exhaust outlet 6� Carry handles 7� Drain outlet 1 8� Drain outlet 2 (not used on this model) 9� Room air intake (filter located behind grill) 10� Lower air intake (filter located behind grill) 11� Swivel casters (x4) 12� Drain tray outlet 13� 1.2m flexible 2 pin cord 220-240V 50Hz 10A 14� Adjustable window slide kit 15� Window exhaust duct window adaptor. 16� Exhaust duct (extends to 1.8M) 17� Duct to appliance adaptor 18� Condensate drain hose Rinnai Portable Room AC OIM... -
Page 12: Operation
IMPORTANT Forthebestcoolingresultsensurethatthefiltersareclean,referpage17fordetails. Whentheapplianceispluggedandthepowerpointisturnedonasinglebeepwillbeheardand thecoolairoutletlouvrewillcycleopenandclosedonce,thisisnormal. BASIC OPERATION There are four basic operational modes available, these are AUTO, COOL (chilled air operation), DRY (chilled and dehumidified operation) and FAN (fan only operation). BASIC OPERATION CONTROL PANEL AUTO 1� Press the ON/OFF button (1). 2� Press the mode selection button (5) until the AUTO mode indicator is illuminated. The table below describes the relationship between room temperature and modes of operation when set to Auto. RoomTemperature SetTemperature Operation Mode ≥ 24°C 24°C COOL Mode < 24°C 24°C FAN mode 3� Use fan speed button (3) to select the desired fan speed (AUTO, LOW, MED or HIGH). 4� Press the ON/OFF button (1) to stop operation. Rinnai Portable Room AC OIM... -
Page 13: Cool
The SLEEP function allows the set temperature to increase 1°C and decrease over an 8 hour period at pre-set time intervals to maintain your comfort while saving energy after the 8 hours 1°C has passed the appliance will resume normal operation. Set temp Sleep mode 8 hours Sleep mode is not available in FAN only and C°C = Set cooling temperature DRY mode NOTE Rinnai Portable Room AC OIM... -
Page 14: Timer
OPERATION TIMER With the appliance "OFF", press the "TIMER" button (7) once to active Delay On Timer. Press - or + to set the desired time period. Press the "TIMER" button 9&) again to lock in the setting. With the appliance "ON", press the "TIMER" button (7) once to active Delay Off Timer. Press - or + to set the desired time period. Press the "TIMER" button (7) again to lock in the setting. When a timer is set, pressing the "TIMER" button (7) will cancel any timer settings. SWING Press this button (8) to adjust the air flow direction. Onlyonemodeofoperationisavailableatanytime. NOTE Rinnai Portable Room AC OIM... -
Page 15: RemoteControl
REMOTE CONTROL BeforeproceedingwiththeoperationofyournewRinnaiPortableRoomAirConditionerRemote Controller, please read these instructions thoroughly and gain a full understanding of the NOTE requirementsfeaturesandoperationofyournewRemoteController. PleasekeeptheOperationandInstallationManualforyournewPortableRoomAirConditioner handysoitcanbereferredtoatanytimeinconjunctionwiththeseinstructions. REMOTE CONTROL OVERVIEW 1� ON/OFF Button 2� Fan Speed Button 3� Swing Button 4� Timer Button 5� Sleep Button 6� Temperature UP/DOWN Buttons 7�... - Page 16 Swallowing button batteries may lead to serious injury in as little as 2 hours or death, due to WARNING chemicalburnsandpotentialperforationoftheoesophagus. Ifyoususpectyourchildhasswallowedorinsertedabuttonbatteryimmediatelycallthe24hr PoisonsInformationCentreon131126forfast,expertadvice. Regularlyexaminetheremotecontrollerandmakesurethebatterycompartmentiscompletely secured. Disposeofusedbuttonbatteriesimmediatelyandsafely. IMPORTANT 1� Aim the remote control towards the receiver on the front of Air Conditioner. 2� The remote control should be within 8 meters away from the receiver. 3� Ensure there are no obstacles between the remote control and the receiver. 4� Do not drop or throw the remote control� 5� Do not leave the remote control in the sun or near heating devices. 6� Only use the button battery (CR2032/3V). Ensure the battery cover is securely in place. ThediagramshownoftheRemoteControllerisanexampleonly.Theimagecontainsalmostall ofthefunctionbuttons. NOTE RemoteControllersmaybeslightlydifferentfromillustrateddiagramdependingonwhichmodel purchased. Rinnai Portable Room AC OIM...
-
Page 17: Care&Maintenance
4� Re-attach the grills: To re-attach the Room Air Intake Grill (9) ensure that all the tabs are properly seated and that the grill is securely clipped back into place. To re-attach the Lower Air Intake Grill (10) ensure that all the tabs are properly seated and that the grill is securely clipped back into place and that the securing screw is replaced. The power may now be reconnected� Failuretocleanthefiltersregularlycancauseexcessivecondensationtoformandreducethe appliancesefficiency. NOTE Ifyouneedreplacementfilters,pleasecontactRinnai. Rinnai Portable Room AC OIM... -
Page 18: Save A Service Call
WHEN TO CALL FOR SERVICE SYMPTOM CAUSE There is a burning smell and a Turn off the air conditioner, and contact Rinnai. strange sound coming from the unit� When operated if a circuit breaker (safety, ground) is thrown or a fuse is blown. Rinnai Portable Room AC OIM... -
Page 19: Installation
5 0 0 5 0 0 The air outlets and the ducting system must not be obstructed. Theapplianceisfittedwitha1.2mflexiblecord 220-240V50Hz10A. 5 0 0 5 0 0 IMPORTANT Themaximumductextensionis1.8mintotal. Bothfactorsaretobetakenintoaccountwhen determiningthelocationthattheappliancewill beoperatedin. DUCT ASSEMBLY Front Back 1� Place the Duct to Unit Adaptor (17) over the Exhaust Outlet (5), push it downwards to ensure it engages the Exhaust Outlet tabs. 2� Screw one end of the Exhaust Duct (16) into the Duct to Unit Adaptor (17). 3� On the other end of the Exhaust Duct (16) fix the Window Exhaust Duct Adaptor (15). Rinnai Portable Room AC OIM... -
Page 20: Exhaust Ducting Options
Installation Vertical Window Installation A - Minimum = 675mm A - Maximum = 1250mm 1� Once a suitable window has been chosen, fit the Adjustable Slider Kit (14) into the window areas and fix the length of the kit using the supplied slide lock nut and bolt. Slide lock nut and bolt Insert window Foam seal exhaust duct adaptor here Itisrecommendedtoplacealengthoffoamdraftsealingstripalongthetopandbottomedgesof thekitortheinsidethewindowopeningtoformaseal. NOTE 2� Connect the Window Exhaust Duct Adaptor (15) to the Adjustable Slider Kit (14). Rinnai Portable Room AC OIM... -
Page 21: Semi-Permanent Wall Installation
2� Remove the plug from Drain Tray Outlet (12) and drain out the condensate water, once the condensate is drained replace the plug, Shallow baking tray the appliance will now be able to then resume operation. FIXED CONDENSATE DRAINAGE HOSE As an alternative to using the appliances internal condensate tank, a condensate drain hose (18) may de fitted. Option Option Option 1 - External Drain Tray: with drain outlets (8) and (12) plugged, fit the condensate drain hose (18) to drain outlet (7) and drain the condensate into a drain tray. Option 2 - Existing Waste Outlet: with drain outlets (7) and (8) plugged, fit the condensate drain hose (18) to drain outlet (12) and drain the condensate into a drain tray or waste outlet. ThepointtowhichthecondensateistobedrainedMUST BElowerthanthedrainageoutletpoint. Whenusingadraintrayoption,ensurethatthecapacityofthetrayisgreaterthanthatofthe NOTE condensatebeingproduced. Rinnai Portable Room AC OIM... -
Page 22: Warranty
The benefits provided by this Warranty are in addition to any other rights and remedies available to a consumer under the Australian Consumer Law and any other law which may apply to the goods and or services. DEFINITIONS The terms listed below shall have the following meanings: 1 “Authorised Service Representative” means an independent service contractor authorised by Rinnai or Rinnai service personnel. 2 “Rinnai” means Rinnai Australia Pty Ltd (ABN 74 005 138 769) and any related company. “Certificate(s) of Compliance” means certificate(s) issued by licensed personnel (including plumbers, refrigeration mechanics, electricians or other relevant tradespeople) to certify that any prescribed works comply with applicable regulatory requirements. “Certificate(s) of Occupancy” means certificate(s) issued by the local government authority (or similar ... - Page 23 2�7 Rinnai will reimburse any reasonable costs associated with making a legitimate warranty claim against Rinnai which are not otherwise specified above. 2�8 The Warranty of the Product requires that, in addition to all other conditions, the Purchaser conducts regular and/or preventative maintenance as may be specified by the Operating/Installation Instructions or otherwise directed by Rinnai and required by the level of usage and the usage environment, including the use of correct and uncontaminated refrigerants and lubricants. Refrigeration, plumbing and electrical works must be undertaken by licensed personnel. 2�9 Where a Product or failed component is replaced under warranty, the time remaining on the original Product warranty period will continue to apply and the replacement product or part will be subject to the original ...
- Page 24 3�2 This document (and any statutory consumer guarantees) represents the only Warranty given by Rinnai in respect of the Product. No other person or organisation is authorised to offer any alternative warranty on behalf of Rinnai� 3�3 If the date of purchase cannot be established to Rinnai’s satisfaction, the date shall be deemed to be 2 months after the date of manufacture or the date of sale by Rinnai, whichever is the latter. 3�4 This warranty applies to Products which are manufactured on or after the date of publication of this warranty but before the next date of publication of this warranty. EXCLUSIONS 4�1 This Warranty does NOT cover: a) damage, problems or failure resulting from improper operation and/or inadequate maintenance by the ...
- Page 25 5�3 Except where inconsistent with the purchaser’s statutory rights and the rights given by this Warranty, all liabilities of Rinnai for any direct, special, indirect or consequential loss or damage, any damage or expense for personal injury or any loss or destruction of property, arising directly or indirectly from the use or inability to use the Product or any of its parts and/or servicing the Product, are expressly excluded. TRAVEL, TRANSPORT & ACCESS COSTS 6�1 The Purchaser must pay freight charges, in-transit insurance expenses and travelling costs for repairs/ replacements under this Warranty, that are required to be performed 50km from the nearest Rinnai branch or Authorised Service Representative. 6�2 Subject to clause 6.3, Rinnai will pay freight charges, in-transit insurance expenses and travelling costs for repairs/replacements that are required to be performed less than 50km from the nearest Rinnai branch or Authorised Service Representative, subject to the following: a) Rinnai will arrange for such repairs/replacements and make any payment directly to the third party to provide the freight, in-transit insurance or travel services; or b) if Rinnai considers appropriate, it will authorise the Purchaser in writing to pay for the relevant freight charges, in-transit insurance expenses or travelling costs and then, upon provision by the Purchaser to Rinnai of a tax invoice showing those costs have been incurred, reimburse the Purchaser for such costs ...
- Page 26 NOTES Rinnai Portable Room AC OIM...
- Page 27 NOTES Rinnai Portable Room AC OIM...
-
Page 28: Contacts
Tel: 1300 555 545* Fax: 1300 555 655 Monday to Friday, 8.00 am to 5.00 pm EST. *Cost of a local call higher from mobile or public phones. For further information visit www.rinnai.com.au or email enquiry@rinnai.com.au innai has a Service and Spare Parts network with...
