Operation Manual

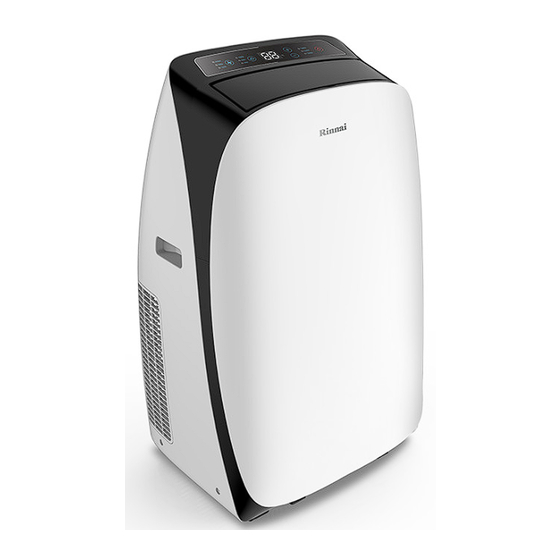

Portable Room Air Conditioner
Models: RPC26WA / RPC35WA / RPC41WA
This appliance shall be installed in accordance with:
• Manufacturer's Installation Instructions
• Current AS/NZS 3000
• Local Regulations and Municipal Building Codes including local OH&S requirements
This appliance must be installed, maintained and removed only by an Authorised Person.
For continued safety of this appliance it must be installed and maintained in
accordance with the manufacturers instructions.
Advertisement
Table of Contents
Related Manuals for Rinnai RPC41WA
Summary of Contents for Rinnai RPC41WA
- Page 1 Operation Manual Portable Room Air Conditioner Models: RPC26WA / RPC35WA / RPC41WA This appliance shall be installed in accordance with: • Manufacturer’s Installation Instructions • Current AS/NZS 3000 • Local Regulations and Municipal Building Codes including local OH&S requirements This appliance must be installed, maintained and removed only by an Authorised Person.
- Page 2 BEFORE PROCEEDING WITH THE OPERATION OF YOUR NEW RINNAI PORTABLE ROOM AIR CONDITIONER PLEASE READ THIS MANUAL THOROUGHLY AND GAIN A FULL UNDERSTANDING OF THE REQUIREMENTS, FEATURES AND OPERATION OF YOUR NEW APPLIANCE. Rinnai Portable Room AC OIM...
-
Page 3: Table Of Contents
Save a Service Call ............................10 When to Call for Service ........................... 10 Installation Location ................................11 Duct Assembly ..............................11 Exhaust Ducting Options ..........................12 Window Installations ............................. 12 Semi-Permanent Wall Installation ........................ 13 Condensate Drainage ............................13 Internal Condensate Tank ..........................13 Fixed Condensate Drainage Hose ....................... 13 Contacts Rinnai Portable Room AC OIM... -
Page 4: Safety & Important Points
Young children should be supervised to ensure they do not play with the appliance. DO NOT allow children or persons with reduced physical, sensory or mental capabilities to sleep directly in front of this appliance. DO NOT allow children to ‘post articles’ into the louvres of the appliance. DO NOT use power boards or double adaptors with this appliance. DO NOT coil or bundle the electric cord to reduce it’s length as overheating of the cord may occur which could result in a fire hazard. The flexible cord and plug must not be modified. If the cord or plug are damaged, they must be replaced by Rinnai or a Rinnai appointed service agent. DO NOT cover or place articles on or against any parts of this appliance, to avoid overheating. DO NOT sit on this appliance DO NOT use this appliance in the immediate surroundings of a bath, a shower or a swimming pool. DO NOT move this appliance whilst it is turned on. DO NOT unplug the appliance by pulling on the flexible cord. DO NOT handle any parts of this appliance, including the plug and flexible cord, with wet or damp hands. DO NOT immerse the appliance, flexible cord and plug in water or any other liquid. DO NOT place containers of any liquid or wax on top of this appliance. -
Page 5: Warranty & Specifications
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. This appliance has a 2 year parts warranty from date of purchase. If the product fails within this 2 year period return it to the supplier with proof of purchase for repair or replacement. Supplier warranty claims for Rinnai products or services must be made by contacting Rinnai Australia. Contact details are on the back of this document. The following exclusions may cause the warranty to become void and may result in a service charge and costs of parts (if required): Accidental damage and acts of God. Failure due to abuse or misuse, improper maintenance, failure to maintain or improper storage. Failure due to incorrect or unauthorised installations or outdoors use. Failure or damage caused by alterations, service or repair work carried out by persons other than Rinnai service persons or service agents. Where it is found that there is no fault with the appliance and the issue is related to the installation or is due to the failure of electricity supply. SPECIFICATIONS MODEL RPC26WA RPC35WA RPC41WA Power Supply V/Hz 220-240~ / 50 Maximum Input Power 1200... -
Page 6: Air Conditioner Basics
Drain outlet 1 Drain outlet 2 (not used on this model) Room air intake (filter located behind grill) 10. Lower air intake (filter located behind grill) 11. Swivel casters (x4) 12. Drain tray outlet 13. 1.2m flexible 2 pin cord 220-240V 50Hz 10A 14. Adjustable window slide kit 15. Window exhaust duct window adaptor. 16. Exhaust duct (extends to 1.8M) 17. Duct to appliance adaptor 18. Wall exhaust adaptor 19. Wall exhaust terminal 20. Condensate drain hose Rinnai Portable Room AC OIM... -
Page 7: Control Panel
BASIC OPERATION There are three basic operational modes available, these are COOL (chilled air operation), DRY (chilled and dehumidified operation) and FAN (fan only operation). BASIC OPERATION CONTROL PANEL COOL Press the ON/OFF button (28). Press the mode button (24) until the COOL mode indicator is illuminated. Use temperature buttons (26) to select the desired temperature (16°C to 32°C) Use fan speed button (22) to select the desired fan speed (LOW, MED or HIGH). Press the ON/OFF button (28) to stop operation. DRY (DEHUMIDIFYING) Press the ON/OFF button (28). Press the mode button (24) until the DRY mode indicator is illuminated. Use temperature buttons (26) to select the desired temperature (16°C to 32°C) Press the ON/OFF button (28) Rinnai Portable Room AC OIM... -
Page 8: Operation
SLEEP FUNCTION The SLEEP function allows the set temperature to increase and decrease over a 10 hour period at pre-set time intervals to maintain your comfort while saving energy after the 10 hours has passed the appliance will resume normal operation (see graph below).. 1°C 1°C X°C 1O hours, X°C = Set temperature Normal Sleep mode Sleep mode Program an Off timer for set & forget operation starts ends resumes operation during Sleep mode Rinnai Portable Room AC OIM... -
Page 9: Care & Maintenance
To re-attach the Lower Air Intake Grill (10) ensure that all the tabs are properly seated and that the grill is securely clipped back into place and that the securing screw is replaced. The power may now be reconnected. Failure to clean the filters regularly can cause excessive condensation to form and reduce the appliances efficiency. NOTE If you need replacement filters, please contact Rinnai. Rinnai Portable Room AC OIM... -
Page 10: Save A Service Call
WHEN TO CALL FOR SERVICE SYMPTOM CAUSE There is a burning smell and a Turn off the air conditioner, and contact Rinnai. strange sound coming from the unit. When operated if a circuit breaker (safety, ground) is thrown or a fuse is blown. Rinnai Portable Room AC OIM... -
Page 11: Installation
DUCT ASSEMBLY Front Back Place the Duct to Unit Adaptor (17) over the Exhaust Outlet (5), push it downwards to ensure it engages the Exhaust Outlet tabs. Screw one end of the Exhaust Duct (16) into the Duct to Unit Adaptor (17). On the other end of the Exhaust Duct (16) fix either the Window Exhaust Duct Adaptor (15) or the Wall Exhaust Adaptor (18). Rinnai Portable Room AC OIM... -
Page 12: Exhaust Ducting Options
It is recommended to place a length of foam draft sealing strip along the top and bottom edges of the kit or the inside the window opening to form a seal. NOTE Connect the Window Exhaust Duct Adaptor (15) to the Adjustable Slider Kit (14). Rinnai Portable Room AC OIM... -
Page 13: Semi-Permanent Wall Installation
The point to which the condensate is to be drained MUST BE lower than the drainage outlet point. When using a drain tray option, ensure that the capacity of the tray is greater than that of the NOTE condensate being produced. Rinnai Portable Room AC OIM... - Page 14 NOTES Rinnai Portable Room AC OIM...
- Page 15 NOTES Rinnai Portable Room AC OIM...
-
Page 16: Contacts
Braeside, Victoria 3195 AU45204 Rinnai has a Service and Spare Parts network with personnel who are fully trained and equipped to give the best service on your Rinnai appliance. If your appliance requires service, please call our National Help Line. Rinnai recommends that this appliance be serviced at least every 2 years.
