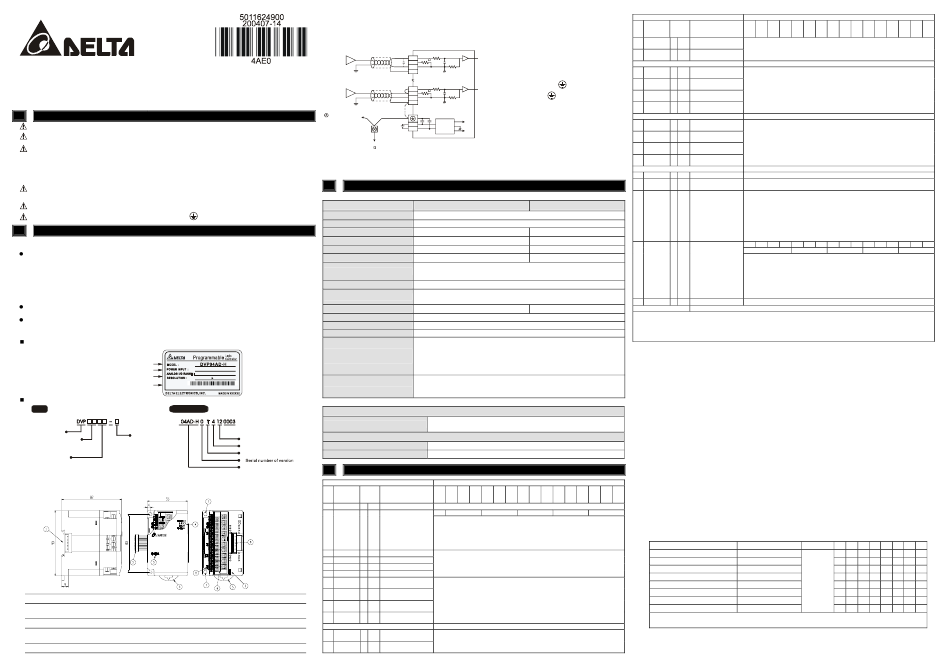

Delta DVP04AD-H Instruction Sheet

http://www.delta.com.tw/products/plc.asp
DVP-EH
Analog Input Module
Instruction Sheet
1 WARNING
Always read this manual thoroughly before using the DVP04AD-H.
The DC input power must be disconnected before any maintenance.
This is an OPEN-TYPE built-in DVP04AD-H, and the DVP04AD-H is certified to meet the safety
requirements of IEC 61131-2 (UL 508) when installed in the enclosure to avoid high temperature,
high humidity, exceessive vibration, corrosive gases, liquids, airbome dust or metallic particles.
Also, it is equipped with protective methods such as some special tool or key to open the
enclosure, so as to avoid the hazard to users and the damage to the DVP04AD-H.
Do not connect the AC power to any of the input/output terminals, as it might cause damage to
the DVP04AD-H. Make sure that all the wiring is well conducted prior to power on.
Do not touch the internal circuit for at least 1 minute after the power supply is disconnected.
Make sure that the DVP04AD-H is properly grounded
2 INTRODUCTION
2.1 Model Explanation and Peripherals
Thank you for choosing DELTA's PLC DVP Series. The analog input module receives external
4-point analog signal input (voltage or current) and transforms it into 14 bits digital signal. The
analog input module of DVP04AD-H series can read/write the data of analog input module by
using commands FROM / TO via DVP-PLC EH Series MPU program. There are 49 CR(Control
Register) in each module and there are 16 bits in each register.
DVP04AD-H analog input module can update software version by RS-485 communication.
Users can select input from voltage or current via wiring. Voltage input range is ±10V DC
(resolution is 1.25 mV). Current input range is ±20 mA (resolution is 5 µA).
Nameplate Explanation
Model Name
Input power supply spec.
Analog input/output module spec.
Barcode
VX.XX
Model Explanation
Model Serial Number
Product Series
Input+O utput point S: for SS series MPU
P: for EP series MPU
H: for EH ser ies MPU
Model type
AD: Analog input module XA: A/D , D/A Functions
DA: Analog output module RT: Resistor Thermocouple
PT: Platinum temperatur e sensors(PT-100)
HC: High speed count input module
TC: Thermocouple sensor s(Type J/K) PU: single axis positioning unit

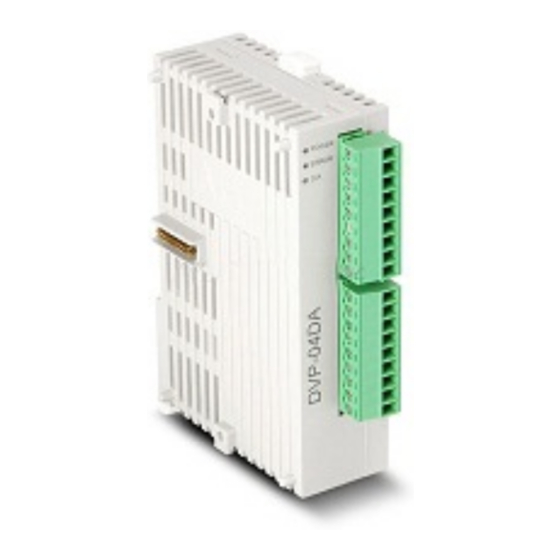

2.2 Product Profile and Outline
1. DIN rail location (35mm) 6. Terminals
2. Mounting hole to connect expansion 7. Expansion hole of the expansion unit
unit/expansion module mounting pins
3. Model name 8. Terminal layout
9. Mounting port to connect expansion
4. Indicator LED for power, error and run state
unit/expansion module
5. DIN rail clip
2.3 External wiring
voltage input
-10V~+10V
DVP04AD-H
shielding cable*1
current input
-20mA~+20mA
shielding cable*1
terminal of power module
Class 3 Grouning
(100 or less)
3
3.1 Function Specifications
Analog/ Digital (4A/D) module
Power supply voltage
, to avoid any electromagnetic noise.
Analog input channel
Analog input range
Digital conversion range
Resolution
Input impedance
Overall accuracy
Response time
Isolation Method
Absolute input range
Digital data format
Average function
Self diagnose function
Communication mode
(RS-485)
20.4VDC ~ 28.8VDC
-10V ~ +10V or -20mA ~+20mA
1.25mV or 5 A
Connect to DVP-PLC MPU
04AD-H0T 4120001 in series
3.2 Other Specification
Max. Rated Consuming Power
Production week
Environment Condition
Production year (2004)
Spec. of Prevent Static Electricity
Production place (Taoyuan)
Production Model 4
DVP04AD-H analog signal input module
RS-485
CR
Parameter Latched
No.
address
#0 H 4000 R
○
#1 H 4001 ○ R/W Input mode setting
#2 H 4002 ○ R/W CH1 average times
#3 H 4003 ○ R/W CH2 average times
#4 H 4004 ○ R/W CH3 average times
#5 H 4005 ○ R/W CH4 average times
#6 H 4006 R
╳
Unit: mm
#7 H 4007 R
╳
#8 H 4008 R
╳
#9 H 4009 ╳ R
#10 ~ #11
#12 H 400C R
╳
#13 H 400D R
╳
Note 1: Please isolate analog input and other
power wiring.
Note 2: If connect to current signal, please short
circuit between V+ and I+ terminals.
104.7K
CH1 CH1
V+
250
*5 I+
104.7K Note 3: If noise is too loud, please connect FG
COM
to grounding.
FG
AG
104.7K Note 4: Please connect
CH4 CH4
V+
250
*2
I+
104.7K
module and
COM
FG
input module to system earth point and
AG
*3
make system earth point be grounding
or connects to machine cover.
+15V
DC/DC
24+
*4 Note 5: If wave of input terminal of loaded is too
AG
converter
24-
System Grounding
-15V
big that noise interferes wiring, please
connect capacitance with 0.1~0.47µF
25V.
Warning: DO NOT wire to the No function
terminal ●.
STANDARD SPECIFICATIONS
Voltage input
24 VDC(20.4VDC~28.8VDC) ( –15%〜+20%)
4 channel / each module
±10V ±20 mA
±8000 ±4000
14 bits(1 =1.25 mV) 13 bits (1
LSB
200 KΩ or above 250Ω
±0.5% of full scale of 25℃(77℉)
±1% of full scale during 0~55℃ (32~131℉)
3 ms × channels
It has isolation between digital area and analog area. There is no
isolation among channels.
±15 V ±32 mA
2's complementary of 16-bit, 13 Significant Bits
Yes (CR#2~CR#5 can be set and setting range is K1~K4096)
Upper and lower bound detection / channels
Yes, there are ASCII/RTU modes, communication rate can be 4800
/9600 /19200 /38400 /57600 /115200. Communication format of ASCII
mode is 7Bit, even bit, 1 stop bit (7 E 1). Communication format of
RTU mode is 8Bit, even bit, 1 stop bit (8 E 1). When connecting to
PLC MPU in series, RS-485 can't be used.
The input point of the first analog extension unit it connects from the
near to the distant is from 0 to 7. The Max. is 8 modules and it won't
waste digital I/O point.
Power Specification
24 VDC(20.4VDC~28.8VDC) ( –15%~+10%), 2W, supply from
external power
Environment Condition
It is the same with DVP-PLC MPU.
All places between terminal and grounding
CR (Control Register)
Explanation
Register name b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5
Model type System used. DVP04AD-H model code =H 400
reserved CH4 CH3
Input mode setting: factory setting is H0000.
Mode 0: input voltage mode (-10V~+10V).
Mode 1: input voltage mode (-6V~+10V).
Mode 2: input current mode (-12mA~+20mA)
Mode 3: input current mode (-20mA~+20mA)
Mode 4: none use.
Average times setting of channel CH1~CH4. Setting range is K1~K4096 and factory
setting is K10.
average value of CH1
input signal
average value of CH2
input signal
Display average value of CH1~CH4 input signal
average value of CH3
input signal
average value of CH4
input signal
Reserved
present value of CH1
input signal
Display present value of CH1~CH2 input signal
present value of CH2
input signal
DVP04AD-H analog signal input module
RS-485
CR
Parameter Latched Register name
No.
address
#14 H 400E R present value of CH3
╳
input signal
#15 H 400F R present value of CH4
╳
input signal
#16 ~ #17
#18 H 4012 ○ R/W To adjust OFFSET
value of CH1
#19 H 4013 ○ R/W To adjust OFFSET
terminal of power
value of CH2
#20 H 4014 ○ R/W To adjust OFFSET
terminal of analog
value of CH3
#21 H 4015 ○ R/W To adjust OFFSET
value of CH4
#22 ~ #23
#24 H 4018 ○ R/W To adjust GAIN value
of CH1
#25 H 4019 ○ R/W To adjust GAIN value
of CH2
#26 H 401A ○ R/W To adjust GAIN value
of CH3
#27 H 401B ○ R/W To adjust GAIN value
of CH4
#28 ~ #29
#30 H 401E ╳ R Error status
#31 H 401F ○ R/W Communication
address setting
#32 H 4020 ○ R/W Communication baud
rate setting
Current input
#33 H 4021 ○ R/W Reset to factory
=5 µA)
setting and set
LSB
characteristics
adjustable priority
#34 H 4022 R Software version
○
#35~#48 System used
○ means latched.
╳ means not latched.
R means can read data by using FROM command or RS-485.
W means can write data by using TO command or RS-485.
LSB (Least Significant Bit): 1. Voltage input: 1
Explanation:
1. CR#0: The content of CR#0 is model type, user can read the data from program to know if there
is extension module.
2. CR#1: CR#1 is used to set 4 inner channels working mode of analog input module. Every
channel has four modes to set and can be set individually. For example: if setting CH1 to mode 0
(b2~b0=000), CH2 to mode 1(b5~b3=001), CH3: mode2 (b8~b6=010), CH4: mode
3(b11~b9=011). It needs to set CR#1 to H0688 and the upper bit (b12~b15) will reserved. The
factory setting of CR#1 is H0000.
3. CR#2 ~ CR#5: it is used to set average times of CH1~CH4. Setting range is K1~K4096 and
factory setting is K10.
4. CR#6 to CR#9 are the average value that calculates according to the value that is set in
CR#2~CR#5 (average time of CH1~CH4 input signal). For example, if CR#2 (the average times
of CH1) is 10, it will calculate the average of CH1 input signal every 10 times.
5. CR#10, CR#11, CR#16, CR#17, CR#22, CR#23, CR#28, CR#29 reserved.
6. CR#12 ~ CR#15: display present value of CH1~CH4 input signal.
7. CR #18~ CR #21: the content is the value of adjusting OFFSET value of CH1~CH4 if analog
input voltage or current is 0 after it transfers from analog to digital. Voltage setting range:
-5V~+5V(-4000 ~+4000 ). Current setting range: -20mA~+20mA (-4000
LSB LSB
8. CR #24~ CR #27: means analog input voltage or current when conversion value from analog
signal to digital is 4000. Voltage setting range: -4V~+20V(-3200
b4 b3 b2 b1 b0
range: -16mA~+52mA(-3200
LSB
VALUE = +800 ~+12000 (voltage) or +800
LSB LSB
CH2 CH1
range, the resolution of the input signal will be thin and the variation of value will be larger. When
this value exceeds this range, the resolution of input signal will be thick and the variation of value
will be smaller.
9. CR#30 is fault code. Please refer to the following chart.
Fault description
Power source abnormal
Analog input value error
Setting mode error
Offset/Gain error
Hardware malfunction
Digital range error
Average times setting error
Command error
Note: Each fault code will have corresponding bit (b0~b7). Two or more faults may happen at
the same time. 0 means normal and 1 means having fault.
10. CR#31: it is used to set RS-485 communication address. Setting range is 01~255 and factory
setting is K1.
Explanation
b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1
Display present value of CH3~CH4 input signal
Reserved
Offset setting of CH1~CH4. Factory setting is K0 and unit is LSB.
Voltage input: setting range is K-4000 ~K4000
Current input: setting range is K-4000 ~K4000
Reserved
GAIN setting of CH1~CH4. Factory setting is K4000 and unit is LSB.
Voltage input: setting range is K-3200 ~K16000.
Current input: setting range is K-3200 ~K10400.
Reserved
It is the data register to save all error status. Please refer to fault code chart for detail.
Setting RS-485 communication address. Setting range is 01~255 and factory setting
is K1
It is used to set communication baud rate (4800, 9600, 19200, 38400, 57600,
115200bps). Communication format: ASCII mode is 7Bit, even bit, 1 stop bit (7 E 1).
Communication format of RTU mode is 8Bit, even bit, 1 stop bit (8 E 1).
b0: 4800 bps (bit/sec). b1: 9600 bps (bit/sec). (factory setting)
b2: 19200 bps (bit/sec). b3: 38400 bps (bit/sec).
b4: 57600 bps (bit/sec). b5: 115200 bps (bit/sec).
b6-b13: reserved.
b14: exchange low and high byte of CRC check code (only for RTU mode)
b15: ASCII / RTU mode selection
b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1
Reserved CH4 CH3 CH2 CH1
Factory setting is H0000.
Give CH1 setting for example:
1. When b0=0, user can set OFFSET and GAIN value of CH1 (CR#18, CR#24).
When b0=1, inhibit user to adjust OFFSET and GAIN value of CH1 (CR#18,
CR#24).
2. b1 means if characteristic register is latched. b1=0 (factory setting, latched), b1=1
(not latched).
3. When b2 is set to 1, all settings will reset to factory setting.
It is hexadecimal to display software version. For example: H 010A means 1.0A.
=10V/8000=2.5mV. 2. Current input: 1 =20mA/4000=5µA.
LSB LSB
~+4000 ).
LSB LSB
~+16000 ). Current setting
LSB LSB
~+10400 ). But it needs to notice that GAIN VALUE – OFFSET
LSB
~+6400 (current). When this value under this
LSB LSB
Content b15~b8 b7 b6 b5 b4 b3 b2 b1 b0
K1(H1) 0 0 0 0 0 0 0 1
K2(H2) 0 0 0 0 0 0 1 0
K4(H4) 0 0 0 0 0 1 0 0
K8(H8) 0 0 0 0 1 0 0 0
Reserved
K16(H10) 0 0 0 1 0 0 0 0
K32(H20) 0 0 1 0 0 0 0 0
K64(H40) 0 1 0 0 0 0 0 0
K128(H80) 1 0 0 0 0 0 0 0
b0
b0
