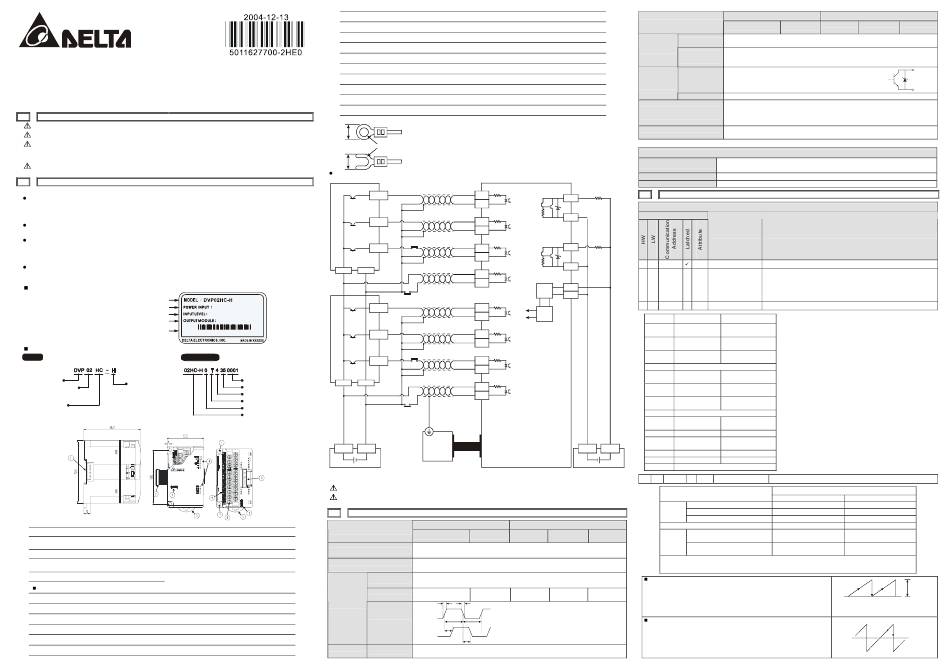

Delta DVP-02HC Instruction Sheet

http://www.delta.com.tw/products/plc.asp
High-speed Counter
DVP-02HC
1 WARNING
Please carefully read this instruction thoroughly prior to use the DVP-02HC.
Make sure that power is OFF before wiring.
This is an OPEN TYPE PLC. The PLC should be kept in an enclosure away from airborne dust, humidity,
electric shock risk and vibration. Also, it is equipped with protective methods such as some special tools or
keys to open the enclosure, in order to prevent hazard to users or damage the PLC.
Do NOT connect the AC main circuit power supply to any of the input/output terminals, or it may damage the
PLC. Check all the wiring prior to power up.
2 INTRODUCTION
2.1 Model Name Explanation and Peripherals
Thank you for choosing DELTA's PLC DVP series. DVP-02HC high-speed counter input module could accept 2
sets of 200KHz pulse from external counter. It uses instruction FROM/TO to read/write the data in module via EH
MPU. There are 34 Controlled Registers (CR, each register is 16-bit) in each module. 32 bits data consists of
two continuous CRs and allow executing itself after setting CR.
The different counter mode, such as single-phase mode, two phases mode, 16-bit mode or 32-bit mode, can be
designated by CR.
Input signal source could be 1-phase or 2-phase encoder and voltage level could be 24V. Besides, it also
provides two terminals, PRESET and DISABLE. When terminal "PRE" is on, current value of counter will be
changed to be factory setting. When terminal "DIS" is on, "count" operation is disabled. There are two modes,
Sink mode and Source mode, for input wiring.
There are two outputs, YH0(CH0) and YH1(CH1), in hardware input module of DVP-02HC. When counter value
is equal to the setting, the corresponding output will activate. The transistors of outputs are independent and
isolated.
Nameplate Explanation
Model Name
Input power supply spec.
Input spec.
Output module spec.
Barcode, serial number and version
VX.XX
Model and Serial Number Explanation
Model Serial Number
序號
Product Series
for EH series MPU
Channel number
Model type
HC: High-speed counter module
2.2 Product Profile and Outline
Unit: mm
1. DIN rail track (35mm) 6. Terminals
2. Mounting hole for wire to connect extension
7. Mounting hole
module/extension unit
3. Model name 8. Terminal layout
9. Mounting port to connect extension
4. Indicator status for POWER, ERROR and RUN
unit/extension module
5. DIN rail clip
LED Display
1. Power : Power LED. When external +24V power is applied, it will be ON.
2. L.V. : Low voltage LED. When external power supply is lower than 19V, it will be ON.
3. UP_0 : Count up LED of CH0
4. DN_0 : Count down LED of CH0
5. A0 : When input A of CH0 is ON, it will light.
6. B0 : When input B of CH0 is ON, it will light.
7. PRE0 : PRESET LED of CH0. When external terminal PRE0 is ON, it will light.
8. DIS0 : DISABLE LED of CH0. When external terminal DIS0 is ON, it will light.
9. YH0 : When output YH0 of CH0 is ON, it will light.
10. UP_1 : Count up LED of CH1
11. DN_1 : Count down LED of CH1
12. A1 : When input A of CH1 is ON, it will light.
13. B1 : When input B of CH1 is ON, it will light.
Module
14. PRE1 : PRESET LED of CH1. When external terminal PRE1 is ON, it will light.
Instruction Sheet
15. DIS1 : DISABLE LED of CH1. When external terminal DIS1 is ON, it will light.
16. YH1 : When output YH1 of CH1 is ON, it will light.
2.3 Wiring
Below 6.2
To suit M3.5 screw terminals
Below 6.2
External Wiring
PNP output encoder
A phase
OUT
B phase
OUT
Z phase
OUT
COME
+24V
A phase
24VDC 3W MAX. OUT
21.6VDC ~ 26.4VDC 1~200KHz
0.5 A 5VDC~30VDC 1~10KHz
B phase
02HC- H0T4350001 OUT
Z phase
OUT
Production series
+24V COME
Production week
Production year (2004)
Production place (Taoyuan)
Serial number of version
Production Model
+24V 0V
External power
DC 24V
Make sure the positive/negative pole of DVP-02HC input terminal wiring is correct when using NPN encoder.
Start-up current for DVP-02HC is I
3
Item
Power Supply
Max. Number of Connecting
Units
Voltage Level
Max. Count
Frequency
Input
Signal
Waveform
Count
Count Mode
Specification
1. Please use O-type or Y-type terminals for I/O wiring terminals. The specification for
the terminals is as shown on the left. Tighten PLC terminal screws to a torque of 5
to 8 kg-cm (4.3~6.9 in-lbs).
2. I/O signal wires or power supply should not run through the same multi-wire cable
or conduit.
3. Use copper conductor only, 60℃.
02HC high-speed counter module
Shielded wire
4.7K
ψA0
YH0+
OA
S/S0
Shielded wire
YH0-
4.7K
ψB0
OB
S/S0
Shielded wire
4.7K
YH1+
PRE0
PRESET
S/S0
YH1-
Shielded wire
4.7K
DISABLE
DIS0
S/S0
+24V
START
Filter
0V
Shielded wire
4.7K
ψA1
+24V
OA DC/DC
S/S1
+5V
Shielded wire
4.7K
ψB1
OB
S/S1
Shielded wire
4.7K
PRE1
PRESET
S/S1
Shielded wire
DISABLE 4.7K
DIS1
S/S1
START
EH MPU
connection
wire
External power
DC 12V to 24V
=0.8A and general working current is I =0.2A(input voltage is +24V).
PEAK MAX
SPECIFICATION
1-phase Input 2-phase (A, B) Input
Normal Double
1 Input 2 Inputs
Frequency Frequency
DC24V(-15% ~ +20%), Current consumption 140±30mA
Power is supplied from PLC or external power supply.
8 units; (All I/O points are not occupied. There can be 8 special extension units at
most connected to EH series.)
Terminals ΦA0, ΦB0, PRE0, DIS0, ΦA1, ΦB1, PRE1 and DIS1: DC24V ±10 %
Note: ΦA: A Phase, ΦB: B Phase, PRE: Preset and DIS: Disable
200KHz 200KHz 200KHz 100KHz
t
t t1: rise/fall time≦0.8us
1
1
t2: On/Off pulse width≧2.5us
t t3: phase difference between A phase and B
2
t phase ≧1us
2
t
3
PRESET input: input pulse width≧50us
t
DISABLE input: input pulse width≧50us
3
There is three count modes: count up/down (2-phase input for AB phase), 1-phase
2 inputs and 1-phase 1 input.
1-phase Input
Item
1 Input
32-bit mode: -2,147,483648~+2,147,483,647
Range
16-bit mode: 0~65,536 (upper limit can be set by CH0_CR#4,5 and CH1_CR#6,7)
Two comparison values are available. CH0 corresponds to YH0 and CH1
Comparison
corresponds to YH1. When count value is equal to settings, the output will be ON. It
Method
adopts hardware circuit comparison and output settings with real-time handle.
YH0+: output YH0, transistor: Collector
YH0-: output YH0, transistor: Emitter
Output Output Form
YH1+: output YH1, transistor: Collector
Signal
YH1-: output YH1, transistor: Emitter
Output 5V TO 30VDC, 0.5A
MODBUS ASCII/RTU Mode. Communication baud rate of 4800 / 9600 / 19200 /
Communication Mode 38400 / 57600 / 115200. For ASCII mode, data format is 7Bits, even, 1 stop bit (7 E
(RS-485) 1). For RTU mode, data format is 8Bits, even, 1 stop bit (8 E 1). The RS-485 is
disabled when the DVP-02HC is connected in series with MPU.
Connect to DVP-PLC MPU in The module number it connects to MPU from closest to the furthest is from 0 to 7. 8
Series modules is the max and it won't occupy any digital I/O.
3.2 Other Specification
Environmental specifications
1. Operation: 0℃~55℃(Temperature), 50~95%(Humidity), pollution degree 2
Operation/Storage
2. Storage: -25℃~70℃(Temperature), 5~95% (Humidity)
Vibration/Shock immunity Standard: IEC1131-2, IEC 68-2-6 (TEST Fc) / IEC1131-2 & IEC 68-2-27 (TEST Ea)
Antistatic spec. All places between terminals and ground comply with the spec.
4 CONTROLLED REGISTER (CR)
DVP-02HC High-speed Counter Module
CR Number
Content
#0 H 415E R Model type
Count up/down
#1 H 415F ╳ R/W
mode setting
#2 H 4160 ╳ R/W Instruction
CR#2 '0'(Off) '1'(On)
Count is disable Count is enable for
b0
for CH0 CH0
Preset is disable Preset is enable for
b1
for CH0 CH0
Output is disable Output is enable for
b2
for YH0 YH0
b3 Reserved
Count is disable Count is enable for
b4
for CH1 CH1
Preset is disable Preset is enable for
b5
for CH1 CH1
Output is disable Output is enable for
b6
for YH1 YH1
b7 Reserved
YH0 output is
b8 Not used
cleared
b9 Not used YH0 output setting
YH1 output is
b10 Not used
cleared
0V +24V
b11 Not used YH1 output setting
b12 Not used Clear error flag
b13-b15 Reserved
#3 H 4161 ╳ R/W Count mode setting
Count mode
Normal frequency
2-phase
Double frequency
2 inputs
Four times frequency
1-phase 2 inputs
Four Times Count Up/Down is controlled by
1-phase Hardware (Note 1)
Frequency
1 input Count Up/Down is controlled by
software (Note 2)
Note1: count up/down is controlled by external input.
Note2: count up/down is controlled by internal control register(CR#1).
16-bit mode
When it is 16-bit mode, the count values are all positive value and its
range is 0~65,536. When overflow event is occurred, count value will be
50KHz
changed from upper limit to 0 or from 0 to upper limit. The upper limit of
CH0 is set by CR#4 and CR #5. The upper limit of CH1 is set by CR#7 and
CR #6.
32-bit mode
When it is 32-bit mode, the count range is -2,147,483,648 -
2,147,483,647. When overflow event is occurred, count value will be
changed from upper limit to lower limit or from lower limit to upper limit.
And upper limit is +2,147,483,647 and lower limit is -2,147,483,648.
2-phase (A, B) Input
Normal Double Four Times
2 Inputs
Frequency Frequency Frequency
YH0+
YH1+
YH0-
YH1-
Setting Range
System used, read only, DVP-02HC model code=H'0220
1 phase 1 input (Software) count up/down setting, count up:0, count
down: 1.
Setting CH0: when b0=0, count up. When b0=1, count down.
Setting CH1: when b1=0, count up. When b1=1, count down.
Factory setting is K0
Instruction (Factory setting is K0)
1. When b0 is set to 1, disable terminal of CH0 is off. Counter
is able to input pulse.
2. When b1 is set to 0, Preset terminal of CH0 is on. Preset
function is disabled.
3. When b2 is set to 1, YH0 (hardware comparison output of
CH0) output is enabled.
4. When b4 is set to 1, disable terminal of CH1 is off. Counter
is able to input pulse.
5. When b5 is set to 0, Preset terminal of CH1 is on. Preset
function is disabled.
6. When b6 is set to 1, YH1 (hardware comparison output of
CH1) output is enabled.
7. When b8 is set to 1, YH0 output will be set to off.
8. When b9 is set to 1, YH0 output will be set to on.
9. When b10 is set to 1, YH1 output will be set to off.
10. When b11 is set to 1, YH1 output will be set to on.
11. When b12 is set to 1, all error flags (CR#31) will be
cleared.
Setting notes:
A. After setting CR#2, b8~b12 will be cleared to 0
automatically.
B. It is necessary to disable count (b0 and b4 should be
set to 0 before setting CR#3.
Count mode K0~K11, factory setting is K0
CH0_CR#3(b3-b0) CH1_CR#3(b7-b4) settings
32 bits 16 bits
K0 K1
K2 K3
K4 K5
K6 K7
K8 K9
K10 K11
0
Count length
CH0_CR#5,4
CH1_CR#7,6
upper limit
+2,147,483,647
-2,147,483,648
lower limit
