15.3

Trusted Platform Module (TPM)

There are different TPM kits available. The procedures of installing, removing
and replacing are identic.

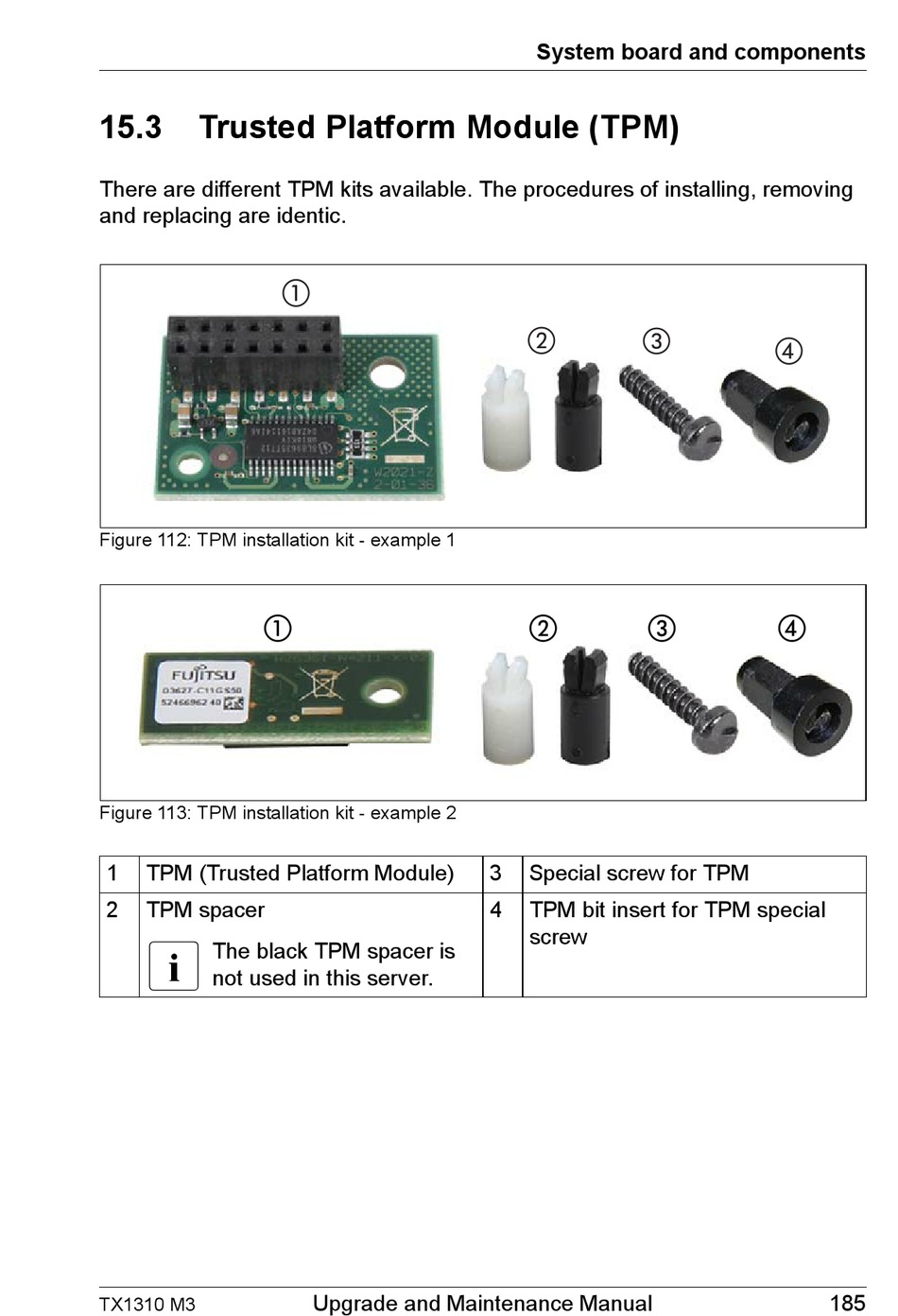

Figure 112: TPM installation kit - example 1
Figure 113: TPM installation kit - example 2
1 TPM (Trusted Platform Module)
2 TPM spacer
I
The black TPM spacer is
not used in this server.
TX1310 M3
Upgrade and Maintenance Manual
System board and components
3 Special screw for TPM
4 TPM bit insert for TPM special
screw
