F. COLD WATER TANK MODULE (Located at the top right of the brewer)
See REMOVAL of OUTER PANELS (page 36). After completion of panel removal, the technician
must attach an ESD wrist strap to themselves and the metal base plate of the brewer.

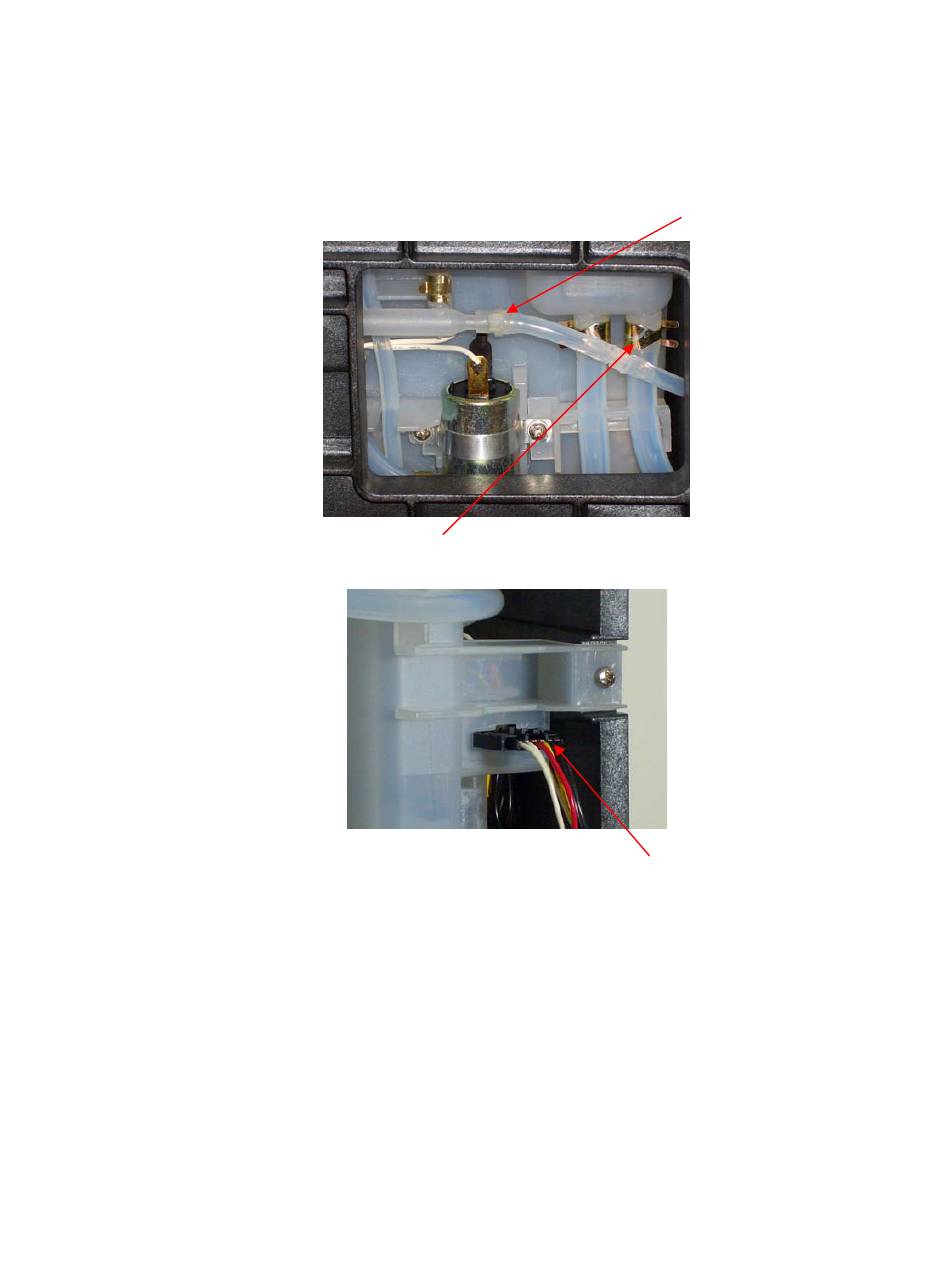

Looking at the right side of the brewer, take note of the cutout in the chassis near the top. You will see
one small hose and two larger ones.
1. Disconnect the small hose from the filter tee, just above the vent valve.
2. Disconnect the larger hose on the right.
3. Looking from the back of the brewer disconnect the multi colored wire harness that connects to
the right side of the Cold Water Tank.
