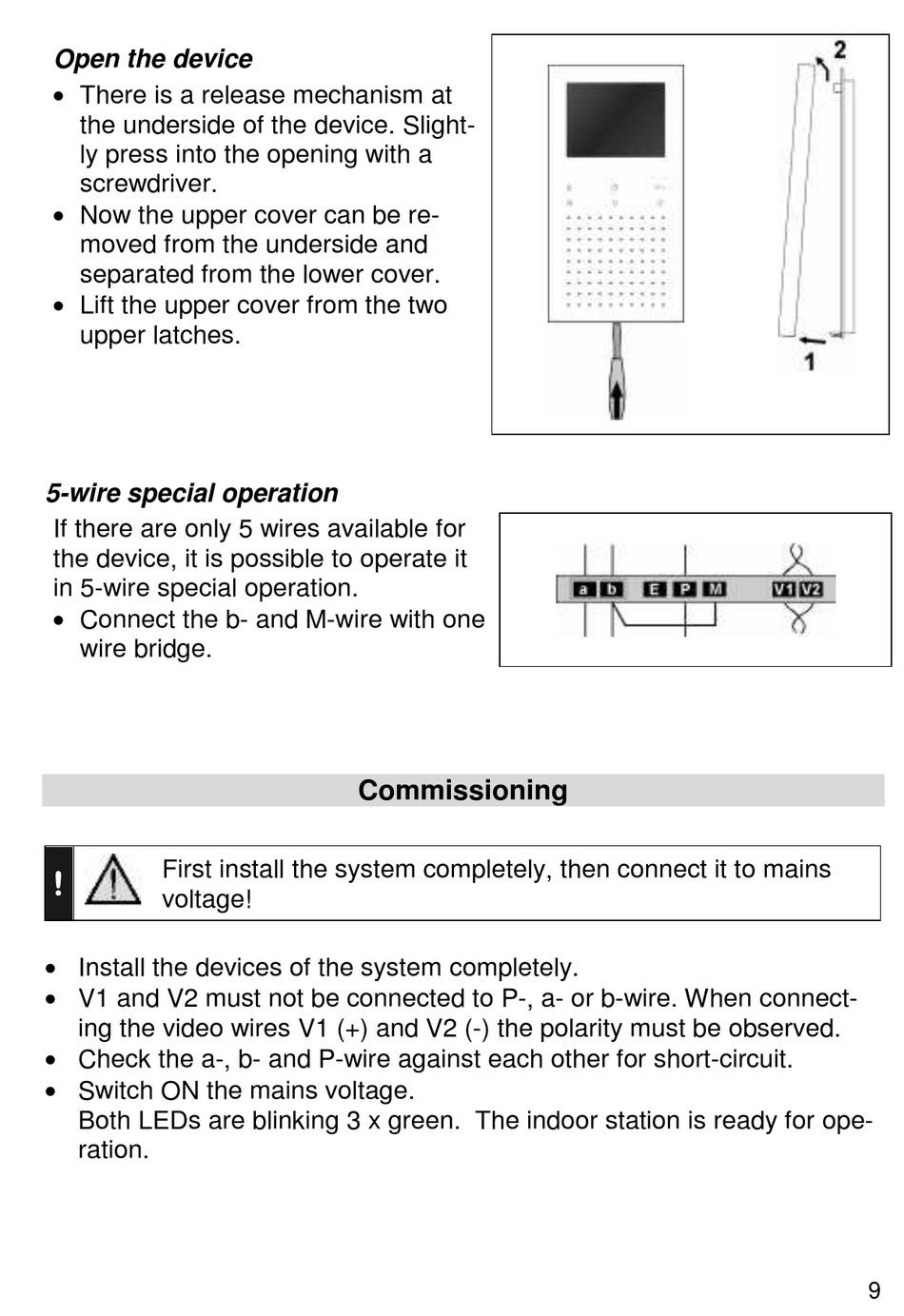

Open the device

 There is a release mechanism at

the underside of the device. Slight-

ly press into the opening with a

screwdriver.

 Now the upper cover can be re-

moved from the underside and

separated from the lower cover.

 Lift the upper cover from the two

upper latches.

If there are only 5 wires available for

the device, it is possible to operate it

in 5-wire special operation.

 Connect the b- and M-wire with one

wire bridge.

First install the system completely, then connect it to mains

voltage!

 Install the devices of the system completely.

 V1 and V2 must not be connected to P-, a- or b-wire. When connect-

ing the video wires V1 (+) and V2 (-) the polarity must be observed.

 Check the a-, b- and P-wire against each other for short-circuit.

 Switch ON the mains voltage.

Both LEDs are blinking 3 x green. The indoor station is ready for ope-

ration.
