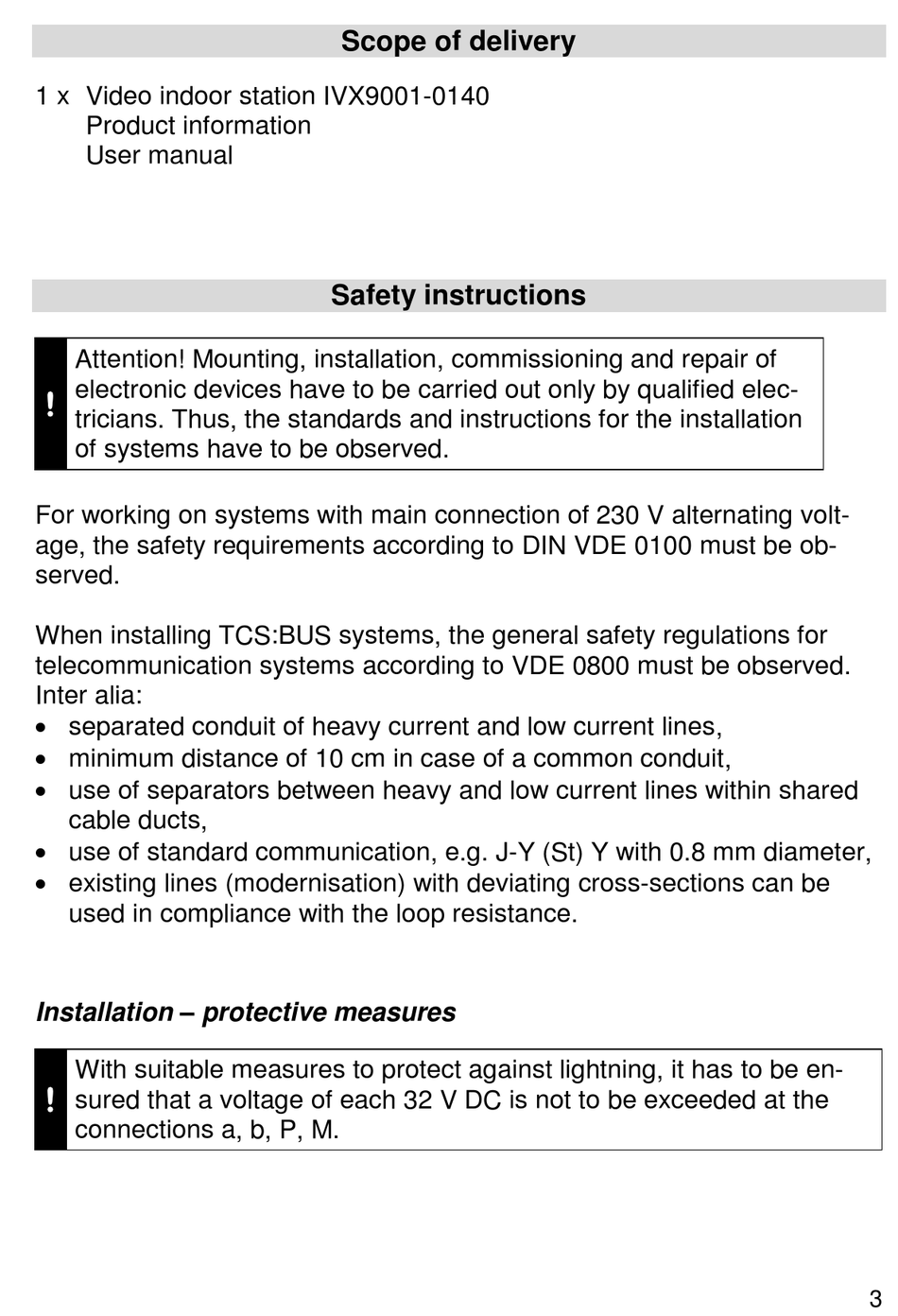

1 x Video indoor station IVX9001-0140
Product information
User manual
Attention! Mounting, installation, commissioning and repair of
electronic devices have to be carried out only by qualified elec-
!
tricians. Thus, the standards and instructions for the installation
of systems have to be observed.
For working on systems with main connection of 230 V alternating volt-
age, the safety requirements according to DIN VDE 0100 must be ob-
served.
When installing TCS:BUS systems, the general safety regulations for
telecommunication systems according to VDE 0800 must be observed.
Inter alia:
separated conduit of heavy current and low current lines,
minimum distance of 10 cm in case of a common conduit,
use of separators between heavy and low current lines within shared
cable ducts,
use of standard communication, e.g. J-Y (St) Y with 0.8 mm diameter,
existing lines (modernisation) with deviating cross-sections can be
used in compliance with the loop resistance.
Installation – protective measures
With suitable measures to protect against lightning, it has to be en-
!
sured that a voltage of each 32 V DC is not to be exceeded at the
connections a, b, P, M.
Scope of delivery
Safety instructions
3
