Placement In Enclosure - Napoleon DYNAMIC HEAT CONTROL PLUS Series Installation And Operation Manual

installation planning
EN
1.6

placement in enclosure

WARNING
!
• Do NOT cover or place any items in the Dynamic Heat Control™ air outlet. Failure to comply with these
instructions could create a fire hazard.
• Ensure air flow within the air passage is not restricted in any way with the exception of an approved appliance
vent system or the DHC™ Plus system.
• The DHC™ Plus system draws air from the appliance enclosure and should be mounted in the
enclosure above the appliance. NEVER make a direct connection to the appliance itself.
Recommended DHC™ Plus collar plate assembly installation zone - within the top 12" (30.5cm) of the
appliance enclosure.
No materials of any type permitted in this area with the exception of an approved appliance vent system or
the DHC™ Plus system.
*
Dynamic Heat
Control™ air
outlet opening
Stud
Stand-Off
Upper
Frame
Deflector
important:
** DHC™ Plus collar plate assembly must be installed above the appliance vent shield (not illustrated) (minimum
33" (83cm) from the top of the appliance).
*** Restrictions also apply to see-thru when one or more recess is used. See your appliance manual for details.
Air flow in the hatched areas must not be restricted in any way with the exception of an approved appliance vent
system or the DHC™ Plus system. No other items are allowed in this area.
See your appliance manual for more information about clearance to combusible materials. No combustible materi-
als allowed in the hatched areas or the space between studs (i.e. no wiring, conduits, electrical bores, combus-
tible framing members, etc.).
6
W415-1789 / C / 01.29.19

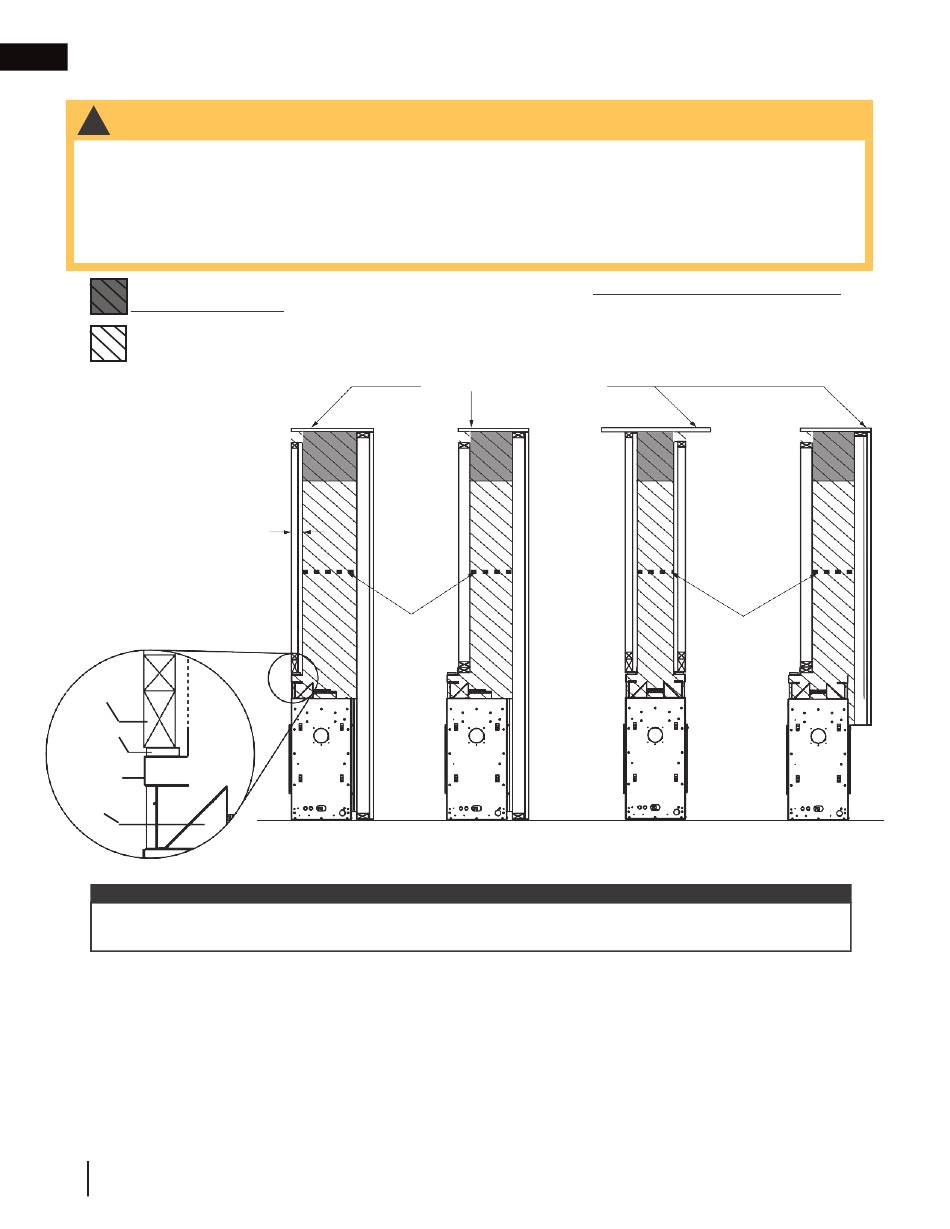

enclosure top and/or ceiling
* *
3"
Minimum
33" (83cm)
above
appliance
**
Single-Sided
Single-Sided
(Recessed)***
*
*
Minimum
33" (83cm)
above
appliance
**
Single-Sided
See-thru
(Exterior Recess)
