Ducting Installation - Napoleon DYNAMIC HEAT CONTROL PLUS Series Installation And Operation Manual

remote inline installation
EN
8.3

ducting installation

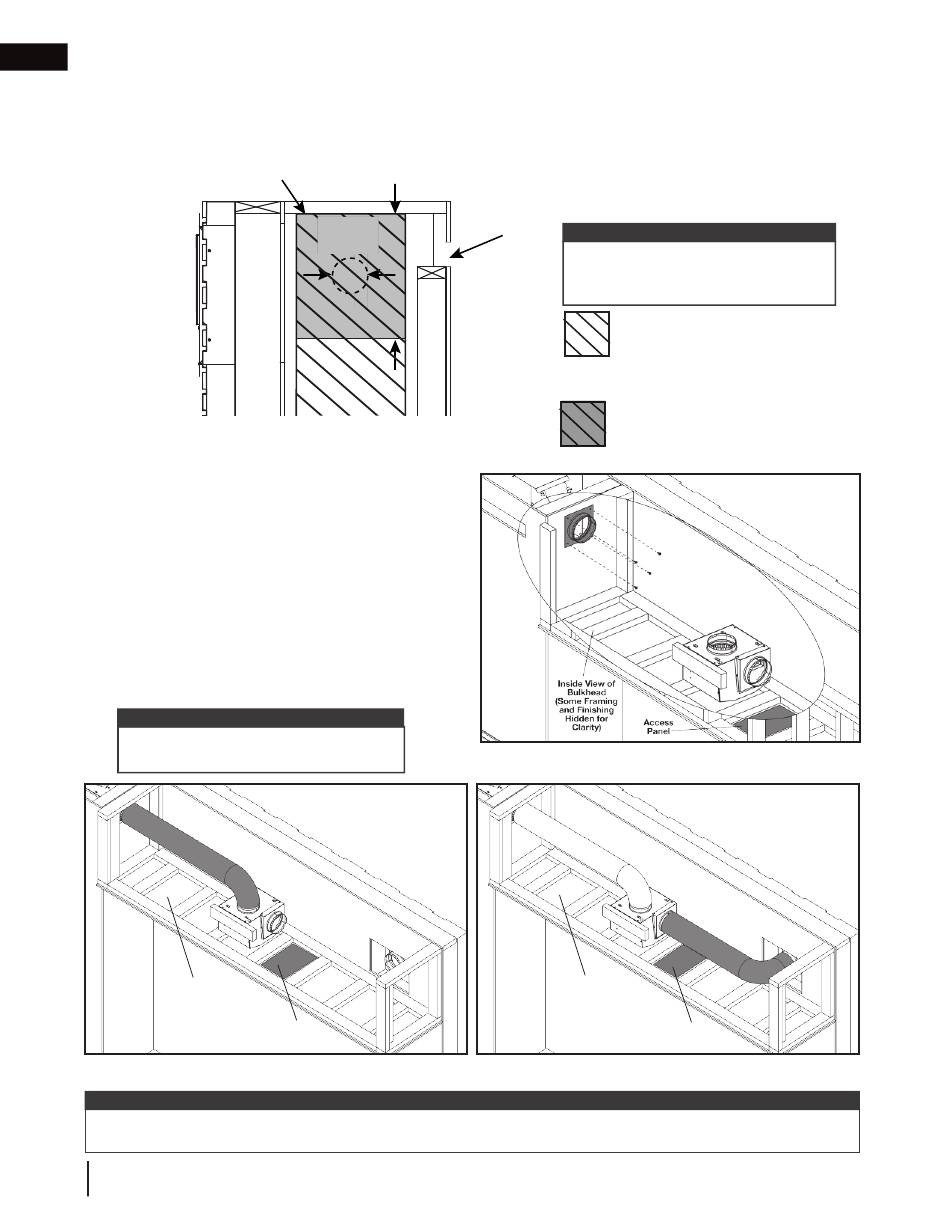

1. Determine the location for the 6" (152mm) collar plate assembly on the appliance enclosure, and then cut a 6"
(152mm) diameter hole (Fig. 1).
Top of Enclosure
Exterior
2. Secure the 6" (152mm) collar plate assembly over
the hole with the appropriate fasteners (not supplied)
(Fig. 2).
3. Install 6" steel ducting (not supplied) from the appli-
ance enclosure to the blower housing assembly inlet
(Fig. 3).
4. Install 6" rigid steel venting (not supplied) from the
blower housing assembly outlet to the hot air ex-
haust assembly (Fig. 4).
note:
Ensure to maintain 1" (25mm) clearance to
combustibles.
Inside View of
Bulkhead (Some
Framing and
Finishing Hidden
for Clarity)
note:
When constructing a bulkhead, particularly one that passes through multiple rooms or spaces, always ensure that
you adhere to all local building codes and requirements.
24
W415-1789 / C / 01.29.19
12"
(30.5cm)
Ø 6"
(152mm)
Left Side Profile View
Access
Panel
Fig. 3
Air Outlet
Opening
note:
Ensure to create the Ø 6" (152mm)
hole within the top 12" (30.5cm) of the
enclosure (Fig. 1).
Interior
No materials of any type
permitted in this area with
the exception of an approved
appliance vent system or the
DHC™ Plus system.
Fig. 1
Recommended DHC™ Plus
collar plate assembly installation
zone (12" [30.5cm]).
Inside View of
Bulkhead (Some
Framing and
Finishing Hidden
for Clarity)
Fig. 2
Access
Panel
Fig. 4
