wiring to wall switch only

1. Turn off the power by locating your housebreaker, and shutting the power off to the room you will be working
in.
2. Determine the location for the wall switch (not supplied). Install an electrical box (not supplied) at the location.
3. Ensure the wires for the wall are properly wired to the switch box and are ready.
4. Connect the hot wire from the on/off switch to the wall switch.
5. Connect the neutral wires to each other from the blower to the power source neutral (N).
6. Connect the all ground from the power source to the blower.
note:
Check the blower specifications (see "blower specifications" section) before choosing a suitable wire size.

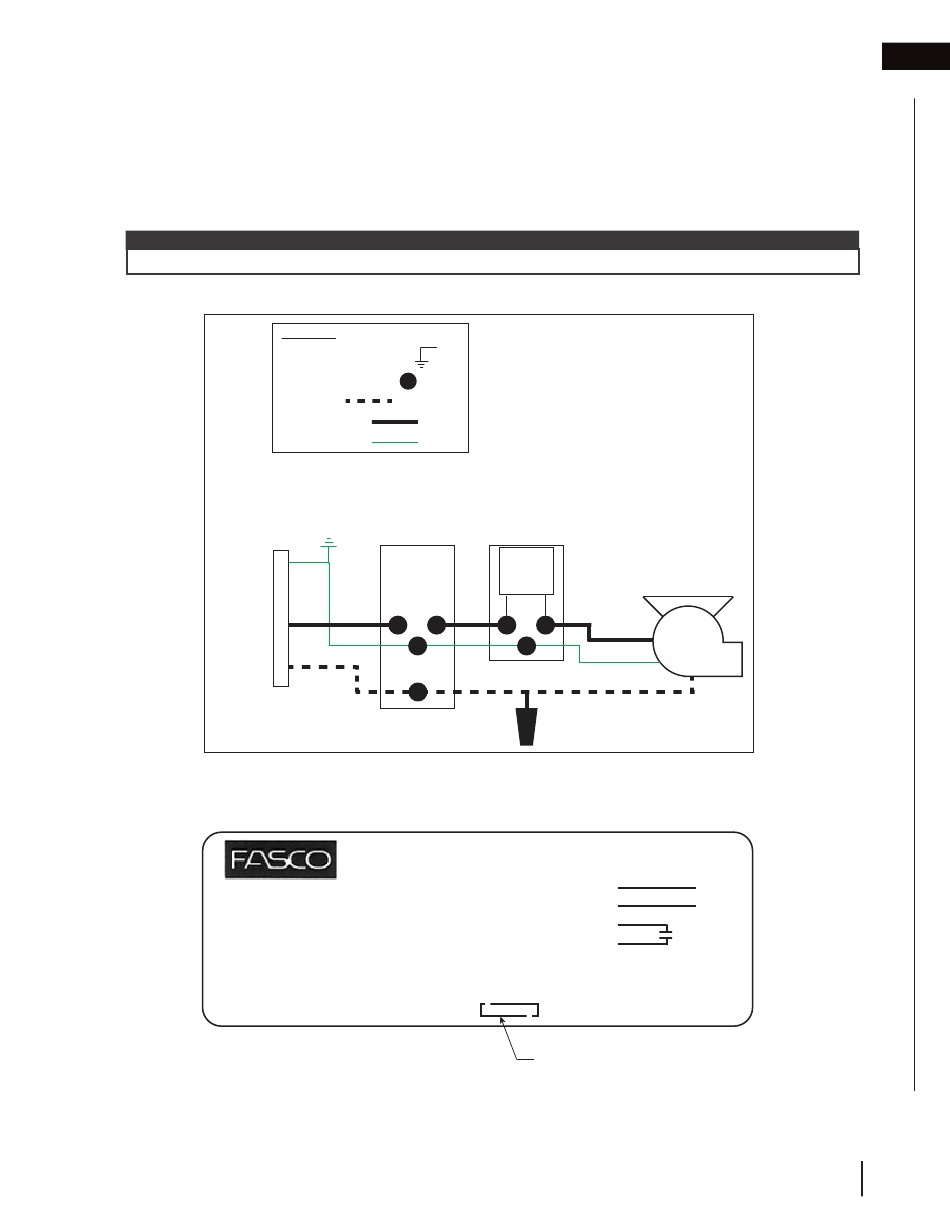

9.3.1 wiring diagram

120VAC
14/2
Power
Source
9.4

blower specifications

Assembled in Mexico
115 V
0.9A/1.1A
Cust P/N
Thermally Protected
Legend:
Ground Connection =
Field Connection =
Neutral =
L1 (120VAC) =
Ground Wire =
Wall
G
Switch
L
N
00464504
No. 70903602
TYPE 90B1
50/50Hz Class B
1600 RPM
Sealed Ball Brg
electrical information
On/Off Switch
in Blower
Housing
On/Off
Switch
00469142
Connection Diagram
Wht
Blk
Blu
Blu
AO
4 MFD/370 VAC
61299553
Blower
Line
Line
W415-1789 / C / 01.29.19
