sound considerations

The DHC™ Plus system uses a high performance fan to move unwanted heat outside. Similar to a bathroom fan
or stove range hood, the use of a fan to move air results in sound.
note:
Consider blower kit location carefully as the air flow sound from the blower is more apparent the closer it is to the
appliance and customer. This is particularly important if using the fan to transfer heat inside a home.
1.5 venting & ducting
Depending on the installation type, DHC™ Plus requires the use of ducting that is not supplied:
Exterior Installation
• N/A
Remote Exterior Installation
• 6" steel rigid venting between appliance enclosure and DHC™ Plus blower kit
Remote Inline Installation
• 6" steel ducting between appliance enclosure and DHC™ Plus blower kit
• 6" steel rigid venting between DHC™ Plus blower kit and hot air exhaust assembly
note:
Always check local codes before installing the DHC™ Plus system.
1 2
Description
1 Hardware kit
2 Decorative cover
1
Hex
#9-14 Thread, RH
0.348"
29/64" 1/8" 1-1/2"
#10 Thread, RH
Quadrex Drive
Description
Hardware kit
Wall flashing
installation planning
3 4

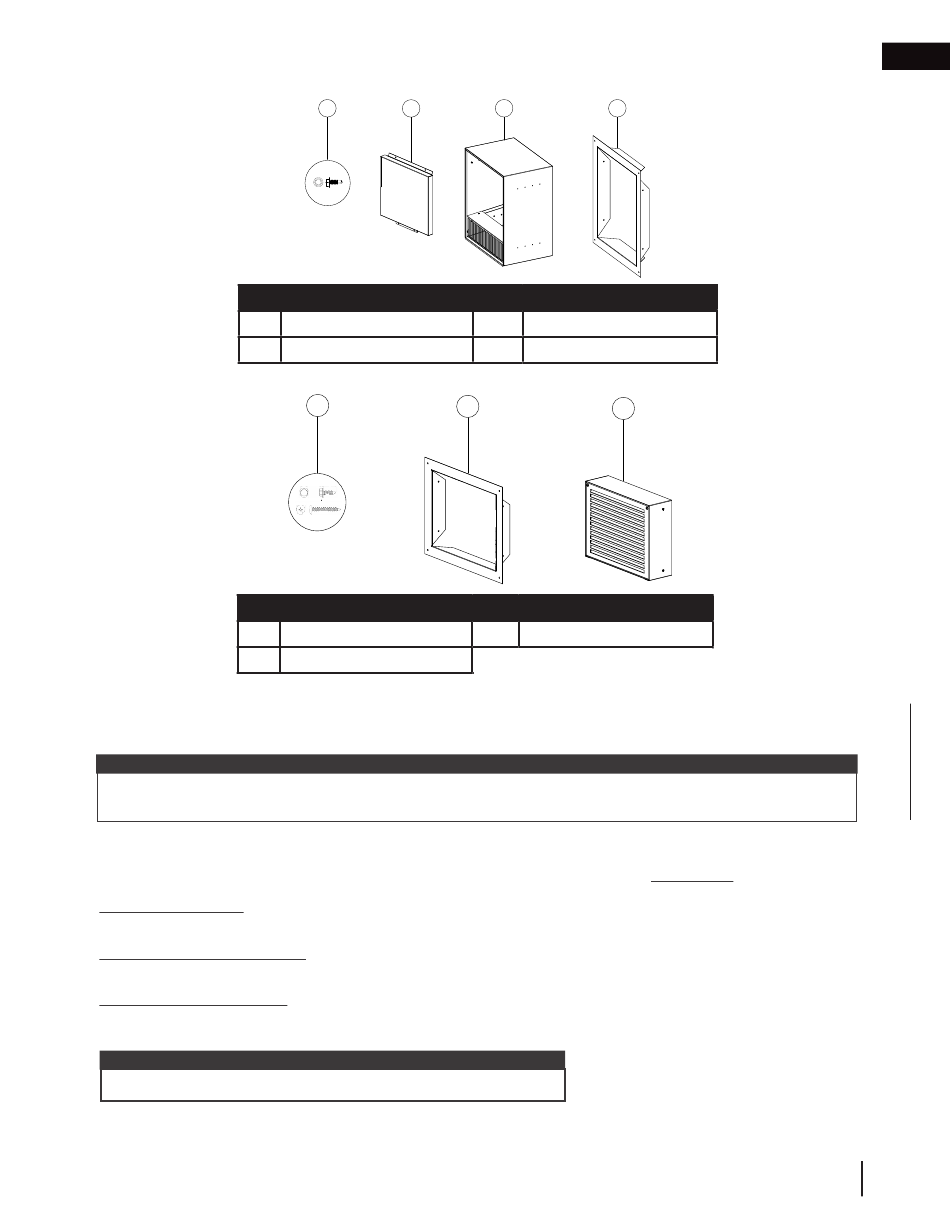

Ref. Description
3 Exterior housing assembly
4 Wall flashing
2
3
Ref. Description
3 Hot air exhaust assembly
