Completed Installation Checklist - Napoleon DYNAMIC HEAT CONTROL PLUS Series Installation And Operation Manual

remote exterior installation
EN
5.4

completed installation checklist

! WARNING
• Ensure all items are checked for your respective installation or a serious fire hazard could result.
• Completed installations must conform to local codes or, in the absence of local codes, the National Gas and
Propane Installation Code CSA B149.1 in Canada, or the National Fuel Gas Code ANSI Z223.1 / NFPA 54 in the
United States.
Installer, please tick all boxes for this installation or it IS NOT considered complete.
1. DHCP-BK installed into DHCP-EK.
2. Air damper assembly installed and checked.
3. Rough opening framed into exterior wall.
4. Wall flashing installed and sealed appropriately for finish
material.
5. DHCP-EK attached to exterior wall.
6. Inline cover assembly installed (see "electrical informa-
tion" section).
7. Decorative cover installed and system operation checked
with appliance (see "electrical information" section).
8. Ø 6" (152mm) hole cut into appliance enclosure.
9. Collar plate assembly secured.
10. 6" rigid steel venting (not supplied) installed.
11. Wiring completed (see "electrical information" section).
12. On/off switch adjusted to fully "on" position.
16
W415-1789 / C / 01.29.19

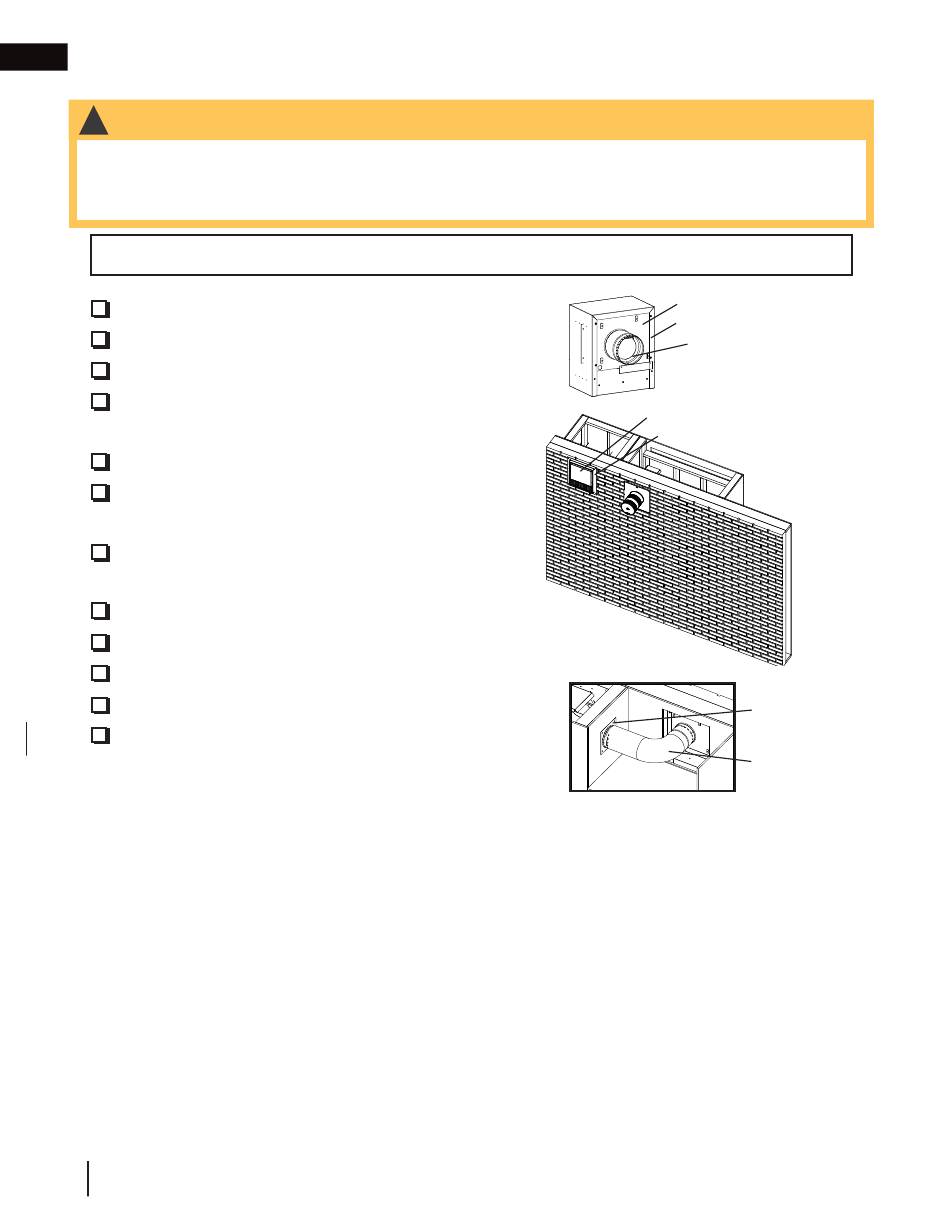

DHCP-BK
DHCP-EK
Air Damper Assembly
Decorative Cover
Wall Flashing
Interior
Exterior
6" Collar Plate
Assembly
6" Rigid Steel
Venting
(Not Supplied)
