4.0 exterior installation

EN
4.1

exterior installation overview

WARNING
!
• Minimum clearance to combustibles must be maintained or a serious fire hazard could result.
• DO NOT cover or place any items in the Dynamic Heat Control™ air outlet opening. Failure to comply with
these instructions will create a fire hazard.
• DHC™ Plus CANNOT be mounted directly above or below the appliance vent terminal as this will
cause the system to fail. It MUST be mounted to the left or right of the appliance vent terminal.
• For optimal performance, we recommend installing DHC™ Plus within the top 12" (30.5cm) of the enclosure.
However, it MUST be installed above the appliance.
• The minimum height requirement above the appliance will vary depending on the appliance size. See "minimum
venting requirements" section of your appliance manual for details.

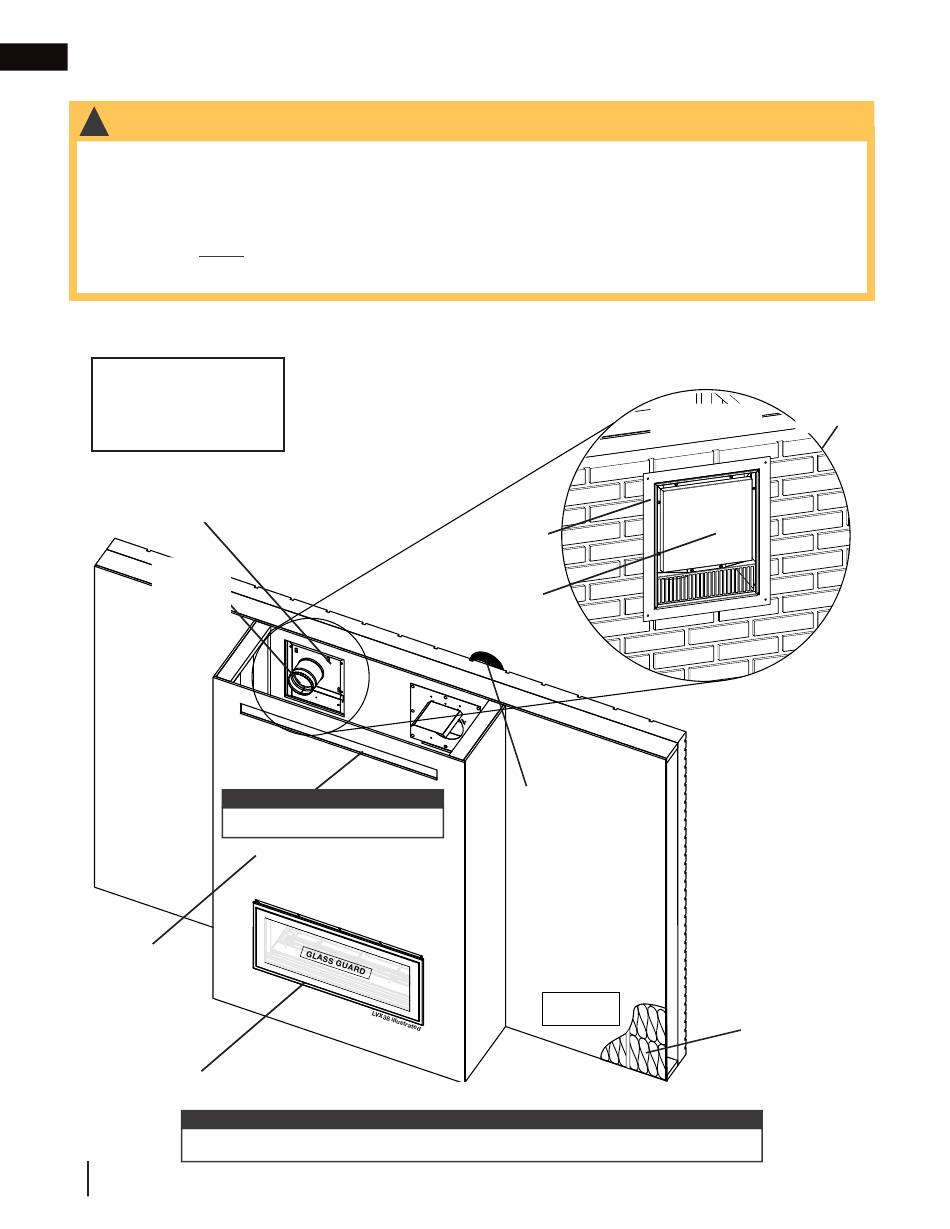

DHC™ Plus exterior installation is the simplest installation option. It is installed on the exterior wall of the appli-
ance enclosure.
Required:
• DHCP-BK
• DHCP-EK
Blower
Housing
Assembly
Air
Damper
Assembly
Enclosure
Appliance
note:
Diagram is for illustrative purposes only. Installation must comply with all local codes.
10
W415-1789 / C / 01.29.19
note:
MUST have air outlet opening.
Wall
Flashing
Decorative
Cover
Appliance
Vent Terminal
(if applicable)
Interior
Maintain
distance to
combustibles.
Exterior
Housing
View of Opposite
Assembly
Exterior Wall
Exterior
Insulation
