6.3

surface

In this mounting option, the exterior housing assembly
is surface-mounted to the finished exterior wall
without the use of a wall flashing.
requires the framing of a minimum Ø 6" (152mm)
clearance hole in the exterior wall for the air damper
assembly (see illustrations).
note:
When surface-mounting DHC™ Plus, ensure to fix
the appliance to studs.
Due to a variety of potential finish materials, brackets
to mount DHC™ Plus need to be fabricated on-site
from suitable materials and attached using self-
drilling fasteners at the dimples provided on the
side of the housing. Suitable flashing, drip edges,
and sealing must be completed in accordance with
good construction practices to weather-proof the
installation.
Care must be taken to fasten the DHC™ Plus
securely, and the weight of the system must not be
supported by the ducting or air damper assembly.
Exterior
Exterior Housing
Assembly

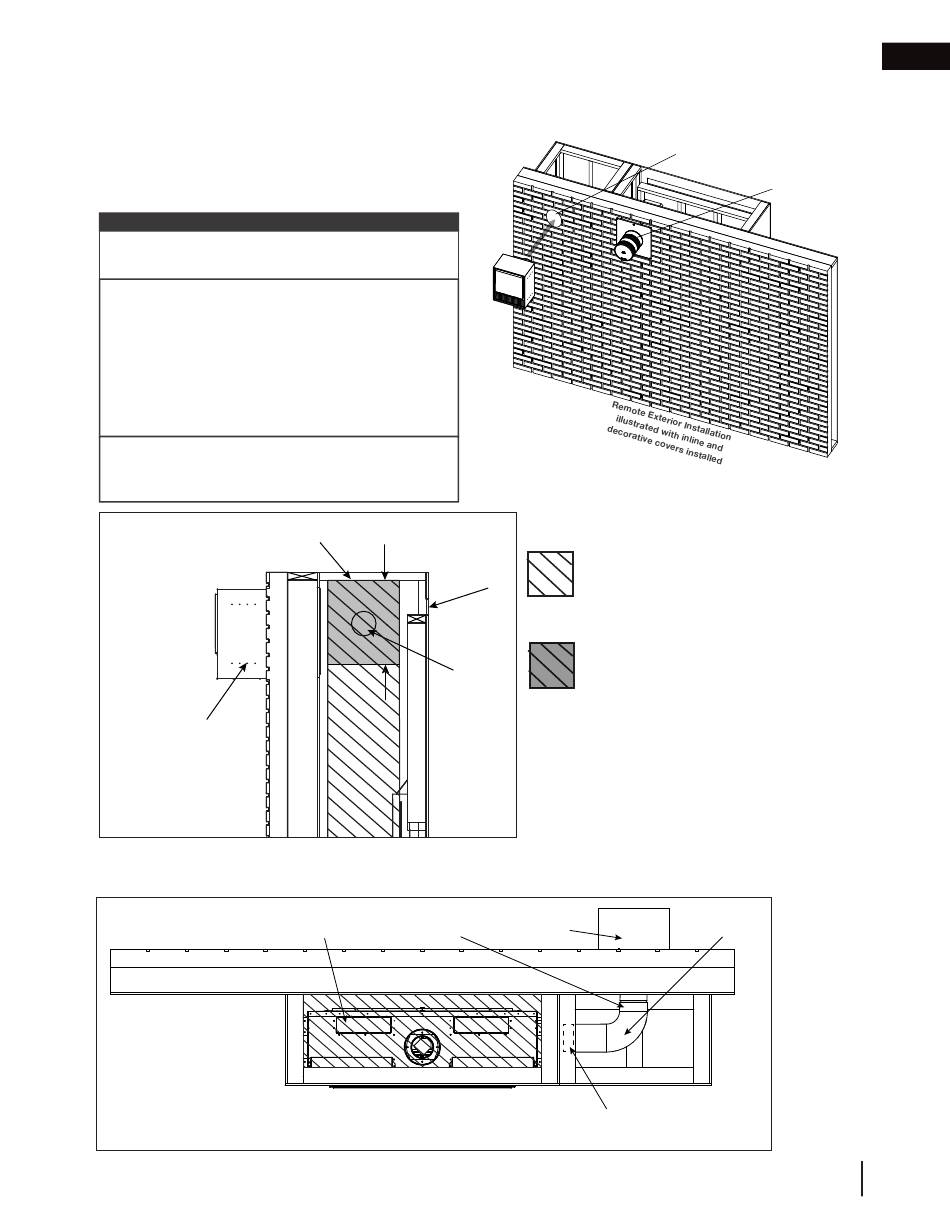

Left Side Profile View
(Remote Exterior Installation illustrated. Some components may not apply to
your unique installation.)
Exterior
Interior
(Remote Exterior Installation illustrated. Some components may not apply to your unique installation.)
Surface-mounting
Top of
12"
Enclosure
(30.5cm)
Air Outlet
Opening
Interior
Ø 6" (152mm)
Hole &
Installed
Collar Plate
Assembly or
Enclosure
Appliance Air Damper
(LVX38 Illustrated) Assembly
Top Side View
mounting options
Minimum Ø 6"
(152mm)
Clearance Hole
Exterior
No materials of any type permitted in this
area with the exception of an approved
appliance vent system or the DHC™
Plus system.
Recommended DHC™ Plus collar plate
assembly installation zone (12" [30.5cm]).
Exterior Housing
Assembly
Installed 6" Collar
Plate Assembly
Ø 6" Appliance
(152mm)
Vent Terminal
hole Appliance
Vent Terminal
(if applicable)
(if applicable)
Interior
Interior
Exterior
6' Rigid
Steel Venting
W415-1789 / C / 01.29.19
