This manual MUST be given to the user of the product.
BEFORE using this product, this manual MUST be read and saved for
future reference.

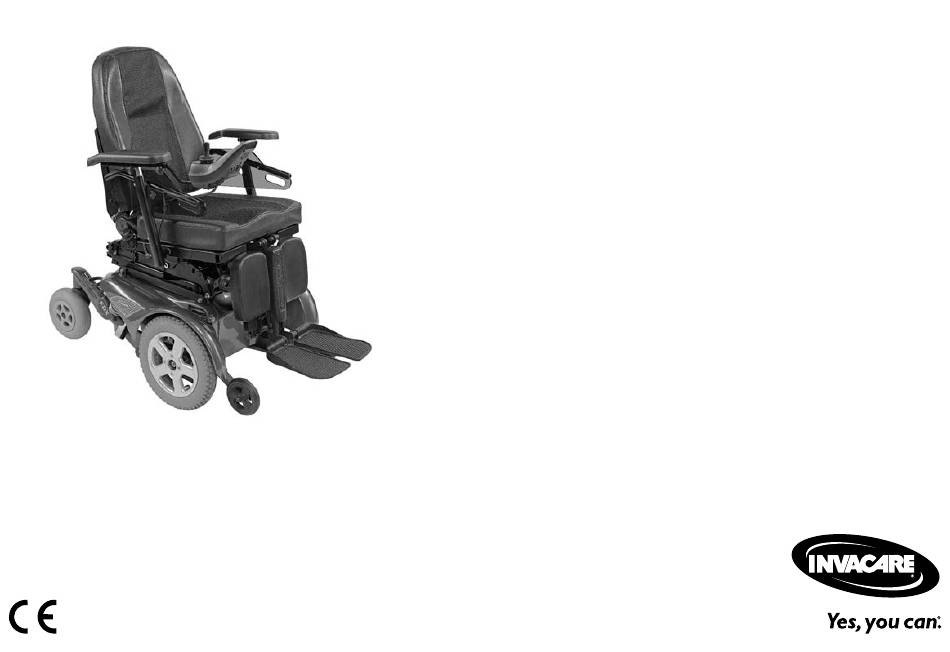

Invacare® FDX®
en Power Wheelchair
User Manual

Advertisement

Table of Contents
loading

Related Manuals for Invacare FDX

Summary of Contents for Invacare FDX

  • Page 1 Invacare® FDX® en Power Wheelchair User Manual This manual MUST be given to the user of the product. BEFORE using this product, this manual MUST be read and saved for future reference.
  • Page 2 All rights reserved. Republication, duplication or modification in whole or in part is prohibited without prior written permission from Invacare. Trademarks are identified by ™and ®. All trademarks are owned by or licensed to Invacare Corporation or its subsidiaries unless otherwise noted.

  • Page 3: Table Of Contents

    5 Setup ......... . . 27 Contents 5.1 General setup information .
  • Page 4 5.8 Adjusting the seat angle ......42 5.16 Center-mounted legrests — manually adjustable ..58 5.8.1 Manual .
  • Page 5 5.20.6 Unlocking and swivelling the calf pad backward 7.2.1 General Information on Charging ....86 when alighting ......74 7.2.2 General Instructions on Charging .
  • Page 6 10.2 Disposal ........107 11 Technical Data ........108 11.1 Technical specifications .

  • Page 7: General

    For more information about the product, for example order to carry out certain work. product safety notices and product recalls, contact your Invacare representative. See addresses at the end of this document. 1541361-N...

  • Page 8: Intended Use

    • brake failure 1.5 Type Classification You should immediately contact an authorised Invacare This vehicle has been classified according to EN 12184 as a provider if the usability of your mobility device is restricted class B mobility product (for indoor and outdoor areas). It...

  • Page 9: Warranty Information

    (e.g. missing or torn 1.10 Limitation of Liability heel straps) • damage to the postural belt Invacare accepts no liability for damage arising from: • damage to the joystick (joystick cannot be moved into the neutral position) •...

  • Page 10: Safety

    Invacare® FDX® 2 Safety WARNING! Risk of Death, Serious Injury or Damage Improper routing of cables may cause a tripping 2.1 General Safety Notes entanglement or strangulation hazard that may result in death, serious injury or damage. DANGER! – Ensure all cables are routed and secured Risk of Death, Serious Injury, or Damage properly.
  • Page 11 Safety WARNING! WARNING! Risk of damage or injury if mobility device is Risk of injury when transferring mobility device accidentally set into motion to a vehicle for transport with the occupant – Switch the mobility device off before you get seated in it in, get out or handle unwieldy objects.
  • Page 12 Invacare® FDX® WARNING! CAUTION! Risk of falling out of the mobility device Risk of injury due to wrong lifting or dropping – Do not slide forward on the seat, do not lean of heavy components forward between your knees, do not lean –...

  • Page 13: Safety Information With Regard To Care And Maintenance

    – For reasons of safety and in order to avoid mobility device that are not expressly certified accidents which result from unnoticed wear, it by Invacare for this purpose. Have all electrical is important that this mobility device undergoes installations done by your authorized Invacare an inspection once every year under normal provider.
  • Page 14 Invacare® FDX® will remain within the tolerance permitted by law. For these reasons we ask you to please observe the following precautions: WARNING! Risk of malfunction due to electromagnetic interference – Do not switch on or operate portable transceivers or communication devices (such as radio transceivers or cellular phones) when the mobility device is switched on.

  • Page 15: Safety Information On Driving And Freewheel Mode

    Safety 2.4 Safety information on driving and freewheel – Avoid shifting your center of gravity as well mode as abrupt joystick movements and changes of direction when the mobility device is in motion. WARNING! Risk of injury if the mobility device tips over –...

  • Page 16: Safety Information Regarding Changes And Modifications To The Mobility Device

    Invacare® FDX® WARNING! securely in place on the footplates, and that Risk of tipping both legrests are properly locked into place. Antitippers (stabilizers) are only effective on firm ground. They sink in on soft ground such as WARNING! grass, snow or mud if the mobility device rests Risk of injury if you collide with an obstacle itself on them.
  • Page 17 Electrical and electronic components which have not been approved for this product by Invacare. not been approved by Invacare for use with this – In this case, the company that adds or replaces mobility device can cause fire hazards and lead the components or accessories is responsible to electromagnetic damage.

  • Page 18: Safety Information On Wheelchairs With A Lifter

    Invacare® FDX® Important information about maintenance work CAUTION! tools Risk of injury if the wheelchair tips over – Some maintenance work which is described in – Never exceed the maximum permissible load this manual and can be carried out by the user (see chapter 11 Technical Data, page108 ).

  • Page 19: Labels On Product

    Safety 2.7 Labels on product CAUTION! Damage to wheelchair caused by one-sided loading on lifter pillar – One-sided loading occurs if the seat is raised and/or tilted. Always return your seat backrest to the upright position and the seat tilting to the horizontal position before ascending slopes.
  • Page 20 Invacare® FDX® If the mobility device Warning that the mobility is fitted with a table, device may not be used it is imperative that it as a vehicle seat is removed and safely This mobility device stowed when transporting does not satisfy the...
  • Page 21 Safety This product has been supplied from an This symbol indicates the “Drive” position environmentally aware manufacturer. This of the coupling lever. In this position the product may contain substances that could motor is engaged and the motor brakes are be harmful to the environment if disposed of operational.

  • Page 22: Components

    Information regarding operation of the lifter at temperatures of less than 0 °C • Invacare mobility devices are fitted with safety mechanisms that prevent capacity overload of the electronic components. At operating temperatures below freezing point this can, in particular, lead to the lifter actuator being shut down after approx.
  • Page 23 Risk of tipping, if the speed limiter sensors fail when the lifter is raised – If you find that the speed reduction function is not working when the lifter is raised, do not drive with the lifter raised and immediately contact an authorized Invacare provider. 1541361-N...

  • Page 24: Accessories

    Invacare® FDX® 4 Accessories 4.1 Posture Belts A posture belt is an option which can either be fixed to the mobility device ex-works or can be retrofitted by your specialist provider. If your mobility device is fitted with a Belts can only be adjusted on one side which can result in posture belt, your specialist provider will have informed you the buckle not sitting centrally.

  • Page 25: Adjusting Posture Belt Correctly

    Invacare, which you can use to transport your cellphone, wear, and that it is fixed properly to mobility device. If sports glasses etc.
  • Page 26 The adapter can turn in 90° steps, allowing you to attach an accessory from any of four different directions. Please refer to the installation instructions which are available from your Invacare provider or directly from Invacare. More information on the KLICKfix system is available at http://www.klickfix.com.

  • Page 27: Setup

    Off and re-enter set-up specifications. – The mobility device is fitted with an individual, Contact Invacare, if mobility device still does multiply adjustable seating system including not perform to correct specifications. adjustable legrests, armrests, a headrest or other options.

  • Page 28: Adjustment Possibility For Remote

    Invacare® FDX® 5.2 Adjustment Possibility for Remote IMPORTANT! The mobility device is manufactured and The following information is valid for all seating systems. configured individually to the specifications of the order. The assessment must be performed by a CAUTION! healthcare professional according to the user’s Risk of the remote being pushed backwards requirements and health conditions.

  • Page 29: Adjusting Remote For Length Of User's Arm

    Setup 5.2.1 Adjusting Remote for Length of User's Arm • 3 mm Allen key Fig. 5-1 1. Loosen wing screw A. 2. Adjust component to desired position. 3. Tighten wing screw. 5.2.2 Adjusting Remote Height (only for Swing–Away Fig. 5-3 Remote Supports) 1.

  • Page 30: Swivelling Remote To Side

    Invacare® FDX® 5.2.4 Swivelling Remote to Side 1. To change the position of the arm support, loosen the screw (1) and remove it. 2. The position of the arm support is adjusted by selecting a combination of screw holes in the arm support and the drill holes in the fixing plate.

  • Page 31: Adjusting Width Of Armrests

    Setup 5.3.3 Adjusting width of armrests WARNING! Serious risk of injury if one of the armrests falls out of its bracket because they have been adjusted to a width which exceeds the permissible value – The width adjustment is fitted with red markings A and the word "STOP".

  • Page 32: Adjusting Angle Of Armpad On Parallel Sliding

    Invacare® FDX® Release the knob to adjust the armrest angle (1). Loosen screws (1). Set the angle for the armrest. 3. Retighten the knob. Set angle for armrest. 3. Re-tighten screws. Make sure that Nordlock washers After adjusting the armrest height, the angle of the armpad used are re-inserted.

  • Page 33: Adjusting The Mobility Of The Parallel Sliding

    Setup Adjust the armrest width. The possible positions for the armrest are predefined by the drill-holes in the torque support and the armrest axel. 6. Insert the locating pin. Undo the bolts on both sides of the backrest cover (1). 7.

  • Page 34: Adjusting The Arm Support Positions For The Parallel

    Invacare® FDX® Tools: • 5 mm Allen key 1. To make the armrest easier to move, release the bolt of Put the armrest in the vertical position. the adjusting wrench (1) with the Allen key. 2. Release the interior bolts (1) with the Allen key.

  • Page 35: Adjusting Manual Chin Control

    Setup CAUTION! Risk of Injury and Damage Remaining burrs and missing end caps after modifications on rods, such as shortened rod, can lead to injury or damage. – Deburr cut after cutting excessive length. – Re-install end cap after deburring. –...

  • Page 36: Adjusting Egg Switch

    Invacare® FDX® 3. Adjust joystick orientation. If desired, lock joystick in 90 • 7/16 inch wrench degree angle in slot. 4. Tighten hand screw. Adjusting Position on Holder • 5/32 inch Allen key Fig. 5-7 1. Loosen nut A. 2. Adjust egg switch orientation.

  • Page 37: Adjusting Powered Chin Control

    Setup Adjusting Position CAUTION! Risk of Injury and Damage The swing-away mechanism can be turned through 360 Remaining burrs and missing end caps after degrees. modifications on rods, such as shortened rod, can lead to injury or damage. 1. Loosen screw A. –...

  • Page 38: Adjusting Joysticks And Switches On Linkage

    Invacare® FDX® 5.6.2 Adjusting Joysticks and Switches on Linkage Positioning Piko Buttons Positioning Joysticks / Switches Risk of damage to screws If you tighten screws to an improper torque, they Risk of damage to screws might either come loose or get damaged.

  • Page 39: Adjusting Height Of Linkage Switch

    Setup • 19 mm wrench (2x) Fig. 5-11 Fig. 5-10 1. Loosen ball joint A. 1. Loosen screws A (height adjustment) or B (depth 2. Position linkage. adjustment). 3. Tighten ball joint. 2. Move linkage to desired position. 3. Tighten screws. 5.6.3 Adjusting Height of Linkage Switch Adjusting Linkage Orientation Risk of damage to clamping lever...

  • Page 40: Adjustment Options For Modulite Seat Unit

    Invacare® FDX® 1. Loosen clamping lever A. 5.7.2 Adjusting Armrest Width 2. Adjust height of linkage switch. WARNING! 3. Tighten clamping lever. Serious injury hazard if one of the armrests 5.7 Adjustment Options for Modulite Seat Unit falls out of its bracket because they have been adjusted to a width which exceeds the 5.7.1 Adjusting Armrest Height...

  • Page 41: Adjusting Armrest Depth

    The description of how the width is adjusted is contained in the service manual for this mobility device. The service 5.7.3 Adjusting Armrest Depth manual can be ordered from Invacare. However, they contain instructions for specially trained service technicians •...

  • Page 42: Adjusting The Seat Depth

    5.8 Adjusting the seat angle device. The service instructions can be ordered from Invacare. However, they contain instructions for CAUTION! specially trained technicians and describe operations Adjusting the seat tilt or the backrest angle that are not intended for the end user.

  • Page 43: Manual

    Setup 5.9 Adjusting Backrest 5.8.1 Manual You can set the seat angle manually to 0°, 4° or 8°. The CAUTION! factory setting is 4°. Adjusting the seat tilt or the backrest angle changes the geometry of the mobility device The seat angle is adjusted using four perforated strips which and directly influences its dynamic stability! are located under the seat frame.

  • Page 44: Adjusting The Back Seat Angle On The Easy-Adapt

    Invacare® FDX® 5.9.2 Adjusting the back seat angle on the Easy-Adapt seating system 1. Adjust the angle by turning the hand wheel (1). Fig. 5-16 5.9.3 Adjusting Backrest Height 1. Loosen screws A and B. The following section describes the procedures for adjusting Do not remove screws A and B.

  • Page 45: Adjusting Backrest Angle

    The service manual can 3. Adjust component to desired position. be ordered from Invacare. However, they contain 4. Insert screw A. instructions for specially trained service technicians 5. Tighten screws.

  • Page 46: Adjusting The Adaptable Backrest Padding

    Invacare® FDX® Width-Adjustable Backrest • 6 mm Allen key Fig. 5-19 1. Loosen and remove middle backrest screw A on both Fig. 5-18 sides. 2. Adjust desired backrest angle in 7.5° steps. 1. Loosen and remove upper backrest screw A on both Ensure that you set same angle on both sides.
  • Page 47 Setup 1. Open the Velcro straps on the left-hand side of the backrest cushion. Open the individual snap buckles (1) on the adjustment Remove the backrest cushion (fixed with Velcro straps) straps. by pulling it up and away so that you can access the 3.

  • Page 48: Adjusting Rea Headrest

    This can cause the neck to be hyperextended during collisions. – A headrest must be installed. The headrest optionally supplied for this mobility device by Invacare is perfectly suitable for use during transport. – The headrest must be adjusted to the user's ear height.

  • Page 49: Adjusting Cheek Supports

    – A headrest must be installed. The headrest optionally supplied for this mobility device by Fig. 5-20 Invacare is perfectly suitable for use during 1. Loosen hand screw A. transport. 2. Adjust component to desired position. – The headrest must be adjusted to the user's 3.

  • Page 50: Adjusting Elan Headrest Hardware

    Invacare® FDX® • It may be necessary to remove and modify Middle linkage • 100° rotation the back cushion cover in order to access the • 180° rotation Lower linkage headrest mounting holes on the back pan. • An optional shim plate is available. It may be Mounting post •...

  • Page 51: Adjusting The Trunk Support (Easy-Adapt Seating System)

    Setup 1. Using hardware provided, align and install headrest clamp assembly into existing mounting holes in backrest pan A. 2. Install headrest pad (not shown) to headrest rod using mounting hardware provided. The headrest pad can be adjusted to any desired angle via the pivot ball at the end of the headrest rod by loosening and tightening the mounting hardware.

  • Page 52: Adjusting The Width

    Invacare® FDX® 5.12.1 Adjusting the width 1. Undo the height adjustment Allen screws (1). 2. Set the trunk support to the required height. 1. Loosen the handscrews (1). 3. Retighten the screws. 2. Adjust the trunk support to the required width.

  • Page 53: Adjusting/Removing Tray

    Setup 1. Open the zip. 1. Loosen wing screw (1). 2. Undo the screws (1) for the depth adjustment. 2. Adjust component to desired position. 3. Adjust the trunk support to the required position. 3. Tighten wing screw. 4. Retighten the screws. 5.13.2 Adjusting Depth of Tray/Removing Tray 5.

  • Page 54: Seat Support

    Invacare® FDX® CAUTION! Risk of injury! When the tray is raised it does not lock in place in this position! – Do not tilt the tray up and leave it leaning in this position. – Never attempt to drive with the tray tilted up.

  • Page 55: Adjusting The Seat Depth

    Setup 6. Pull or push the seat support plate (2) the required width. A scale (3) has been fitted to the bottom part of the seat support. Use this scale to read off the seat width in centimeters. 7. Repeat these operations on the other side of the seat. 8.

  • Page 56: Adjusting The Seat Depth Without Replacing The Seat Support Plate

    Invacare® FDX® - If the seat support plate does need to be replaced, 5. Repeat these operations on the other side of the seat. please refer to chapter 5.14.4 Adjusting the seat depth 6. Undo and remove the two Allen screws (5) including with replacing the seat support plate, page 57.

  • Page 57: Adjusting The Seat Depth With Replacing The Seat

    Setup 5.14.4 Adjusting the seat depth with replacing the seat 7. Remove the cover plates (1). support plate 8. Undo the two Allen screws (9) at the front on the seat support plate and remove them. 9. Undo the two Allen screws (7) which are located on the side at the front of the seat support plate, and connect these to the crossmembers (4).

  • Page 58: Backrest Unit With Ergonomic Length Compensation (Easy-Adapt)

    Invacare® FDX® 7. Fit the two Allen screws (9) at the front of the seat 3. Push the plate (2) as far as required until the required support plate. width in cm can be read off the scale (3). 8. Refit all the parts you have removed.

  • Page 59: Setting The Angle Of The Leg Rest

    Setup 1. Hold the leg rest securely. 2. Pull the lever (1). 3. Push the leg rest into the required position. Remove removable axle (1). 5.16.3 Setting Length of Legrest • 3/16 inch Allen key You can adjust the length of the legrests independently of one another.

  • Page 60: Setting Angle Of Foot Plate

    5/32 inch Allen key 5.17 LNX legrest 5.17.1 Setting the length of the legrest If needed, the legrest can be pre-set to 83° or 97° instead of 90°. Contact your Invacare provider. • 4 mm Allen key • 10 mm open-ended wrench Fig.

  • Page 61: Setting Angle Of Foot Plate

    Setup 1. Remove screws A at the front of legrest. 2. Remove cover together with calf pads. 3. Loosen nuts B at the side of legrest. It may be necessary to remove the nuts and move them from one slot to the other. 4.

  • Page 62: Vari-F Footrest

    Invacare® FDX® Calf Pad Adjustment — Sample Configurations Centered Extended Lowered Raised Angled Position Offset Offset (maxi- mum) 1. Press the unlocking button (1) and swivel the footrest/legrest outward. • 4 mm Allen key 2. Remove the footrest/legrest in an upward direction.

  • Page 63: Setting The End Stop Of The Footrest

    Setup Loosen the screw (1) using the Allen key. 2. If the footrest cannot be moved after loosening the screw, position a metal pin in the designated borehole (2) and use a hammer to knock on this lightly. The clamping mechanism in the interior of the footrest will be released by this.
  • Page 64 Invacare® FDX® Fig. 5-36 The end position of the footrest is determined by means of a rubber stop (1). Fig. 5-38 Use the Allen key to loosen the screw (1) and swivel the footrest upward in order to access the rubber stop.

  • Page 65: Adjusting The Length Of The Footrest

    Setup 5.18.4 Adjusting the length of the footrest CAUTION! Risk of injury due to incorrect adjustment of the footrests and legrests – Before and during every journey it is imperative to ensure that the legrests contact neither the castor wheels nor the ground. •...

  • Page 66: Setting The Angle

    Invacare® FDX® it can be swivelled inward or outward when getting into the wheelchair as well as being removed completely. Loosen the locking knob (1) counter-clockwise at least one turn. 1. Press the unlocking button (1) and swivel the footrest/legrest outward.

  • Page 67: Setting The End Stop Of The Legrest

    Setup The end position of the legrest is determined by means of a rubber stop (1). Set the desired angle. The rubber stop can be screwed in or out A or pushed Turn the knob clockwise to tighten it. up or down B. 5.19.3 Setting the end stop of the legrest •...
  • Page 68 Invacare® FDX® Loosen the locking knob (1) counter-clockwise at least Swivel the legrest upward in order to access the rubber one turn. stop. Use the wrench to loosen the counternut (1). Hit the knob to release the locking mechanism. 1541361-N...

  • Page 69: Adjusting The Length Of The Legrest

    Setup 5.19.4 Adjusting the length of the legrest CAUTION! Risk of injury due to incorrect adjustment of the footrests and legrests – Before and during every journey it is imperative to ensure that the legrests contact neither the castor wheels nor the ground. Move the rubber stop to the desired position.

  • Page 70: Adjusting The Height Of The Calf Pad

    Invacare® FDX® • 10 mm wrench 1. Use the Allen key to loosen the screws (1). 2. Adjust to the desired position. 3. Re-tighten the screws. 5.19.7 Unlocking and swivelling the calf pad backward when alighting 1. Use the wrench to loosen the nut (1) and remove.

  • Page 71: Adjusting The Angle-Adjustable Foot Plate

    Setup 1. Use the Allen key to loosen both set screws on the foot Unlock the legrest and swivel outward. plate. The calf pad swivels backward on its own. 2. Adjust to the desired angle. 3. Re-tighten the screws. 5.19.9 Adjusting the angle– and depth–adjustable foot plate •...

  • Page 72: Adm Legrests

    Invacare® FDX® 5.20 ADM legrests CAUTION! Risk of injury due to incorrect adjustment of the 5.20.1 Swivelling the legrest outward and/or removing footrests and legrests – Before and during every journey it is imperative The small unlocking button is located on the upper section to ensure that the legrests contact neither the of the legrest.

  • Page 73: Adjusting The Length Of The Legrest

    Setup Lowering 1. Keep the legrest in the foot plate area, pull the lateral adjusting lever (1) and lower the legrest slowly. 5.20.3 Adjusting the length of the legrest 1. Use the spanner to loosen the screw (1). 2. Adjust to the desired length. CAUTION! 3.

  • Page 74: Adjusting The Height Of The Calf Pad

    Invacare® FDX® 1. Use the Allen key to loosen the screws (1). 2. Adjust to the desired position. 3. Re-tighten the screws. 5.20.6 Unlocking and swivelling the calf pad backward 1. Use the wrench to loosen the nut (1) and remove.

  • Page 75: Adjusting The Angle-Adjustable Foot Plate

    Setup 1. Use the Allen key to loosen both set screws on the foot Unlock the legrest and swivel outward. plate. The calf pad swivels backward on its own. 2. Adjust to the desired angle. 3. Re-tighten the screws. 5.20.8 Adjusting the angle– and depth–adjustable foot plate •...

  • Page 76: Powered Elevating Legrests (Ade Legrests)

    Invacare® FDX® 5.21 Powered elevating legrests (ADE legrests) CAUTION! Risk of injury due to incorrect adjustment of the 5.21.1 Swivelling the legrest outward and/or removing footrests and legrests – Before and during every journey it is imperative The small unlocking button is located on the upper section to ensure that the legrests contact neither the of the legrest.

  • Page 77: Adjusting The Depth Of The Calf Pad

    Setup 1. Use the wrench to loosen the screw (1). 5.21.5 Adjusting the height of the calf pad 2. Adjust to the desired length. 3. Re-tighten the screw. • 4 mm Allen key 5.21.4 Adjusting the depth of the calf pad The depth of the calf pad can be adjusted via the holding plate.

  • Page 78: Adjusting The Angle-Adjustable Foot Plate

    Invacare® FDX® 1. Use the Allen key to loosen both set screws on the foot Unlock the legrest and swivel outward. plate. The calf pad swivels backward on its own. 2. Adjust to the desired angle. 3. Re-tighten the screws.

  • Page 79: Adjusting The Width Of Side-Mounted Legrests

    Setup 5.22 Adjusting the width of side-mounted legrests Tools: • 13 mm wrench The screws that allow width adjustment of side-mounted legrests are located under the seat (1). 1. Loosen the screws using the wrench. 2. Adjust the legrest to the desired position. 3.

  • Page 80: Usage

    Invacare® FDX® 6 Usage 6.1 Before Driving for First Time Before you take your first trip, you should familiarise yourself well with the operation of the mobility device and with all operating elements. Take your time to test all functions and driving modes.

  • Page 81: Information About Getting In And Out

    Usage 6.2.3 Information About Getting in and out 5. Depending on armrest type of your mobility device, detach armrest or swivel it up. 6. Now slide into mobility device. Getting out of Mobility Device: 1. Position your mobility device as close as possible to your seat.

  • Page 82: Safety Information When Taking Obstacles

    Invacare® FDX® 6.3.2 Safety Information When Taking Obstacles CAUTION! Risk of tipping over – Never approach obstacles at an angle but at 90 Fig. 6-3 Right Fig. 6-4 Wrong degrees as shown below. – Approach obstacles followed by a gradient with Ascending caution.

  • Page 83: Driving Up And Down Gradients

    Usage Descending CAUTION! Risk of tipping over The approach to descend an obstacle is the same as to – Only ever drive downhill at a maximum of 2/3 ascend it with the difference that you need not to stop of the top speed. Avoid sudden changes of before descending.

  • Page 84: Parking And Stationary

    – Avoid touching the motor surfaces when device needs to be fitted with an appropriate lighting system. engaging or disengaging. Contact your Invacare provider if you have any questions. CAUTION! 6.7 Pushing the mobility device in freewheel Risk of the mobility device running away –...
  • Page 85 Usage Each motor is fitted with an engaging lever which is used to engage or disengage the motor. Disengaging the motor: 1. Switch off remote. 2. Pull the engaging lever (1) upwards. The motor is disengaged. Engaging the motor: 1. Push the engaging lever down (1). The motor is engaged.

  • Page 86: Controls System

    When the battery indicator reached the red LED range, checking the entire controls system. A specialised charge the batteries for 16 hours minimum, neglecting Invacare provider must perform the replacement. the charge complete display! You can find information on the fuse type in 11 •...

  • Page 87: Charging Batteries

    WARNING! chargers may be left unattended during charging. All Risk of short circuit and electric shock if the charging devices which are supplied by Invacare comply battery charger has been damaged with these requirements. – Do not use the battery charger if it has been •...

  • Page 88: Disconnecting Mobility Device After Charging

    Invacare® FDX® • Gel and AGM batteries are maintenance-free. Any WARNING! performance issues should be handled by a properly Risk of injury if using the mobility device during trained mobility device technician. charging – DO NOT attempt to recharge the batteries and 7.2.6 Instructions on Using Batteries...

  • Page 89: Transporting Batteries

    Controls System • Be aware that for temperatures below 20 °C, the restrictions, whether by road, rail or by air. Individual nominal battery capacity starts to decline. For example, transport companies have, however, guidelines which can at -10 °C the capacity is reduced to about 50 % of the possibly restrict or forbid certain transport procedures.

  • Page 90: Use The Correct Batteries

    – Only use batteries that have a pole configuration like that described below. For the FDX you may only use batteries that have the positive pole on the left and the negative one on the right. The poles must have an internal thread. See the following Fig.

  • Page 91: Transport

    Transport 8.2 Transferring Mobility Device to Vehicle 8 Transport WARNING! 8.1 Transport — General information Mobility device is at risk of tipping over if transferred to a vehicle while user is still seated CAUTION! in mobility device Risk of injury or material damage if a mobility –...

  • Page 92: Use Of Mobility Device As Seat In Vehicle

    Invacare® FDX® 8.3 Use of Mobility Device as Seat in Vehicle WARNING! Risk of injury and damage to mobility device The following section does not apply to models or and vehicle configurations which may not be used as a vehicle Risk of tipping over or uncontrolled movements seat.
  • Page 93 – If your mobility device is fitted with an angle safely use this wheelchair as a vehicle seat. adjustable backrest, then it must be placed in Contact Invacare for more details. an upright position. – Fully lower elevated legrests, if fitted.

  • Page 94: How The Mobility Device Is Anchored In A Vehicle For Use As A Vehicle Seat

    (UK for example), but may also be obtained from Invacare as an option in other countries. 1541361-N...

  • Page 95: Device

    Transport 8.3.2 How the user is secured within the mobility device CAUTION! Risk of injury if the user is not properly secured within the mobility device – Even if the mobility device is fitted with a posture belt, this is no substitute for a proper safety belt which complies with ISO 10542 in the transport vehicle.
  • Page 96 This can cause the neck to be hyperextended during collisions. – A headrest must be installed. The headrest optionally supplied for this mobility device by Invacare is perfectly suitable for use during transport. – The headrest must be adjusted to the user's ear height.

  • Page 97: Transporting The Mobility Device Without Occupant

    3. Slide front shroud (1) up a little and pull shroud forward Risk of injury to remove it. – If you are unable to fasten your mobility device securely in a transport vehicle, Invacare Replacing the front shroud: recommends that you do not transport it. 1. Replace parts in reverse order.

  • Page 98: Removing The Rear Shroud

    Invacare® FDX® 8.4.2 Removing the rear shroud CAUTION! Risk of crushing The batteries are very heavy. There is a risk of hand injury. – Be aware that the batteries are very heavy. – Handle the batteries with care. • Phillips screwdriver, size 2 •...

  • Page 99: Dahl Docking System

    Transport 11. Lift the electronic module rack and remove it. Place the rack underneath the wheelchair to the rear. 12. Pull the two batteries backwards out of the chassis and remove them. Remember that the batteries are very heavy Fitting the batteries: 1.
  • Page 100 Invacare® FDX® Components of Dahl Docking System The description of how to install the Dahl Docking system to maintain the CE-marking of the product is contained in the service manual of this mobility device. The service manual can be ordered from Invacare.
  • Page 101 Transport Locking in Dahl Docking Station 4. When mobility device is properly secured, warning tone ceases, red LED goes out and green LED lights up. WARNING! 5. Buckle up with seat belt of vehicle. Risk of Death, Serious Injury or Damage Always check before moving the vehicle if lock plate If the vehicle is moved while the mobility device is properly engaged in the Dahl Docking station by...
  • Page 102 Invacare® FDX® 1. Move mobility device forward to release pressure on locking pin. 2. Push manual emergency release lever (8) to one side and hold it there, while mobility device moves away. 3. A cable-activated manual operating lever (9) can also be fitted (accessory).

  • Page 103: Maintenance

    When cleaning the mobility device, pay attention to the Invacare. That manual, however, is intended to be used by following points: trained and authorised service technicians, and describes •...

  • Page 104: Weekly

    Invacare® FDX® Item Inspection Check If Inspection is not Passed Lighting system Check that all lights, such as turn indicators, head lamps and Contact your provider. tail lights, are functioning correctly. Batteries Make sure batteries are charged. Refer to user manual...

  • Page 105: Wheels And Tyres

    Use tyre gauge to check pressure. Check weekly that the tyres are inflated to the correct pressure, see chapter 9.3 Inspection Checks, page103 . For recommended tyre pressure see inscription on tyre/rim or contact Invacare. Compare table below for conversion. 1541361-N...

  • Page 106: Short-Term Storage

    Invacare® FDX® • The components are tested and approved for greater temperature ranges as detailed below: – Allowable temperature range to store the mobility device is -40° up to 65 °C. – Allowable temperature range to store batteries is -25° up to 65 °C.

  • Page 107: After Use

    Electric components and printed circuit boards are disposed of as electronic scrap. • Exhausted or damaged batteries can be returned to your medical equipment supplier or Invacare. • Disposal must be carried out in accordance with the respective national legal provisions.

  • Page 108: Technical Data

    Invacare® FDX® 11 Technical Data 11.1 Technical specifications The technical information provided hereafter applies to a standard configuration or represents maximum achievable values. These can change if accessories are added. The precise changes to these values are detailed in the sections for the respective accessories.
  • Page 109 Technical Data Charging device Output current • 8 A ± 8 % • 10 A Output voltage • 24 V nominal (12 cells) Drive wheel tires Tire type (6 km/h) • 12½" x 2¼" puncture-proof • 14” x 3.00” pneumatic, puncture protected or puncture-proof Tire type (10 km/h) Tire pressure The recommended maximum tire pressure in bar or kpa is marked on the side...
  • Page 110 Invacare® FDX® Driving characteristics with lifter • 6° (10.5 %) according to manufacturer’s specifications with 136 kg payload, 4° seat angle, 20° backrest angle Max. climbable obstacle height • 60 mm • 700 mm Turning radius Drive range • 32 km (26 km in accordance with ISO 7176-4)
  • Page 111 Technical Data Seat type Dimensions in accordance with ISO 7176–15 Basic Standard Standard Easy Adapt Backrest height • 550 mm • 480/540 mm • 90° ... 120° Backrest angle • 80°, 90°, 97,5°, 105°, 112,5°, 120° (manual) • 90° ... 106° (electrical) •...
  • Page 112 470 - 770 mm • 455 – 755 mm Seat height (with lifter) • 417 – 717 mm (FDX Low–Rider) Seat width (armrest • 480 mm (490 - 530 mm • 380 mm (390 - 480 mm adjustment range in brackets) •...
  • Page 113 Technical Data Footrests and legrests Type Length Angle Vari A • 290 – 460 mm • 70° - 0° Vari F • 290 – 460 mm • 70° - 0° • 290 – 460 mm ADE (electric) • 75° - 0° •...
  • Page 114 Telescopic seat frame with sling seat + 30 mm The actual curb weight depends on the fittings your mobility device has been supplied with. Every Invacare mobility device is weighed when leaving the works. Refer to the nameplate for the curb weight (including batteries) measured.

  • Page 115: Service

    It is confirmed by stamp and signature that all jobs listed in the inspection schedule of the service and repair instructions have been properly performed. The list of the inspection jobs to be performed can be found in the service manual which is available through Invacare. Delivery Inspection...
  • Page 116 Invacare® FDX® Stamp of authorised provider / Date / Signature Stamp of authorised provider / Date / Signature 4th Annual Inspection 5th Annual Inspection Stamp of authorised provider / Date / Signature Stamp of authorised provider / Date / Signature...
  • Page 117 Notes...
  • Page 118 Notes...
  • Page 119 Notes...
  • Page 120 Invacare Sales Companies Australia: Canada: Ireland: New Zealand: Invacare Australia Pty. Ltd. Invacare Canada L.P. Invacare Ireland Ltd, Invacare New Zealand Ltd 1 Lenton Place, North Rocks NSW 570 Matheson Blvd East, Unit 8 Unit 5 Seatown Business Campus 4 Westfield Place, Mt Wellington 1060 2151 CDN Mississauga, On.

Table of Contents
