IP500 Digital Station Base Card

2.7 Trunk Cards

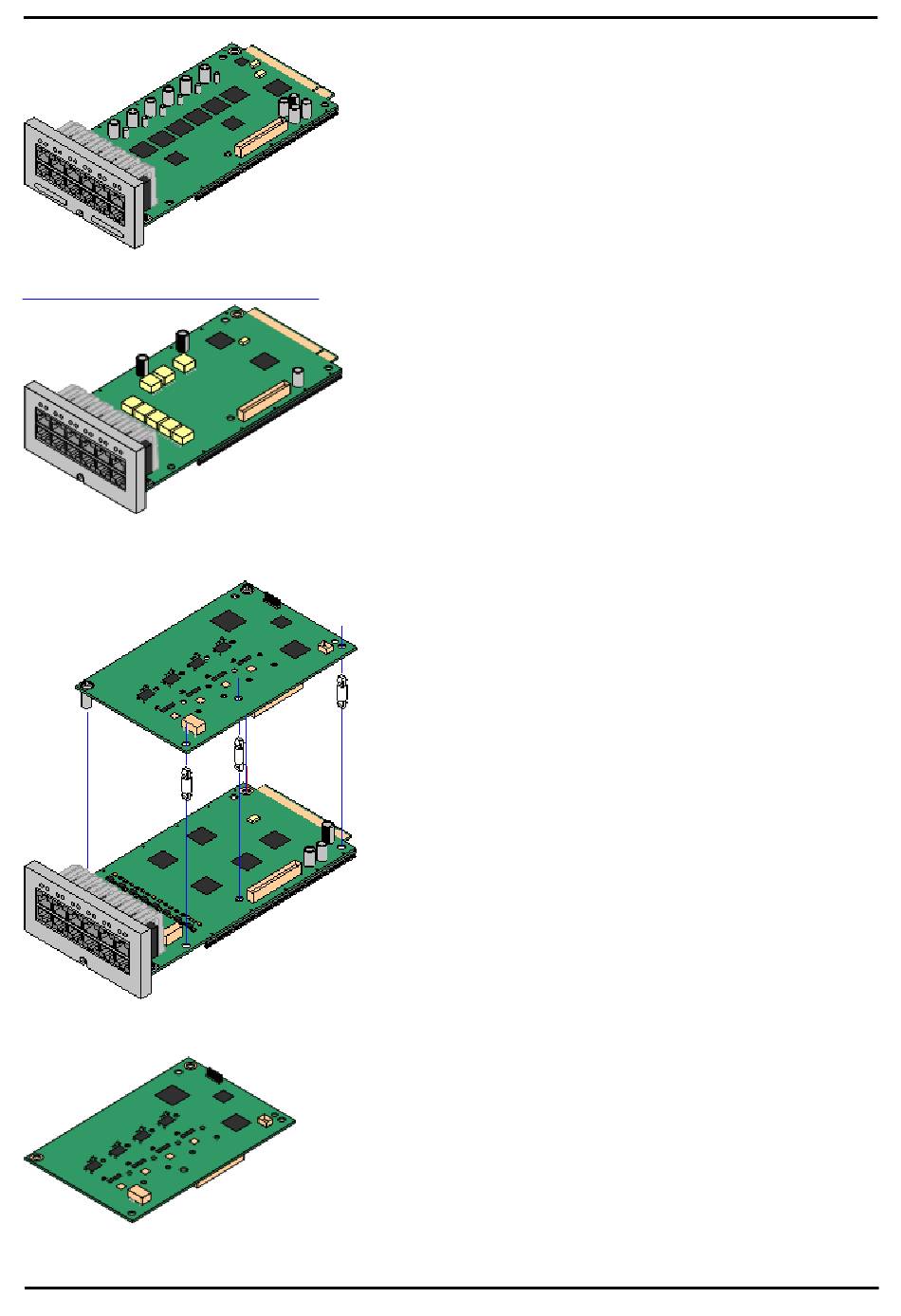

IP Office 500 Analog Trunk Daughter Card
PARTNER® Version, Installation and Reference Manual
IP Office Essential Edition
· The card can be fitted with an IP500 trunk daughter card which uses
the base card ports for trunk connection.
· Maximum: 3 per control unit.
· The analog phone ports do not include a ringing capacitor. Where
this is a requirement, connection should be via a Master socket
containing ringing capacitors.
· If fitted with an IP Office 500 Analog Trunk daughter card, during
power failure phone ports 7 and 8 are connected to analog trunk
port 12. However during normal operation analog phone ports 7 and
8 are not useable.
This card provides 8 DS (digital station) ports for the connection of
Avaya digital phones other than IP phones.
· The card can be fitted with an IP Office 500 trunk daughter card
which uses the base card ports for trunk connection.
· Maximum: 3 per control unit.
· 4400 Series phones (4406D, 4412D and 4424D) are not supported
on this card. They are supported on an external expansion module.
IP Office 500 daughter trunk cards can be fitted to IP Office 500
base cards to provide support for trunk. The daughter card uses the
physical ports provided on the front panel of the base card for cable
connection.
The addition of an IP Office 500 daughter card is supported on any
IP Office 500 base card except the IP Office 500 Legacy Card Carrier
base card.
For those base card that support daughter cards, there are no
restrictions on the combination of card types. However in systems
with both analog phone base cards and analog trunk daughter cards,
combining the two types is recommended as it then provides analog
power failure support for one trunk/extension.
Each daughter card is supplied two pre-fitted metal pillars and 3
plastic pillars. Two screws and washers for final attachment of the
metal pillars to the base card are also included.
This card can be added to IP Office 500 base cards. It enables that
base card to then also support four analog loop-start trunks.
· When fitted to an IP Office 500 Analog Phone 8 base card, the
combination supports 1 power failure extension to trunk
(loop-start only) connection.
· Maximum: 2 per IP Office 500v2 control unit.
